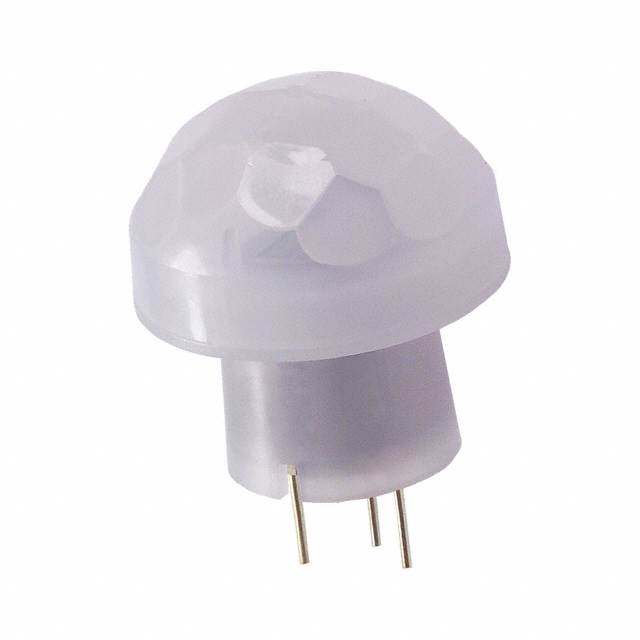

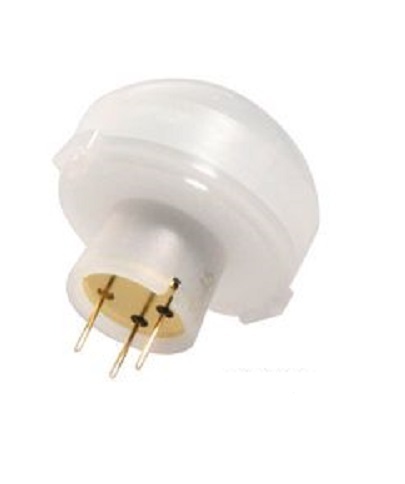

Panasonic EKMC1604113 PIR Motion Sensor Saturn Lens Pearl White - 12m Detection, Wall Mount
The Panasonic EKMC1604113 is a passive infrared (PIR) motion sensor module featuring a Saturn-style pearl white lens for a 12-meter detection range. It provides a digital output signal ideal for triggering lighting controls, security systems, and IoT devices with Arduino, Raspberry Pi, or industrial controllers.
Features
- Passive Infrared (PIR) sensor with a 12-meter long-distance detection capability.
- Low 170 μA operating current suitable for battery-powered and line-voltage applications.
- Digital output (high/low) triggers upon detecting a temperature change as low as 3°C.
- Pearl white Saturn lens provides a 40° x 105° detection field of view with pet immunity optimization.
- Compact, enclosed industrial-grade sensor module designed for wall or corner mounting.
Out of stock

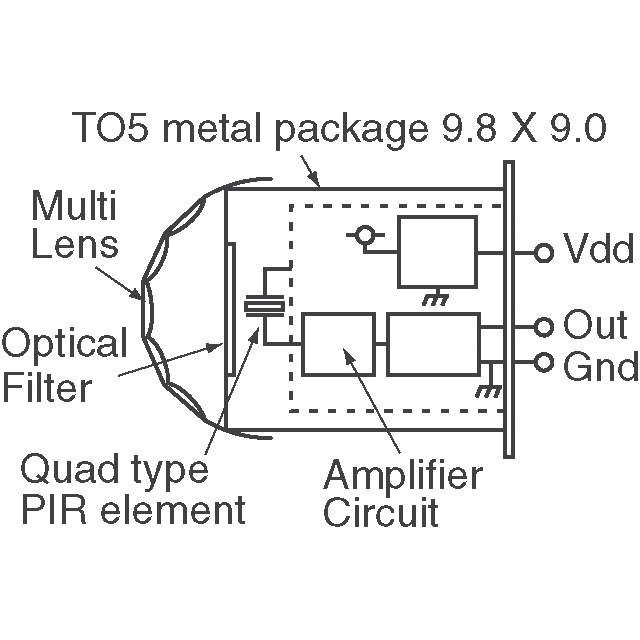

The Panasonic EKMC1604113 is a high-reliability pyroelectric infrared (PIR) motion sensor module. It detects low-wavelength infrared radiation (around 10µm) emitted by moving objects, such as humans, by sensing temperature differentials as small as 3°C relative to the ambient environment. An internal window comparator evaluates changes in the IR level, switching the digital output high to trigger external control circuitry.
Engineered for industrial and commercial applications, the sensor features an enclosed sensing circuit for a high signal-to-noise (S/N) ratio and stability. Its compact form factor, low power consumption, and integrated Saturn-style lens make it a plug-and-play solution for motion-activated systems, saving significant design and integration time.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.5 × 2.1 cm |
