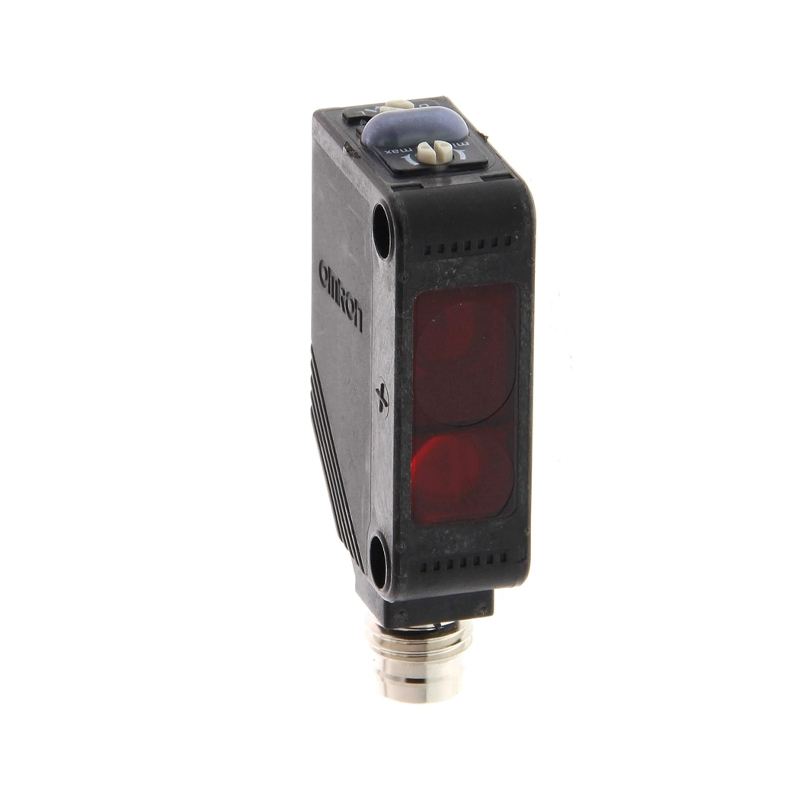

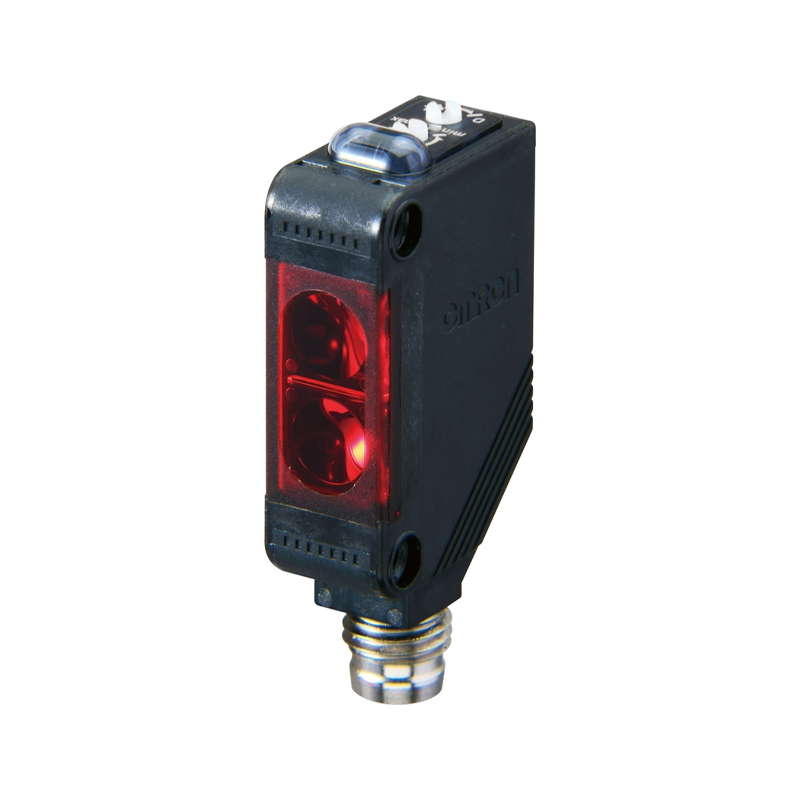

Omron E3Z-D67 Photoelectric Sensor - NPN Open-Collector, 12-24VDC, 860nm IR, 1m Range, IP67
The Omron E3Z-D67 is a compact, self-contained photoelectric sensor with a built-in amplifier, designed for industrial automation. It features a 1-meter sensing distance via an 860 nm infrared LED, NPN open-collector output, and operates on a 12-24 VDC supply, making it compatible with PLCs and industrial control systems.
Features
- 1-meter sensing range with 860 nm infrared LED light source
- NPN open-collector output compatible with 12-24 VDC supply
- Fast 1 ms response time for high-speed detection applications
- IP67-rated housing for dust and water immersion protection
- Wide operating temperature range from -40°C to +55°C
Out of stock
The Omron E3Z-D67 is a through-beam type photoelectric sensor engineered for reliable object detection in challenging industrial environments. Its core sensing principle utilizes a modulated 860 nm infrared LED and a corresponding receiver, providing immunity to ambient light interference for stable operation.
Housed in a robust, IP67-rated enclosure, the sensor is protected against dust ingress and temporary immersion in water. It integrates a built-in amplifier and signal conditioning circuitry, delivering a clean NPN open-collector output signal for direct interfacing with programmable logic controllers (PLCs), counters, and other industrial automation equipment. Features like reverse polarity protection and a wide -40°C to +55°C operating range ensure dependable performance in cold storage, material handling, and packaging machinery.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 5 × 3 × 1.7 cm |
