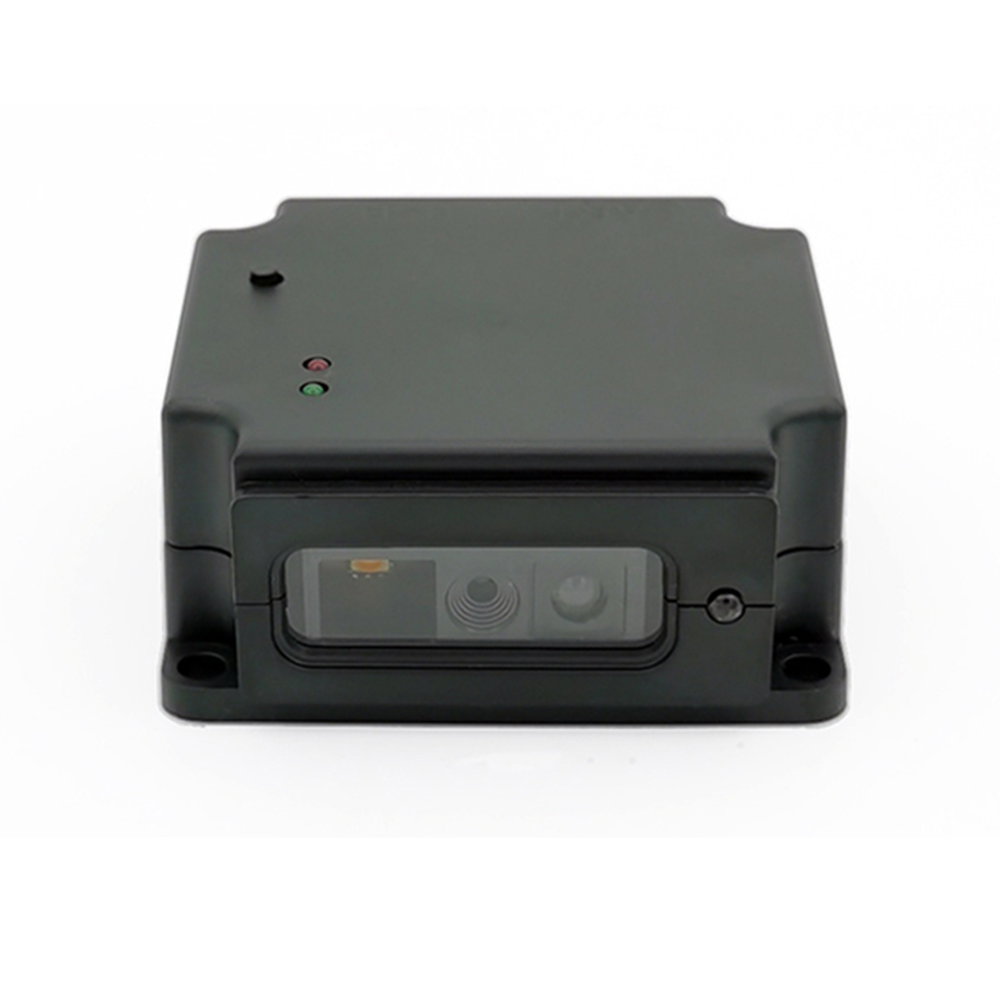

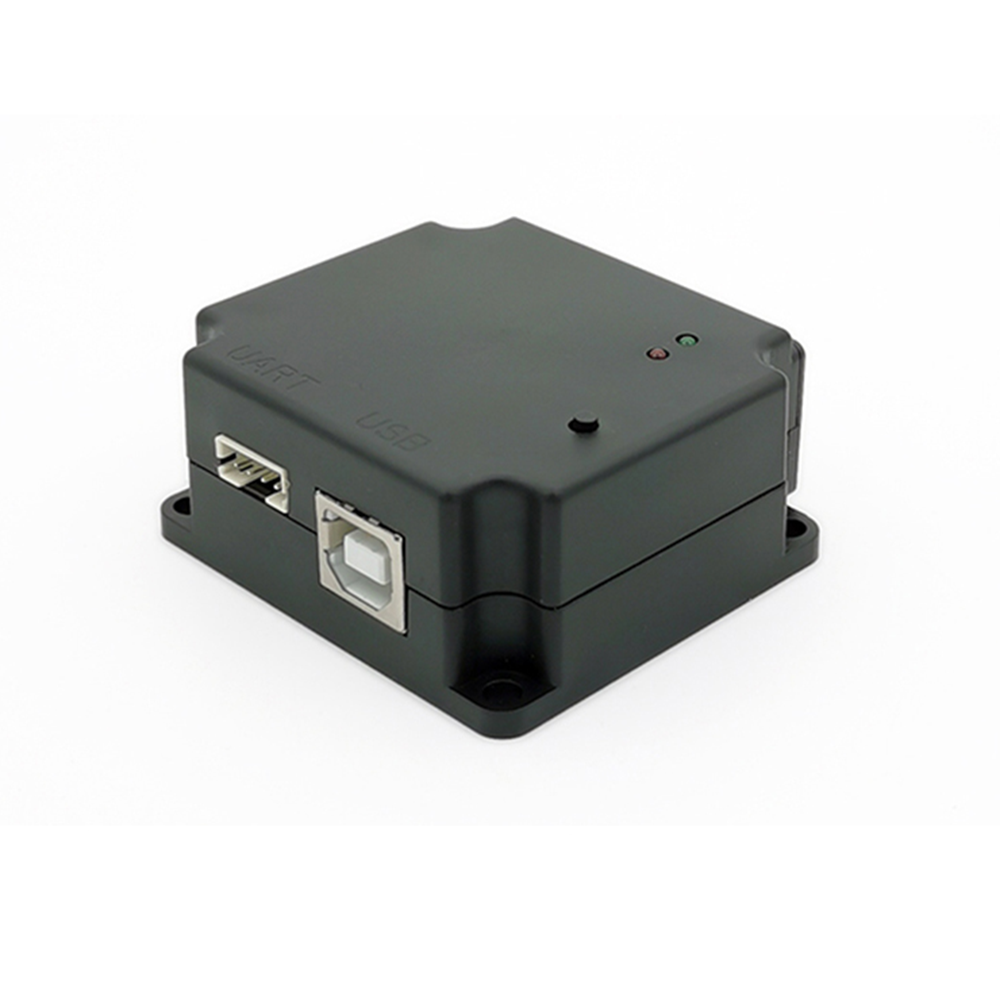

Grow GM75 Barcode Scanner Module - USB & UART Interface, 30-550mm Depth of Field
The Grow GM75 is a high-performance barcode scanner module featuring a 640×480 CMOS sensor, supporting both USB and UART interfaces for seamless integration into embedded systems, POS terminals, and industrial automation equipment. It delivers reliable reading of 1D and 2D codes, including QR, Data Matrix, and PDF417, with a wide depth of field from 30mm to 550mm.
Features
- High-resolution 640×480 CMOS sensor for accurate 1D/2D barcode reading.

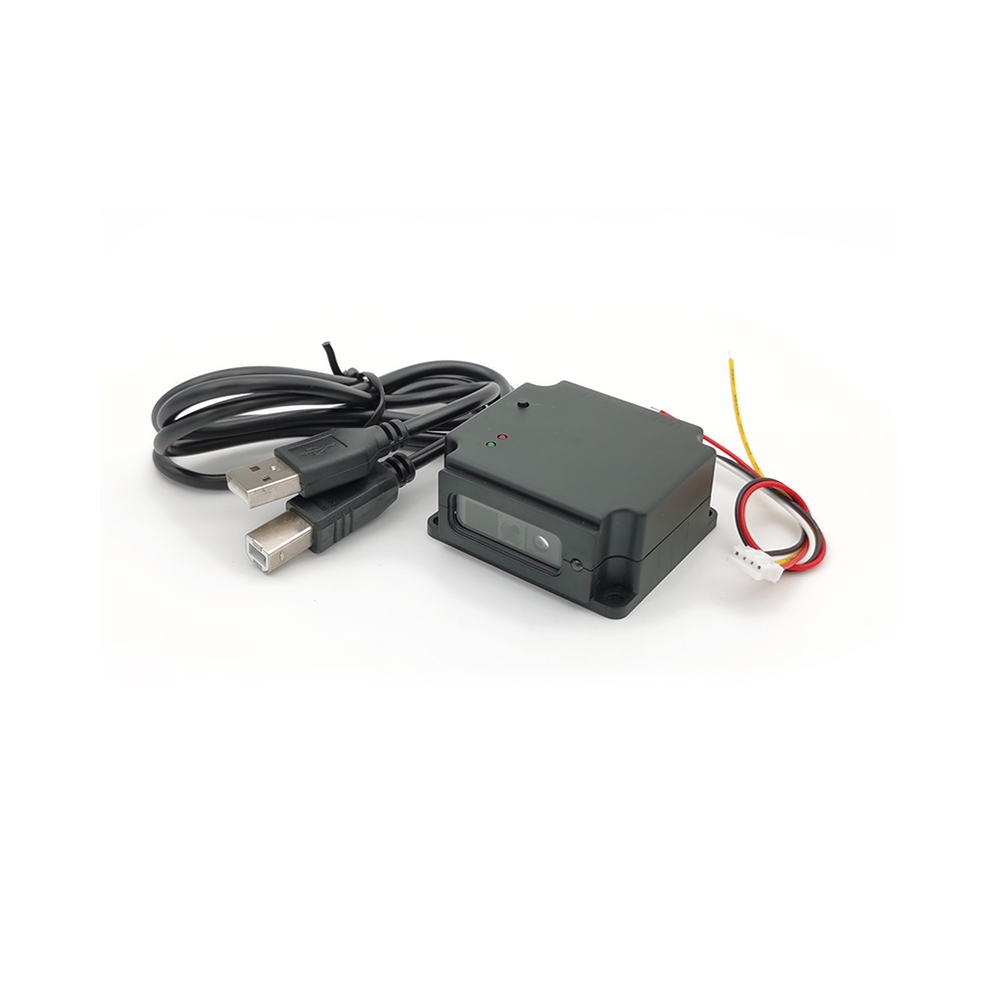

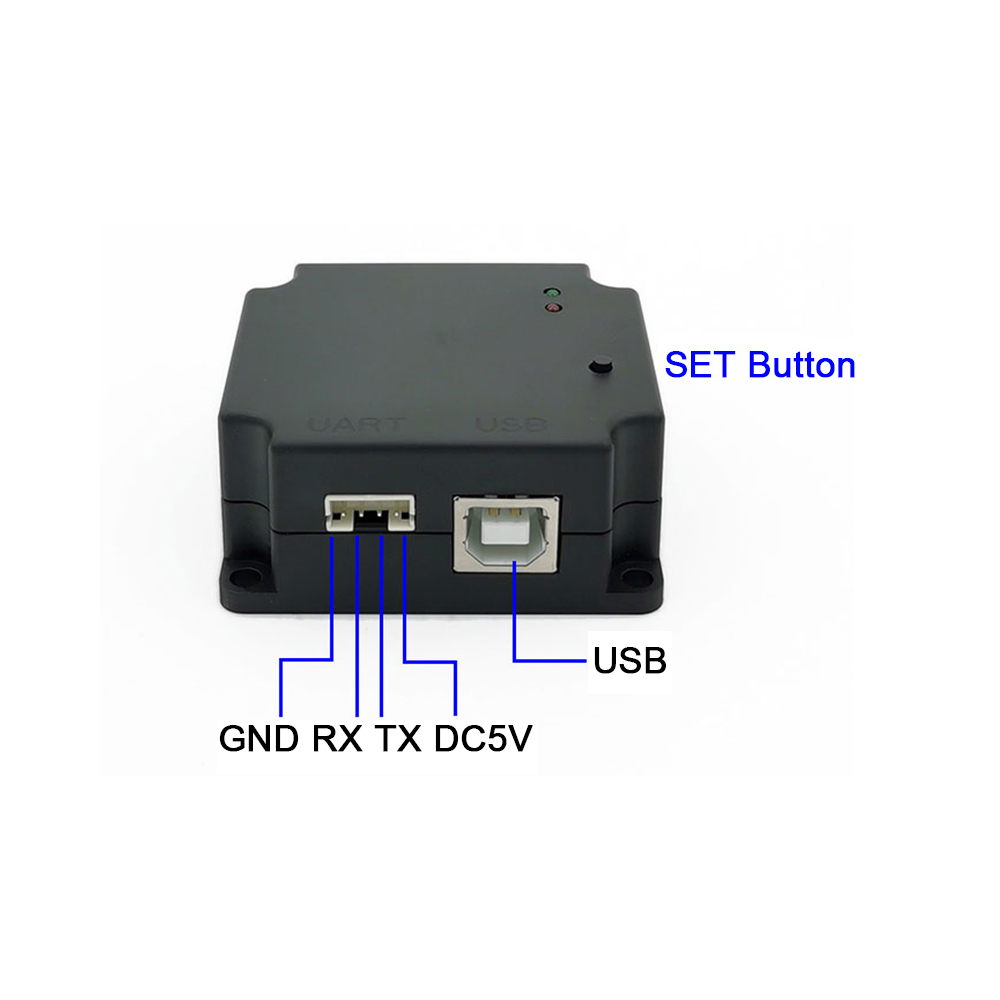

- Dual-interface support: USB 2.0 and UART serial communication for flexible system integration.
- Wide operating range with a depth of field from 30mm to 550mm and a 42°(H) x 32°(V) field of view.
- Robust construction designed to withstand a 1.2-meter drop onto concrete for industrial durability.
- Fast startup time (≤250ms) and comprehensive symbology support including EAN, UPC, Code 128, QR Code, and Data Matrix.
Out of stock
The Grow GM75 Barcode Scanner Module utilizes a high-sensitivity 640×480 CMOS image sensor to capture and decode a wide array of 1D and 2D barcodes. Its optical system is engineered for a broad depth of field, allowing reliable reading from 30mm to 550mm, which is ideal for applications with variable product positioning. The module supports both USB and UART (TTL serial) interfaces, providing direct compatibility with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs without requiring additional adapters.
Engineered for demanding environments, the GM75 features a durable housing capable of surviving 1.2-meter drops onto concrete, making it suitable for retail, logistics, and factory floor use. Integrated LED and buzzer indicators provide clear scan feedback. With a low operating voltage of 5V DC and a fast startup sequence, it is optimized for continuous operation in point-of-sale systems, kiosks, inventory management, and automated sorting lines.
Additional Information
| Weight | 0.2 kg |
|---|---|

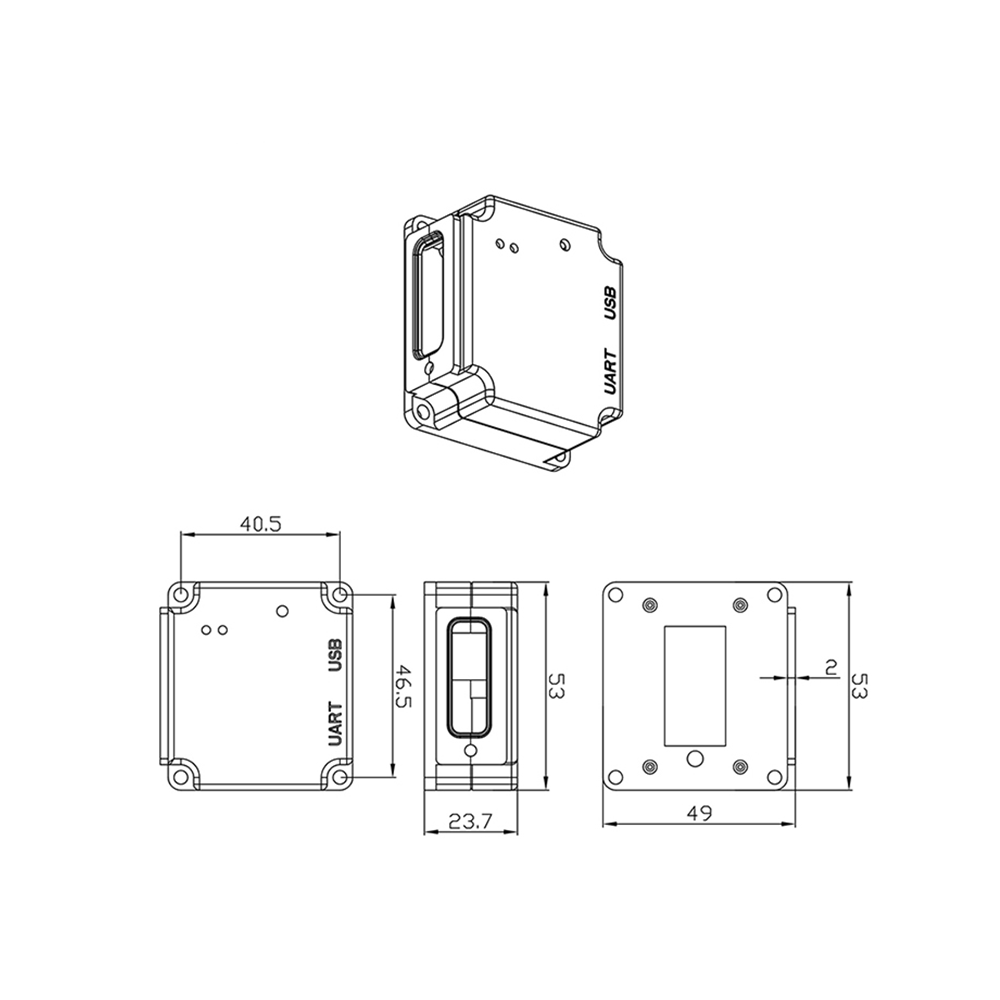

| Dimensions | 10 × 8 × 3 cm |
