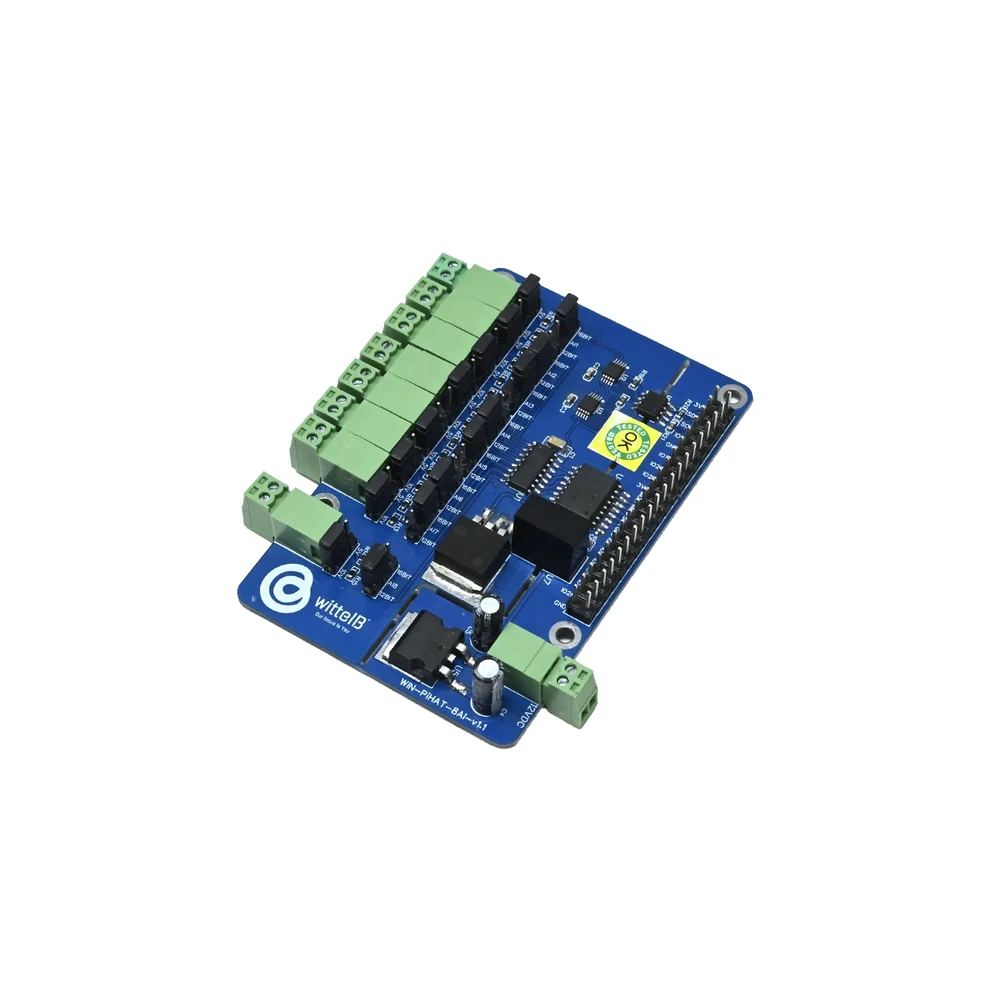

WIN-PIHAT-8AI 8-Ch Analog Input HAT for Raspberry Pi

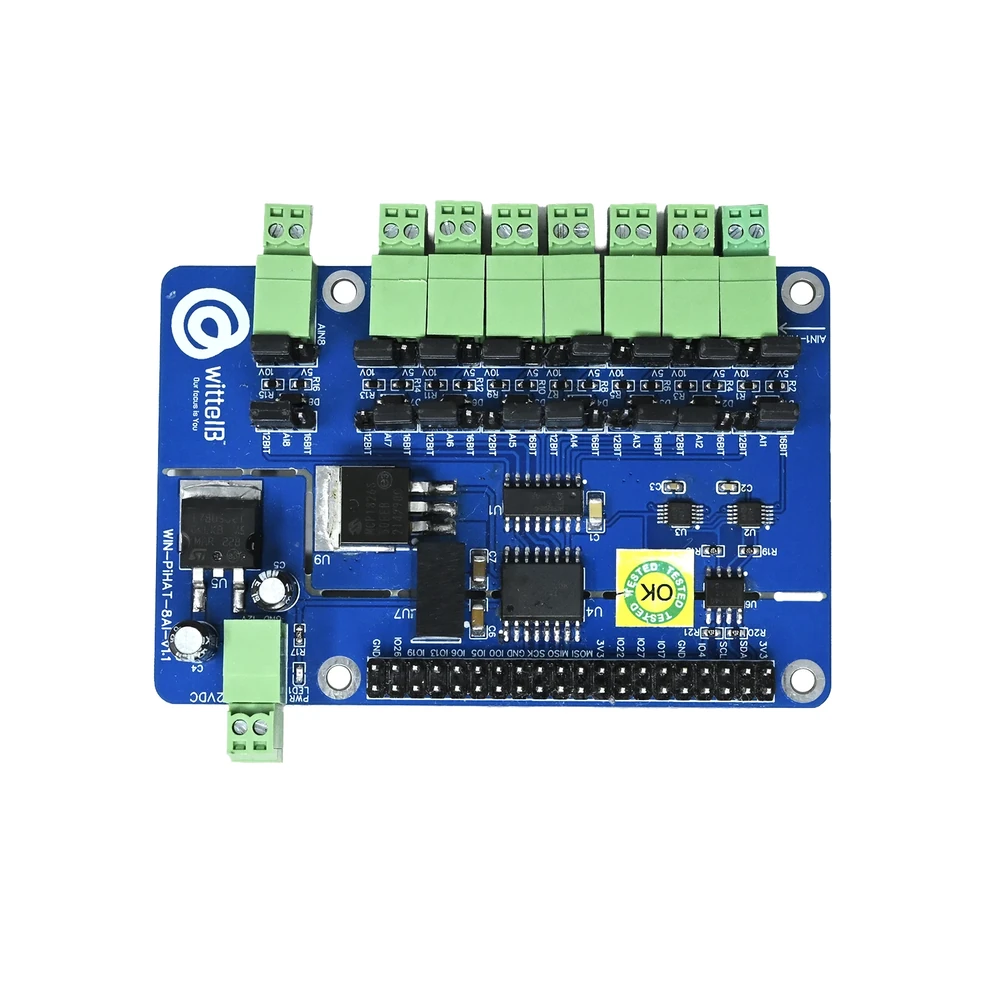

WIN-PIHAT-8AI 8-Ch Analog Input HAT for Raspberry Pi - Image 2

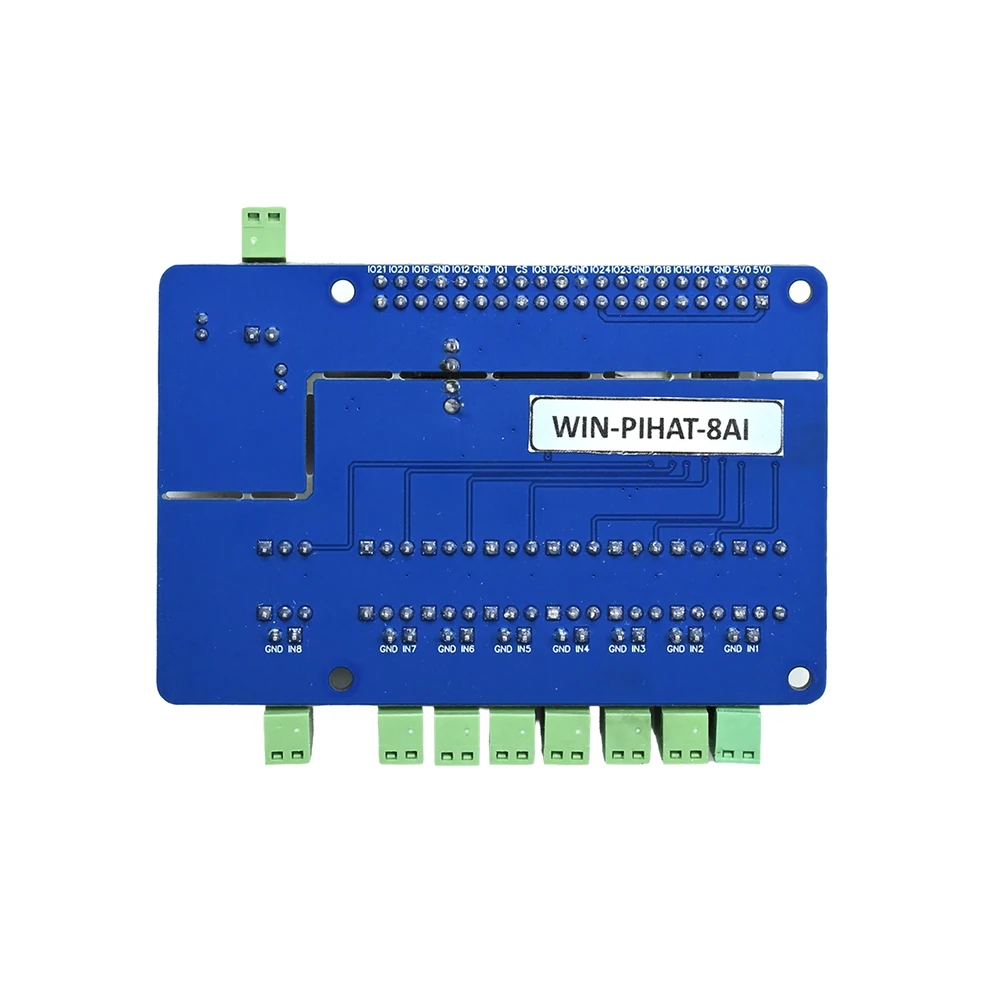

WIN-PIHAT-8AI 8-Ch Analog Input HAT for Raspberry Pi - Image 3
SKU: SBCD-1272
📋 GST Invoice Available

WIN-PIHAT-8AI 8-Ch Analog Input HAT for Raspberry Pi

₹8,390.98 (Inclusive of all taxes)
Out of Stock

The WIN-PIHAT-8AI is an industrial-grade 8-channel analog input HAT designed for Raspberry Pi 4 and Compute Module 4, offering selectable 12-bit or 16-bit ADC resolution. It supports precise voltage (0-5V, 0-10V) and current (0-20mA, 4-20mA) signal measurement for robust industrial data acquisition.

Features

  • 8-channel industrial-grade analog input HAT for Raspberry Pi 4 and CM4.
  • Features selectable 12-bit or 16-bit ADC resolution for high accuracy.
  • Supports a wide range of voltage (0-5V, 0-10V DC) and current (0-20mA, 4-20mA) inputs.
  • Equipped with industrial-grade over-voltage protection for reliable operation.
  • Compact design with user-friendly pluggable terminal blocks for easy integration.

Out of stock

Description

The Analog Input (AI) PiHAT is an industrial-grade data acquisition expansion board designed for Raspberry Pi 4 and CM4 platforms. Featuring eight high-resolution analog input channels, it supports both voltage and current signal measurement for industrial monitoring and automation applications.

The board offers selectable 12-bit or 16-bit ADC resolution, enabling accurate sensor data acquisition from a wide range of analog devices. With support for single-ended and differential inputs, programmable sample rates, and robust input protection, the AI PiHAT provides a reliable solution for embedded sensing, process control, environmental monitoring, and industrial measurement systems requiring precise analog data collection.

Key Features

  • Designed specifically for Raspberry Pi 4 and Compute Module 4.
  • Provides 8 high-resolution analog input channels.
  • Offers selectable 12-bit or 16-bit Analog-to-Digital Converter (ADC) resolution.
  • Supports both voltage (0-5V DC, 0-10V DC) and current (0-20mA, 4-20mA) input signals.
  • Configurable for both single-ended and differential input types.
  • Features programmable sampling rates from 8 SPS to 860 SPS.
  • Includes robust industrial-grade over-voltage input protection.
  • Compact form factor with convenient pluggable terminal blocks for wiring.

Applications

  • Industrial Data Acquisition
  • Process Control Systems
  • Environmental Monitoring
  • Embedded Sensing Solutions
  • Industrial Measurement Systems
  • Factory Automation

Technical Specifications

Product TypeRaspberry Pi Analog Input HAT
Compatible BoardsRaspberry Pi 4, CM4
Input Channels8
ADC Resolution12-bit / 16-bit Selectable
Input TypeSingle-Ended / Differential
Voltage Input Range0-5V DC, 0-10V DC
Current Input Range0-20mA, 4-20mA
Voltage Input Impedance≥1MΩ
Current Input Impedance250Ω Typical
Accuracy±0.1% to ±0.3% FSR
Sample RateProgrammable (8 SPS to 860 SPS)
ProtectionOver-Voltage Protection
Power Input12V/24V DC
Operating Temperature0°C to 60°C
Storage Temperature-20°C to 70°C
Storage Humidity5% to 95% RH Non-Condensing
Dimensions56mm × 85mm
Connectors2.54mm Terminal Blocks, 40-Pin GPIO Header

Frequently Asked Questions

What Raspberry Pi models are compatible with the WIN-PIHAT-8AI?

The WIN-PIHAT-8AI HAT is specifically designed for the Raspberry Pi 4 Model B and the Raspberry Pi Compute Module 4 (CM4). It connects via the standard 40-pin GPIO header, ensuring seamless integration and robust performance for industrial applications requiring precise analog data input.

What types of analog signals can the WIN-PIHAT-8AI measure?

This HAT supports a wide range of industrial analog signals. It can measure DC voltage inputs from 0-5V and 0-10V, as well as current inputs from 0-20mA and 4-20mA. This versatility makes it suitable for various sensors and transducers in industrial environments.

What ADC resolution options are available and why are they important?

The WIN-PIHAT-8AI offers selectable 12-bit or 16-bit ADC resolution. Higher resolution (16-bit) provides greater precision in converting analog signals to digital data, which is crucial for applications demanding fine measurement increments and accuracy, such as process control and scientific instrumentation.

Does the WIN-PIHAT-8AI include input protection?

Yes, the WIN-PIHAT-8AI is equipped with industrial-grade over-voltage protection on its input channels. This robust feature safeguards the Raspberry Pi and the HAT itself from potential damage caused by voltage spikes or incorrect wiring in demanding industrial environments, ensuring reliable long-term operation.

Package Includes

  • 1 x WIN-PIHAT-8AI 8-Channel Analog Input PiHAT for Raspberry Pi 4 & CM4

Additional Information

Weight 1.2 kg
Dimensions 15 × 10 × 4 cm
