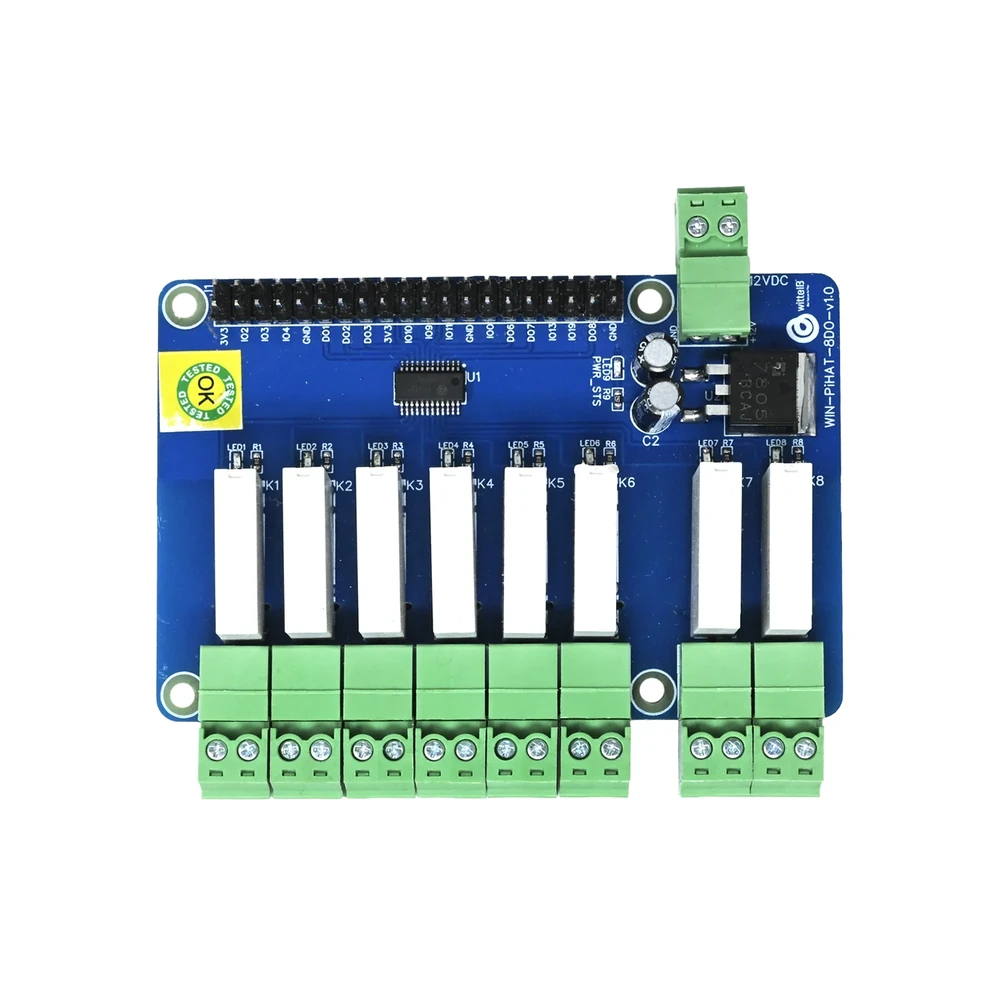

WIN-PIHAT-8DO 8-Ch Digital Output HAT for Raspberry Pi

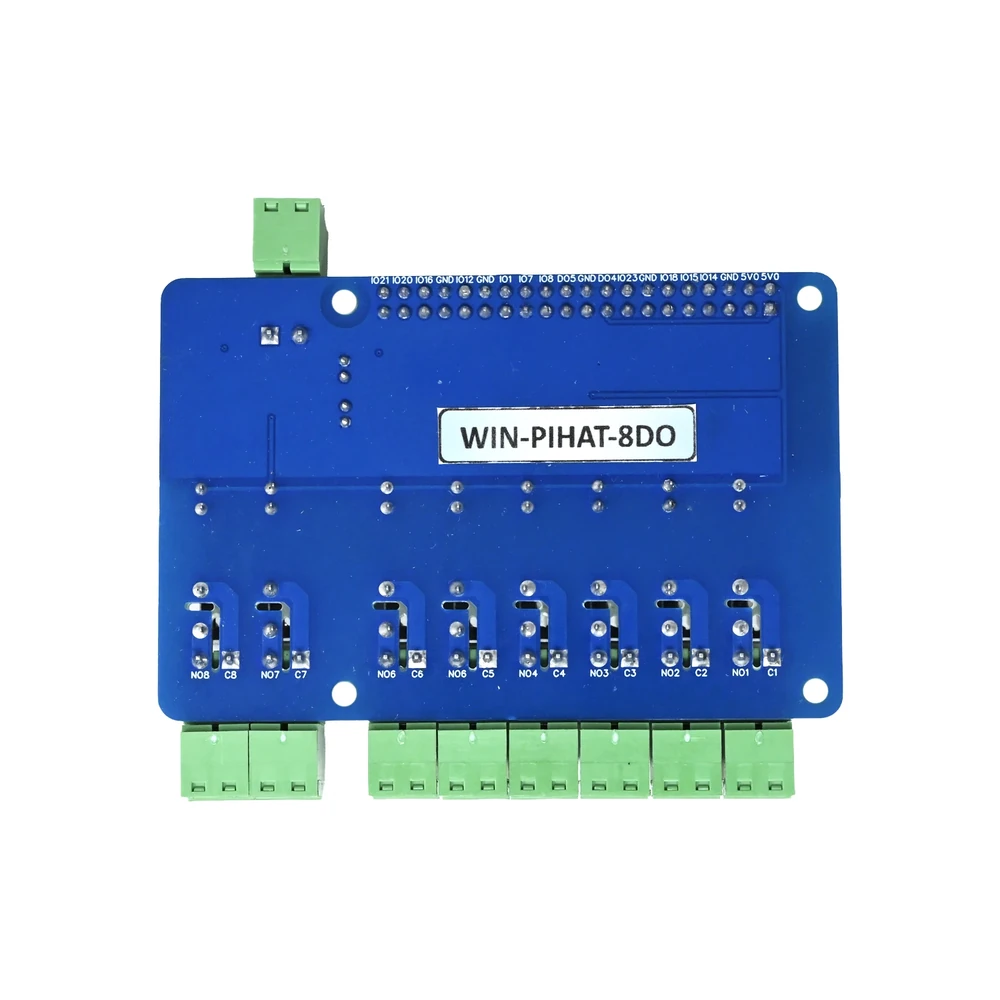

WIN-PIHAT-8DO 8-Ch Digital Output HAT for Raspberry Pi - Image 2

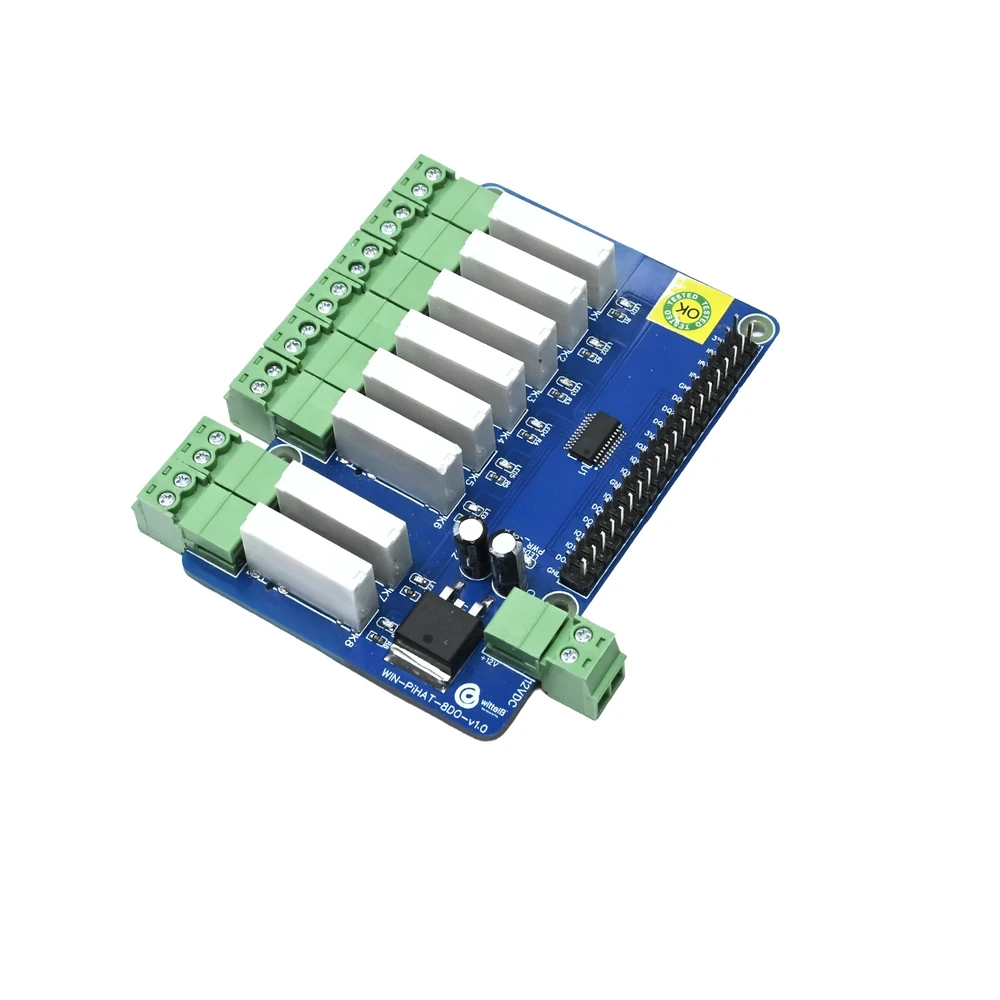

WIN-PIHAT-8DO 8-Ch Digital Output HAT for Raspberry Pi - Image 3
SKU: SBCD-1270
📋 GST Invoice Available

WIN-PIHAT-8DO 8-Ch Digital Output HAT for Raspberry Pi

₹4,850.98 (Inclusive of all taxes)
Out of Stock

The Wittelb WIN-PIHAT-8DO is an industrial-grade 8-channel digital output HAT for Raspberry Pi 4 and CM4, offering relay-isolated control of external loads with 12-24V DC power input and a 40-pin GPIO interface. It ensures reliable and safe operation in automation and embedded control systems.

Features

  • 8 relay-isolated digital output channels for robust control.
  • Compatible with Raspberry Pi 4 and Compute Module 4 platforms.
  • Supports 12V-24V DC power input, ideal for industrial applications.
  • Electrical isolation protects Raspberry Pi GPIO from high-voltage transients.
  • Features pluggable terminal block connectors for secure and easy wiring.

Out of stock

Description

The 8DO PiHAT is an industrial-grade digital output expansion board designed for Raspberry Pi 4 and CM4 platforms. It provides eight relay-isolated digital output channels, enabling safe and reliable control of external loads such as motors, lamps, solenoids, and industrial equipment.

The relay isolation protects the Raspberry Pi from high-voltage transients and electrical noise, making it suitable for automation and embedded control systems. Featuring industrial relays with high switching capacity, pluggable terminal block connectors, and support for 12V/24V DC power input, the PiHAT offers a dependable solution for industrial automation, process control, smart infrastructure, and remote switching applications.

Key Features

  • Designed for Raspberry Pi 4 and CM4 platforms.
  • 8 relay-isolated digital output channels.
  • Industrial-grade SPST-NO relay outputs.
  • Electrical isolation protects Raspberry Pi GPIO.
  • Supports high-current load switching.
  • Pluggable terminal block connections.
  • Operates on 12V or 24V DC power input.
  • Suitable for industrial automation applications.

Applications

  • Industrial automation systems.
  • Process control and monitoring.
  • Smart infrastructure solutions.
  • Remote switching applications.
  • Embedded control systems.

Technical Specifications

Item TypeRaspberry Pi Industrial PiHAT
Compatible BoardsRaspberry Pi 4, Raspberry Pi CM4
Output TypeRelay-Isolated Digital Outputs
Relay Type5V SPST-NO Industrial Relay
Relay Contact MaterialAgNi Alloy
Channel Count8 Channels
ExpandableYes
Power Input12–24V DC
Relay Coil Voltage5V DC
Relay Coil Power0.12W
Contact Capacity5A @ 250VAC / 5A @ 30VDC
Insulation Resistance≥100MΩ
Electrical Life100,000 Operations
Mechanical Life10,000,000 Operations
Operating Time≤10ms
Release Time≤5ms
Operating Temperature0°C to +60°C
Storage Temperature-20°C to +70°C
Storage Humidity5–95% RH (Non-condensing)
Dimensions56 × 85 mm

Frequently Asked Questions

What Raspberry Pi models are compatible with the WIN-PIHAT-8DO?

The WIN-PIHAT-8DO HAT is specifically designed for seamless integration with Raspberry Pi 4 and Raspberry Pi Compute Module 4 (CM4) boards. It utilizes the standard 40-pin GPIO header for communication, ensuring broad compatibility within these popular Raspberry Pi ecosystems for industrial control applications.

What are the power requirements for this 8-channel digital output HAT?

The HAT requires a 12-24V DC power input for system operation, which is standard for many industrial applications. The internal relay coils operate at 5V DC, isolating the Pi's logic from higher external voltages, protecting the sensitive GPIO pins.

What kind of loads can the WIN-PIHAT-8DO control?

This HAT can control a variety of external industrial loads, including motors, lamps, solenoids, and other equipment requiring digital on/off switching. Each relay channel offers a contact capacity of 5A @ 250VAC or 5A @ 30VDC, suitable for moderate power applications.

How does the relay isolation protect the Raspberry Pi?

The 8DO PiHAT features electrical isolation between its relay outputs and the Raspberry Pi's GPIO. This isolation prevents high-voltage transients, electrical noise, and ground loops from damaging the Raspberry Pi, critical for reliable operation in harsh industrial environments.

Package Includes

  • 1 x 8DO PiHAT 8-Channel Relay Isolated Digital Output Expansion Board for Raspberry Pi 4 & CM4

Additional Information

Weight 1.2 kg
Dimensions 8.5 × 5.6 cm
