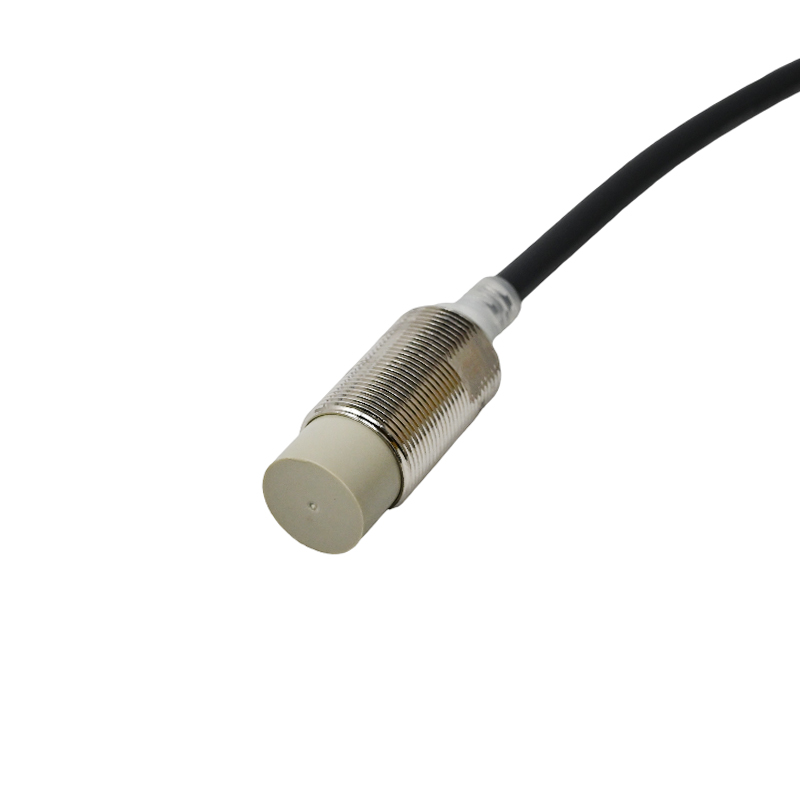

Omron E2E-X10ME1 Inductive Proximity Sensor, NPN NO Output, 12-24 VDC, M18 Unshielded, 2 m Cable, IP67, 10 mm Sensing

The E2E-X10ME1 provides an NPN normally open (NO) output. This is a sinking output, meaning the sensor's output terminal switches to ground (0V) when a target is detected, which is standard for connecting to the sinking digital inputs of many PLCs and controllers.

No, the E2E-X10ME1 is specifically designed as a standard inductive proximity sensor for detecting ferrous metals (iron, steel). Its sensing range is optimized for these materials. For non-ferrous metals, a different type of sensor, such as a capacitive or a specialized all-metal inductive sensor, would be required.

'M18' refers to the 18mm diameter threaded barrel for mounting. 'Unshielded' (non-flush) means the sensing face is exposed, allowing for its full 10mm sensing distance. However, it should not be mounted flush with or embedded in surrounding metal, as this can affect sensing performance and reduce the effective range.

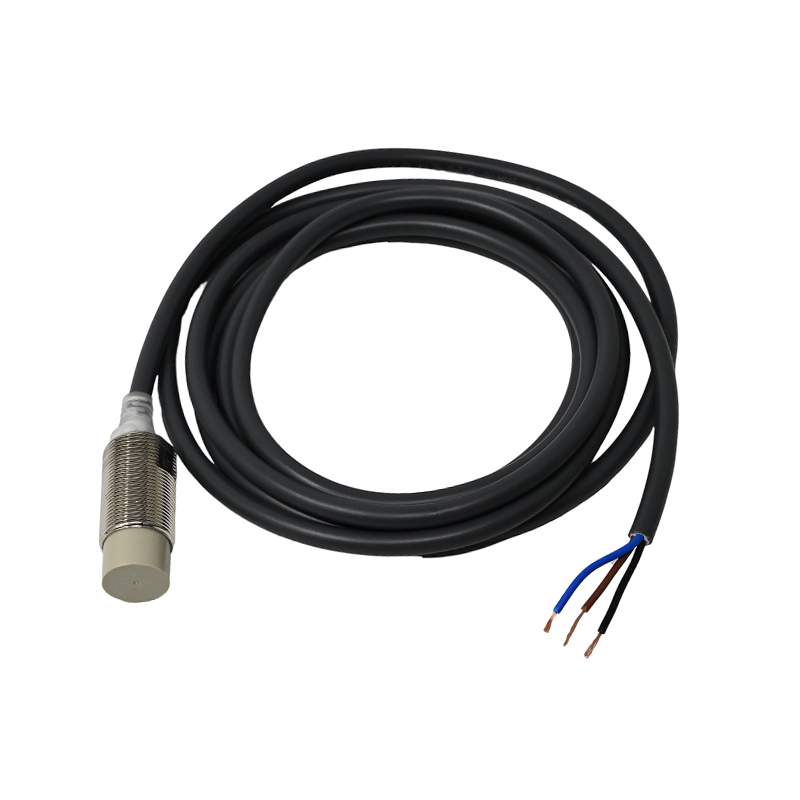

The integrated cable typically has three wires: Brown (VDC+), Blue (VDC- / 0V), and Black (Output). Connect Brown to your 12-24VDC positive supply, Blue to the DC common/ground, and the Black output wire to your controller's input. Always refer to the official datasheet for the exact wiring diagram and specifications.

The self-diagnostic function monitors internal sensor conditions. If a malfunction, instability, or significant performance drift is detected, the sensor can change its output state to signal a fault. This enables predictive maintenance, allowing issues to be addressed before they cause unscheduled production line stops.
