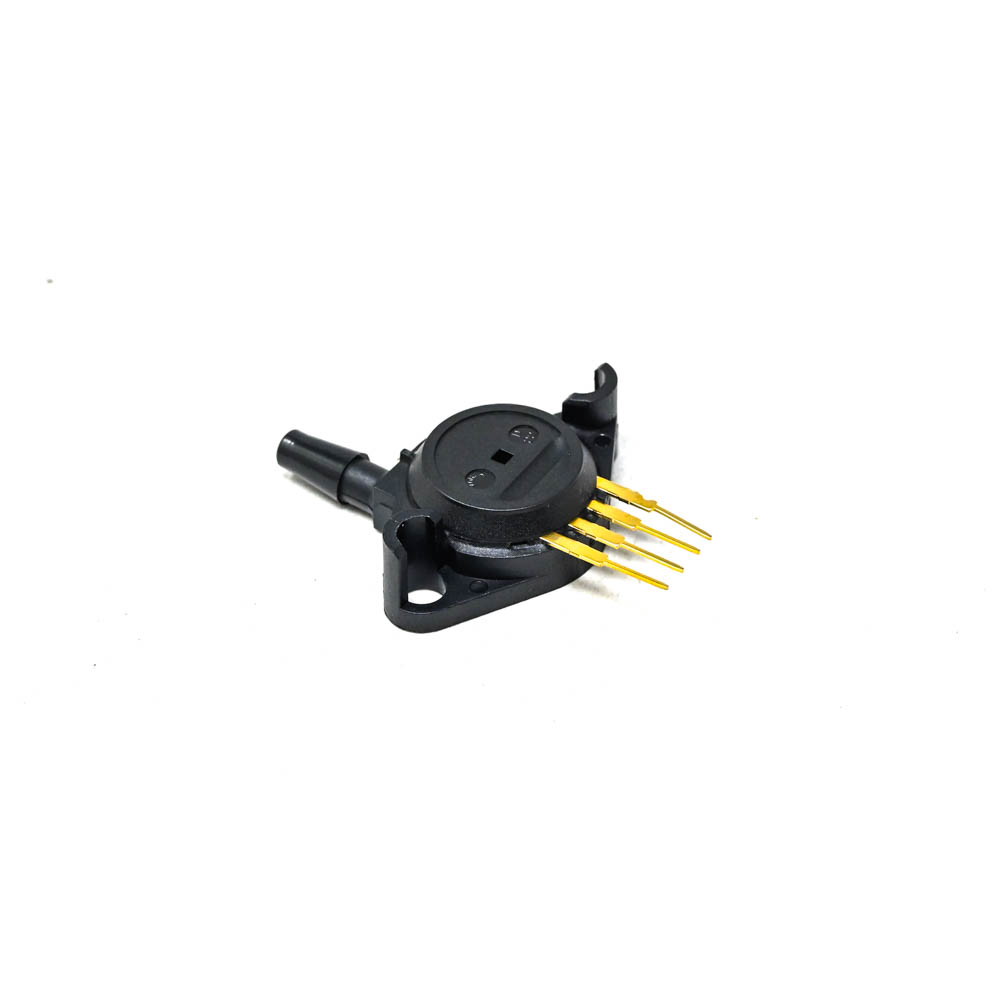

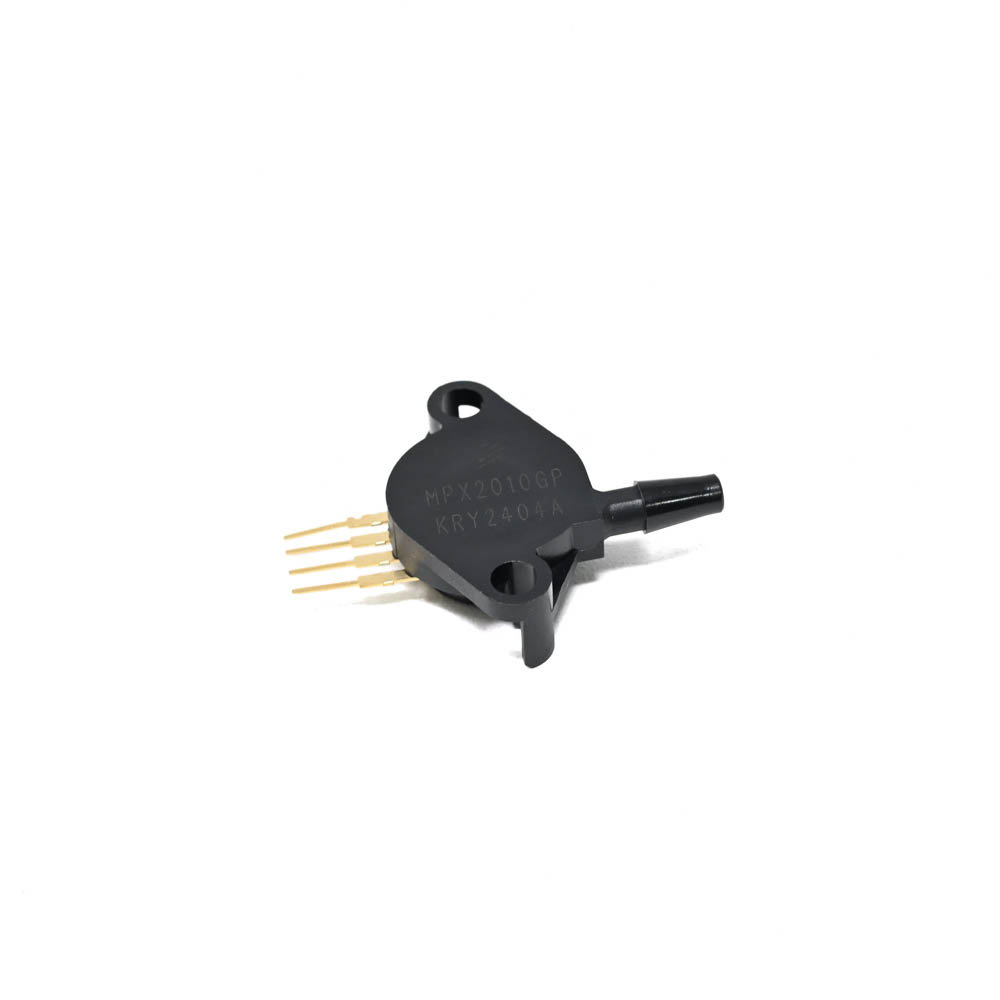

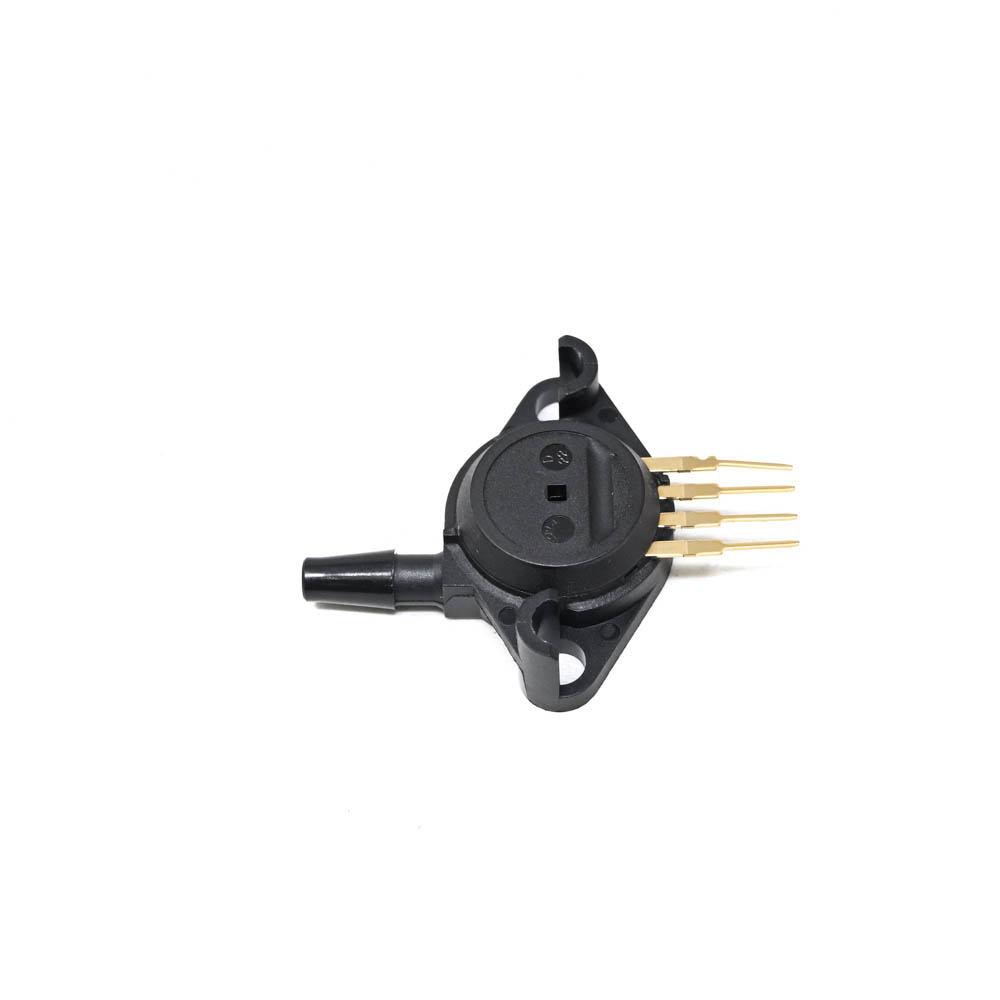

NXP Semiconductors MPX2010GP Gauge Pressure Sensor, 0-10 kPa, 2.5 mV/kPa, SIP 4-Pin
The NXP Semiconductors MPX2010GP is a silicon piezoresistive gauge pressure sensor delivering a ratiometric analog voltage output for precise measurement of low-pressure differentials from 0 to 10 kPa. It is designed for integration into industrial control systems, medical instrumentation, and consumer electronics requiring a calibrated, temperature-compensated output.
Features
- Silicon piezoresistive MEMS sensor with integrated strain gauge and thin-film resistor network.
- Provides a linear, ratiometric analog voltage output of 2.5 mV/kPa, proportional to the supply voltage.
- Laser-trimmed for precise span and offset calibration with integrated temperature compensation.
- Rugged SIP 4-pin package suitable for industrial environments with an operating temperature range of -40°C to +125°C.
- Gauge pressure type measuring from 0 kPa (reference) up to 10 kPa full scale.
Out of stock
The MPX2010GP from NXP Semiconductors Semiconductors is a monolithic, piezoresistive pressure sensor engineered for accuracy and stability. The sensor core consists of a single silicon die where the sensing element and signal-conditioning resistor network are integrated, ensuring minimal drift and high linearity. Its output is an analog voltage signal that is ratiometric to the supply voltage, simplifying interface with analog-to-digital converters in microcontroller-based systems like those using Arduino, Raspberry Pi, or industrial PLCs.
Factory laser trimming calibrates the sensor for precise span and offset while providing temperature compensation across the full -40°C to +125°C operating range. This makes the MPX2010GP suitable for demanding applications in motor drive control, medical diagnostic equipment, and consumer electronics where reliable low-pressure measurement is critical. The sensor’s gauge-ported design references pressure to the ambient atmosphere.
Additional Information
| Weight | 0.008 kg |
|---|
