NanoRadar TSC224 Traffic Speed Radar - 24GHz MIMO DBF, IP67, Multi-Lane

₹53,499.00 (Inclusive of all taxes)
Out of Stock

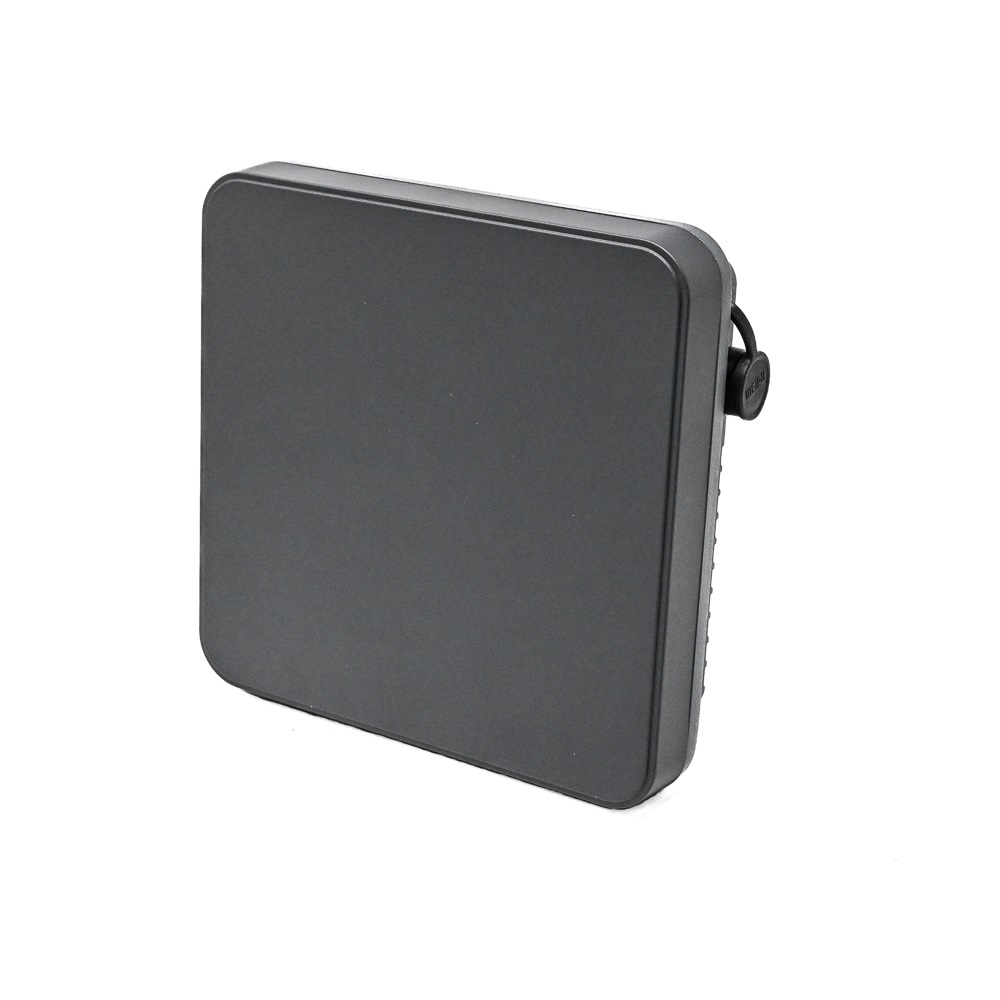

The NanoRadar TSC224 is a high-performance 24GHz FMCW traffic speed radar module designed for intelligent traffic enforcement systems. It provides real-time, multi-lane vehicle tracking with a speed range of 5–250 km/h and integrates seamlessly with camera systems for automated violation capture.

Features

  • Advanced 24GHz MIMO + DBF radar technology for robust multi-lane detection
  • IP67-rated, all-weather housing for reliable operation from -40°C to +85°C
  • Real-time tracking of multiple vehicles across up to four lanes with ±0.5m positioning accuracy
  • Wide power input range (+9.0 to 32V DC) for flexible system integration
  • Built-in WiFi for remote debugging, calibration, and firmware upgrades

Out of stock

Description

The TSC224 Traffic Speed Radar employs Frequency Modulated Continuous Wave (FMCW) modulation within the 24GHz ISM band, enhanced by MIMO (Multiple Input Multiple Output) and Digital Beamforming (DBF) technologies. This combination enables high-resolution, lane-level detection while effectively filtering out environmental interference and noise, ensuring a vehicle capture rate of ≥99%.

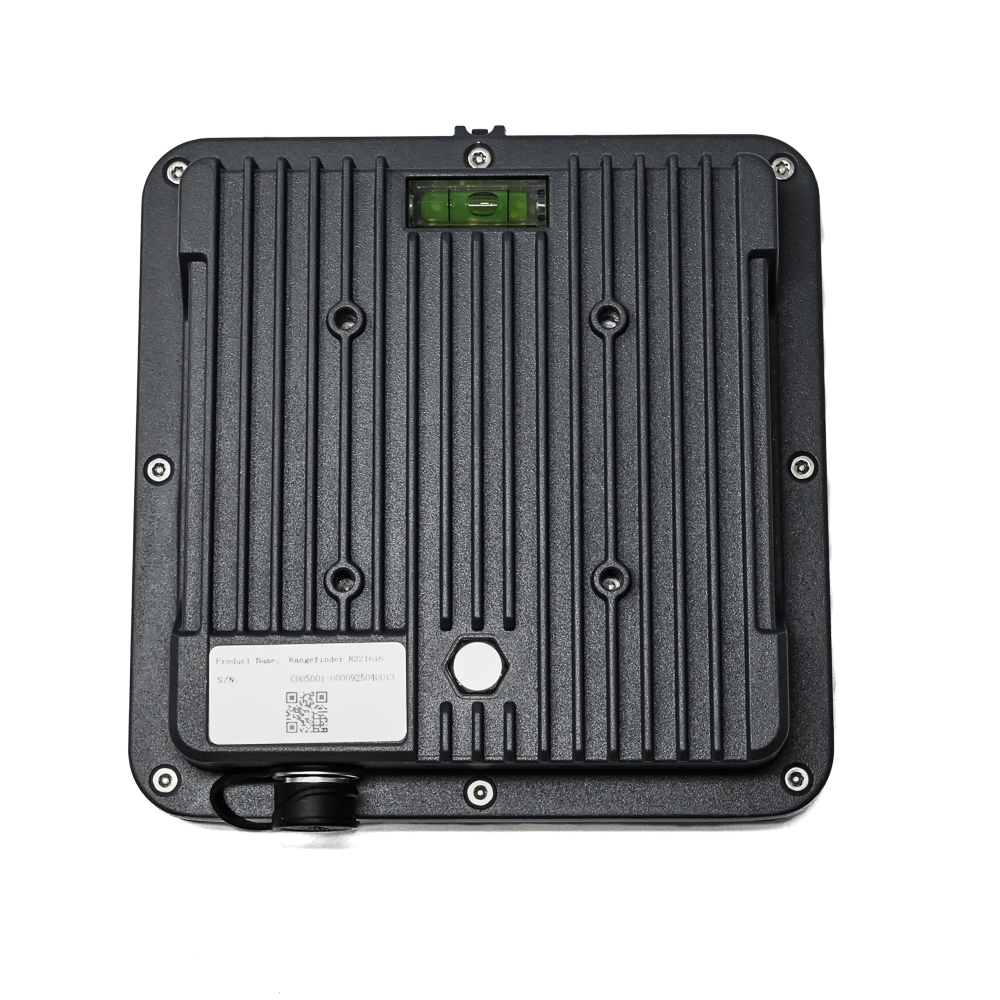

Engineered for permanent outdoor installation, its IP67-rated enclosure provides complete protection against dust and water ingress. The module features an integrated spirit level, gyroscope, and lane sight for simplified physical alignment and supports front, side, or two-way mounting configurations to adapt to various road geometries, including curves and construction zones.

Key Features

  • Military-grade construction with shock and drop resistance for long-term durability
  • Five-level adjustable sensitivity and frequency error design for superior anti-interference performance
  • Compact, integrated design (90 x 80 mm) for discreet and aesthetic deployment
  • Web-based configuration interface eliminates need for proprietary desktop software
  • Over ten customizable algorithm parameters for optimization across highways, urban roads, and complex zones
  • Counter-control technology automatically removes interference and environmental noise
  • Supports coming, going, and bi-directional traffic capture modes
  • High-value build optimized for 24/7 automated traffic monitoring and enforcement systems

Applications

  • Fixed and mobile speed enforcement systems with integrated camera triggering
  • Intelligent traffic monitoring and data collection on highways and urban arterials
  • Work zone and construction area speed compliance and safety monitoring
  • Traffic flow analysis and volume counting for smart city infrastructure
  • Toll plaza and intersection approach speed detection and violation capture

Technical Specifications

Model NumberTSC224
Product TypeTraffic Speed Radar Module
Operating Frequency24 GHz
Modulation ModeFMCW (Frequency Modulated Continuous Wave)
Detection Range1 - 50 meters
Speed Measurement Range5 - 250 km/h
Positioning Accuracy±0.5 meters
Vehicle Capture Rate≥ 99%
Number of Lanes SupportedUp to 4
Power Supply+9.0 to 32 V DC
Operating Temperature-40°C to +85°C
Ingress ProtectionIP67 (Waterproof & Dustproof)
Dimensions (L x W)90 mm x 80 mm
Weight< 10 g (module); 1.347 kg (shipping)
Communication InterfaceWiFi (for remote debugging/upgrades)
Mounting OptionsFront, Side, Two-way

Frequently Asked Questions

What is the power supply requirement for the TSC224 radar?

The TSC224 operates on a wide-range DC input of +9.0 to 32 volts, making it compatible with standard 12V or 24V vehicle electrical systems and industrial power supplies. This flexibility allows for deployment in both fixed installations with regulated power and mobile enforcement units powered from a vehicle battery.

How many traffic lanes can this radar monitor simultaneously?

The radar supports real-time detection and tracking of multiple vehicles across up to four lanes. Its advanced MIMO and DBF technology provides lane-level resolution, assigning a unique target ID, speed, and coordinates to each vehicle within its 1-50 meter detection range.

How is the radar calibrated and configured after installation?

Calibration is streamlined via a built-in spirit level, gyroscope, and visual lane sight for physical alignment. For system configuration, the module features integrated WiFi, allowing engineers to connect remotely via a web browser for parameter tuning, debugging, and firmware updates without needing direct physical access.

Can the TSC224 operate in extreme weather conditions?

Yes, with an IP67 rating and an operating temperature range of -40°C to +85°C, the radar is designed for all-weather, 24/7 operation. It is resistant to rain, snow, fog, dust, shock, and vibration, ensuring reliable performance in harsh environmental conditions typical of roadside installations.

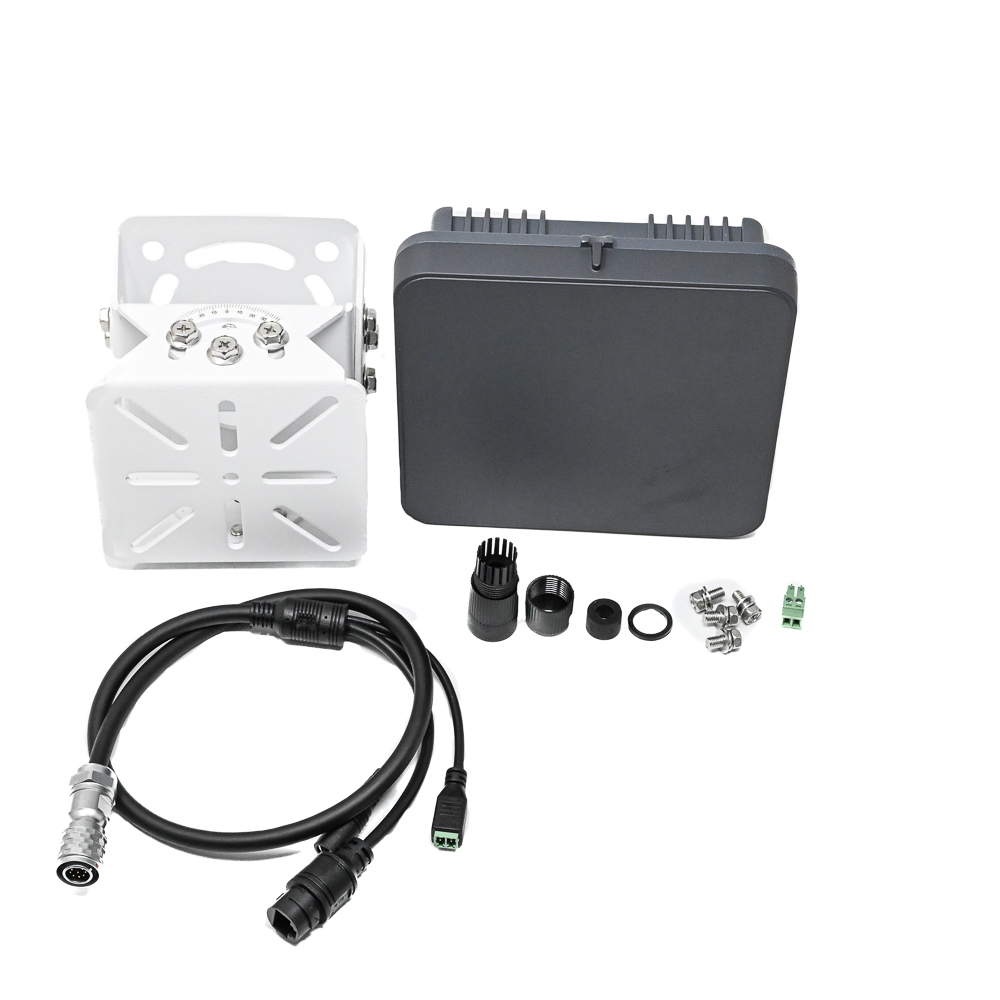

Package Includes

  • 1 x NanoRadar TSC224 Traffic Speed Radar Module

Additional Information

Weight 1.347 kg
Dimensions 9 × 8 cm
