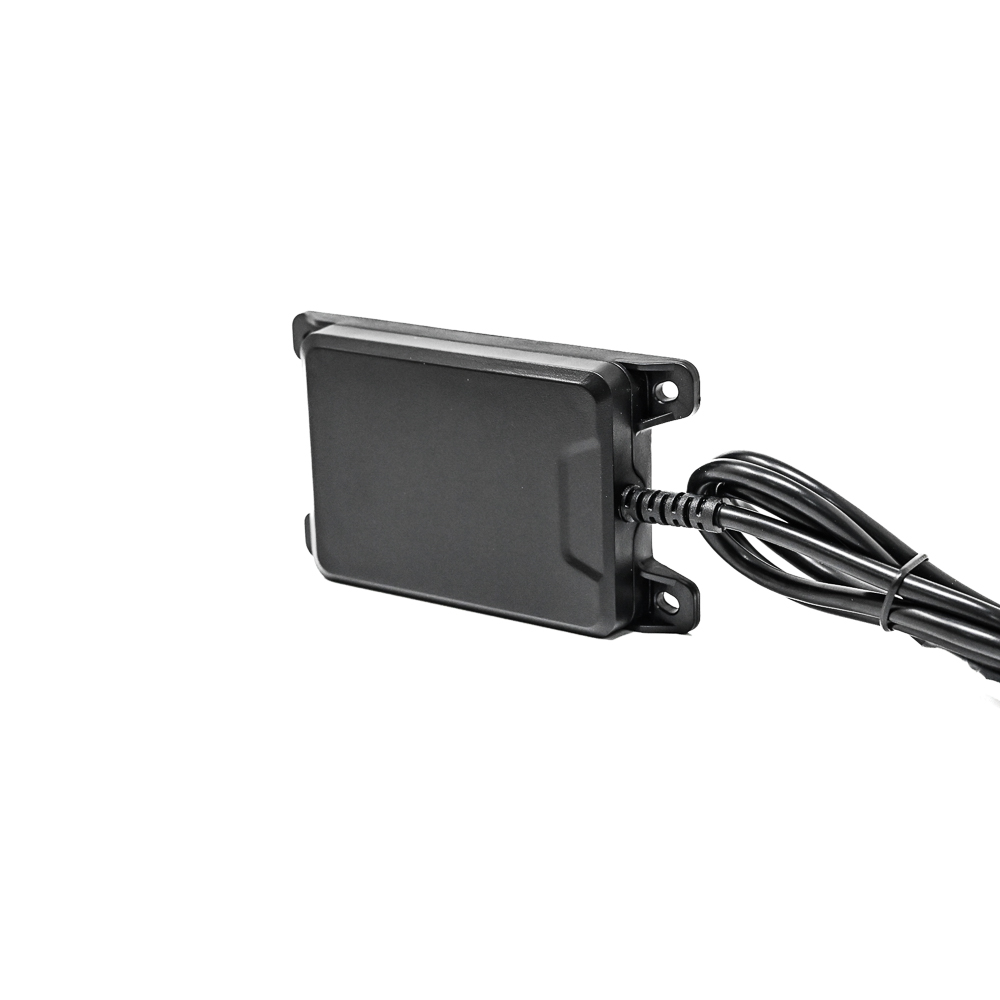

NanoRadar NRA15 24GHz Altimeter Radar Module - UART Interface

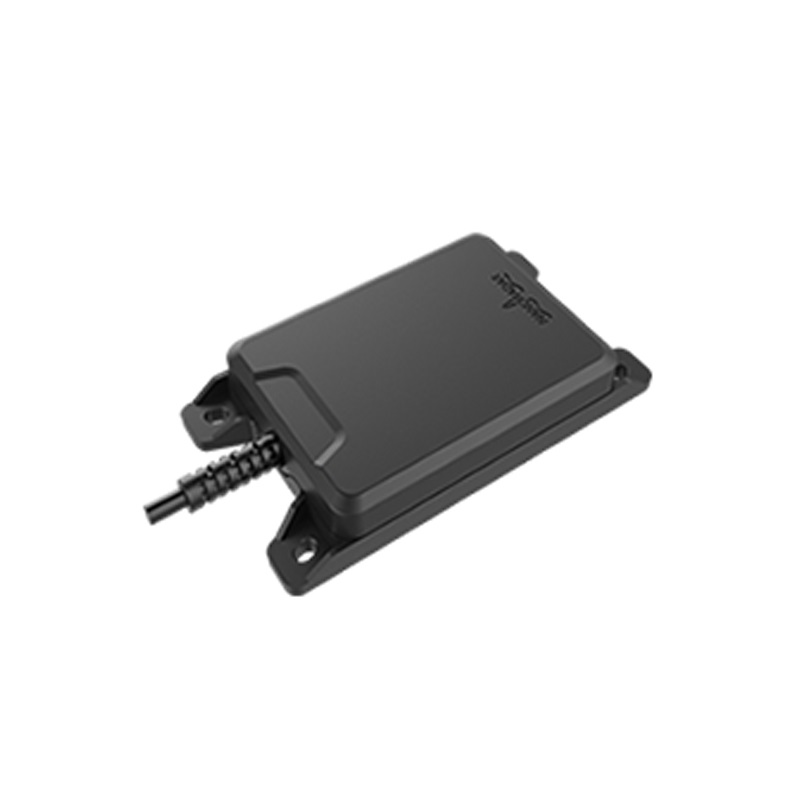

NanoRadar NRA15 24GHz Altimeter Radar Module - UART Interface - Image 2

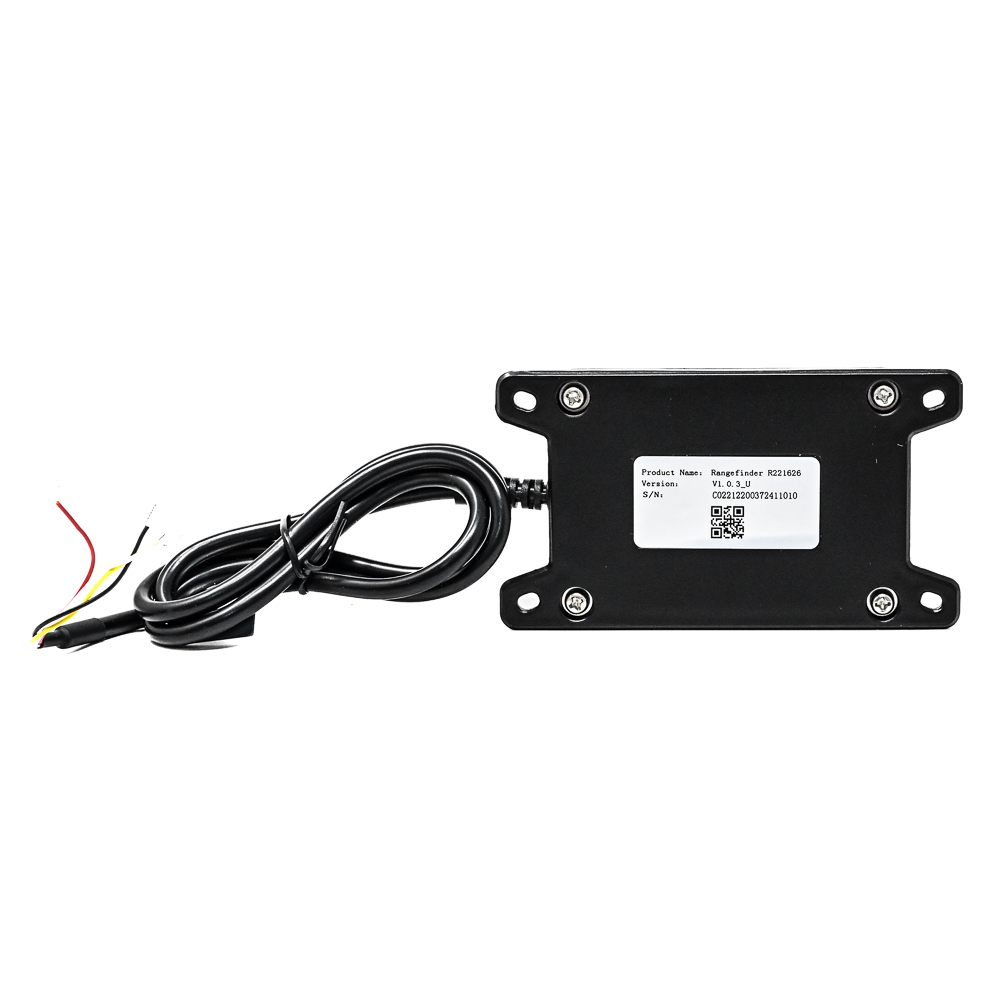

NanoRadar NRA15 24GHz Altimeter Radar Module - UART Interface - Image 3
SKU: SENS-2428
📋 GST Invoice Available

NanoRadar NRA15 24GHz Altimeter Radar Module - UART Interface

₹26,679.00 (Inclusive of all taxes)
Out of Stock

The NanoRadar NRA15 is a compact 24GHz K-band FMCW altimeter radar module designed for precise height measurement and moving target detection in UAVs, helicopters, and small airships. It features a UART interface for straightforward integration with flight controllers, autopilots, and data logging systems.

Features

  • 24GHz K-band FMCW radar with up to 100m detection range.
  • High measurement accuracy of up to 0.1 meters for precise altitude data.
  • Integrated UART serial interface for easy system communication and integration.
  • Compact, lightweight design (100x57mm, 81g) suitable for airborne platforms.
  • Robust performance across diverse outdoor environments, including grasslands.

Out of stock

Description

The NRA15 Altimeter Radar utilizes Frequency Modulated Continuous Wave (FMCW) technology in the 24GHz band to provide accurate distance-to-ground measurements. This non-contact sensing method ensures reliable performance independent of lighting or weather conditions, making it ideal for aerial navigation and terrain-following applications.

Engineered with a low 1.1W power consumption and a 12V DC supply, the module is optimized for integration into battery-powered unmanned aerial vehicles (UAVs), helicopters, and small airships. Its stable performance and high sensitivity enable consistent altitude data critical for autonomous flight control and safety systems.

Key Features

  • 24GHz FMCW Radar Technology for precise, continuous distance measurement.
  • High Accuracy up to 0.1m ensures reliable altitude data for critical navigation.
  • Extended Detection Range of up to 100m for versatile aerial applications.
  • Compact & Lightweight Design (100x57x?mm, 81g) minimizes payload impact.
  • UART Serial Interface enables simple plug-and-play communication with most flight controllers and microcontrollers.
  • Low Power Operation at 1.1W typical consumption, suitable for mobile platforms.
  • RoHS Compliant construction meets environmental and safety standards.
  • Wide Environmental Adaptability for reliable performance in grasslands and varied outdoor terrains.

Applications

  • Unmanned Aerial Vehicle (UAV) altitude hold and terrain-following systems.
  • Helicopter and small airship altitude measurement and ground proximity warning.
  • Autonomous drone landing systems requiring precise height-above-ground data.
  • Agricultural drone spray control and crop canopy height mapping.
  • Research and development platforms for radar-based navigation and obstacle detection.

Technical Specifications

ModelNRA15 Altimeter Radar
ManufacturerNanoRadar (Hunan NanoRadar Science and Technology Co., Ltd.)
Operating Frequency24 GHz (K-band)
Modulation TypeFMCW (Frequency Modulated Continuous Wave)
Detection RangeUp to 100 m
Measurement AccuracyUp to 0.1 m
Output Power23 dBm
Supply Voltage12 V DC
Power Consumption1.1 W (Typical)
Communication InterfaceUART
Dimensions (L x W)100 mm x 57 mm
Weight81 g

Frequently Asked Questions

What is the operating voltage and communication interface for the NRA15 radar?

The NRA15 operates from a 12V DC power supply and communicates via a standard UART (Universal Asynchronous Receiver/Transmitter) serial interface. This makes it directly compatible with most flight controllers, autopilots (like Pixhawk, ArduPilot), and microcontrollers (Arduino, Raspberry Pi) using simple TX/RX connections for sending commands and receiving altitude data.

What is the typical detection range and accuracy of this 24GHz altimeter?

This FMCW radar sensor has a maximum detection range of up to 100 meters with a measurement accuracy of up to 0.1 meters (10 cm) under optimal conditions. The actual performance can be influenced by factors such as ground surface material, antenna angle, and environmental interference. For critical applications, refer to the detailed datasheet for performance graphs and calibration procedures.

Is this sensor suitable for integration into a multi-rotor or fixed-wing drone?

Yes, the NRA15 is specifically designed for airborne platforms. Its compact size (100x57mm), light weight (81g), and low power consumption (1.1W) make it an excellent choice for integration into UAVs, including multi-rotor and fixed-wing drones. It provides reliable height-above-ground data essential for autonomous landing, terrain following, and maintaining a constant altitude over uneven landscapes.

Package Includes

  • 1 x NRA15 24GHz Altimeter Radar Sensor
  • 1 x Connection Cable

Additional Information

Weight 0.081 kg
Dimensions 10 × 5.7 cm
