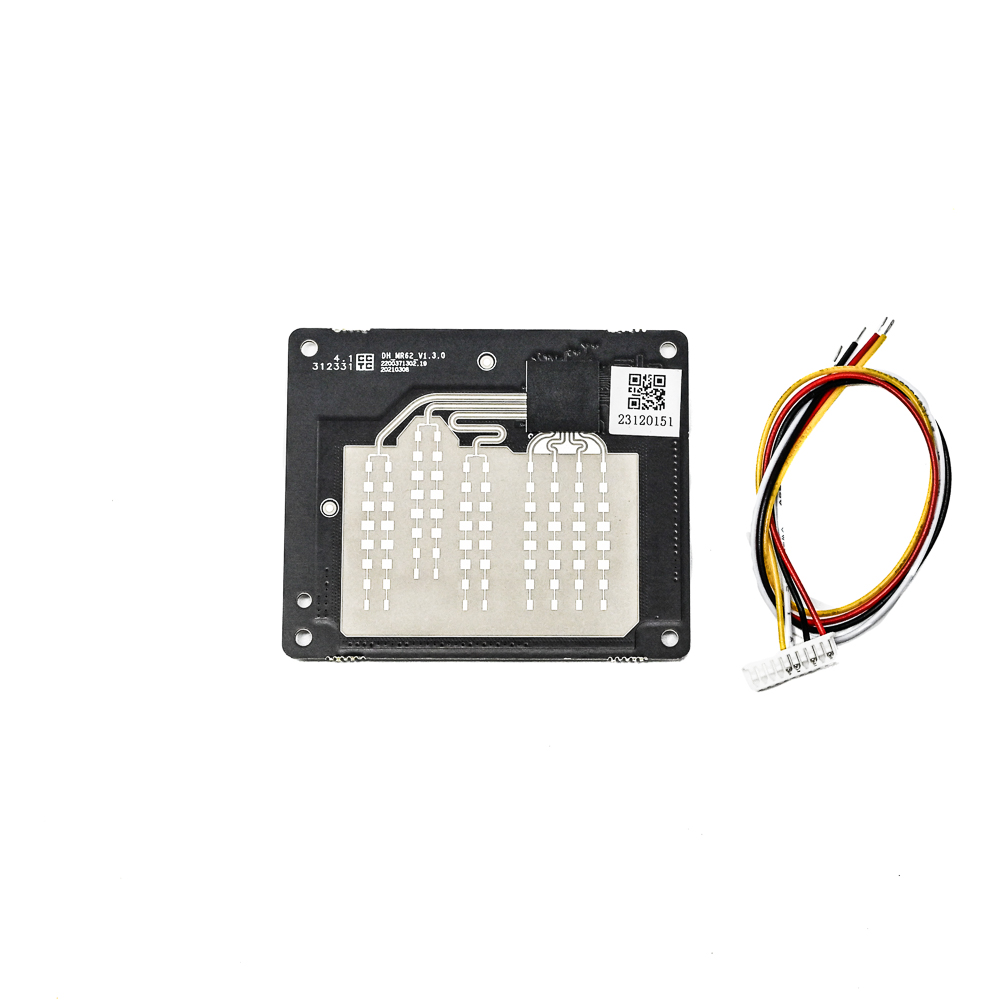

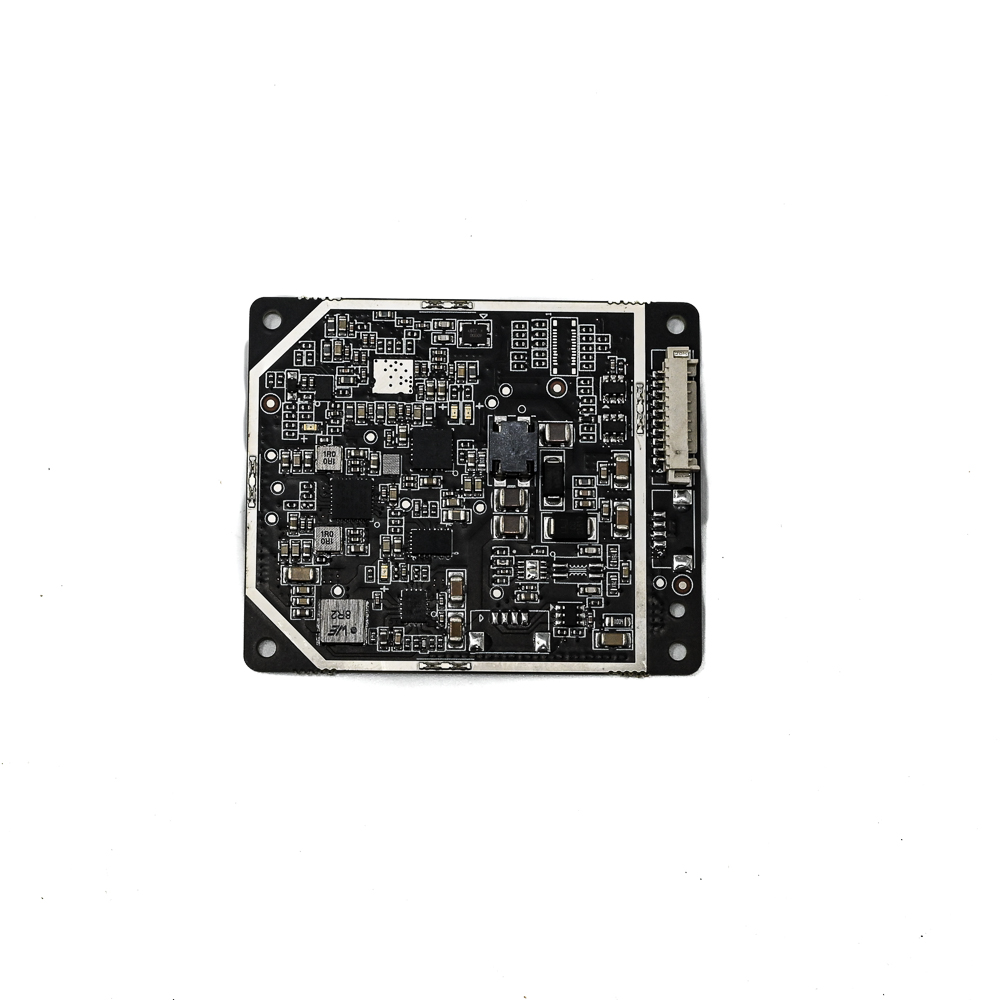

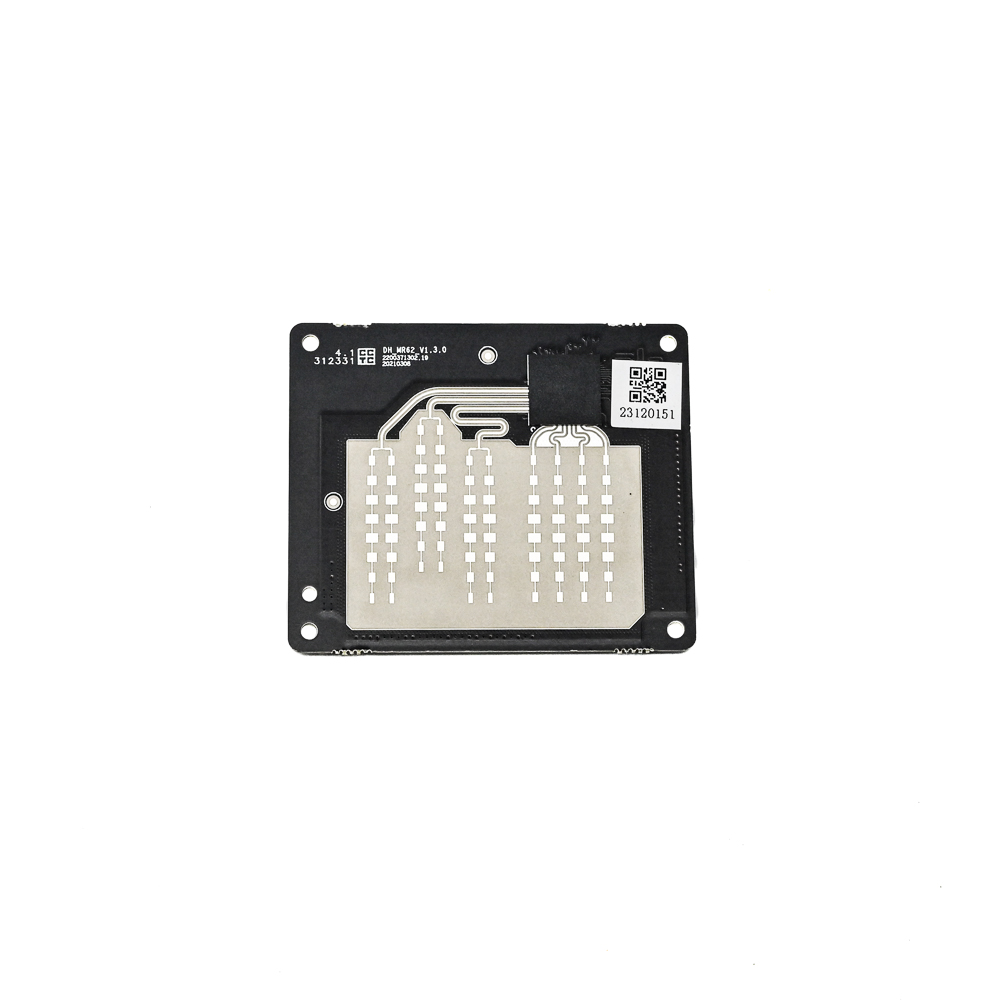

NanoRadar MR62 Multi-Lane Speed Measuring Radar - 60GHz FMCW, 1-4 Lanes, 32 Targets, 90m Range
The NanoRadar MR62 is a 60GHz FMCW millimeter-wave radar module engineered for multi-lane traffic speed measurement and monitoring. It provides real-time tracking of up to 32 targets across 1-4 lanes, delivering precise speed, distance, angle, and classification data for integration with traffic enforcement and roadside violation systems.
Features
- Multi-Lane Speed Measurement: Simultaneously monitors up to 4 lanes with lane division and direction discrimination.
- Extended Detection Range: Measures target distance from 2 meters up to 90 meters with a high-accuracy capture range of 15-60 meters.
- High-Speed Tracking: Detects relative velocities up to ±200 km/h for up to 32 concurrent targets.
- Advanced FMCW Radar: Utilizes 60GHz ISM band, multi-antenna transceiver, and sophisticated traffic algorithms for reliable data.
- Robust & Compact Design: Operates from -30°C to 60°C with a low power consumption of ≤2.5W from a wide 5-32V DC supply.
Out of stock
The MR62 multi-lane speed measurement radar is a sophisticated FMCW (Frequency Modulated Continuous Wave) sensor operating in the 60GHz millimeter-wave band. Its multi-antenna transceiver architecture and advanced digital signal processing algorithms enable precise extraction of target speed, distance, angle, and energy values. The system supports automatic lane calibration and compensation, ensuring measurement accuracy complies with national traffic enforcement standards.
Designed for gantry or roadside installation, the module outputs rich target data via a TTL serial interface, facilitating integration with photographing cameras and forensic systems for automated violation monitoring. Its compact, low-power design ensures reliable operation in harsh outdoor environments across a wide temperature range.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 4.8 × 5.2 cm |
