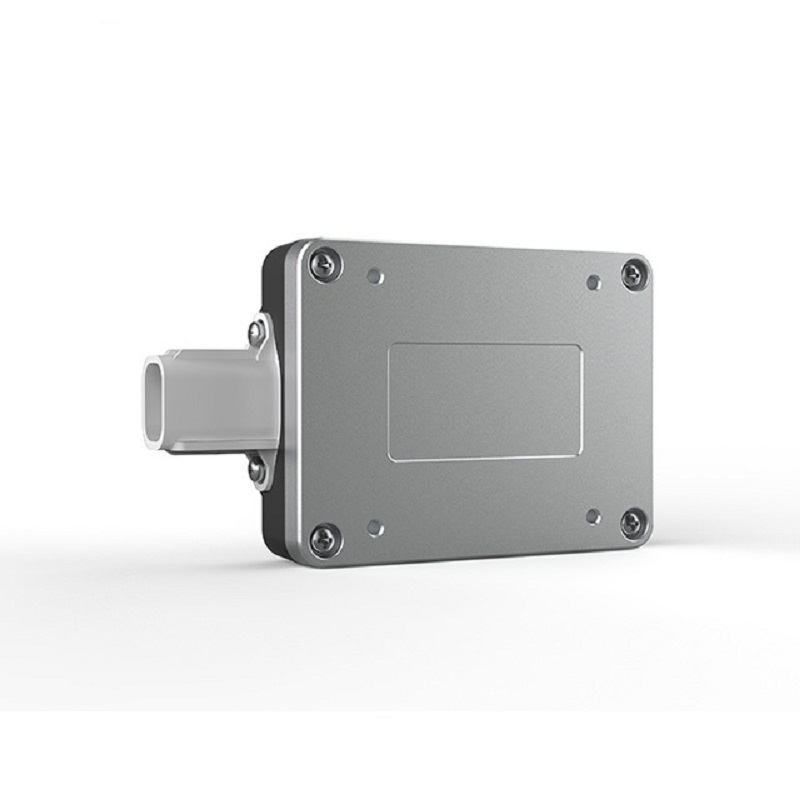

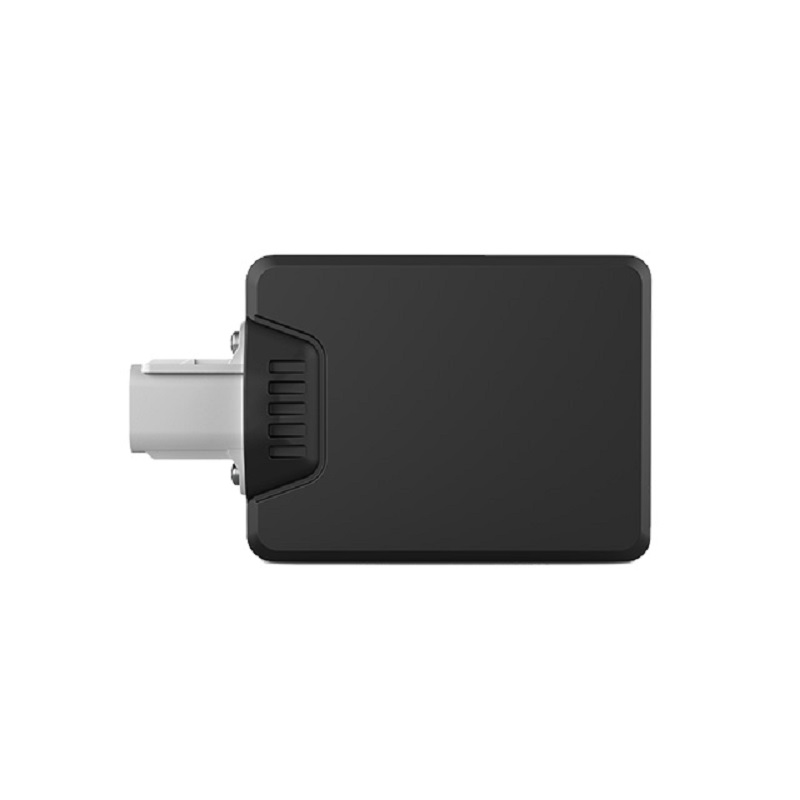

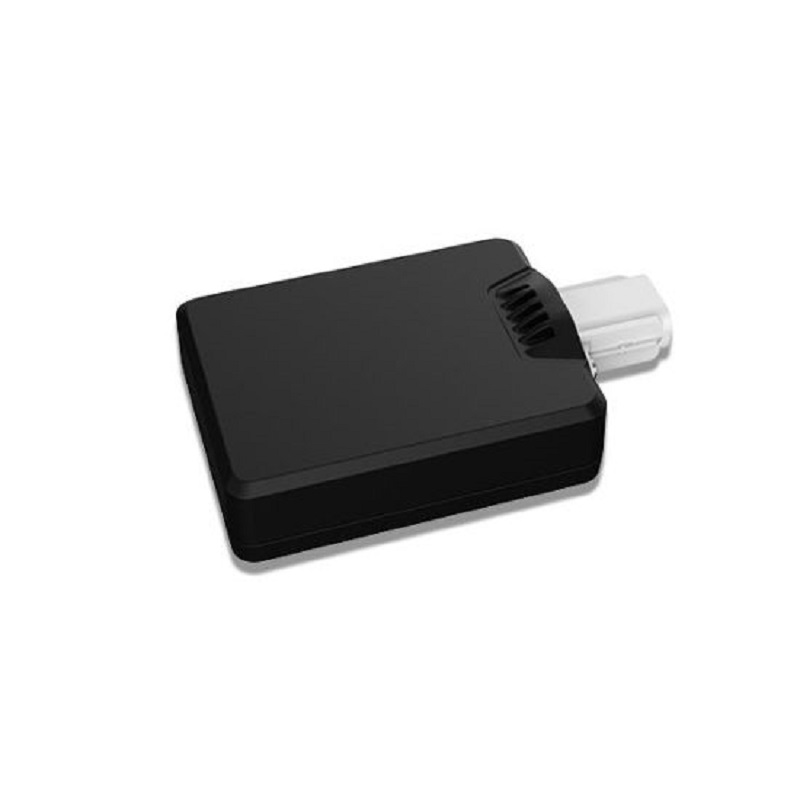

NanoRadar SR73 77GHz FCW Collision Avoidance Radar - IP66, 0.2-40m Range, 1m Cable
The NanoRadar SR73 is a compact 77GHz millimeter-wave radar module designed for front and rear collision avoidance on heavy equipment and industrial vehicles. Operating from a wide 6-32V DC supply, it provides accurate distance, velocity, and angle data for moving targets within a 0.2 to 40-meter range, making it suitable for integration into safety systems.
Features
- 77GHz MMW radar with dual-beam, fan-shaped detection pattern for accurate obstacle tracking.
- Wide operating voltage range of 6-32V DC, compatible with 12V/24V vehicle and industrial power systems.
- IP66-rated enclosure ensures reliable performance in demanding outdoor and dusty environments.
- Compact form factor (58 x 96 x 24 mm) and lightweight design for easy mounting and integration.
- Delivers target parameters including relative distance, radial velocity, and angle of arrival.
Out of stock
The SR73 operates on the 76-77GHz frequency band, utilizing Frequency Modulated Continuous Wave (FMCW) radar principles to detect moving objects. Its dual-beam design creates a wide horizontal field of view, enabling it to monitor a substantial area in front of or behind a vehicle. The module transmits microwaves and analyzes the reflected signals to calculate precise target metrics, providing critical data for collision warning and avoidance systems.

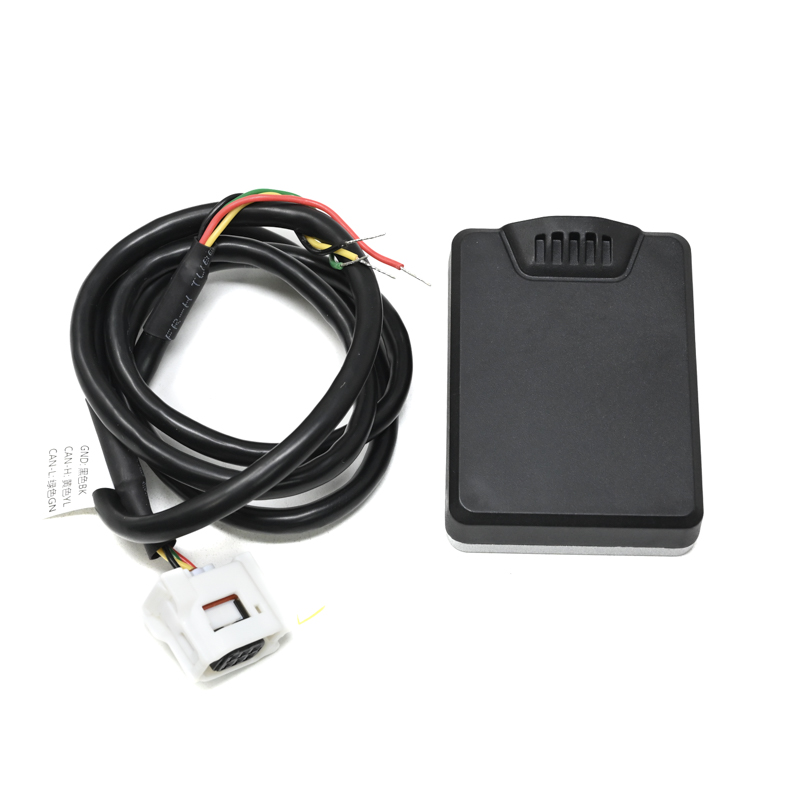

Engineered for harsh industrial environments, the sensor features an IP66 waterproof and dustproof rating and operates across an extended temperature range from -40°C to +85°C. Its low power consumption and standard 1-meter cable simplify integration into existing vehicle control networks or custom safety controllers.
Additional Information
| Weight | 0.09 kg |
|---|---|
| Dimensions | 5.8 × 9.6 × 2.4 cm |
