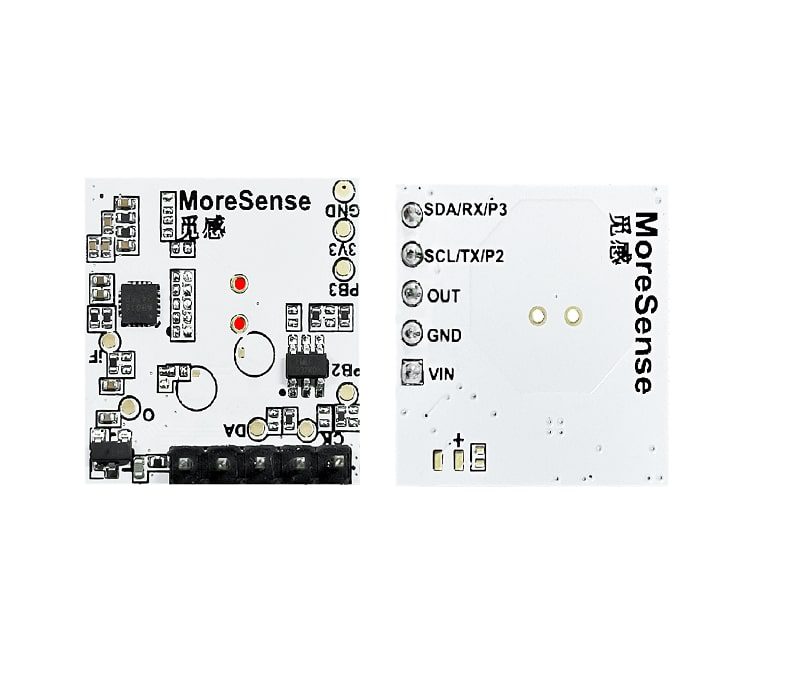

Moresense MS58-2020D13M4 5.8GHz Radar Motion Sensor Module - UART/I2C Interface
The Moresense MS58-2020D13M4 is a compact 5.8GHz microwave radar motion sensor module based on the Doppler principle, offering reliable human presence detection. It features UART and I2C interfaces for easy integration with microcontrollers like Arduino, ESP32, and Raspberry Pi, and supports a wide 3.3V to 12V DC supply range.
Features
- 5.8GHz ISM Band Doppler Radar for precise motion sensing.
- Compact 20x20mm footprint with integrated planar antenna.
- Dual communication interfaces: UART and I2C for flexible system integration.
- Wide operating voltage range: 3.3V, 5V, or 12V DC.
- Normal and ultra-low power modes for energy-efficient operation.
Out of stock
The Moresense MS58-2020D13M4 utilizes a 5.8GHz microwave radar sensor operating on the Doppler effect to detect moving objects. Its signal processing includes a multi-filter algorithm for strong anti-interference capability, allowing it to function reliably despite ambient temperature, humidity, airflow, dust, or noise. The sensor’s signal can penetrate non-metallic materials like glass and acrylic.
This module is designed for high-value integration, featuring a built-in LDO for stable power regulation across its wide input range. Factory-default parameters are user-configurable via serial commands or pin-level configuration, enabling flexible adjustment of sensing distance and delay time to suit specific application requirements.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 2 × 2 cm |
