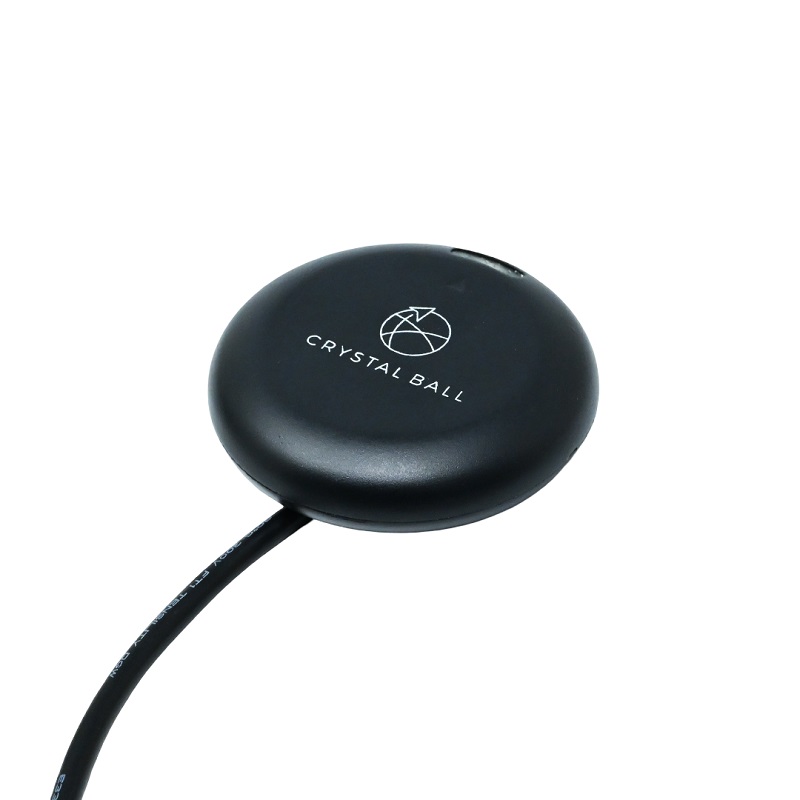

Crystal Ball GPS V1 u-blox NEO-M9N Multi-GNSS Module
The Crystal Ball GPS V1 is a high-precision GNSS navigation module featuring the u-blox NEO-M9N receiver for robust multi-constellation satellite coverage, ensuring reliable positioning and accurate orientation for diverse UAV applications.
Features
- High-precision u-blox NEO-M9N GNSS receiver with multi-constellation support (GPS, GLONASS, Galileo, BeiDou).
- Integrated LIS3MDL compass provides accurate heading and orientation data for stable flight.
- Achieves up to 2-meter positioning accuracy with rapid 2-second warm start times.
- Designed for extreme environments, operating from -45°C to +85°C and altitudes up to 80,000 meters.
- Seamless communication via UART for GPS and I2C for compass, simplifying integration into flight controllers.
Out of stock
The Crystal Ball GPS V1 stands as a highly reliable and accurate GNSS navigation solution, engineered for critical drone, robotics, and industrial applications. At its core lies the advanced u-blox NEO-M9N receiver, providing simultaneous reception from GPS, GLONASS, Galileo, and BeiDou constellations. This multi-system capability significantly enhances signal availability and positioning robustness, crucial for maintaining navigation integrity in challenging urban canyons or dense environments.
Beyond its precise positioning, the module integrates an LIS3MDL compass, delivering essential orientation data for stable flight control and waypoint navigation. Assisted-GNSS (A-GNSS) functionality ensures remarkably fast signal acquisition and warm start times, minimizing delays in mission readiness. Its compact, lightweight design is complemented by robust construction, guaranteeing consistent performance across a wide range of operating temperatures and high altitudes, making the Crystal Ball GPS V1 a versatile and dependable choice for professional UAV systems.
Additional Information
| Dimensions | 6.6 × 6.6 cm |
|---|
