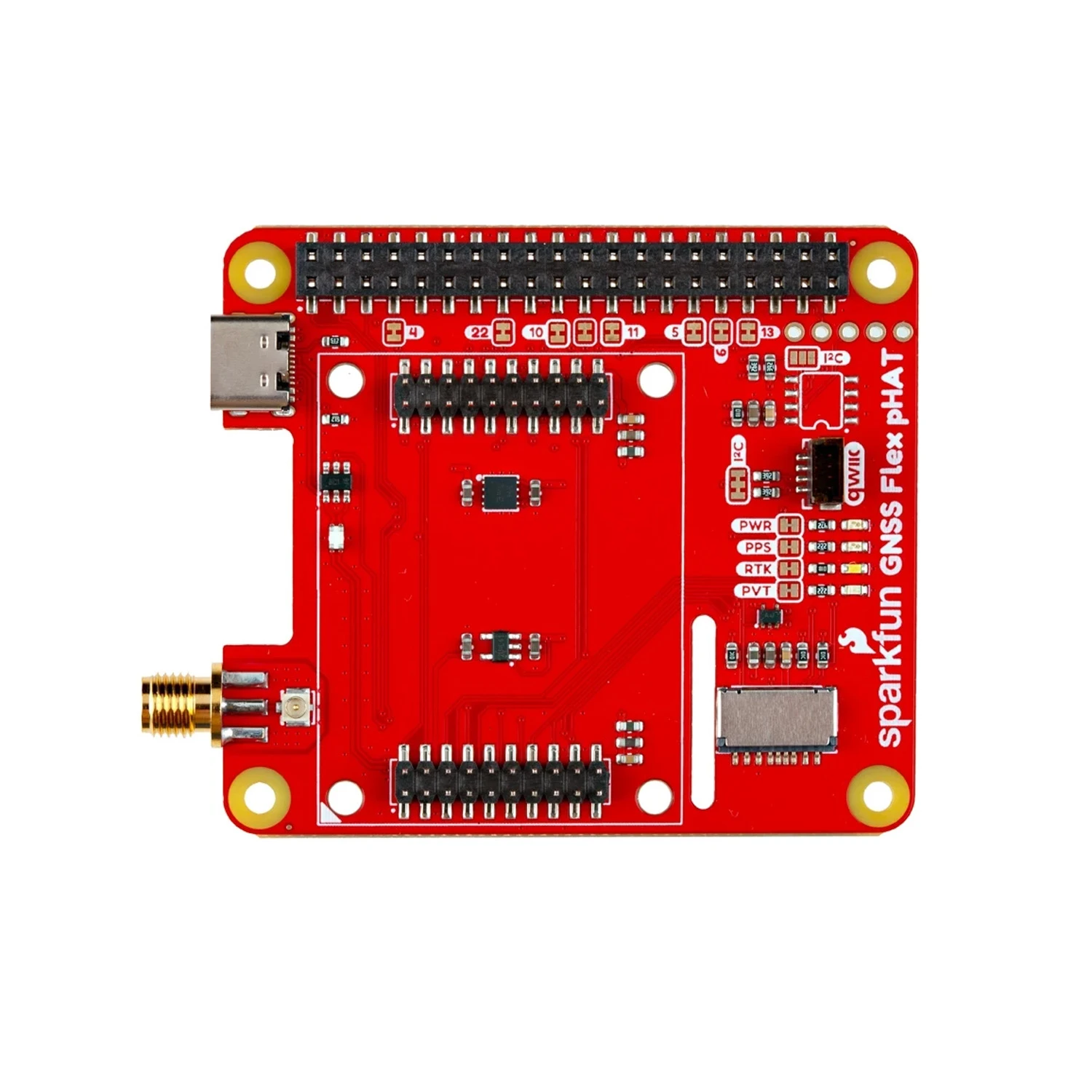

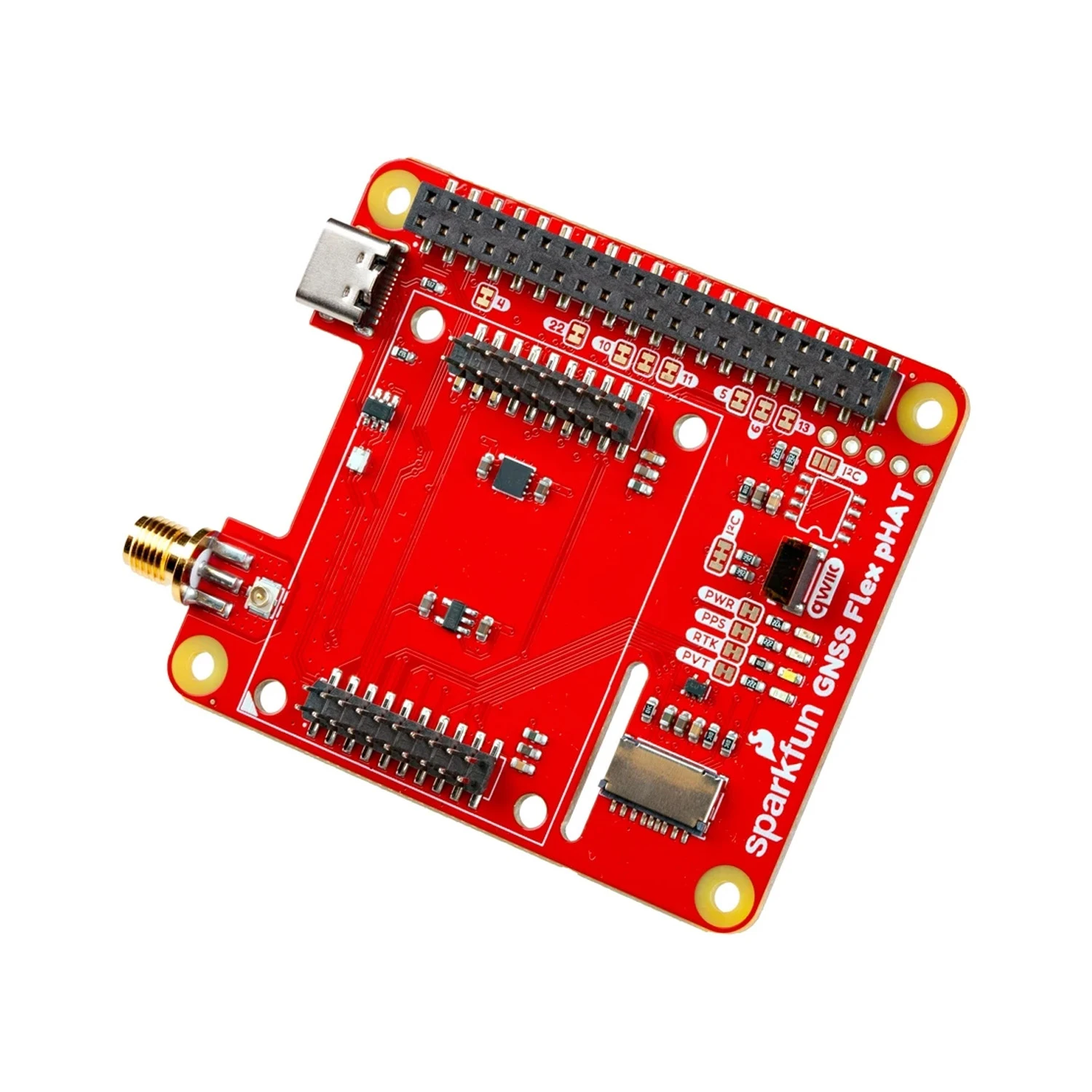

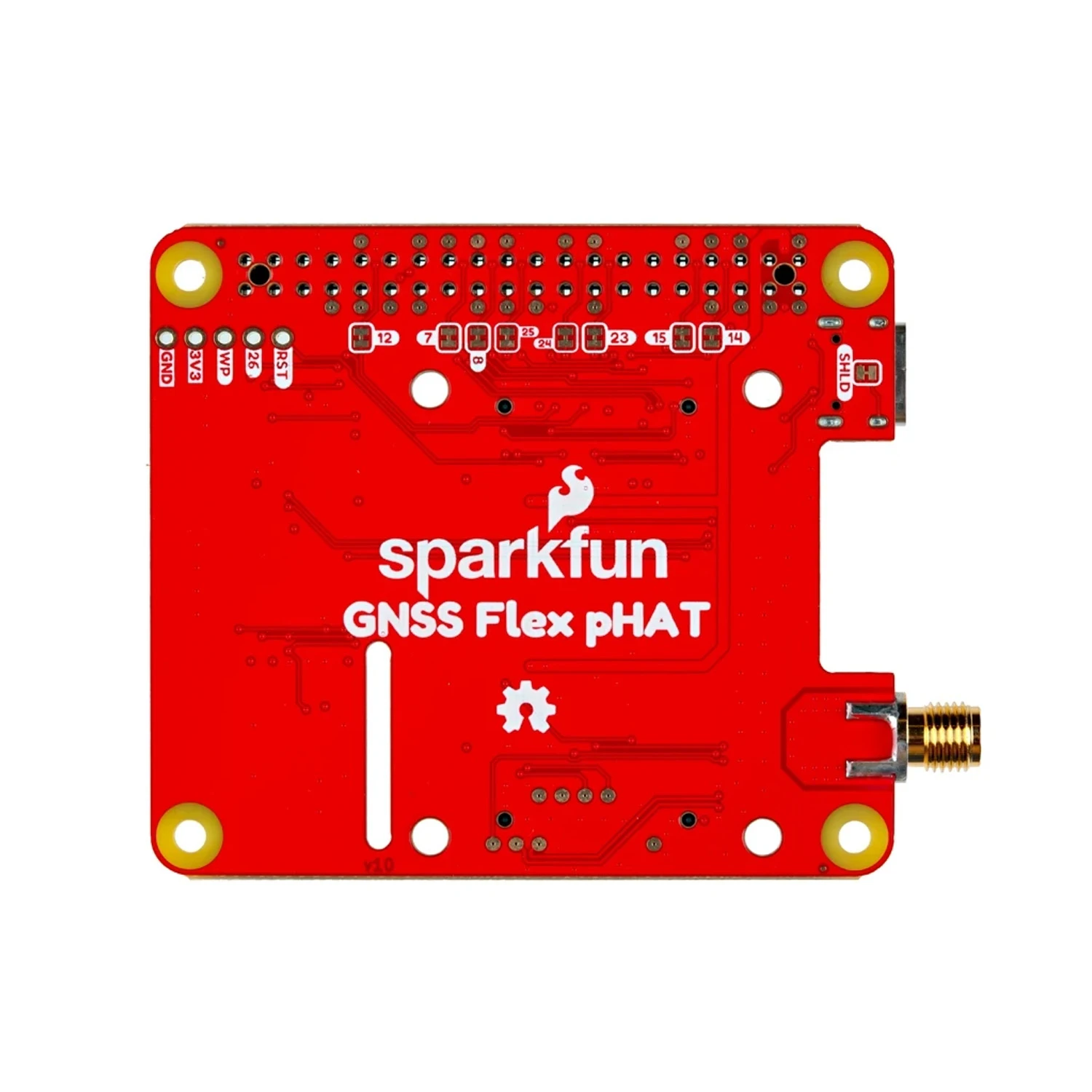

SparkFun GPS-28137 GNSS Flex pHAT for Raspberry Pi
This SparkFun GNSS Flex pHAT provides a solder-free interface for SparkPNT GNSS modules, seamlessly integrating advanced navigation capabilities with Raspberry Pi and compatible SBCs. It offers multiple communication interfaces including USB, UART, and I²C for robust positioning and autonomous system development.
Features
- Solder-free carrier for SparkPNT GNSS Flex modules.
- Directly interfaces with Raspberry Pi 40-pin headers.
- Multiple communication options: USB, UART (x4), I²C.
- Integrated U.FL and SMA antenna bridge connectors.
- Onboard µSD card and Qwiic connectivity.
Out of stock
The SparkFun GNSS Flex pHAT is engineered to simplify the integration of modular GNSS functionality into Raspberry Pi and other compatible single-board computers. As a solder-free carrier, it securely connects SparkPNT GNSS Flex modules via dedicated 2×20-pin headers, providing comprehensive access to critical communication and timing interfaces. This design streamlines development for navigation, robotics, and autonomous systems requiring precise positioning.
This pHAT supports up to four UARTs, USB, and I²C protocols, along with SD card and PPS signals from the connected GNSS module. A convenient USB-C connector enables direct module connectivity, while both U.FL and SMA connectors facilitate flexible antenna bridging. Additional features include a µSD card socket, Qwiic connector for quick prototyping, indicator LEDs, and 24 configurable jumpers for GPIO isolation and I²C pull-up management, ensuring adaptable integration into diverse projects.
Additional Information
| Dimensions | 6.5 × 5.6 × 0.8 cm |
|---|
