MORAYELEC ME201WZ Remote Ultrasonic Wireless Liquid Level Detector with Alarm - Zigbee 3.0, IP65, 0.1-4.0m Range
MORAYELEC ME201WZ Remote Ultrasonic Wireless Liquid Level Detector with Alarm - Zigbee 3.0, IP65, 0.1-4.0m Range - Image 2
MORAYELEC ME201WZ Remote Ultrasonic Wireless Liquid Level Detector with Alarm - Zigbee 3.0, IP65, 0.1-4.0m Range - Image 3
SKU: SENS-1307
📋 GST Invoice Available

MORAYELEC ME201WZ Remote Ultrasonic Wireless Liquid Level Detector with Alarm - Zigbee 3.0, IP65, 0.1-4.0m Range

₹3,299.00 (Inclusive of all taxes)
Out of Stock

The MORAYELEC ME201WZ is a wireless ultrasonic liquid level detector designed for remote monitoring of fuel, oil, and water tanks. It features Zigbee 3.0 connectivity for integration with smart home platforms like Tuya Smart Life and Zigbee2MQTT, and is powered by a standard 100-240V AC to 5V DC adapter.

Features

  • Ultrasonic non-contact sensing with a 0.1 to 4.0 meter range and ±0.02 meter accuracy.
  • Zigbee 3.0 wireless protocol for low-power, reliable remote monitoring and smart home integration.
  • IP65-rated weatherproof housing for durable indoor and outdoor installation.
  • Broad compatibility with Tuya Smart Life, Zigbee2MQTT, Home Assistant, and Jeedom automation systems.
  • Operates from -20°C to +70°C for reliable performance in varied environmental conditions.

Out of stock

Description

The ME201WZ utilizes ultrasonic pulse-echo technology to provide accurate, non-contact liquid level measurement. Its integrated signal processing delivers stable readings for tanks containing water, diesel, or light oils, making it ideal for remote or hard-to-access installations.

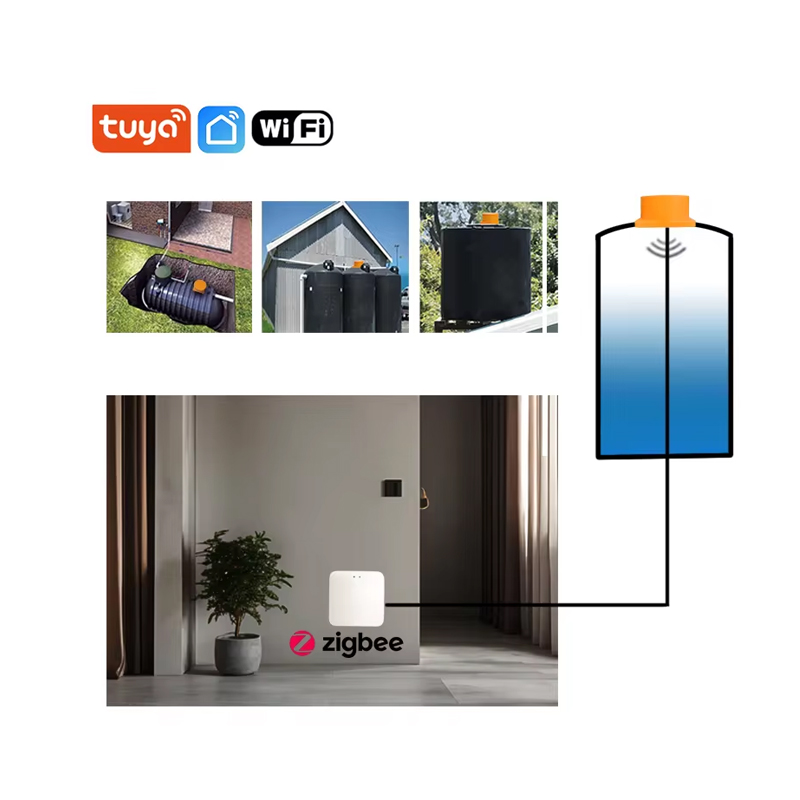

Designed for industrial and residential monitoring, the sensor features a rugged IP65 enclosure that protects against dust and water jets. Its Zigbee 3.0 wireless interface enables seamless integration into existing smart home or industrial IoT networks without the need for complex wiring, communicating level data and alarm triggers directly to a compatible gateway and mobile app.

Key Features

  • High-precision ultrasonic transducer with ±0.02m measurement accuracy.
  • Zigbee 3.0 wireless module for energy-efficient, long-range communication.
  • IP65-rated polycarbonate housing ensures durability in outdoor and damp environments.
  • Wide operating temperature range from -20°C to +70°C for year-round reliability.
  • Simple integration with popular smart home platforms via Tuya Smart Life or Zigbee2MQTT.
  • Includes dedicated mounting bracket and hardware for secure, angled installation.
  • Powered by a universal 100-240V AC to 5V DC power adapter for global compatibility.

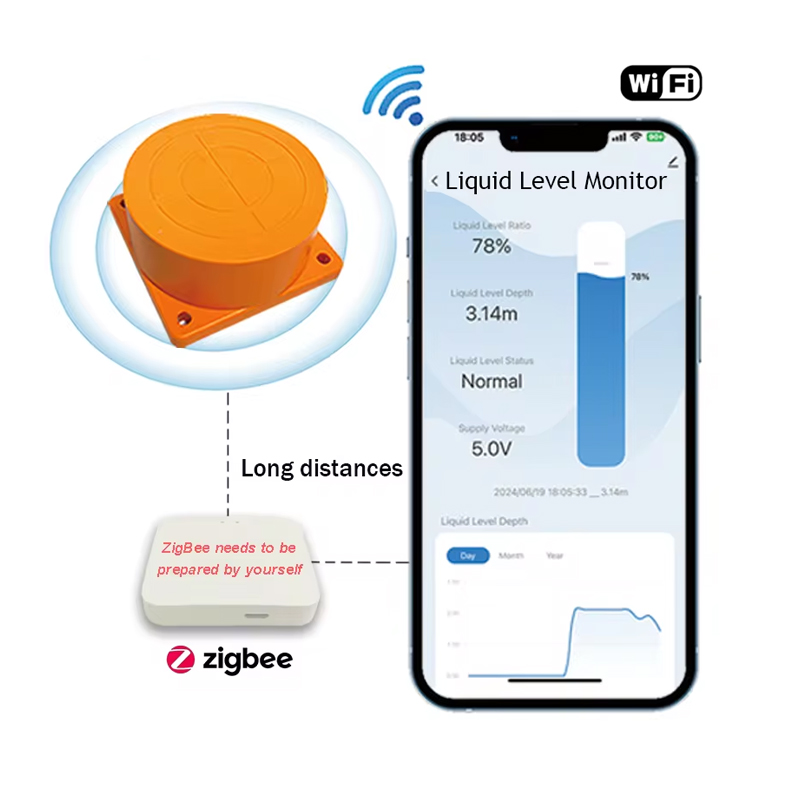

  • Real-time level monitoring and configurable high/low level alarms via mobile app.

Applications

  • Remote monitoring of residential and commercial water storage tank levels.
  • Fuel oil and diesel tank inventory management for heating systems and generators.
  • Agricultural irrigation system water level control and alerting.
  • Industrial process tank level monitoring in manufacturing facilities.
  • Bulk liquid storage level tracking for logistics and inventory purposes.

Technical Specifications

Model NumberME201WZ
Measurement Range0.1 – 4.0 m
Accuracy±0.02 m
Operating Temperature-20°C to +70°C
Wireless ProtocolZigbee 3.0
Power Supply100-240V AC to 5V DC Adapter
Ingress ProtectionIP65
Dimensions (L x W)80 mm x 80 mm
Weight (Sensor)152 g

Frequently Asked Questions

What wireless protocol does the ME201WZ sensor use and what gateway is required?

The ME201WZ uses the Zigbee 3.0 wireless protocol for communication. It requires a compatible Zigbee 3.0 gateway (not included) to connect to your network. It is designed to work with Tuya-based gateways and can also be integrated via open-source platforms like Zigbee2MQTT with a compatible USB coordinator.

What is the power requirement for this ultrasonic level detector?

The sensor is powered by the included 100-240V AC to 5V DC power adapter. It does not have an internal battery. The 5V DC output powers the ultrasonic transducer and the Zigbee wireless module directly, ensuring stable operation for continuous remote monitoring.

Can the ME201WZ be used outdoors and in cold climates?

Yes. With its IP65-rated housing, the sensor is protected against dust and water jets, making it suitable for outdoor installation. Its specified operating temperature range of -20°C to +70°C ensures reliable performance in both freezing winter conditions and hot summer environments.

What types of liquids can this sensor accurately measure?

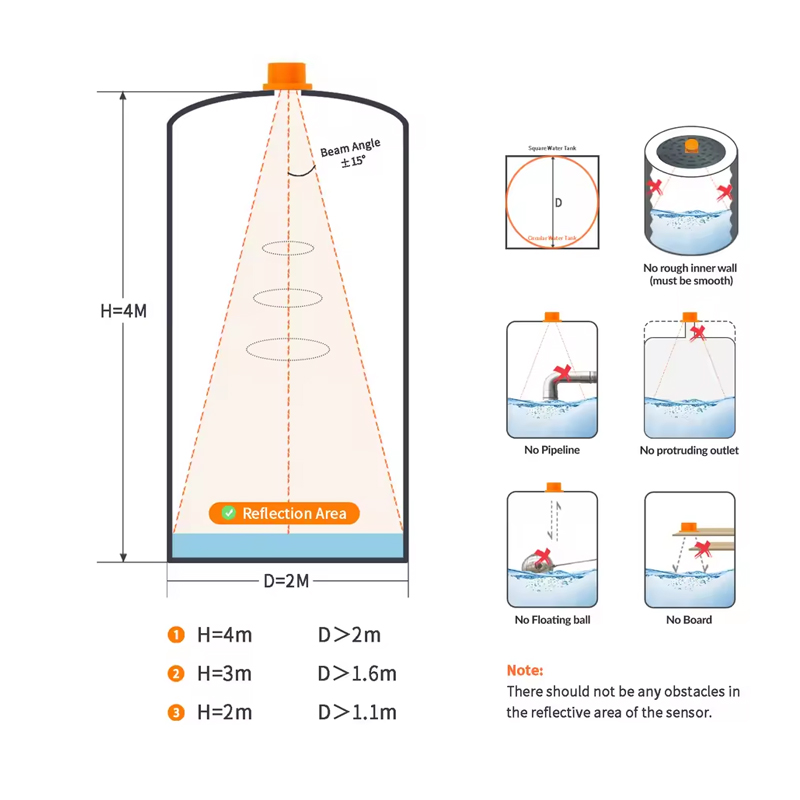

This ultrasonic sensor is designed for non-contact measurement of common liquids such as water, diesel fuel, and light oils. It is not recommended for use with highly viscous fluids, foaming liquids, or in environments with heavy steam or obstructions directly in front of the transducer.

How do I integrate this sensor with my existing smart home system?

The sensor can be paired directly with a Tuya Smart Life compatible Zigbee gateway for use with the official app. For advanced users, it can be added to systems like Home Assistant or Jeedom using a Zigbee USB coordinator (e.g., Sonoff Zigbee 3.0 USB Dongle) running Zigbee2MQTT for local control and automation.

Package Includes

  • 1 x ME201WZ Ultrasonic Wireless Liquid Level Detector
  • 1 x Power Adapter (100-240V AC to 5V DC)
  • 1 x Mounting Bracket & Screws
  • 1 x User Manual

Additional Information

Weight 0.152 kg
Dimensions 8 × 8 cm
