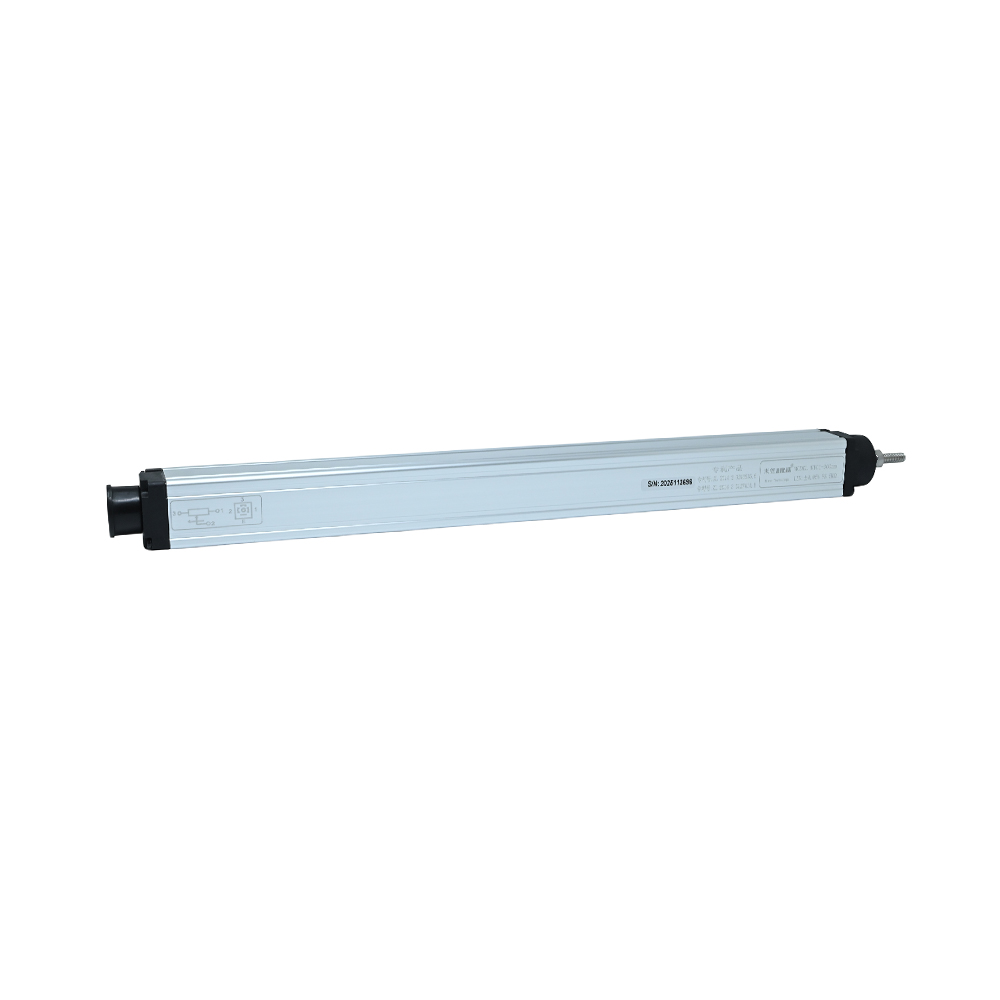

MIRAN KTC1-300MM Pull-Rod Type Linear Displacement Sensor - 0-300mm Stroke, 0-5V/0-10V/4-20mA/RS485 Output
The MIRAN KTC1-300MM is a pull-rod type linear displacement sensor providing absolute position feedback over a 300mm stroke with high 0.01mm resolution. It offers versatile analog and digital output options (0-5V, 0-10V, 4-20mA, RS485) for seamless integration with PLCs, industrial DAQ systems, and motion controllers.
Features
- 300mm stroke length with 0.01mm high resolution for precise position control.
- Multiple output options: 0-5V, 0-10V, 4-20mA analog, and RS485 digital communication.
- Absolute position measurement eliminates the need for a reference return after power loss.
- Robust pull-rod and flange mount design for reliable installation in dynamic systems.
- Based on conductive plastic potentiometer technology for stable, long-life operation.
Out of stock
The MIRAN KTC1-300MM linear displacement sensor utilizes a conductive plastic resistive potentiometer combined with a mechanical pull-rod to provide direct, absolute measurement of linear position. This technology ensures high repeatability and a long operational lifespan, even under continuous motion cycles.

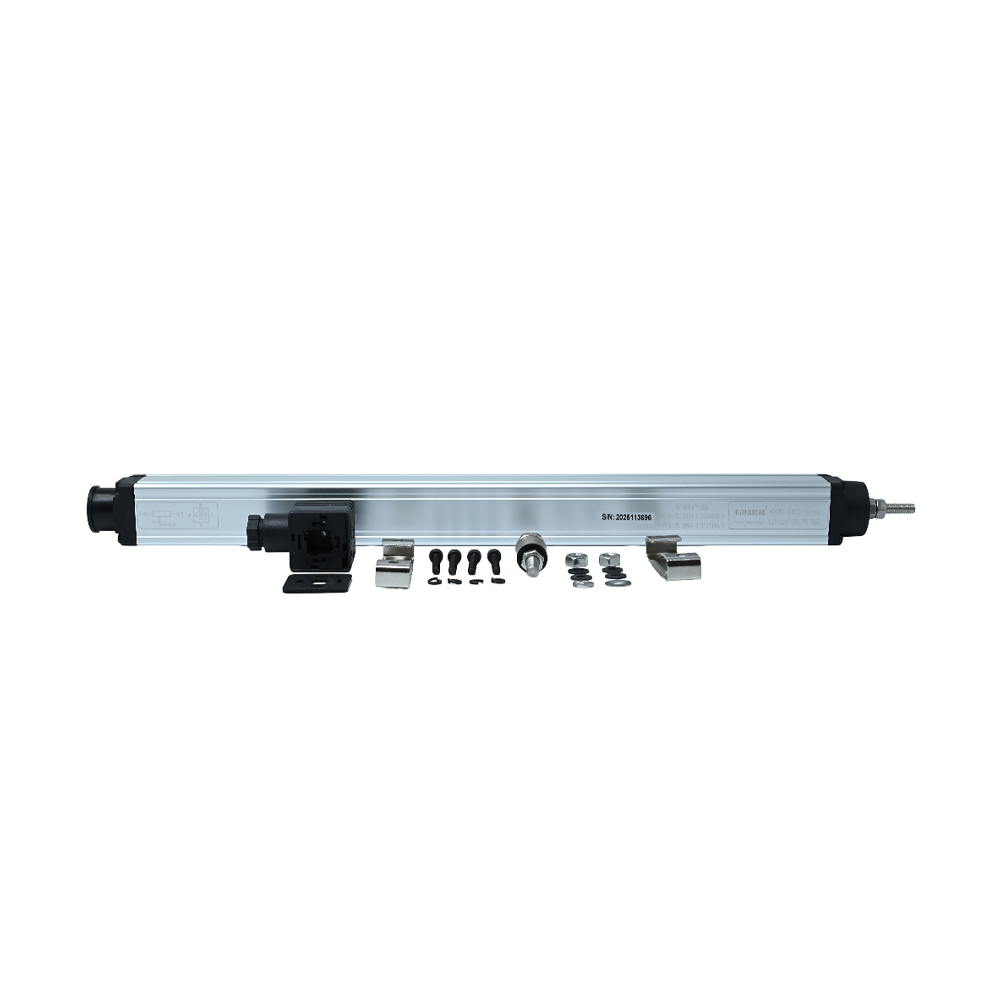

Designed for 28VDC supply, the sensor outputs stable analog or digital signals suitable for long-distance transmission in industrial environments. Its robust construction and included mounting hardware facilitate secure installation on injection molding machines, hydraulic cylinders, and other machinery requiring precise positional feedback.
Additional Information
| Weight | 0.411 kg |
|---|---|
| Dimensions | 12.3 × 3 cm |
