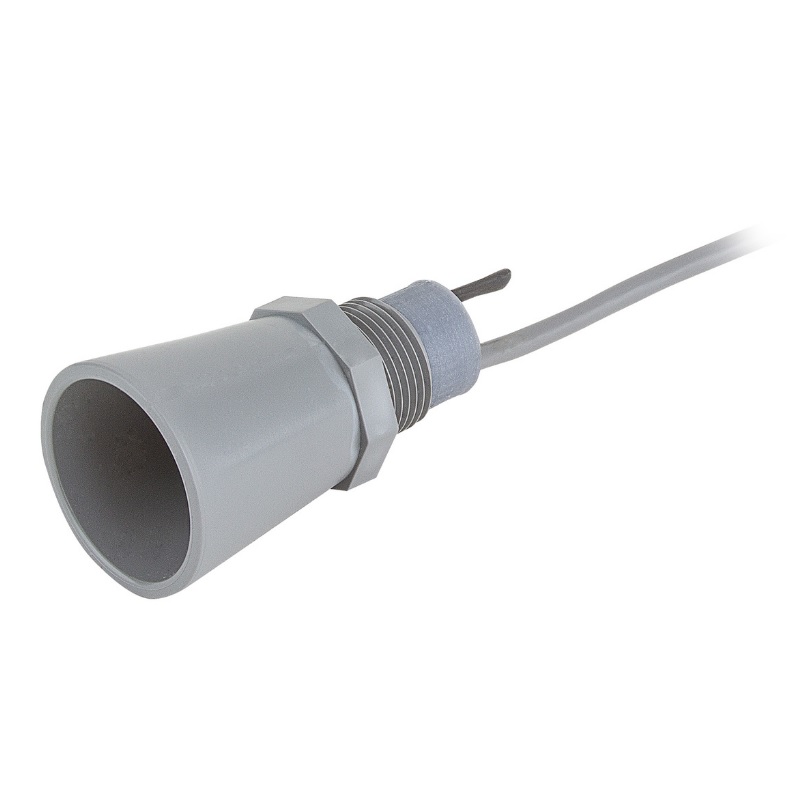

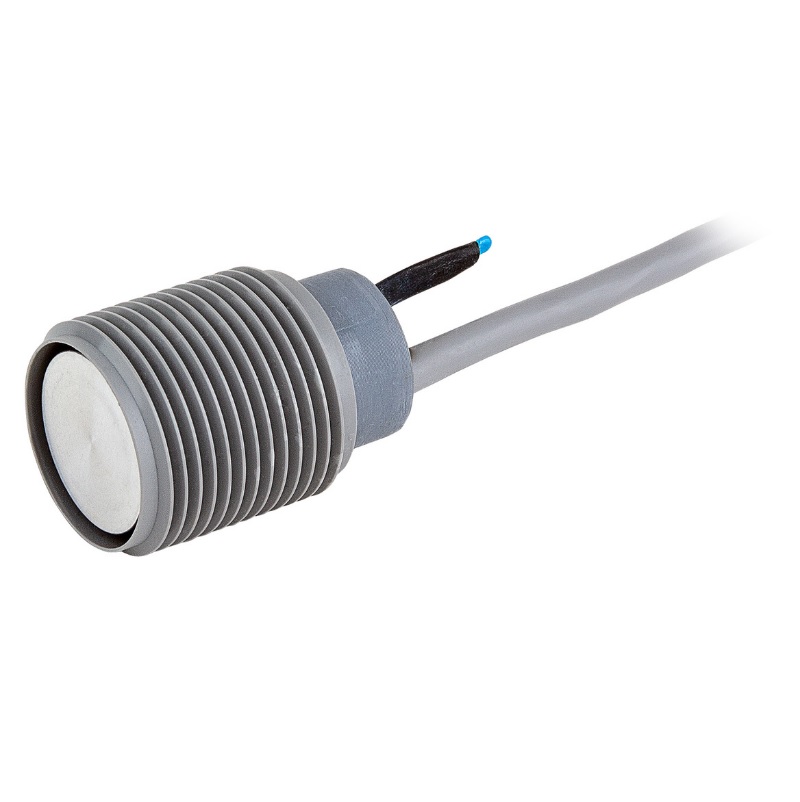

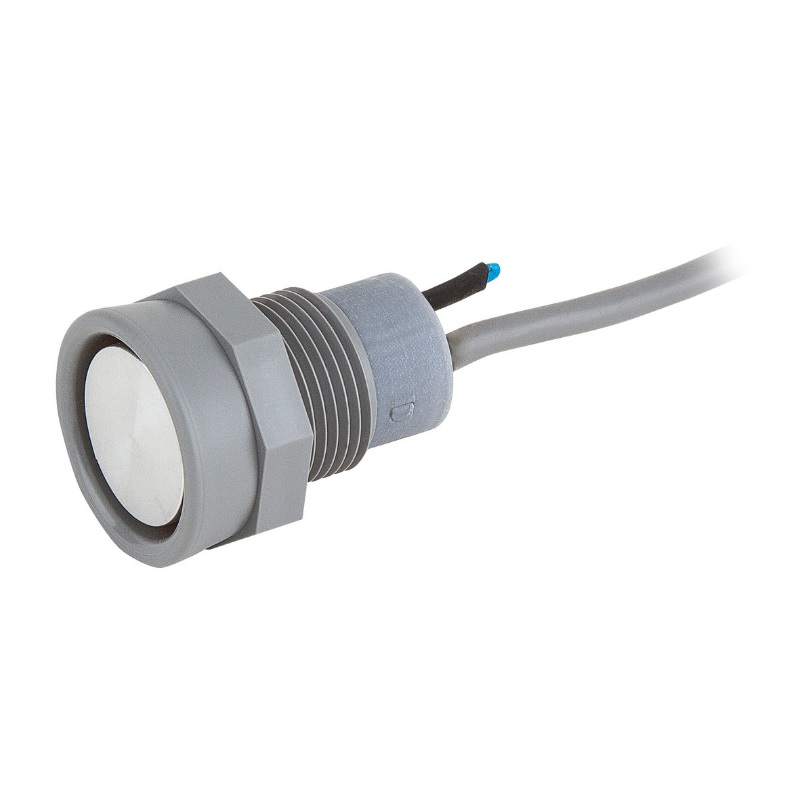

MaxBotix MB7480-101 HR-MaxSonar-WRI Ultrasonic Sensor - 4-20mA Output, IP67
The MaxBotix MB7480-101 is a high-performance, IP67-rated ultrasonic distance sensor with a 4-20mA current loop output, designed for robust industrial process control and level measurement applications. It operates from a 10-32V DC supply and provides precise, stable ranging from 50 cm to 5 meters.
Features
- High-accuracy ultrasonic ranging with 4-20mA current loop output for industrial control.
- Wide 10-32V DC operating voltage range compatible with standard industrial power supplies.
- IP67-rated weather-resistant housing for reliable operation in harsh environments.
- Excellent noise immunity and stable readings with a 75 Hz update rate.
- Extended operating temperature range from -40°C to +65°C.
Out of stock
The MB7480-101 HR-MaxSonar-WRI sensor utilizes advanced ultrasonic time-of-flight (ToF) technology to deliver precise, non-contact distance measurements. Its 4-20mA analog output provides a robust, noise-resistant signal ideal for long-distance transmission in industrial automation and process control systems, where voltage drop or EMI can be a concern.
Engineered for durability, the sensor features an IP67 enclosure, protecting its internal electronics from dust ingress and temporary immersion in water. This makes it suitable for outdoor applications, tank level monitoring, and other challenging environments. The sensor’s internal filtering algorithms ensure reliable and stable range readings even in the presence of acoustic noise or electrical interference.
Additional Information
| Weight | 0.19 kg |
|---|---|
| Dimensions | 20 × 10 × 5 cm |
