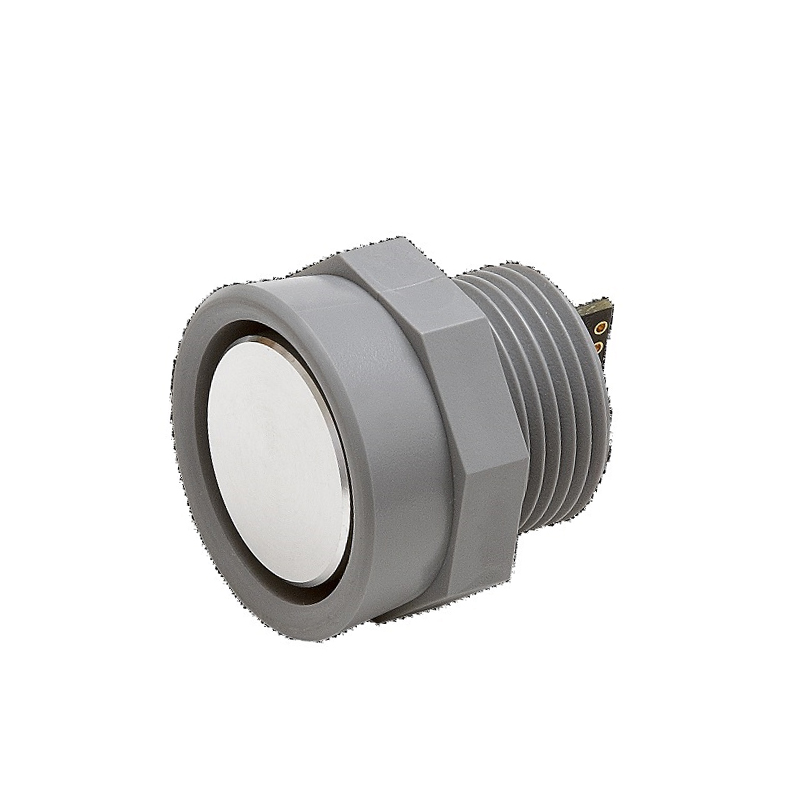

MaxBotix MB7375-200 HRXL-MaxSonar-WRB Long-Range Ultrasonic Sensor - IP67 PVC Housing
The MaxBotix MB7375-200 HRXL-MaxSonar-WRB is a long-range, IP67-rated ultrasonic distance sensor designed for reliable outdoor operation. It provides high-resolution, noise-filtered distance readings up to 1.525 meters and is compatible with 3.3V-5V microcontrollers and industrial PLCs.
Features
- Long-range detection up to 1.525 meters (5 feet) with 1-mm resolution.
- IP67 weather-resistant PVC housing designed for outdoor and industrial environments.
- Features real-time automatic calibration for voltage, humidity, and ambient acoustic noise.
- Low power consumption at 2.9mA average, operating from 2.7V to 5.5V DC.
- Integrates advanced firmware filtering for excellent noise tolerance and clutter rejection.
Out of stock
The MB7375-200 utilizes a 42kHz ultrasonic transducer paired with sophisticated signal processing algorithms, including continuously variable gain and real-time waveform signature analysis. This combination delivers stable, virtually noise-free distance measurements even in acoustically challenging environments with electrical interference or competing noise sources.
Housed in a rugged, chemical-resistant PVC enclosure that matches standard 3/4-inch pipe fittings, this sensor is factory-calibrated and ready for deployment. Its wide detection zone and internal temperature compensation ensure consistent performance across an operating temperature range of -40°C to +65°C, making it a robust solution for demanding applications.
Additional Information
| Weight | 0.04 kg |
|---|---|
| Dimensions | 6 × 4 × 3 cm |
