Pepperl+Fuchs MH4-2057 Adjustable Slide Mounting Bracket for Ultrasonic Limit Switch Sensors

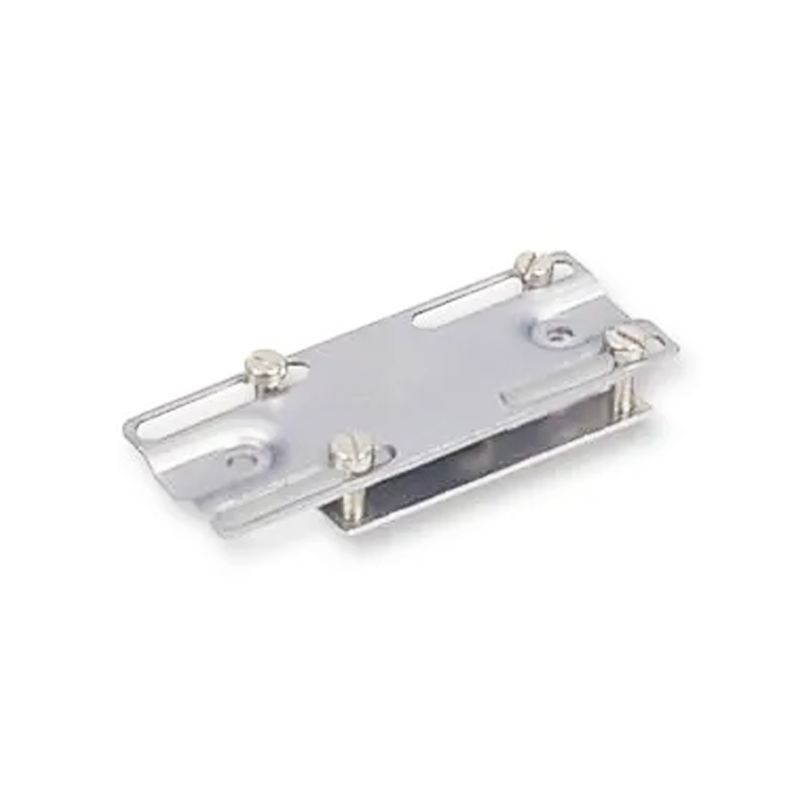

Pepperl+Fuchs MH4-2057 Adjustable Slide Mounting Bracket for Ultrasonic Limit Switch Sensors - Image 2
SKU: SENS-1612
📋 GST Invoice Available

Pepperl+Fuchs MH4-2057 Adjustable Slide Mounting Bracket for Ultrasonic Limit Switch Sensors

₹3,389.00 (Inclusive of all taxes)
Out of Stock

The Pepperl+Fuchs MH4-2057 is an adjustable slide mounting bracket designed for precise installation of ultrasonic limit switch style sensors in industrial automation systems. It provides up to 30 mm of linear adjustment and 360° rotation for optimal sensor positioning on Unistrut channels and other structures.

Features

  • Provides up to 30 mm of linear slide adjustment for precise sensor positioning.
  • Features 360° rotation for flexible mounting orientation.
  • Constructed from corrosion-resistant aluminum for industrial durability.
  • Secures sensor with M5-16 mm mounting screws for a firm, vibration-resistant lock.
  • Compatible with Pepperl+Fuchs ultrasonic limit switch style sensors.

Out of stock

Description

The MH4-2057 mounting bracket is engineered for industrial sensing applications requiring precise and repeatable sensor placement. Its adjustable slide mechanism allows the fully wired sensor to be moved forward or backward up to 30 mm, enabling fine-tuning of the sensing point without the need for complete reinstallation or complex realignment of the entire assembly.

Constructed from corrosion-resistant aluminum, the bracket ensures long-term reliability in demanding environments. The 360° rotational capability, combined with the linear slide, offers maximum flexibility for orienting the sensor head towards the target. This tool-free adjustment system simplifies installation and maintenance on standard Unistrut profiles, making it ideal for material handling, packaging, and process automation systems.

Key Features

  • Adjustable slide design provides up to 30 mm of linear positioning for precise sensing point calibration.
  • Full 360° rotation enables optimal sensor orientation to suit any application layout.
  • Manufactured from high-grade, corrosion-resistant aluminum alloy for robust performance.
  • Secure locking mechanism utilizes M5-16 mm screws to firmly fix the sensor in place, preventing drift.
  • Designed for direct compatibility with Pepperl+Fuchs ultrasonic limit switch sensor housings.
  • Facilitates easy, tool-free installation and adjustment on Unistrut channel mounting systems.
  • Optimized for stable mounting in high-vibration industrial environments.

Applications

  • Precision mounting for ultrasonic limit switches in automated packaging and material handling lines.
  • Adjustable sensor positioning on conveyor systems for object detection and counting.
  • Secure mounting of industrial proximity sensors on machine frames and robotic workcells.
  • Flexible installation of monitoring sensors on process equipment and storage tanks.

Technical Specifications

Model NumberMH4-2057
Compatible Sensor TypeUltrasonic Limit Switch Style Sensors
Adjustment RangeUp to 30 mm (Linear Slide)
Rotation Capability360°
Primary MaterialCorrosion-Resistant Aluminum
Length100 mm
Width40 mm
Weight150 g
Mounting HardwareM5-16 mm Screws
Compatible Mounting SystemsUnistrut Channels

Frequently Asked Questions

What type of sensors is the MH4-2057 bracket compatible with?

The MH4-2057 bracket is specifically designed for mounting Pepperl+Fuchs ultrasonic limit switch style sensors. It is engineered to securely hold the sensor housing while allowing for precise positional adjustment.

How much adjustment does this mounting bracket provide?

This bracket provides two axes of adjustment. It offers up to 30 mm of linear slide movement for fine-tuning the sensor's distance from a target. Additionally, it allows for 360° of rotation to optimally orient the sensor's sensing face.

How is the sensor secured in the bracket after adjustment?

The sensor is secured using the provided M5-16 mm mounting screws. After sliding or rotating the sensor to the desired position, you tighten these screws to lock it firmly in place, ensuring a vibration-resistant hold.

Can this bracket be mounted on standard industrial framing?

Yes, the MH4-2057 is designed for installation on Unistrut channel mounting systems, a common standard in industrial automation. Its design facilitates straightforward, tool-free attachment to these profiles.

Package Includes

  • 1 x Pepperl+Fuchs MH4-2057 Adjustable Slide Mounting Bracket

Additional Information

Weight 0.15 kg
Dimensions 10 × 4 cm
