DYP-A06LYU-V1.1 Ultrasonic Distance Sensor 25-600cm Range - UART Auto, PWM, Switch Outputs

The sensor operates on a standard 5V DC supply. It is compatible with common microcontroller boards like Arduino, Raspberry Pi, and ESP32 that provide a stable 5V output. Ensure your power source can deliver clean, regulated 5V for optimal performance.

The module offers two UART modes: 'UART Auto' outputs distance data continuously without host commands, while 'UART Controlled' mode requires specific serial commands to trigger a measurement. Connect the module's TX/RX pins to your microcontroller's UART pins, typically at a default baud rate of 9600bps (confirm in datasheet).

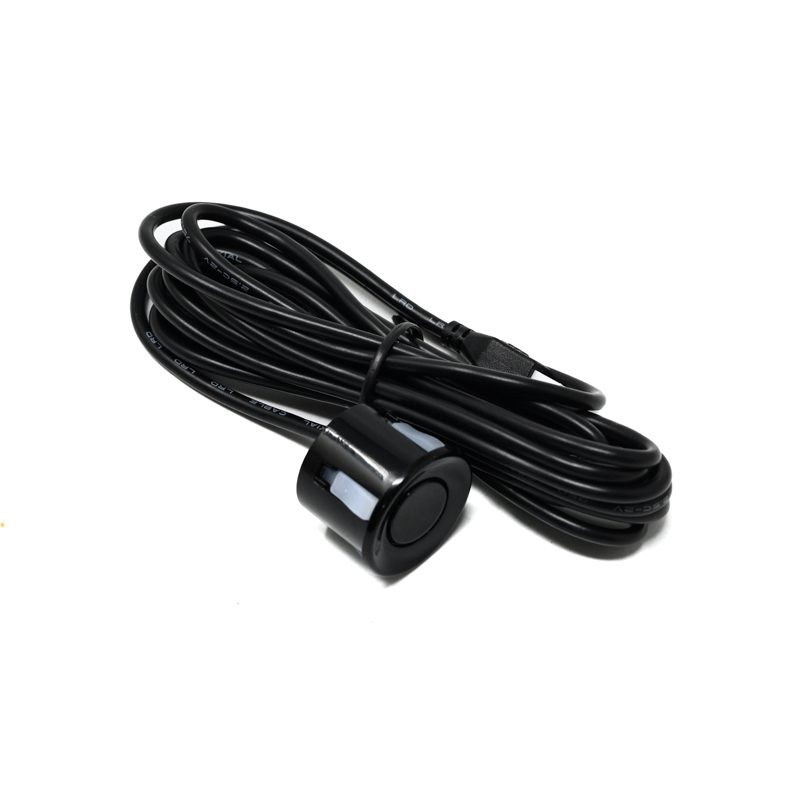

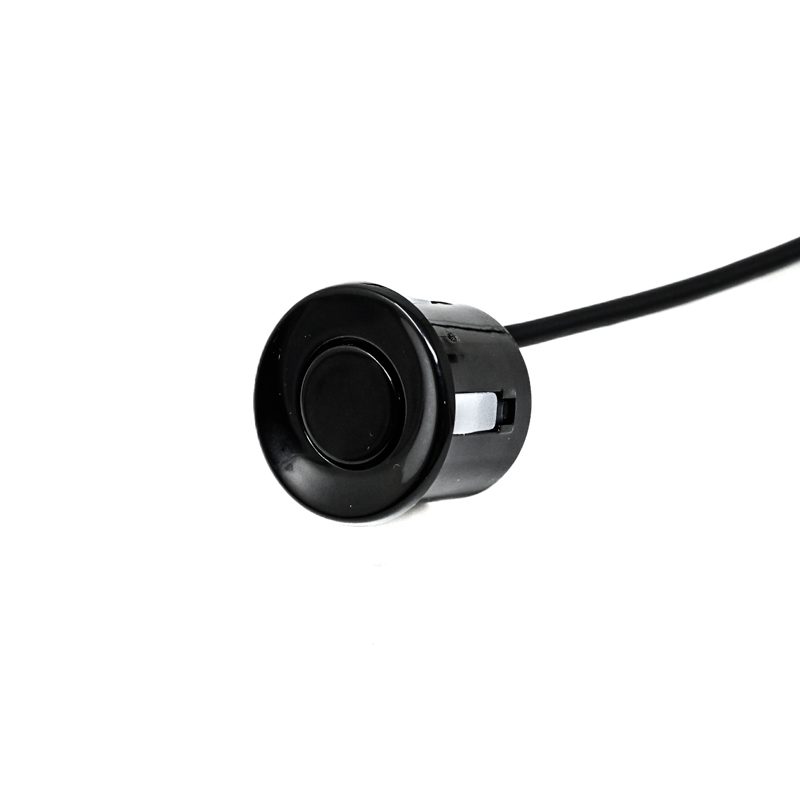

Yes, the transducer is rated IP67, making it waterproof and dust-tight, suitable for outdoor use. However, the driver board is not waterproof and must be housed in a separate protective enclosure if exposed to the elements. The internal temperature compensation also helps maintain accuracy in varying outdoor conditions.

The specified reliable measurement range is 25 cm to 600 cm. Objects closer than 25 cm may not be detected accurately due to sensor dead zone. The maximum range of 600 cm can be affected by target material, angle, and environmental factors like air temperature and humidity.

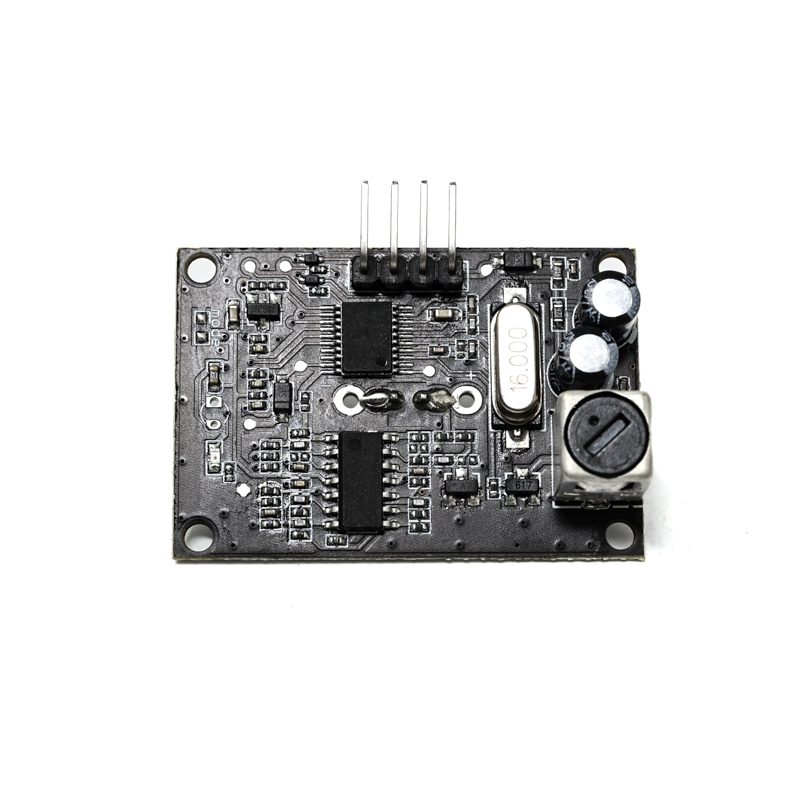

The provided driver board contains the necessary signal conditioning circuitry, voltage regulation, and output interface logic. It simplifies integration by providing clearly labeled connection points (VCC, GND, TX, RX, etc.) and protects the sensitive transducer electronics from voltage spikes or incorrect wiring.
