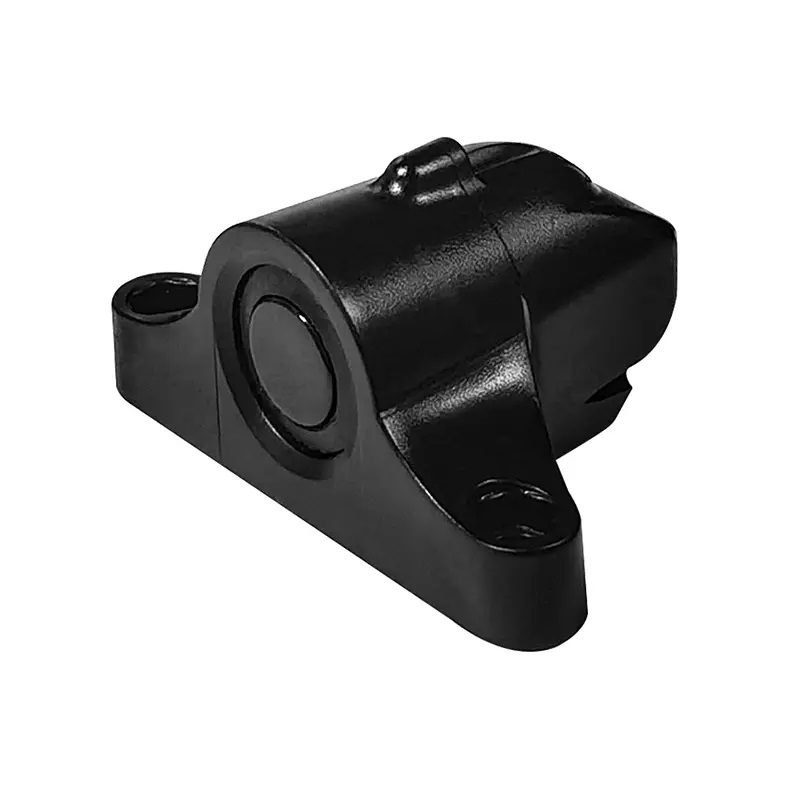

DYP-A10ANYUW-V1.0 Ultrasonic Precision Rangefinder 25-450cm - UART Auto
DYP-A10ANYUW-V1.0 Ultrasonic Precision Rangefinder 25-450cm - UART Auto - Image 2
SKU: SENS-4010
📋 GST Invoice Available

DYP-A10ANYUW-V1.0 Ultrasonic Precision Rangefinder 25-450cm - UART Auto

₹1,279.00 (Inclusive of all taxes)
Out of Stock

The DYP-A10ANYUW-V1.0 is a high-precision ultrasonic rangefinder module offering a 25 cm to 450 cm measurement range with automatic UART communication. It operates on a 3.3V to 5.0V supply, making it compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers for robotics, automation, and proximity sensing applications.

Features

  • Wide ultrasonic ranging from 25 cm to 450 cm with millimeter-level resolution.
  • Automatic UART (UART Auto) interface for simplified microcontroller integration.
  • IP67 waterproof rating ensures reliable operation in harsh, outdoor environments.
  • Built-in temperature compensation algorithm for stable, accurate measurements.
  • Low power consumption suitable for portable and battery-powered systems.

Out of stock

Description

The DYP-A10ANYUW-V1.0 ultrasonic distance sensor utilizes piezoelectric transducers to emit and receive high-frequency sound waves, calculating distance via time-of-flight (ToF) principles. Its integrated high-precision algorithm and automatic temperature compensation correct for environmental variations, ensuring consistent accuracy across its operational range.

Designed for industrial and embedded applications, the module’s IP67-rated housing protects against dust and temporary water immersion. The automatic UART mode simplifies protocol handling, outputting pre-formatted distance data for direct use in control systems, robotics navigation, and automated level monitoring without complex configuration.

Key Features

  • High-performance ultrasonic transducer with a 25-450 cm measurement span.
  • Automatic UART communication protocol (UART Auto) for plug-and-play serial data output.
  • Advanced signal processing with built-in temperature compensation for measurement stability.
  • Robust IP67 waterproof construction for durability in demanding environments.
  • Wide operating voltage range of 3.3V to 5.0V DC for flexible system integration.
  • Low power consumption design optimized for continuous operation in portable devices.
  • Fast response time enables real-time distance tracking for dynamic applications.
  • Compact form factor facilitates easy mounting and integration into space-constrained projects.

Applications

  • Robotics navigation and obstacle avoidance systems.
  • Industrial tank level monitoring and liquid volume measurement.
  • Automated parking management and vehicle detection systems.
  • Proximity sensing for automated gates and security systems.
  • Drone altitude hold and terrain-following applications.

Technical Specifications

Model NumberDYP-A10ANYUW-V1.0
Measurement Range25 cm to 450 cm
Output InterfaceUART Auto (Automatic)
Operating Voltage3.3V to 5.0V DC
Environmental ProtectionIP67 Waterproof
Key FeatureAutomatic Temperature Compensation
Measurement ResolutionMillimeter-level
Shipping Weight0.028 kg
Shipping Dimensions10 × 8 × 4 cm

Frequently Asked Questions

What is the UART Auto interface, and how do I connect it to my microcontroller?

The UART Auto interface automatically outputs formatted distance data over a serial UART connection without requiring manual command triggering. Simply connect the module's TX pin to your microcontroller's RX pin and provide 3.3V or 5V power and ground. The baud rate is typically fixed (e.g., 9600 bps); consult the datasheet for specific parameters.

Can this sensor operate outdoors in rain or dusty conditions?

Yes, the DYP-A10ANYUW-V1.0 features an IP67 waterproof and dustproof rating. This means it is protected against temporary immersion in water up to 1 meter for 30 minutes and is dust-tight, making it suitable for outdoor applications like weather stations, agricultural monitoring, and outdoor robotics.

What is the purpose of the automatic temperature compensation?

Ultrasonic sound speed varies with air temperature, which can introduce measurement error. The built-in temperature compensation algorithm automatically adjusts the time-of-flight calculations based on ambient conditions, ensuring high accuracy and stable readings across the sensor's specified operating temperature range.

What is the minimum and maximum measurable distance for this module?

The specified measurement range is 25 centimeters to 450 centimeters. Distances below 25 cm may not be accurately resolved due to transducer recovery time, and objects beyond 450 cm may not reliably reflect the ultrasonic pulse back to the receiver, depending on surface material and angle.

Package Includes

  • 1 x DYP-A10ANYUW-V1.0 Ultrasonic Rangefinder Module

Additional Information

Weight 0.028 kg
Dimensions 10 × 8 × 4 cm
