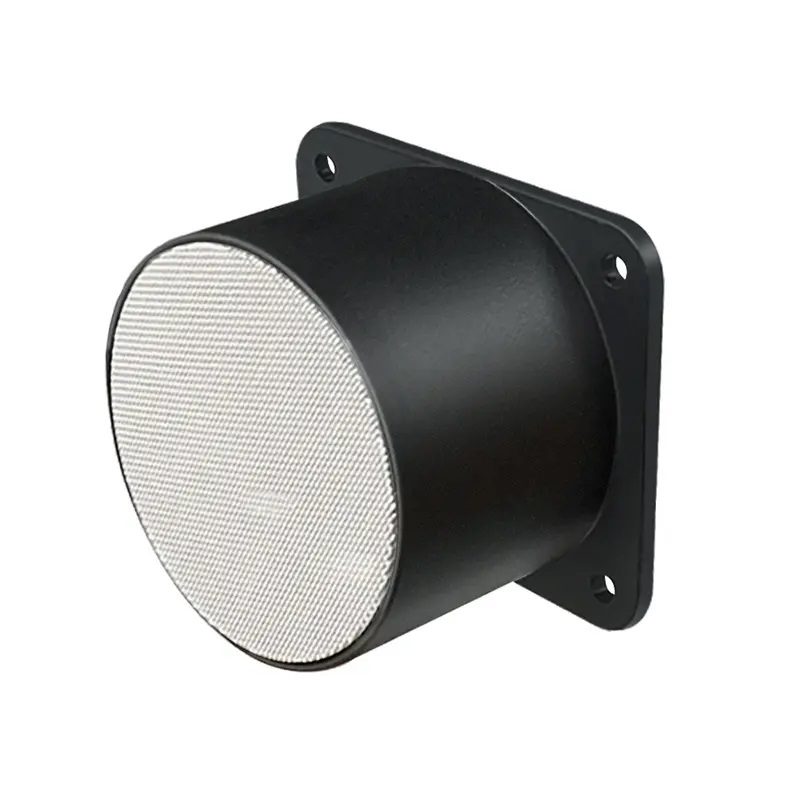

DYP-A12BNYTW-V1.0 Narrow Beam Ultrasonic Range Finder 25-500cm - UART Controlled IP67 Waterproof
The DYP-A12BNYTW-V1.0 is a high-precision ultrasonic distance sensor module with a narrow beam angle, offering a measurement range of 25 cm to 500 cm. It communicates via UART for easy integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and industrial PLCs, and features an IP67 waterproof transducer for reliable operation in harsh environments.
Features
- High-accuracy ultrasonic ranging from 25 cm to 500 cm with millimeter-level resolution.
- Narrow beam angle design minimizes crosstalk and enhances stability in confined spaces.
- UART serial communication interface for straightforward microcontroller and computer integration.
- IP67-rated waterproof transducer ensures durability in wet, dusty, or outdoor conditions.
- Wide operating voltage range from 3.3V to 24V DC with ultra-low standby current (≤5 µA).
Out of stock
The DYP-A12BNYTW-V1.0 ultrasonic sensor utilizes time-of-flight (ToF) principles to calculate distance by measuring the echo return time of high-frequency sound waves. Its narrow beam angle focuses acoustic energy, reducing interference from peripheral objects and improving measurement accuracy in complex environments. The module incorporates built-in temperature compensation to maintain stable performance across an operating temperature range of -15°C to +60°C.
Designed for industrial and embedded applications, the sensor outputs distance data via a simple UART protocol, enabling seamless connection to data loggers, automation controllers, and robotic systems. The IP67-rated transducer housing protects the core piezoelectric elements from water ingress and dust, making it suitable for deployment in challenging outdoor or washdown environments.
Additional Information
| Weight | 0.098 kg |
|---|---|
| Dimensions | 7 × 6 × 5 cm |
