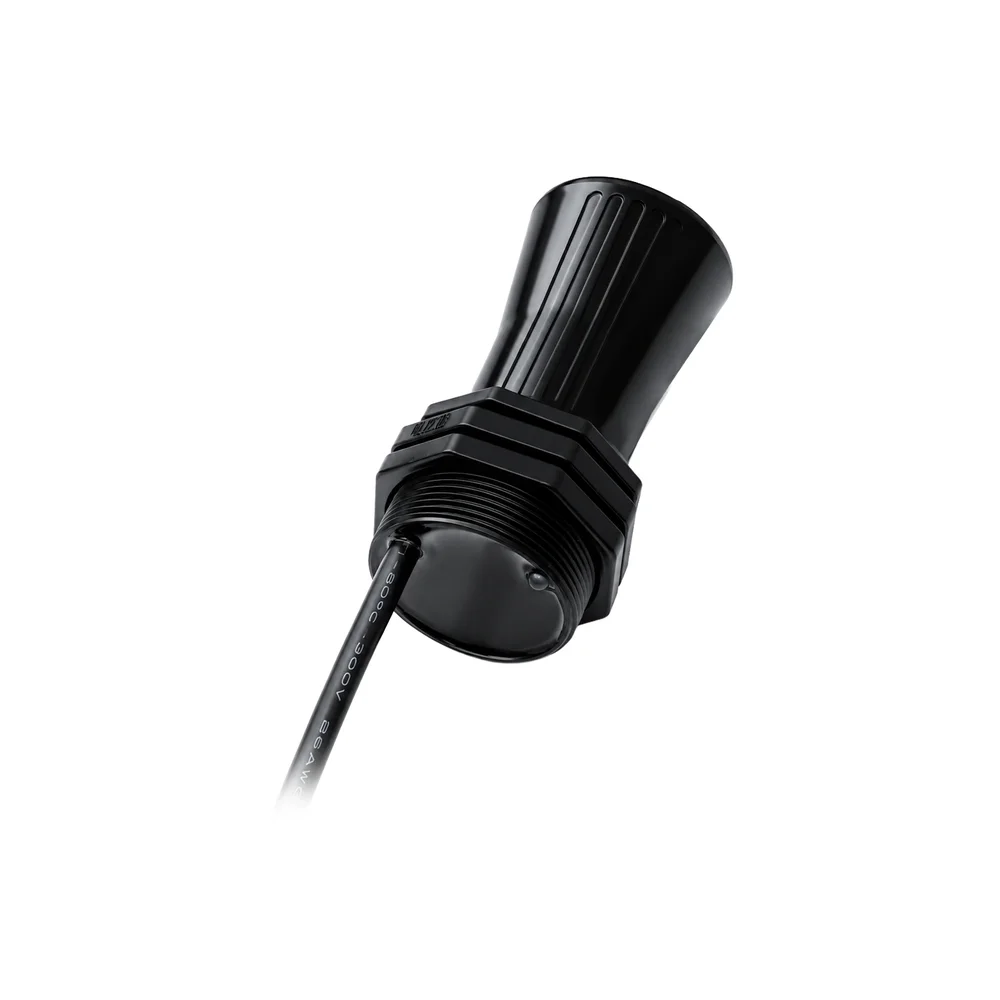

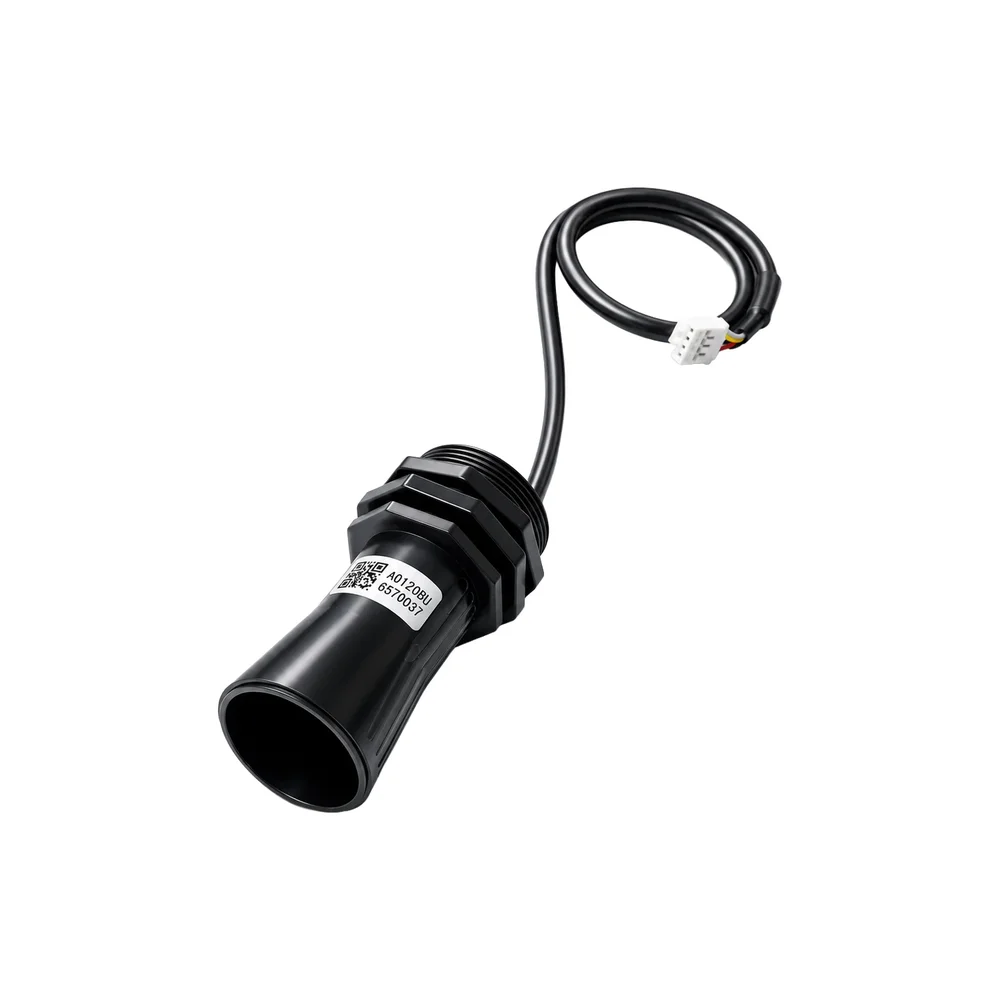

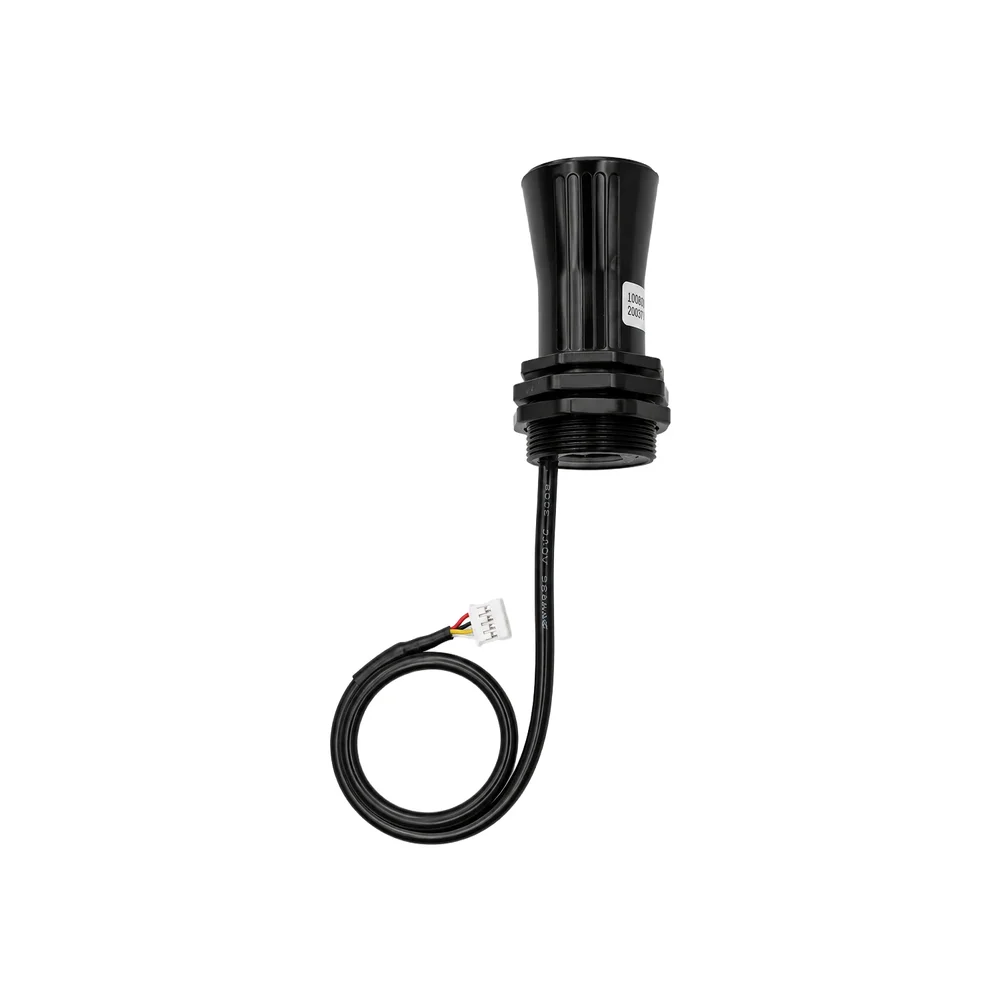

DYP-A01BNYUW-V2.0 Ultrasonic Precision Rangefinder Module - 28-450cm, UART/PWM/RS485, IP67
The DYP-A01BNYUW-V2.0 is a high-precision ultrasonic distance sensor module offering a 28-450cm measurement range with UART, PWM, and RS485 output interfaces for seamless integration with Arduino, Raspberry Pi, ESP32, and industrial PLCs. Its IP67-rated housing ensures reliable operation in demanding indoor and outdoor environments.
Features
- Wide 28 cm to 450 cm ultrasonic ranging capability with ±(1 + S*0.3%) accuracy.
- Multi-interface support: UART (TTL), PWM, and RS485 Modbus communication protocols.
- Robust IP67-rated enclosure for dustproof and waterproof operation in harsh conditions.
- Low power consumption (10 mA avg.) with a wide 3.3V to 5.0V DC operating voltage range.
- 75° beam angle and integrated noise filtering firmware for stable, reliable detection.
Out of stock
The DYP-A01BNYUW-V2.0 ultrasonic rangefinder module utilizes piezoelectric transducers to emit and receive high-frequency sound waves, calculating distance based on the time-of-flight principle. Its integrated signal conditioning and firmware-based noise filtering ensure stable readings even in acoustically challenging environments. The module’s compact, IP67-sealed housing protects its internal electronics from dust and temporary water immersion, supporting operation across an industrial temperature range of -15°C to +60°C.
Designed for flexible system integration, it provides simultaneous access to UART (TTL-level serial), PWM (pulse-width proportional to distance), and RS485 (Modbus RTU) output signals. This multi-protocol design allows direct connection to microcontrollers like Arduino and ESP32, as well as industrial automation systems using standard RS485 networks, without requiring additional signal converters.
Additional Information
| Weight | 0.036 kg |
|---|---|
| Dimensions | 8 × 11 × 4 cm |
