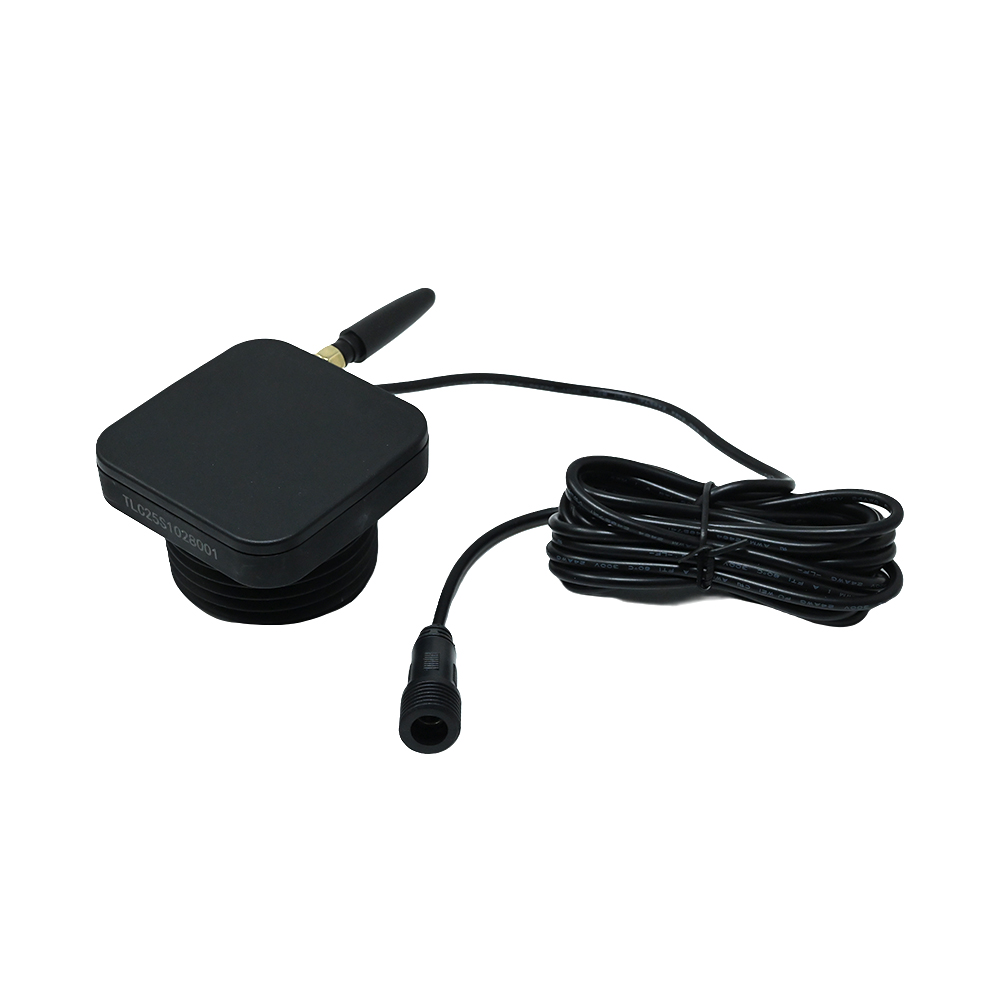

EPTTECH TLC2206P-WL Automatic Water Level Control System with Ultrasonic Sensor & Smart Plug - 3M Range
EPTTECH TLC2206P-WL Automatic Water Level Control System with Ultrasonic Sensor & Smart Plug - 3M Range - Image 2

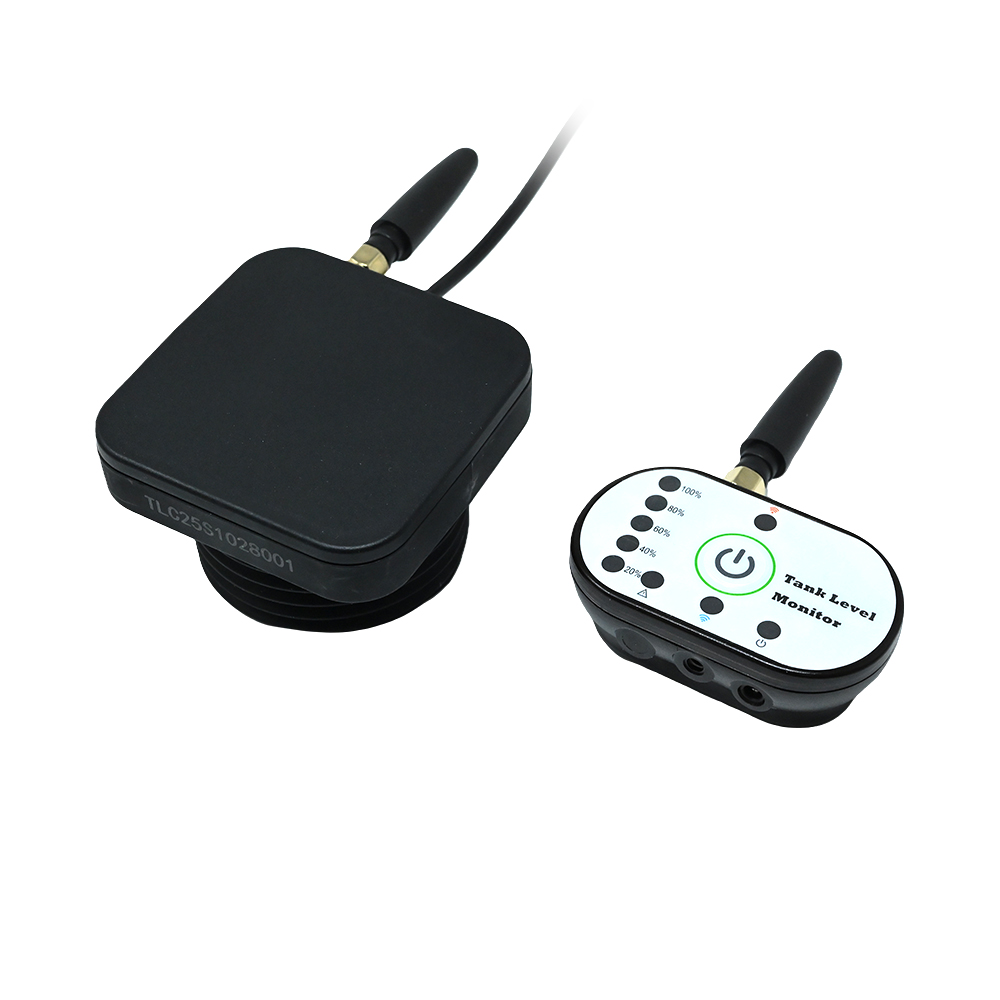

EPTTECH TLC2206P-WL Automatic Water Level Control System with Ultrasonic Sensor & Smart Plug - 3M Range - Image 3

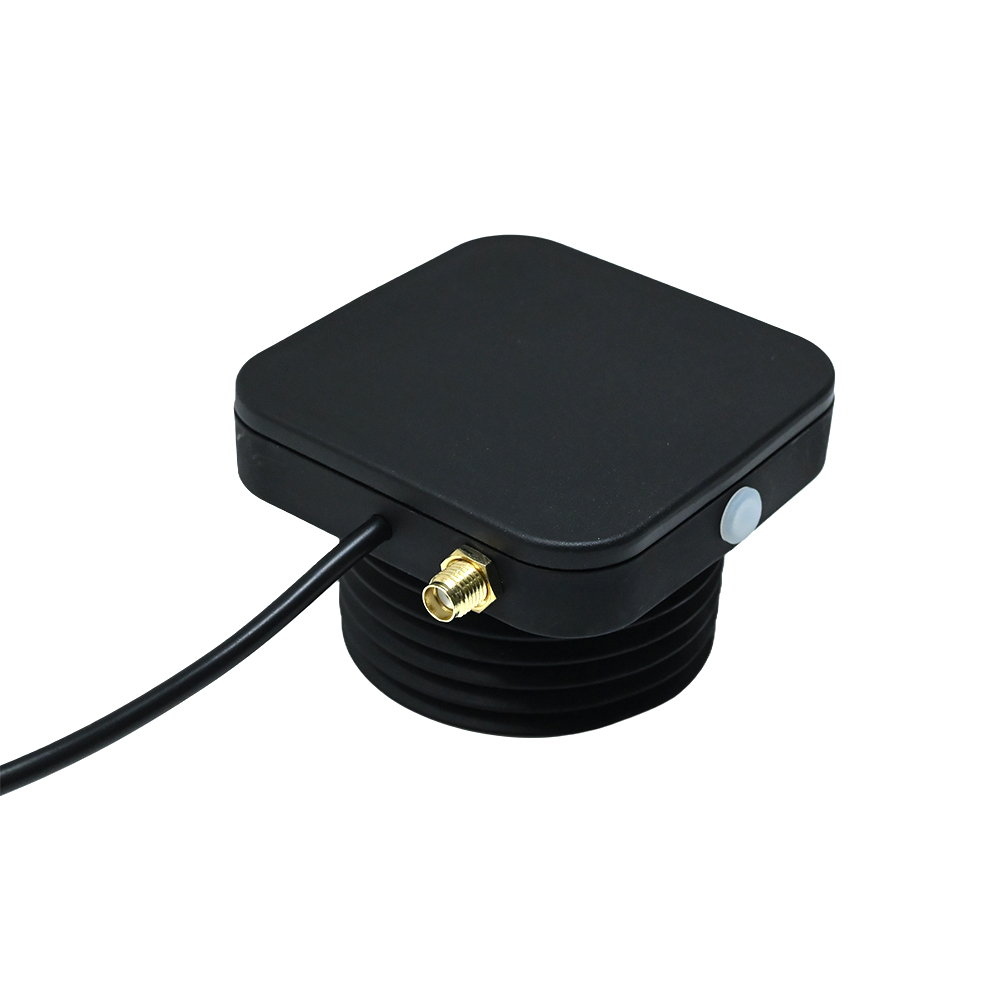

EPTTECH TLC2206P-WL Automatic Water Level Control System with Ultrasonic Sensor & Smart Plug - 3M Range - Image 4
SKU: SENS-1326
📋 GST Invoice Available

EPTTECH TLC2206P-WL Automatic Water Level Control System with Ultrasonic Sensor & Smart Plug - 3M Range

₹7,399.00 (Inclusive of all taxes)
Out of Stock

The EPTTECH TLC2206P-WL is an automatic water level control system integrating an ultrasonic sensor and a Tuya-compatible smart plug for remote monitoring and pump automation. It provides reliable 10cm to 3M level detection and connects via Wi-Fi or RF433MHz for integration into smart home and industrial water management systems.

Features

  • Ultrasonic sensing with a 10cm to 3M (2.9m effective) measurement range for accurate tank level monitoring.
  • Integrated Tuya/Smart Life smart plug enables automatic pump or valve control based on user-defined high/low water level thresholds.
  • Dual wireless connectivity via Wi-Fi (up to 50m) and RF433MHz (up to 150m) for flexible remote monitoring and control.
  • IP67 waterproof rating ensures durable operation in wet environments and outdoor installations.
  • Real-time mobile app notifications (Android/iOS) for instant alerts on water level status changes.

Out of stock

Description

The TLC2206P-WL system employs a non-contact ultrasonic sensor to measure liquid levels from 10cm up to 3 meters, providing a reliable and maintenance-free solution for water tanks, reservoirs, and industrial sumps. The sensor’s IP67 enclosure protects against dust and temporary immersion, making it suitable for harsh, humid environments. The core unit communicates level data wirelessly to the paired smart plug, enabling automated control of connected pumps or solenoid valves.

System integration is managed through the Tuya or Smart Life mobile application, which allows users to set custom high and low-level alarm thresholds, view real-time level data, and receive push notifications. The included power adapter converts 100-240V AC mains to 9V/12V DC for the sensor unit, supporting global voltage standards. This setup is designed for continuous, unattended operation in residential water storage, agricultural irrigation, and light industrial liquid management applications.

Key Features

  • High-precision ultrasonic ranging principle for non-contact, wear-free level measurement.
  • Automated pump/valve control logic via integrated Tuya ecosystem smart plug.
  • Robust IP67-rated sensor housing for reliable performance in damp and dusty conditions.
  • Extended wireless communication options with both 2.4GHz Wi-Fi and long-range 433MHz RF.
  • Wide operating temperature range from -20°C to +70°C for use in varied climates.
  • Intuitive mobile app interface for remote configuration, real-time monitoring, and alert management.
  • Universal 100-240V AC to 9V/12V DC power adapter for easy global deployment.
  • Optimized performance-to-cost ratio for automated water conservation and resource management systems.

Applications

  • Residential overhead water tank level monitoring and automatic pump control to prevent dry running or overflow.
  • Agricultural irrigation system management for automated filling and draining of storage tanks or ponds.
  • Industrial sump pump automation in basements, wastewater treatment plants, or manufacturing facilities.
  • Remote monitoring of liquid levels in livestock watering troughs or aquaculture tanks.
  • Water conservation systems in commercial buildings for rainwater harvesting or greywater recycling.

Technical Specifications

Model NumberTLC2206P
Sensing PrincipleUltrasonic Sensor
Measuring Distance10 cm to 2.9 m (Effective), 3 m (Maximum)
Operating Temperature-20°C to +70°C
Wireless ConnectivityWi-Fi (2.4GHz, ~50m range), RF433MHz (~150m range)
Waterproof RatingIP67
Control InterfaceTuya / Smart Life Smart Plug (Integrated)
Power Adapter Input100-240V AC
Power Adapter Output9V DC
Sensor Dimensions (L x W)92 mm x 72 mm
Sensor Weight490 g
App CompatibilityAndroid & iOS (Tuya, Smart Life)

Frequently Asked Questions

What is the maximum water level measurement range of the TLC2206P-WL sensor?

The ultrasonic sensor has an effective measuring distance of 10cm to 2.9 meters, with a specified maximum range of 3 meters. Accurate detection within this range requires a clear path to the liquid surface and proper mounting as per the installation guidelines.

How does the system automatically control a water pump?

The system integrates with the included Tuya-compatible smart plug. You connect your pump or valve to this plug. Through the mobile app, you set high and low water level thresholds. When the sensor detects the level crossing these thresholds, it sends a command via Wi-Fi or RF to the smart plug to turn the connected device on or off automatically.

What power supply is required, and is the sensor suitable for outdoor use?

The system is powered by the included adapter which accepts 100-240V AC input and provides 9V DC output. The sensor unit itself is rated IP67, meaning it is dust-tight and can withstand temporary immersion, making it suitable for outdoor and damp environment installations.

Can I monitor the water level remotely without a local Wi-Fi network?

For remote monitoring via the mobile app, a stable 2.4GHz Wi-Fi network with internet access is required. However, the system also features RF433MHz wireless communication with a 150m range, which can be used for local wireless data transmission between the sensor and a receiver module within the same property, independent of Wi-Fi.

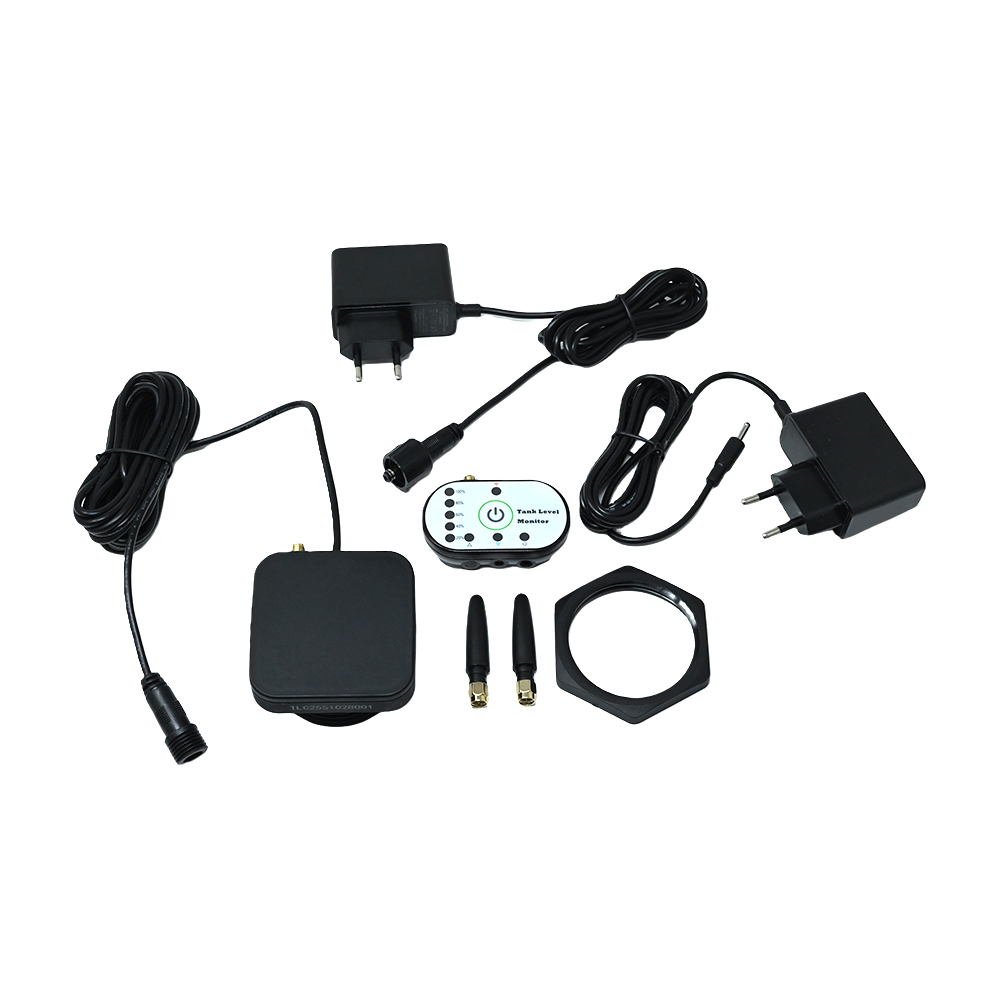

Package Includes

  • 1 x EPTTECH TLC2206P-WL Automatic Water Level Control System (Ultrasonic Sensor Unit)
  • 1 x Power Adapter (Input: 100-240V AC, Output: 9V DC)
  • 1 x User Manual

Additional Information

Weight 0.514 kg
Dimensions 16 × 13 × 9 cm
