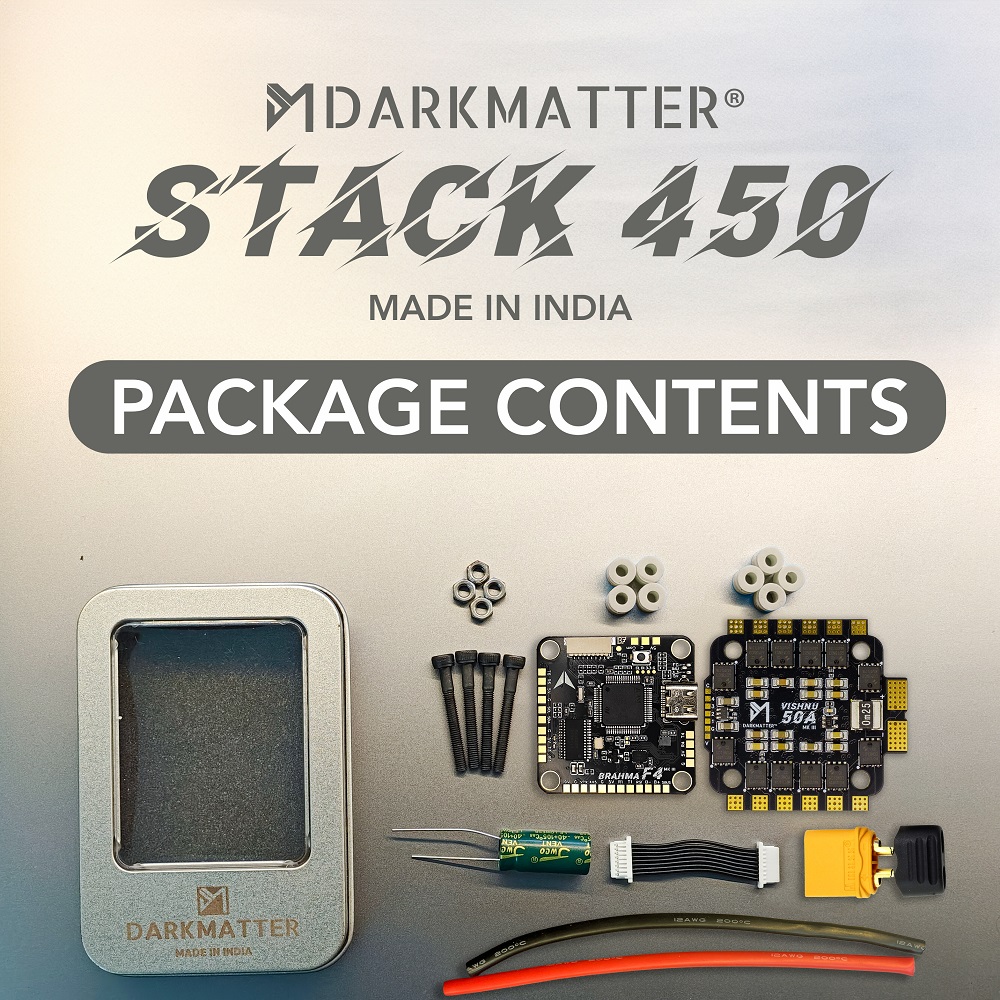

DarkMatter STACK 450 – BRAHMA F4 MK-III + VISHNU 50 MK-II FC & ESC Stack
The DarkMatter STACK 450 integrates the BRAHMA F4 MK-III flight controller with the VISHNU 50 MK-II 4-in-1 ESC, engineered for 3-6S FPV drones. It features an STM32F405 processor, BMI270 gyro, DPS310 barometer, and supports up to 8 motors for advanced multirotor builds.
Features
- Integrated STM32F405 Flight Controller & 50A 4-in-1 ESC Stack
- Advanced BMI270 Gyro & DPS310 Barometer for precise flight data
- 4 UART & 1 I2C port for extensive peripheral connectivity
- Dual BEC output: 5V/2A & 9V/2A for powering onboard systems
- 30.5×30.5mm mounting pattern with 4mm holes for standard frame compatibility
Out of stock

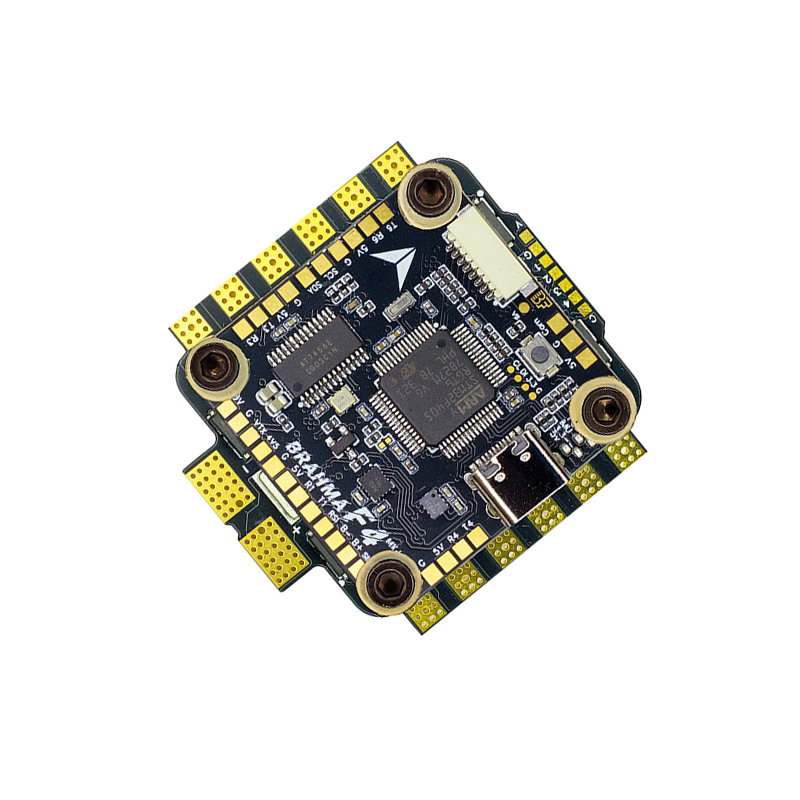

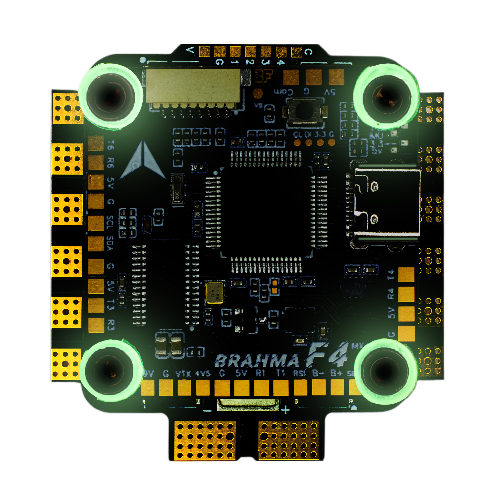

The DarkMatter STACK 450 is a professional-grade FC/ESC combo designed for high-performance FPV racing and freestyle drones. The BRAHMA F4 MK-III flight controller serves as the central processing unit, leveraging an STM32F405 MCU and a Bosch BMI270 IMU for rapid, accurate flight calculations and stabilization.
Paired with the VISHNU 50 MK-II 4-in-1 ESC, this stack delivers robust 50A continuous current per motor, capable of handling aggressive 3-6S LiPo power systems. The integrated design simplifies wiring, reduces weight, and enhances reliability for competitive and demanding aerial applications.
Additional Information
| Weight | 0.079 kg |
|---|---|
| Dimensions | 6 × 9 × 2 cm |
