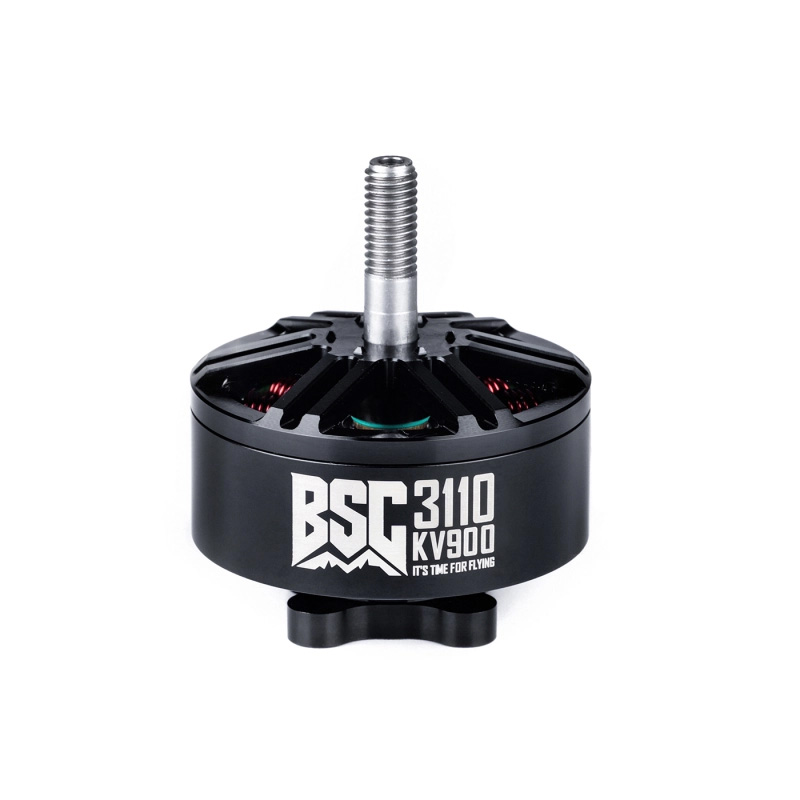

MAD Components Components BSC 3110 900KV 6S Brushless Motor

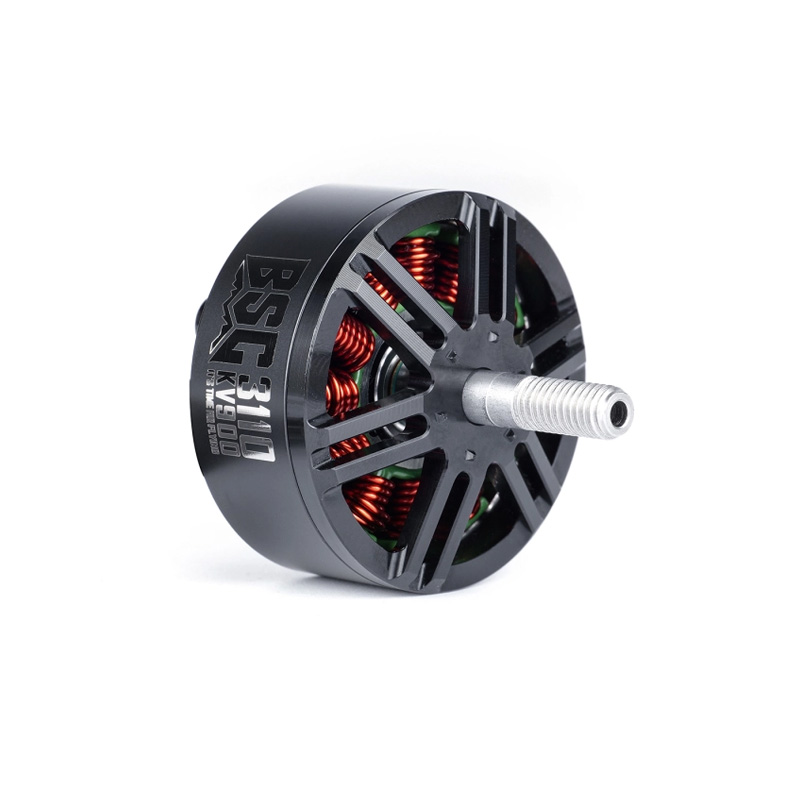

MAD Components Components BSC 3110 900KV 6S Brushless Motor - Image 2
MAD Components Components BSC 3110 900KV 6S Brushless Motor - Image 3
SKU: DRFC-3035
📋 GST Invoice Available

MAD Components Components BSC 3110 900KV 6S Brushless Motor

₹5,299.00 (Inclusive of all taxes)
Out of Stock

The MAD Components Components BSC 3110 is a 900KV brushless outrunner motor engineered for 6S LiPo power systems, delivering up to 3.6 kgf of thrust for demanding FPV and industrial UAV applications.

Features

  • 900KV rating optimized for high-torque 6S LiPo operation.
  • Delivers a maximum thrust of 3.6 kgf (3600g) for powerful lift.
  • 12N14P stator configuration ensures smooth, efficient power delivery.
  • Robust M5 propeller mounting nut for secure attachment.
  • Compact 27mm diameter x 32.3mm height design with a weight of 87.5g.

Out of stock

Description

The MAD Components BSC 3110 V1.0 motor is engineered for high-performance FPV racing, freestyle, and industrial UAV platforms requiring reliable, high-torque propulsion. Its 12N14P (12 stator poles, 14 magnet poles) configuration provides a smooth, efficient power curve and enhanced thermal management, allowing it to handle peak currents up to 59.3A.

Constructed with a balanced rotor (≤5mg) and precision bearings, this motor minimizes vibrations for stable flight and clear FPV video. The optimized internal resistance of 78mΩ contributes to its high efficiency, translating to extended flight times and cooler operating temperatures under load.

Key Features

  • High-Torque 900KV Design: Optimized for 6S voltage, providing strong low-end torque for aggressive maneuvers and heavy-lift applications.
  • 12N14P Stator Configuration: Delivers smooth operation, improved efficiency, and reduced cogging for precise throttle control.
  • Precision Balanced Rotor: Factory dynamic balancing (≤5mg) ensures minimal vibration for smooth flight and reduced wear on bearings.
  • High-Power Capability: Rated for up to 1484W maximum power and 59.3A continuous current for demanding flight profiles.
  • Robust Mechanical Construction: Features durable bearings and a sturdy housing designed to withstand the impacts of FPV racing and freestyle flying.
  • M5 Propeller Mount: Standard M5 threaded shaft with nut allows for secure mounting of large propellers common on 6-7 inch frames.

Applications

  • 6-inch and 7-inch long-range FPV drones requiring efficient, high-torque propulsion on 6S power.
  • Heavy-lift and industrial UAV platforms for payload carrying and aerial photography.
  • Aggressive freestyle and racing quads where smooth, responsive power delivery is critical.
  • Custom multirotor builds targeting extended flight time with a balance of power and efficiency.

Technical Specifications

Motor ModelMAD Components BSC 3110 V1.0
KV Rating900KV
Recommended Voltage6S LiPo (22.2V)
Stator Configuration12N14P
Motor Dimensions27mm (D) x 32.3mm (H)
Weight87.5g
Maximum Thrust3.6 kgf (3600g)
Maximum Power1484.3W
Maximum Current59.3A
No-Load Current1.4A @ 10V
Internal Resistance78 mΩ
Shaft ThreadM5
Motor TypeBrushless Outrunner

Frequently Asked Questions

What size propellers and frames is the MAD Components BSC 3110 900KV motor suitable for?

The BSC 3110's 900KV rating and M5 shaft make it ideal for 6-inch and 7-inch propeller setups on medium to large FPV and long-range drone frames. It provides the necessary torque to efficiently spin larger props on 6S voltage, making it a common choice for long-endurance and heavy-lift builds.

What is the maximum continuous current and power handling of this motor?

This motor is rated for a maximum continuous current of 59.3A, with a peak power handling of approximately 1484W at 6S voltage (22.2V). It is crucial to pair it with ESCs rated for at least 60A continuous current to ensure reliable operation under full throttle and aggressive flight maneuvers.

Does the motor come with a propeller nut, and what is the mounting pattern?

Yes, the motor includes a standard M5 propeller mounting nut. The motor itself uses an outrunner design with a threaded shaft. For frame mounting, you will need to check the specific bolt pattern (typically a standard 16x19mm or 25x25mm), which should be confirmed from the motor's base or official documentation.

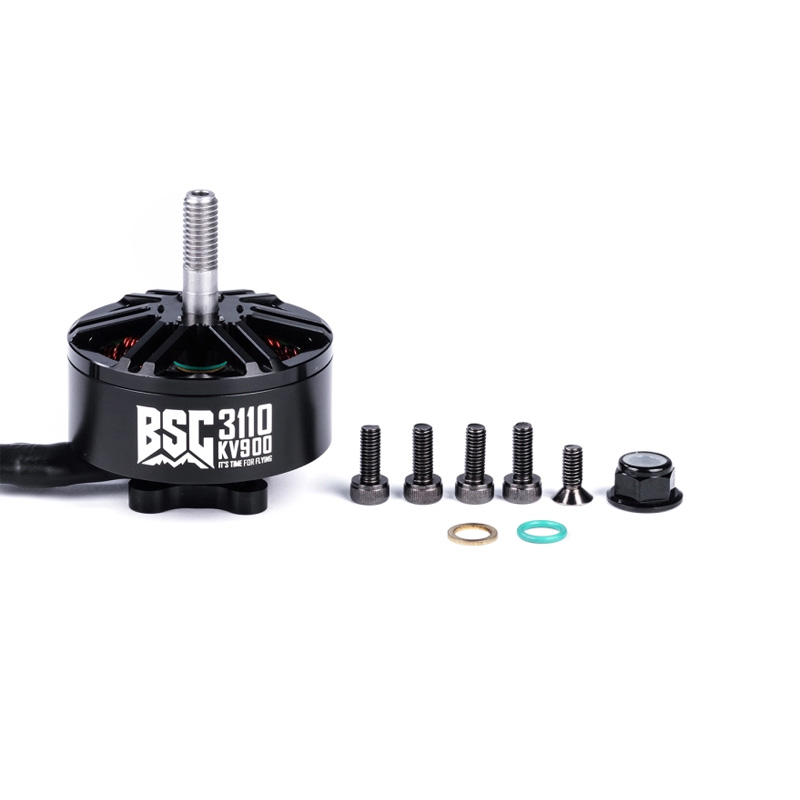

Package Includes

  • 1 x MAD Components BSC 3110 900KV Brushless Motor
  • 1 x M5 Propeller Mounting Nut

Additional Information

Weight 0.11 kg
Dimensions 6 × 6 × 4 cm
