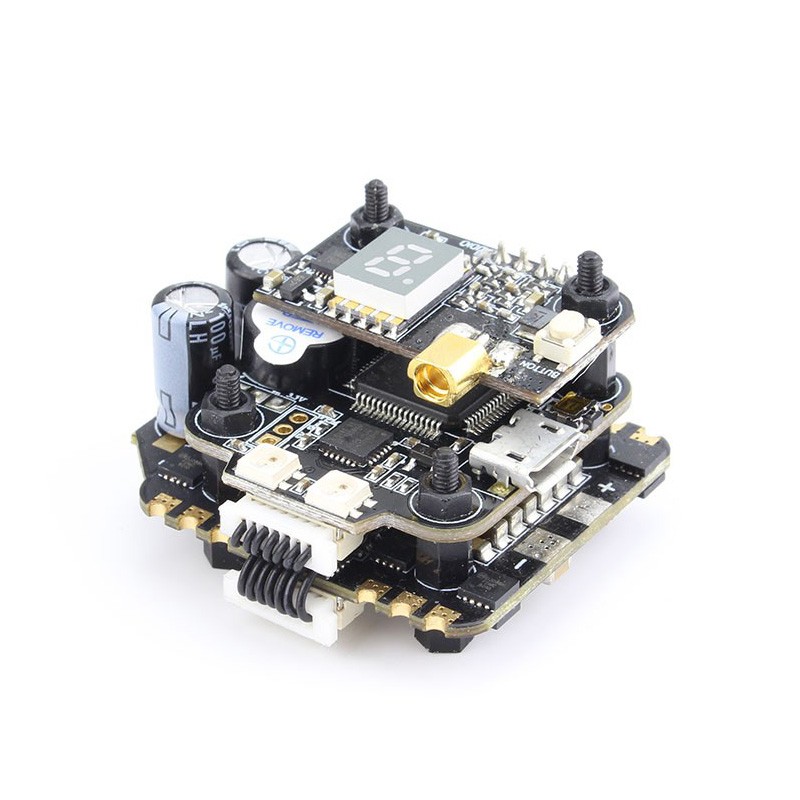

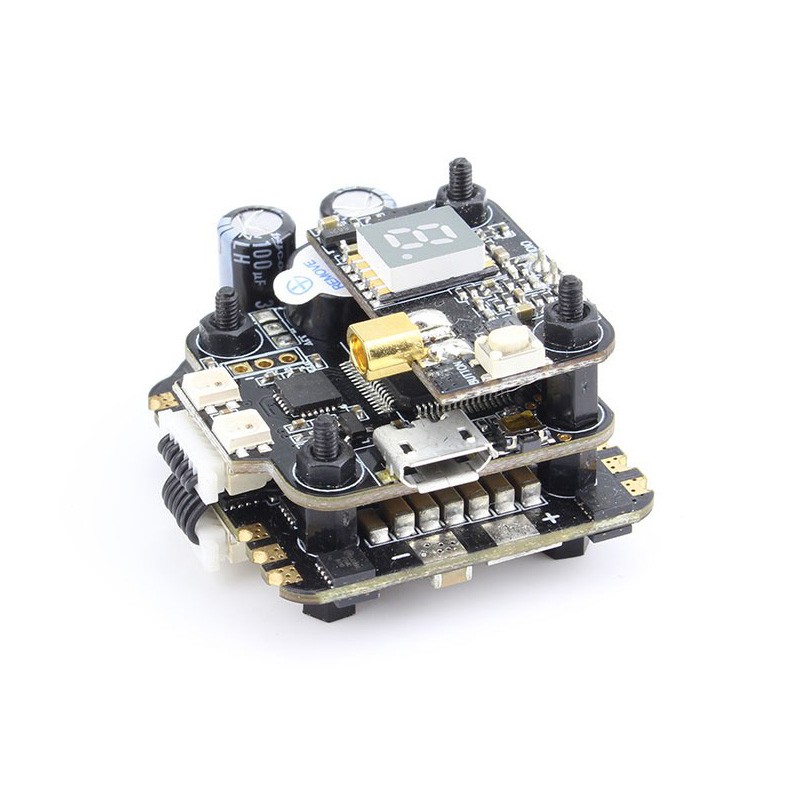

EMAX Mini Magnum 2 F4 35A Flytower 20x20mm 35A 2-6S BLHeli_32 4in1 ESC + F4 Flight Controller OSD + VTX
The EMAX Mini Magnum 2 Flytower is a compact 20x20mm stack integrating an F4 flight controller with OSD, a 35A BLHeli_32 4-in-1 ESC supporting 2-6S LiPo, and a SmartAudio-compatible VTX with 25mW/200mW output, designed for high-performance 5-inch FPV racing drones.
Features
- Integrated 20x20mm Flytower stack with F4 FC, 35A 4-in-1 ESC, and VTX.
- BLHeli_32 ESC supports 2-6S LiPo, DSHOT, and up to 40A burst current.
- F4 Flight Controller features STM32F405 MCU, MPU6000 SPI gyro, and on-board OSD.

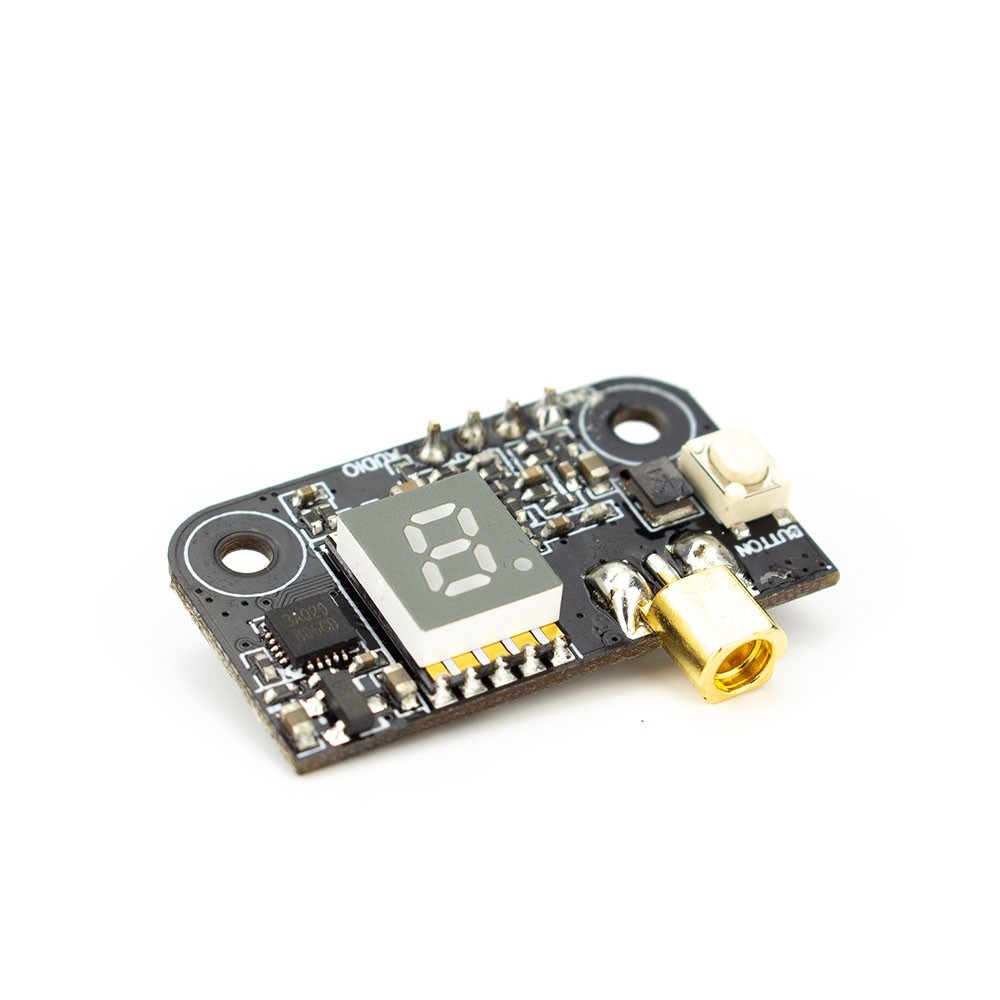

- VTX supports SmartAudio control, 25mW/200mW power, and MMCX antenna.
- Compact design with 20mm mounting holes, ideal for 3-5 inch high-KV motor builds.
Out of stock
The EMAX Mini Magnum 2 Flytower consolidates core flight electronics into a single, robust 20x20mm mounting package. Its F4 flight controller, powered by an STM32F405 MCU and an MPU6000 gyro connected via SPI, delivers stable, low-latency processing for Betaflight or ArduPilot firmware. The integrated 5V/3A BEC provides clean power for peripherals, while the on-board OSD allows for in-goggle telemetry display.

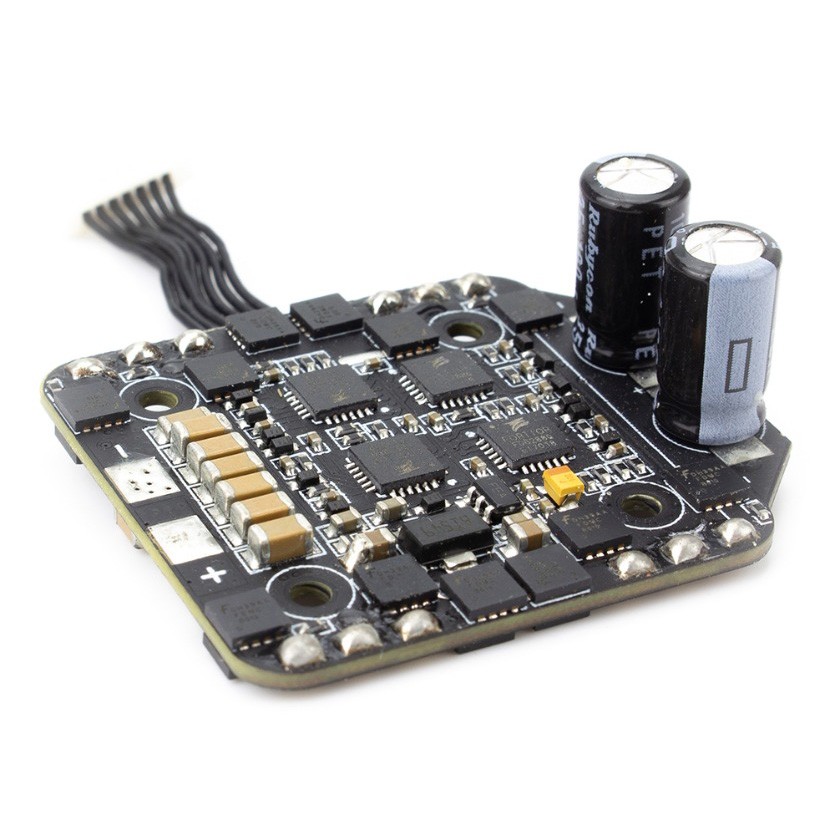

The 35A continuous-rated BLHeli_32 4-in-1 ESC is built with high-quality MOSFETs on a 3oz PCB, capable of handling the high current demands of modern 5-inch 6S setups. The ESC’s physical footprint extends to 37x32mm to accommodate large capacitors for clean power delivery. The integrated VTX operates on standard 5.8GHz bands, is FCC compliant, and features TBS SmartAudio for convenient channel and power switching directly from your radio transmitter.
Additional Information
| Weight | 0.017 kg |
|---|---|
| Dimensions | 3.8 × 3.5 cm |
