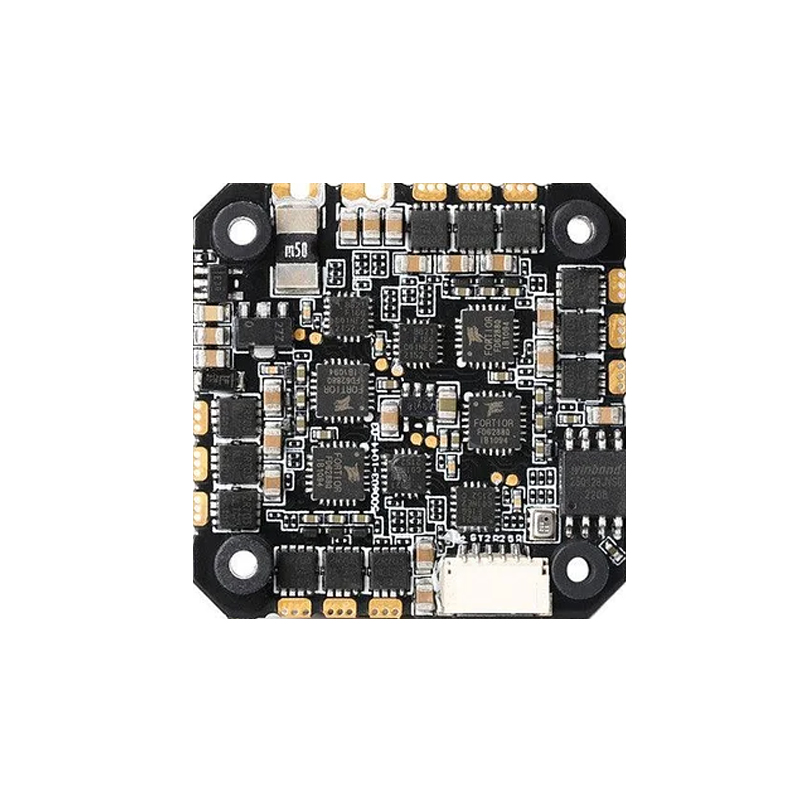

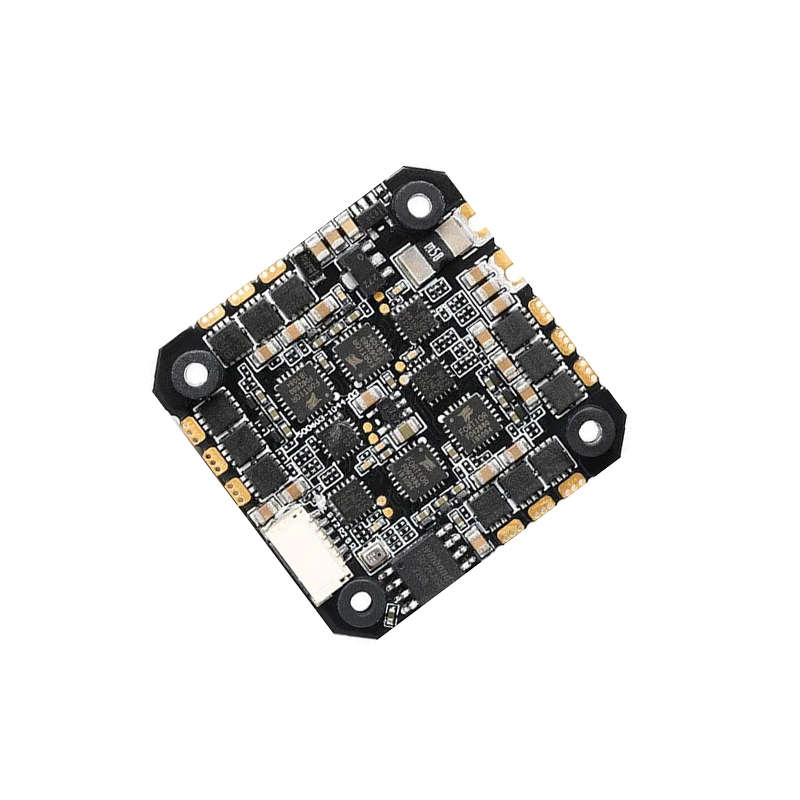

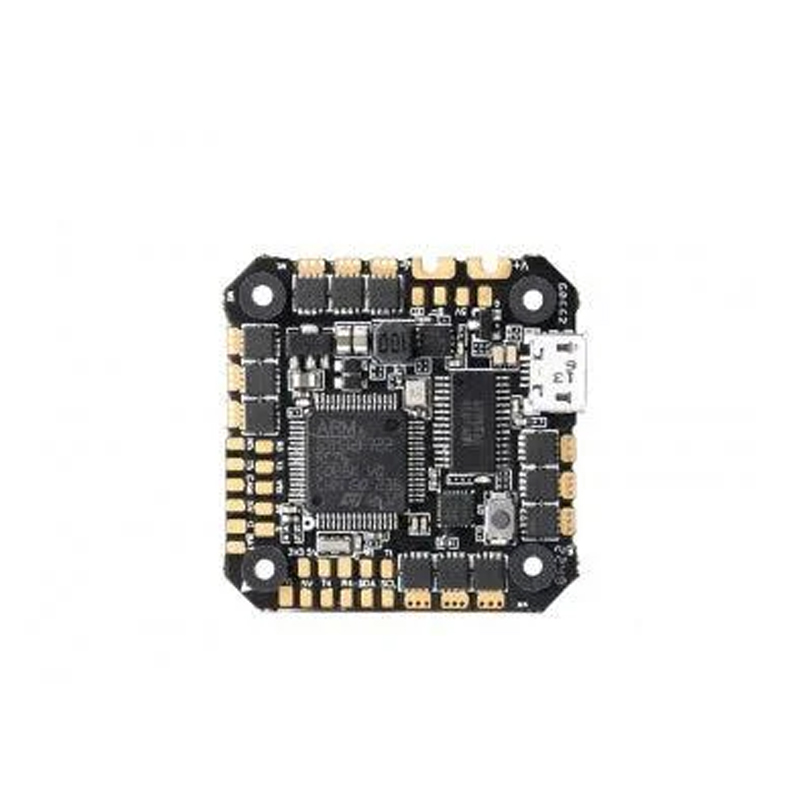

T-Motor F7 45A AIO Stack Cinewhoop Toothpick
The T-Motor F7 45A AIO Stack integrates a high-performance STM32F722 flight controller with a 45A continuous (50A peak) 6S ESC in a compact 25.5×25.5mm footprint, designed for 2.5″ to 4″ cinewhoop and toothpick FPV drones running Betaflight.
Features
- STM32F722 MCU & MPU6500 Gyro for high-speed, stable flight control.
- 45A continuous (50A peak) 4-in-1 ESC supports 3-6S LiPo input.
- Ultra-compact 25.5×25.5mm mounting pattern and 10g weight.
- Integrated AT7456 OSD, BMP280 barometer, and 16MB black box.
- 5V/1.5A BEC powers peripherals; supports HD video systems.
Out of stock
The T-Motor F7 45A AIO Stack is engineered for high-performance micro and cinewhoop builds, merging a robust flight controller and ESC into a single, lightweight unit. Its STM32F722 processor ensures rapid loop times and precise control, while the MPU6500 gyroscope provides stable inertial data for acrobatic maneuvers and smooth cinematic footage.
Built to handle the power demands of aggressive freestyle and efficient long-range cruising, the 45A continuous (50A peak) ESC supports 3-6S LiPo batteries, delivering consistent thrust. The integrated BMP280 barometer enables altitude hold functions, and the 16MB onboard black box allows for detailed post-flight analysis and tuning.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 3.9 × 3.9 cm |
