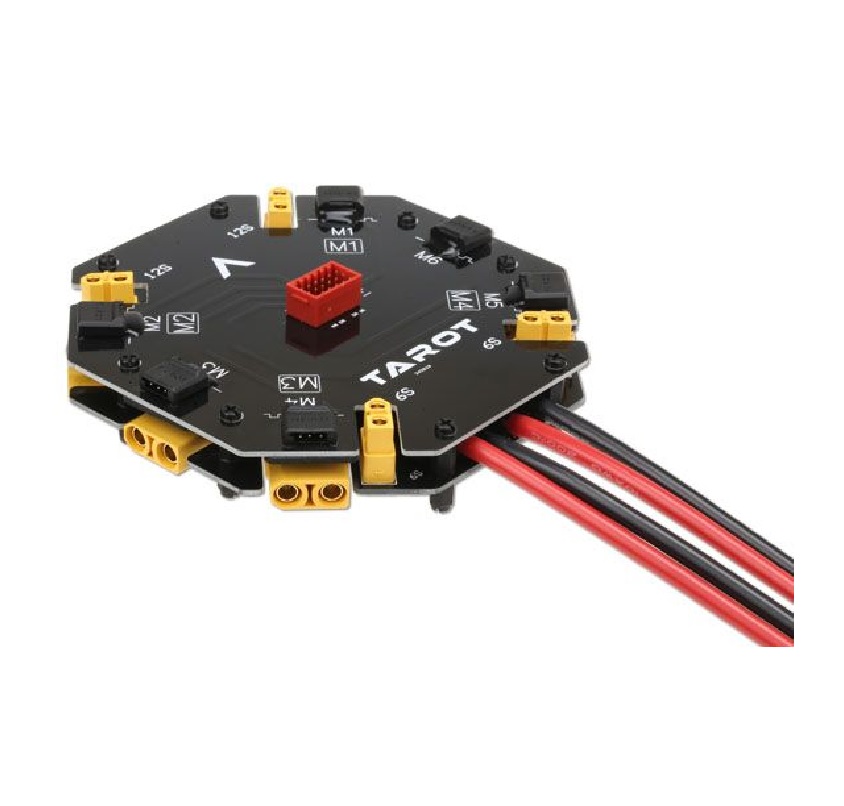

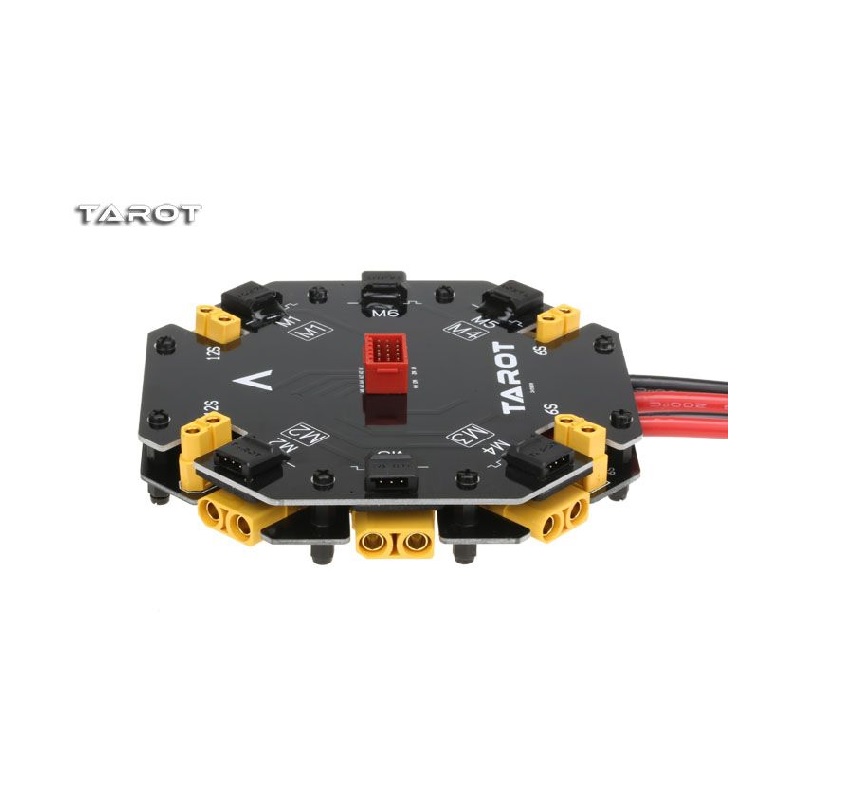

Tarot TL2996 12S High Current Power Distribution Board

The TL2996 PDB supports both 6S and 12S LiPo battery inputs. It can accept a single 6S battery or two 6S batteries connected in series to achieve a 12S voltage, offering versatile power options for different drone configurations and power requirements. This flexibility enhances its adaptability.

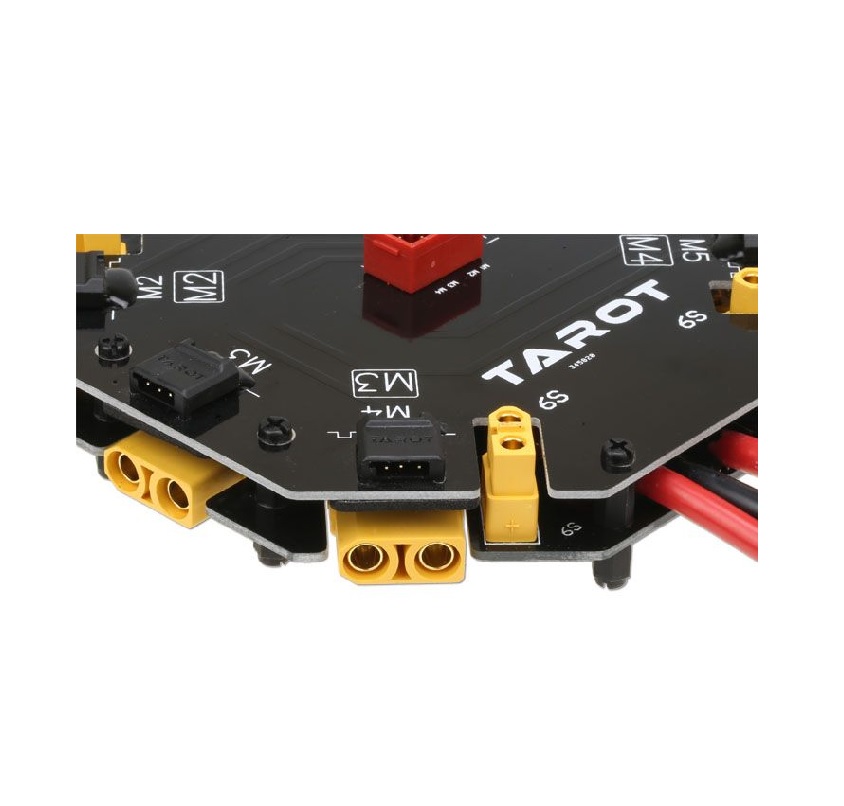

The main power input utilizes a robust XT90 plug, paired with a 10AWG silicone wire for high current handling. For outputs, the board provides dedicated XT60 interfaces, including two 6S output ports and two 12S output ports, allowing for flexible power distribution to various components.

The TL2996 incorporates a customized anti-mis-insertion design for its brushless ESC signal sockets and red signal hubs. This prevents incorrect wiring and ensures secure, reliable contact points, even under drone vibration. This design significantly enhances operational safety and system stability during flight.

This power distribution board is specifically designed for multi-axis drone installations, supporting both four-axis and six-axis configurations. Its high-current capabilities and flexible voltage input make it ideal for larger industrial UAVs, heavy-lift platforms, and custom builds that demand robust and efficient power management.
