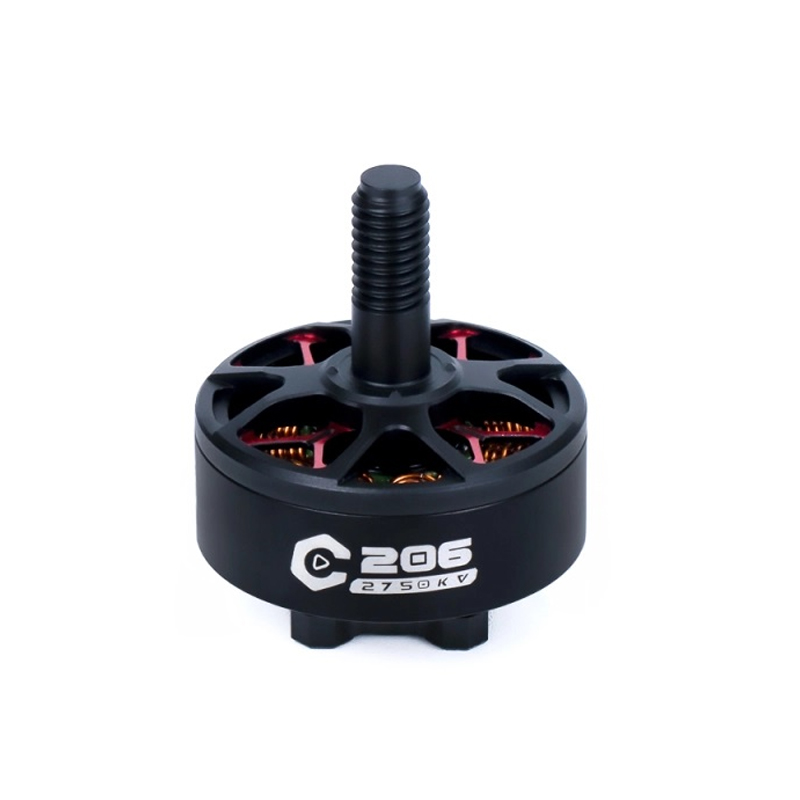

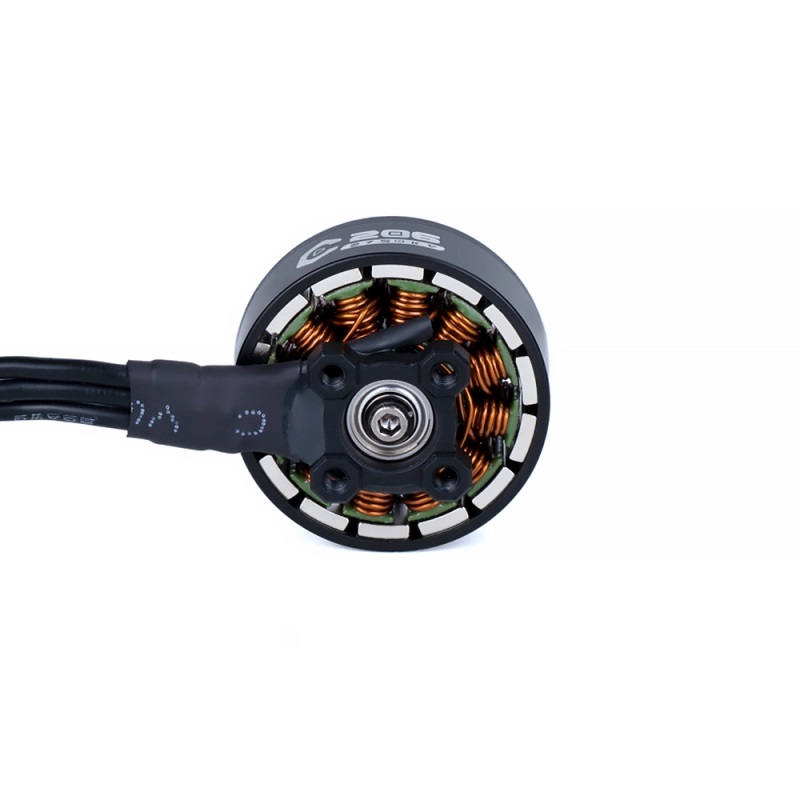

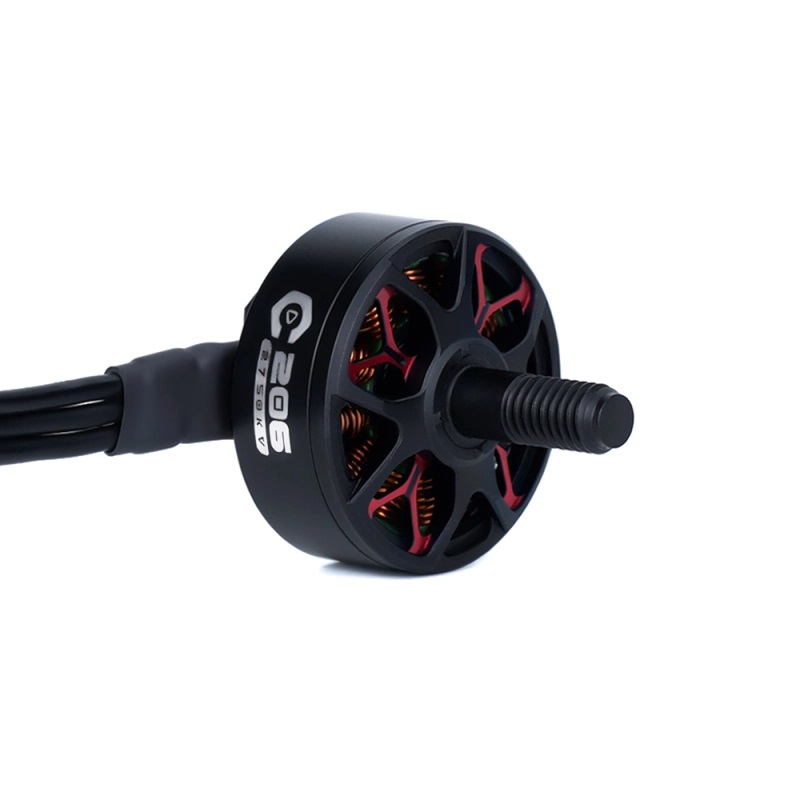

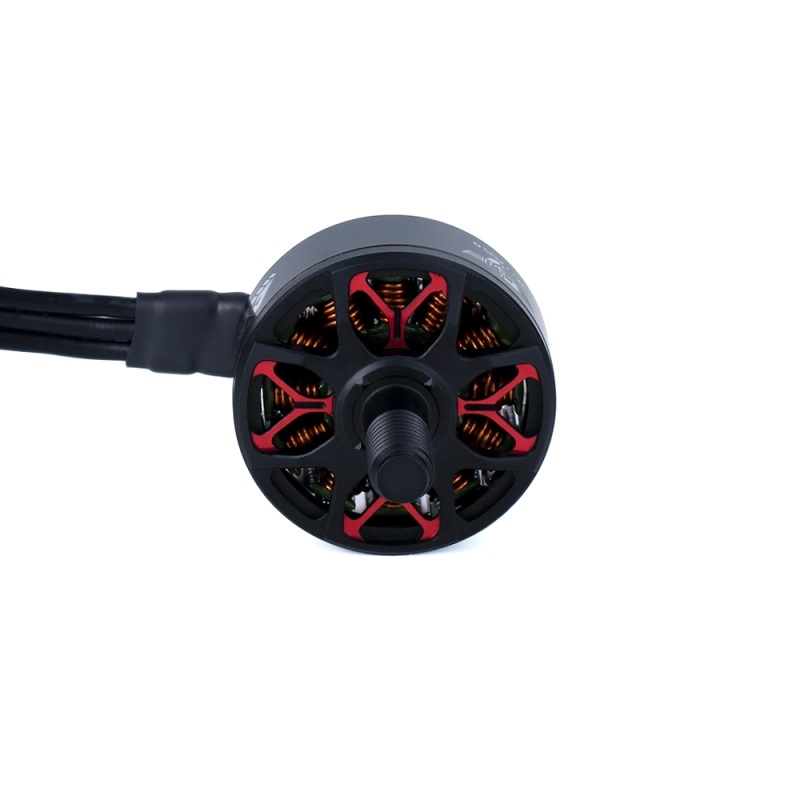

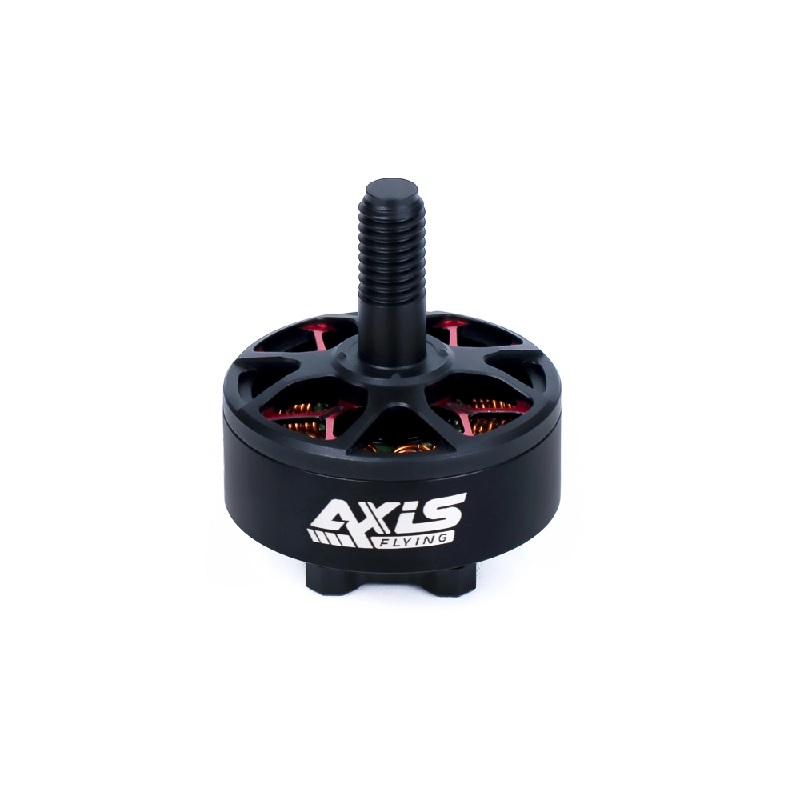

AxisFlying C206 2006 Brushless Motor 2750KV for 3.5-inch 6S Cinewhoop
The AxisFlying C206 2006 is a 2750KV brushless motor engineered for 3.5-inch 6S cinewhoop and cinematic drone platforms, delivering high thrust-to-weight efficiency and smooth power delivery for stable, agile flight performance.
Features
- 2750KV rating optimized for 6S (22.2V) LiPo battery systems.
- 2006 stator size (20mm diameter x 6mm height) balances power and lightweight design.
- 4mm shaft diameter with 16x16mm M2 mounting pattern for broad frame compatibility.
- High-current handling up to 35A for demanding cinematic and freestyle maneuvers.
- Weighs approximately 27g, minimizing impact on overall drone agility and flight time.
Out of stock
The AxisFlying C206 2006 motor is precision-engineered for the demanding requirements of modern 3.5-inch cinewhoop builds. Its 2006 stator configuration provides an optimal balance between torque and rotational mass, enabling rapid throttle response and sustained high-RPM performance essential for capturing smooth, dynamic footage. The motor is specifically tuned for 6S voltage input, maximizing efficiency and thrust within the compact form factor.
Constructed with high-grade materials, the motor features advanced thermal management to dissipate heat effectively during prolonged flight sessions. The robust 4mm steel shaft and reinforced bell housing ensure durability against vibrations and minor impacts, maintaining precise alignment and smooth operation. This design makes it an ideal propulsion solution for pilots seeking reliable performance in tight, complex flight environments.
Additional Information
| Weight | 0.048 kg |
|---|---|
| Dimensions | 6 × 5 × 4 cm |
