MAD Components Components 3506 EEE Brushless Drone Motor 650KV (Pack Of 2)
The MAD Components Components 3506 EEE brushless motor is a 650KV, 4S LiPo-compatible powerplant engineered for heavy-lift UAVs and industrial drones, delivering up to 1500g of thrust per motor while weighing only 72.3g.
Features
- 650KV rating optimized for 4S LiPo operation with 11–14″ carbon fiber propellers.
- Delivers a maximum thrust of 1500g per motor for demanding payload applications.
- Ultra-lightweight design at 72.3g per motor for an exceptional thrust-to-weight ratio.
- Precision-balanced stators and dual 694ZZ bearings ensure smooth, vibration-free operation.
- Corrosion-resistant and rain-protected construction for reliable outdoor and industrial use.
Out of stock
The MAD Components Components 3506 EEE brushless motor is engineered for professional-grade heavy-lift drones requiring precise payload management. Its 650KV rating and 4S LiPo compatibility provide the ideal torque and RPM range for efficiently spinning large 11–14″ carbon fiber propellers, enabling stable flight with payloads between 320g and 720g per axis.

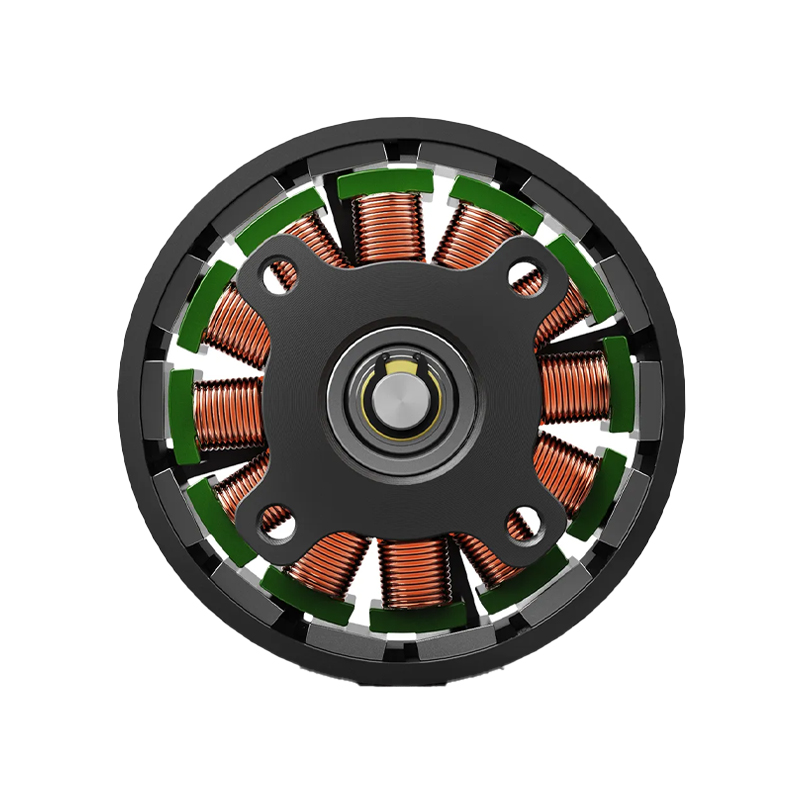

Constructed with a corrosion-resistant stator and heat-resistant magnets, the motor maintains operational integrity in humid or wet conditions. The precision-balanced rotor and dual 694ZZ bearings minimize mechanical vibration, which is critical for aerial cinematography and sensitive payloads. With a maximum continuous current of 17.4A and a peak power output of 270W, it offers robust performance for extended flight sessions in industrial inspection, agricultural mapping, and delivery UAV applications.
Additional Information
| Weight | 0.303 kg |
|---|---|
| Dimensions | 11 × 11 × 6 cm |
