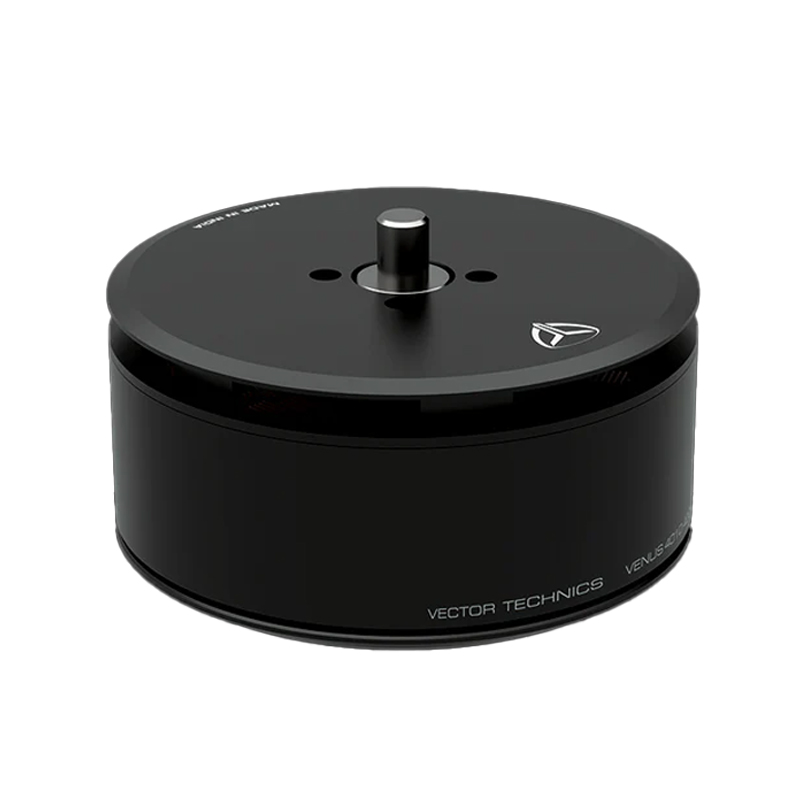

Vector Technics 4010 PRO 370KV Motor
The Vector Technics 4010 PRO 370KV brushless motor is engineered for high-performance UAV and heavy-lift drone applications, delivering up to 2.2 kg of thrust from a 6S (24V) LiPo power source. Its 40mm stator and 370KV rating are optimized for smooth, efficient operation with large propellers up to 18 inches in diameter.
Features
- High-torque 4010 stator (40mm diameter, 10mm height) with a 370KV rating for 6S (24V) LiPo operation.
- Delivers a maximum thrust of up to 2.2 kg, optimized for heavy-lift and large multirotor platforms.
- Robust construction with a 5mm shaft, 14-pole design, and precision bearings for a 1000+ hour operational lifespan.
- Lightweight 120g design balances power output with overall system weight for improved flight efficiency.
- Wide operating temperature range from -20°C to 80°C for reliable performance in diverse environmental conditions.
Out of stock
The Vector Technics 4010 PRO is a high-quality brushless outrunner motor designed for demanding UAV applications requiring substantial lift capacity and smooth, reliable power delivery. Its 370KV winding is specifically calibrated for 6S battery systems, providing optimal torque and RPM for large-diameter propellers up to 18 inches, making it a cornerstone for custom heavy-lift drone builds.
Engineered with a durable 14-pole design and precision-balanced components, this motor minimizes vibration for stable flight performance and extended bearing life. The combination of a 40mm stator diameter and a 10mm stack height yields an excellent power-to-weight ratio, with a peak power handling of 400-500W and a maximum efficiency current between 16-18A.
Additional Information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 3.4 × 4 cm |
