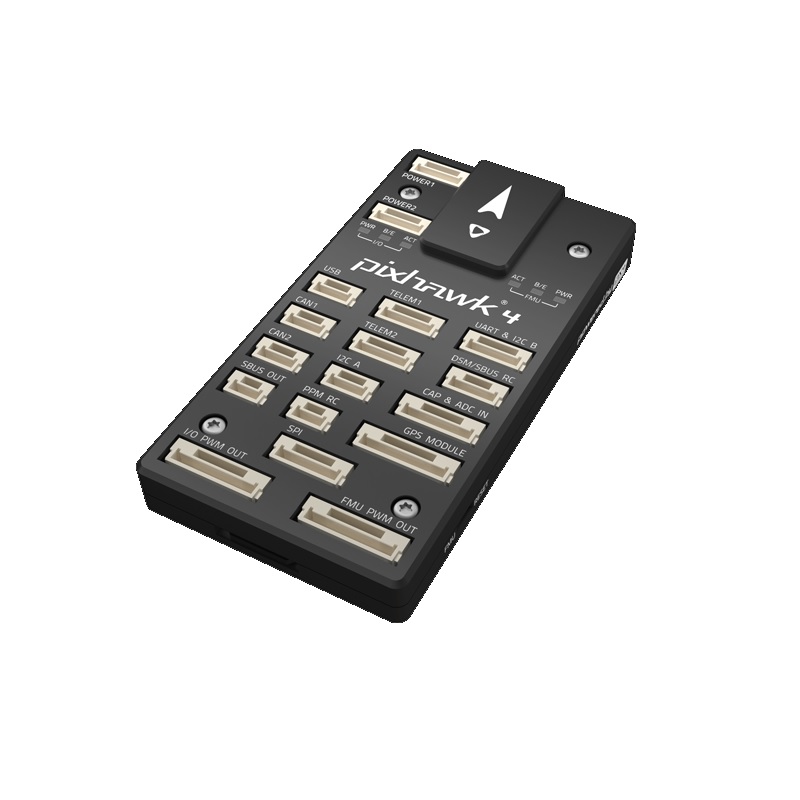

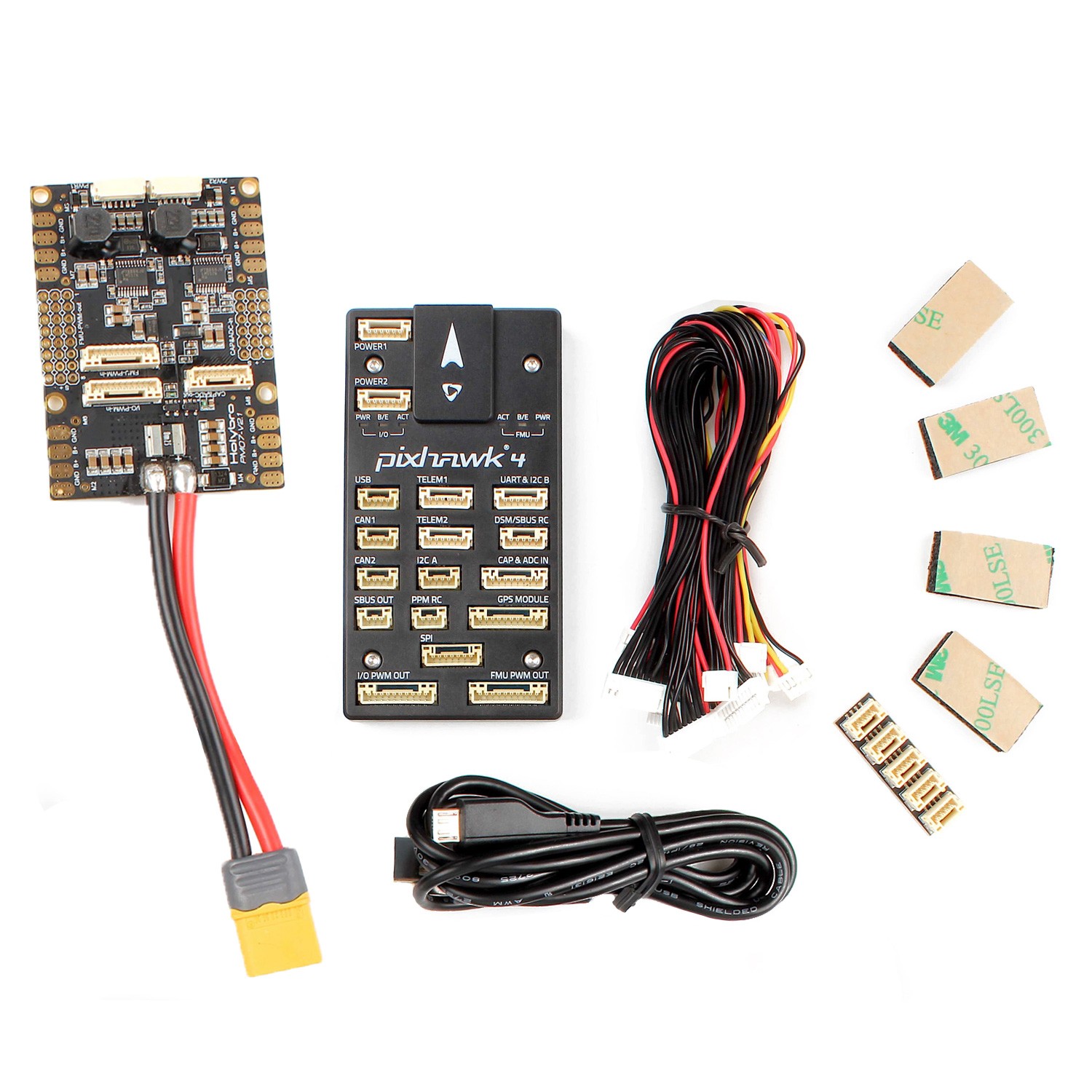

Holybro Pixhawk 4 PX4 Flight Controller (without GPS)
The Holybro Pixhawk 4 is a high-performance PX4 flight controller designed for advanced autonomous drone applications, featuring an STM32F765 Cortex-M7 processor, redundant power inputs, and integrated vibration isolation for precise flight control.
Features
- STM32F765 32-bit ARM Cortex-M7 processor at 216 MHz with 2 MB Flash / 512 KB RAM.

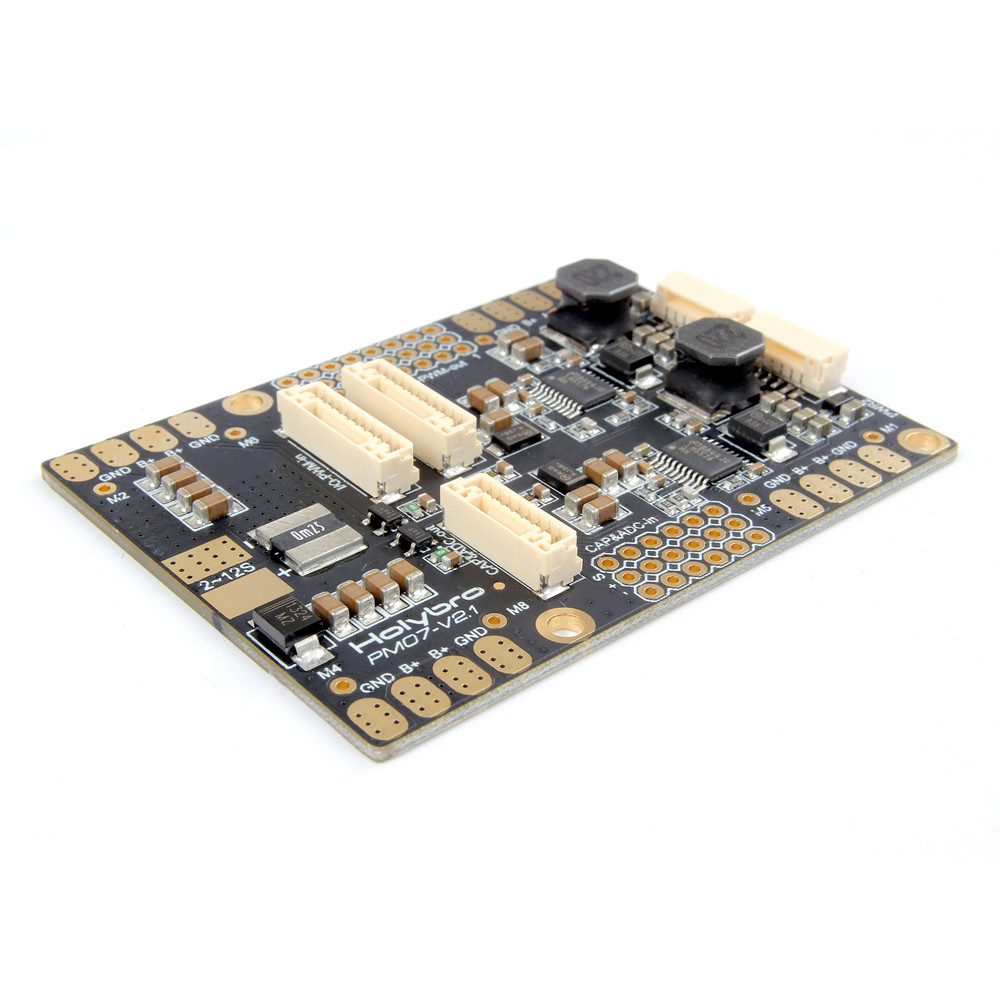

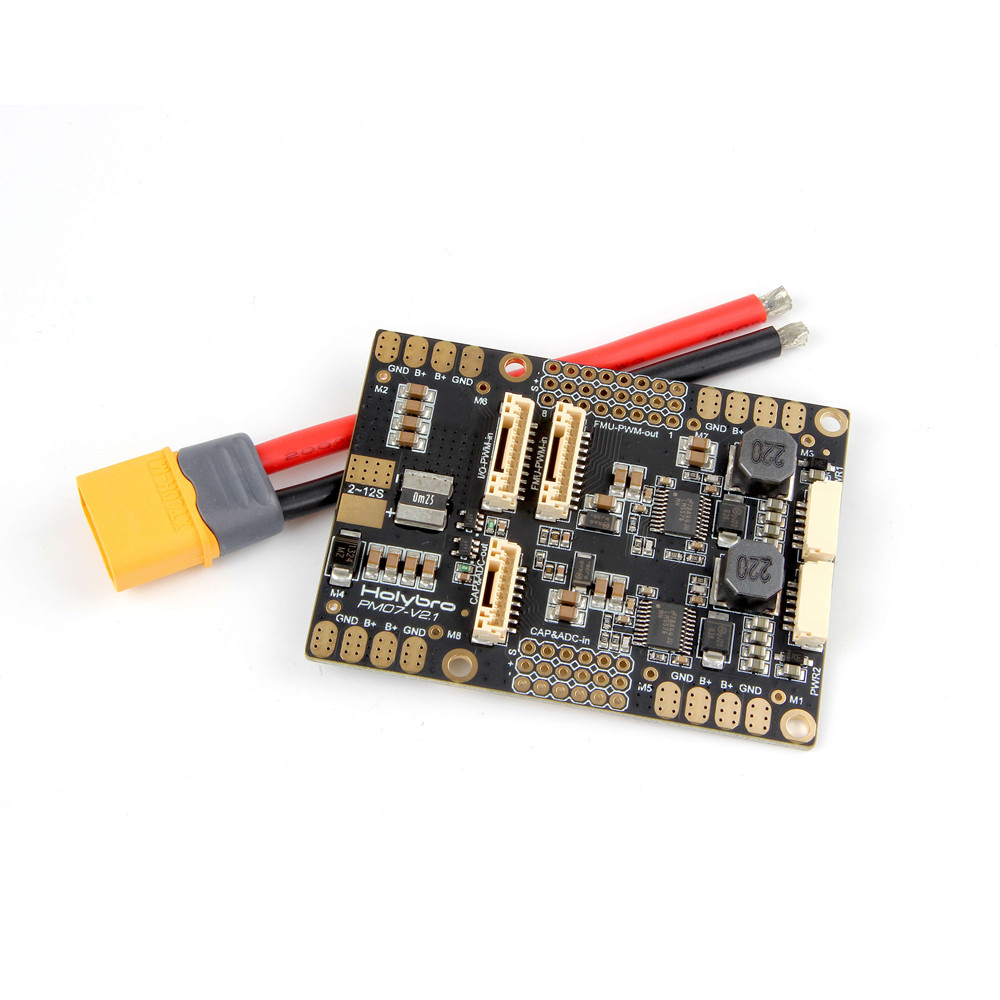

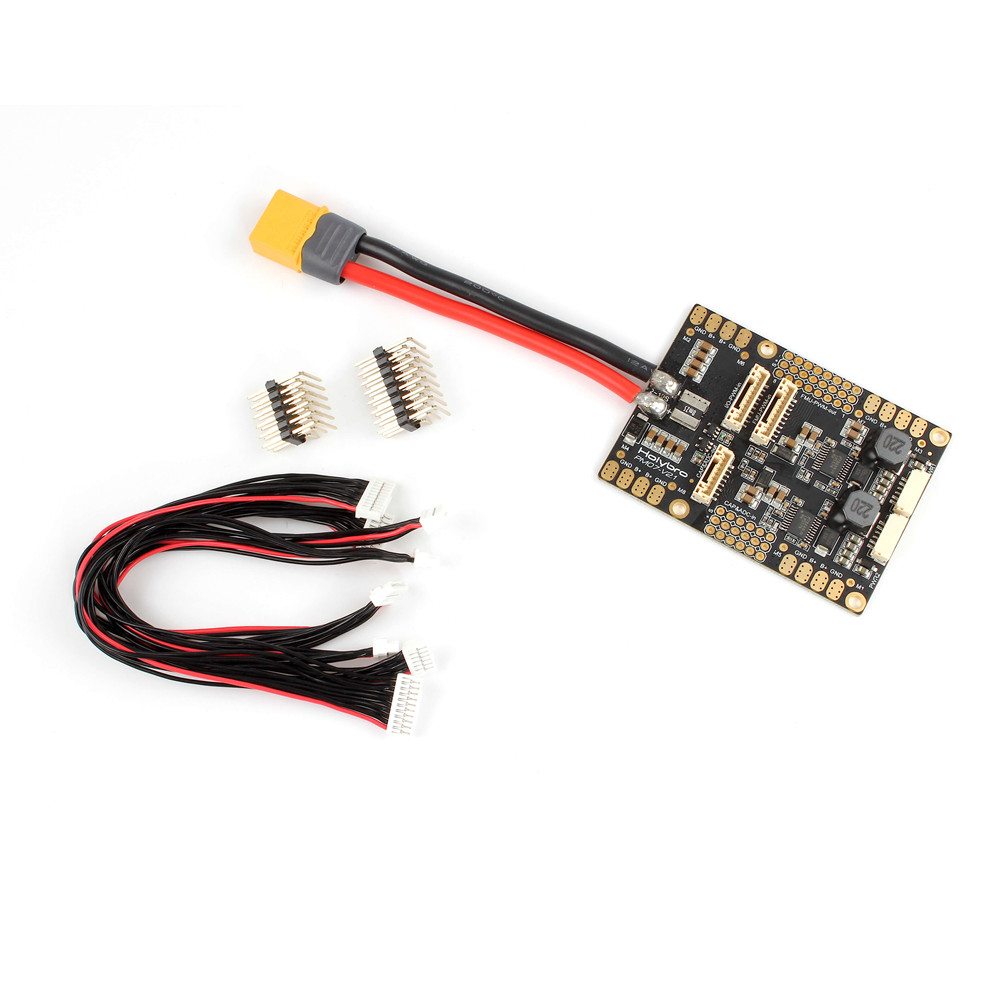

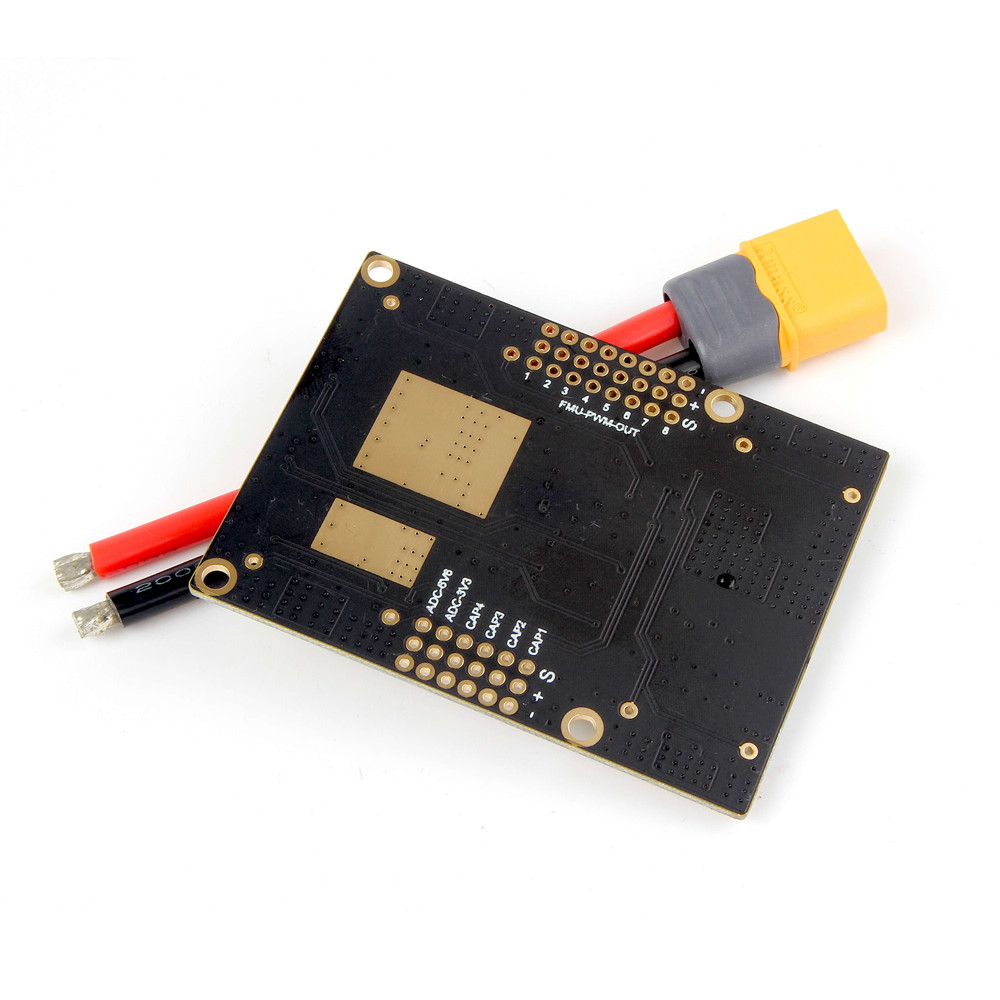

- Redundant power supply inputs with automatic failover for enhanced system reliability.

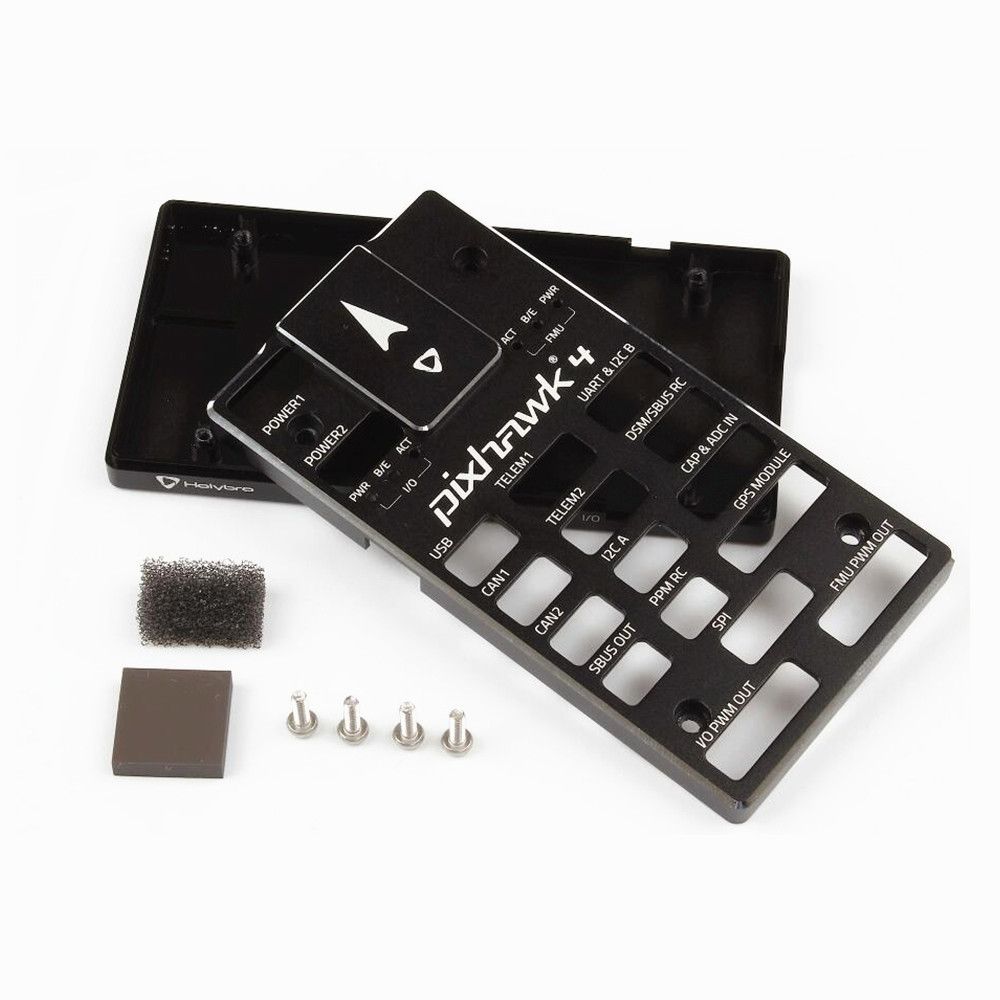

- Integrated vibration isolation mounting for improved sensor accuracy and flight stability.

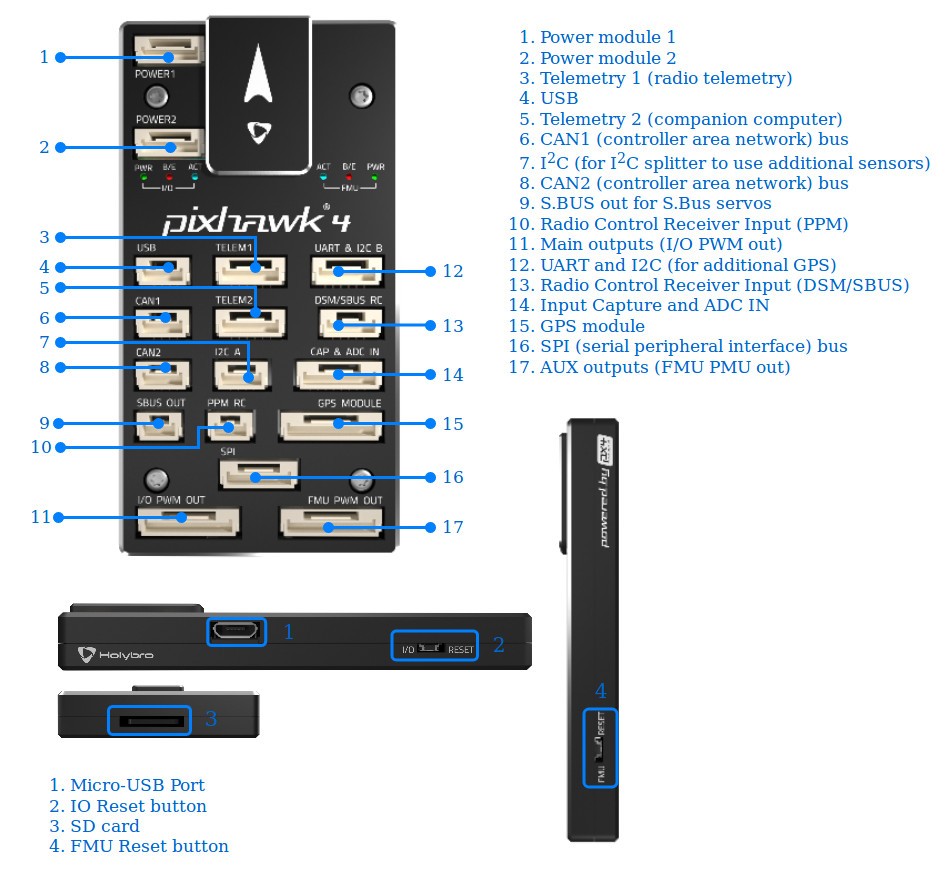

- Extensive connectivity: 5 serial ports, 3 I2C ports, 4 SPI buses, and 16 PWM outputs.
- Pre-installed with the latest PX4 firmware for immediate deployment in research and commercial UAVs.
Out of stock
The Pixhawk 4 represents a significant evolution in open-source flight control hardware, developed jointly by Holybro and the PX4 Autopilot team. Its core is the powerful STM32F765 microcontroller, which delivers over double the computational power and RAM of previous generations, enabling the execution of complex autonomous navigation algorithms and high-rate data logging directly to the onboard microSD card.
Engineered for robustness in demanding environments, the controller features a suite of high-stability sensors from Bosch and InvenSense, including the ICM-20689 and BMI055 IMUs. The dedicated vibration isolation system mechanically decouples these sensors from frame harmonics, ensuring clean data for precise attitude estimation and control, critical for heavy-lift and mapping platforms.
Additional Information
| Weight | 0.0158 kg |
|---|---|

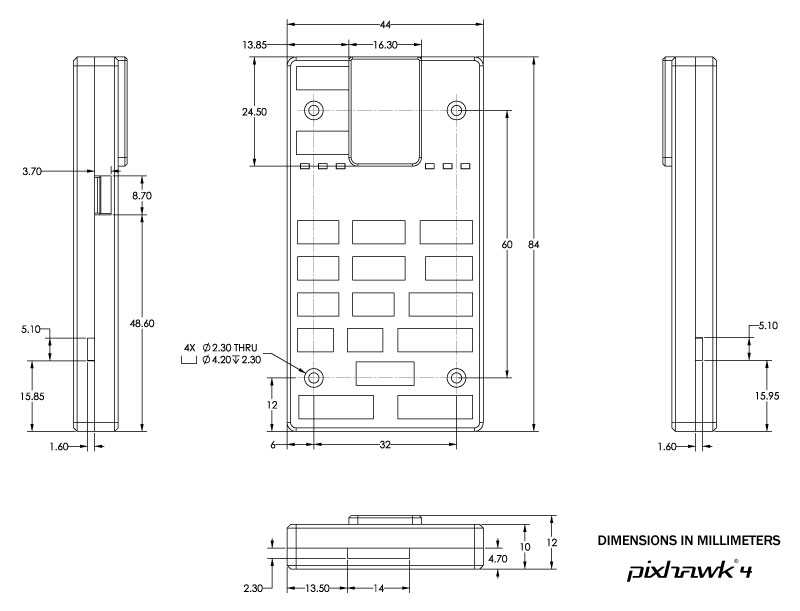

| Dimensions | 4.4 × 8.4 × 1.2 cm |
