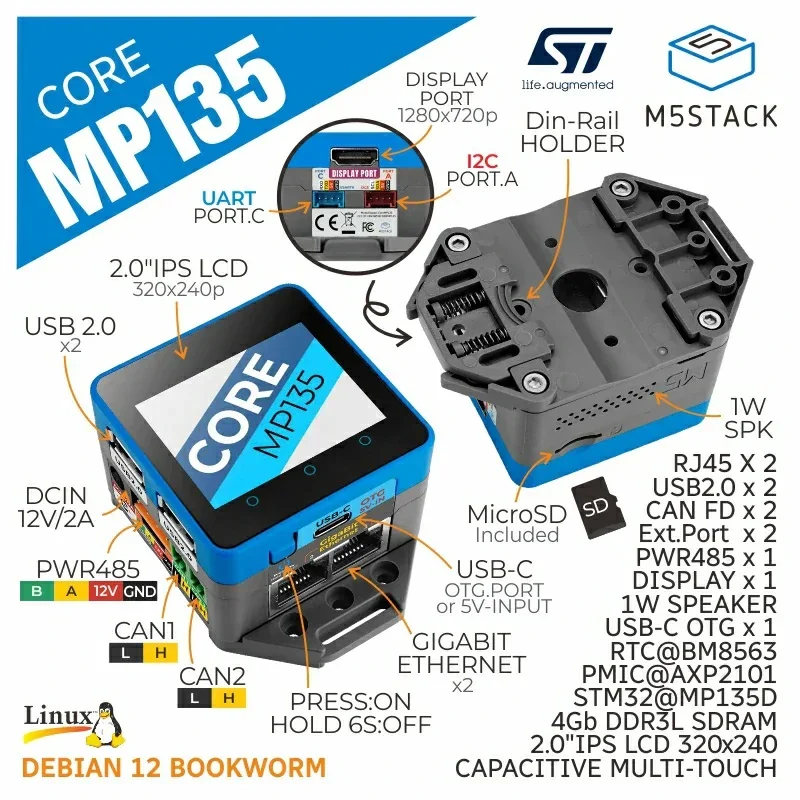

M5Stack STM32MP135 Industrial IoT Gateway w/ Cortex-A7, 2x GbE, CAN FD, RS485

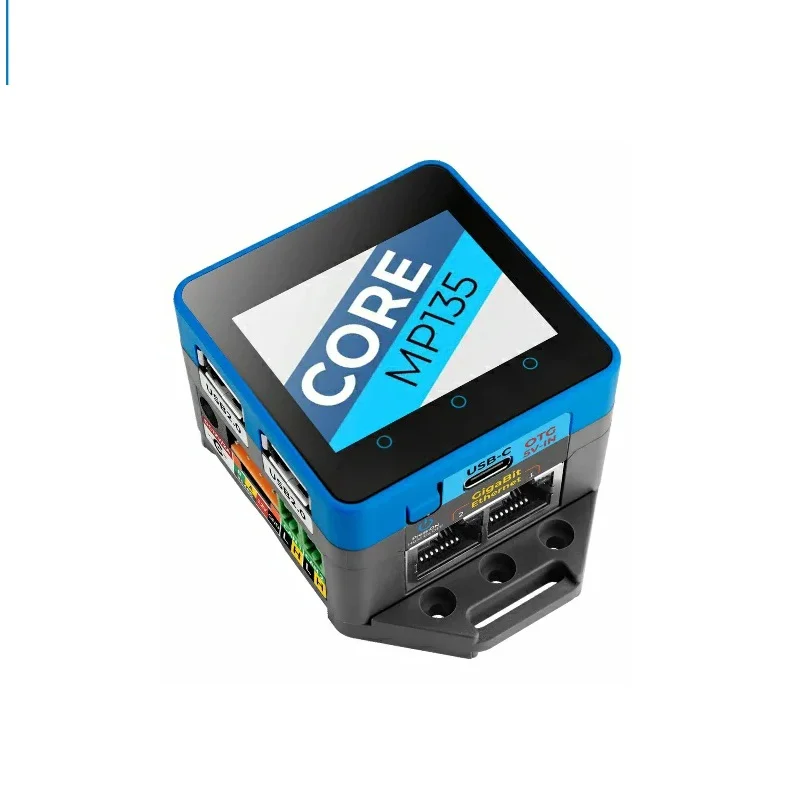

The gateway boots a pre-installed Debian Linux distribution from the included MicroSD card. On first boot, connect via Ethernet (the device may acquire an IP via DHCP) and use SSH for command-line access. The 2.0-inch touchscreen provides a local GUI. You can update the OS by modifying the SD card image or using apt-get package management within the Debian environment. The USB-C port also supports serial console access for low-level debugging.

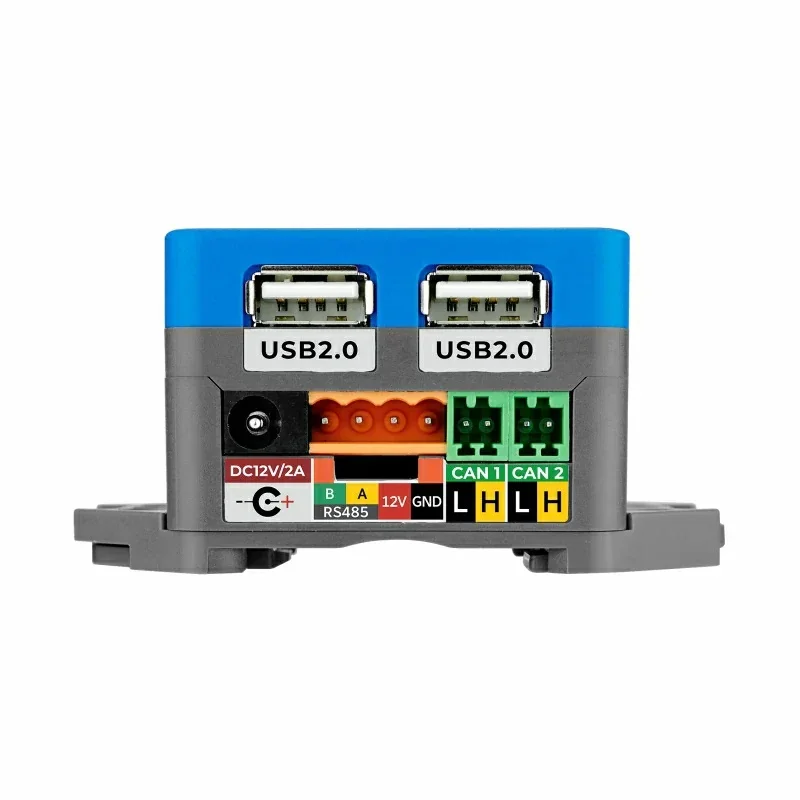

You can power the device using the DC barrel jack with a 12V/2A adapter or via the USB-C port with a 5V/3A source. The integrated AXP2101 power management chip handles voltage regulation and supports low-power sleep modes. For the RS485 port's 9-24V PWR input, ensure your external supply matches the connected RS485 device's requirements. The gateway also has pads for connecting an optional rechargeable lithium battery to maintain the RTC during main power outages.

Yes, all industrial interfaces operate independently. The two CAN FD channels, driven by SIT1051T transceivers, support high-speed data rates for motor controllers or sensor networks. The RS485 port, using a MAX3485 chip, is isolated and can be used for Modbus RTU networks concurrently. Configure each interface within Linux using standard socketCAN for CAN and serial port drivers (e.g., /dev/ttySX) for RS485. Ensure proper termination and baud rate settings (configured via software) for reliable communication.

As a full Linux device, you can develop applications in C/C++, Python, Node.js, or Go. Use the standard GCC toolchain or cross-compile with the STM32MP1 SDK. For hardware interaction, libgpiod controls GPIOs, socketCAN manages CAN buses, and standard serial libraries handle RS485. The M5Stack community provides examples for the Grove ports and display. You can install Docker for containerized apps or use the pre-installed packages for MQTT brokers like Mosquitto for IoT cloud connectivity.

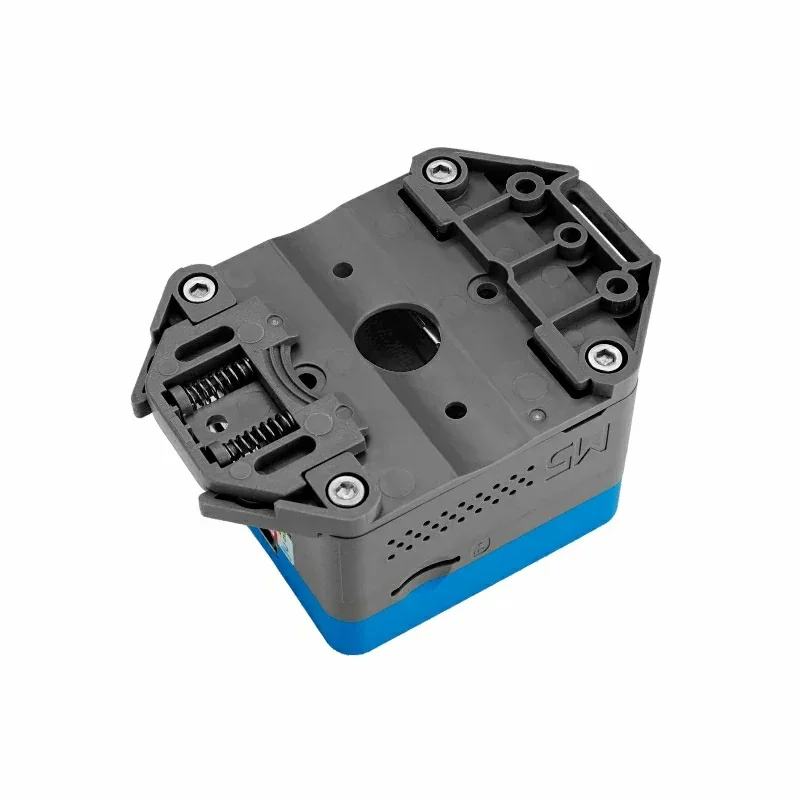

The unit includes a DIN rail mounting baseplate. Slide the gateway onto a standard 35mm DIN rail and secure it. The operating temperature range is 0°C to 40°C, suitable for controlled industrial environments. Avoid locations with excessive dust, moisture, or vibration beyond typical panel mounting. For connectivity, route Ethernet, USB, and terminal wires through the cabinet wire ducts. The compact 54x54mm footprint minimizes panel space usage while providing extensive I/O.
