M5Stack CoreS3 ESP32-S3 IoT Development Kit w/ Camera & DinBase
M5Stack CoreS3 ESP32-S3 IoT Development Kit w/ Camera & DinBase - Image 2
M5Stack CoreS3 ESP32-S3 IoT Development Kit w/ Camera & DinBase - Image 3
M5Stack CoreS3 ESP32-S3 IoT Development Kit w/ Camera & DinBase - Image 4
M5Stack CoreS3 ESP32-S3 IoT Development Kit w/ Camera & DinBase - Image 5
M5Stack CoreS3 ESP32-S3 IoT Development Kit w/ Camera & DinBase - Image 6
SKU: IOWC-1315
📋 GST Invoice Available

M5Stack CoreS3 ESP32-S3 IoT Development Kit w/ Camera & DinBase

₹7,759.00 (Inclusive of all taxes)
Out of Stock

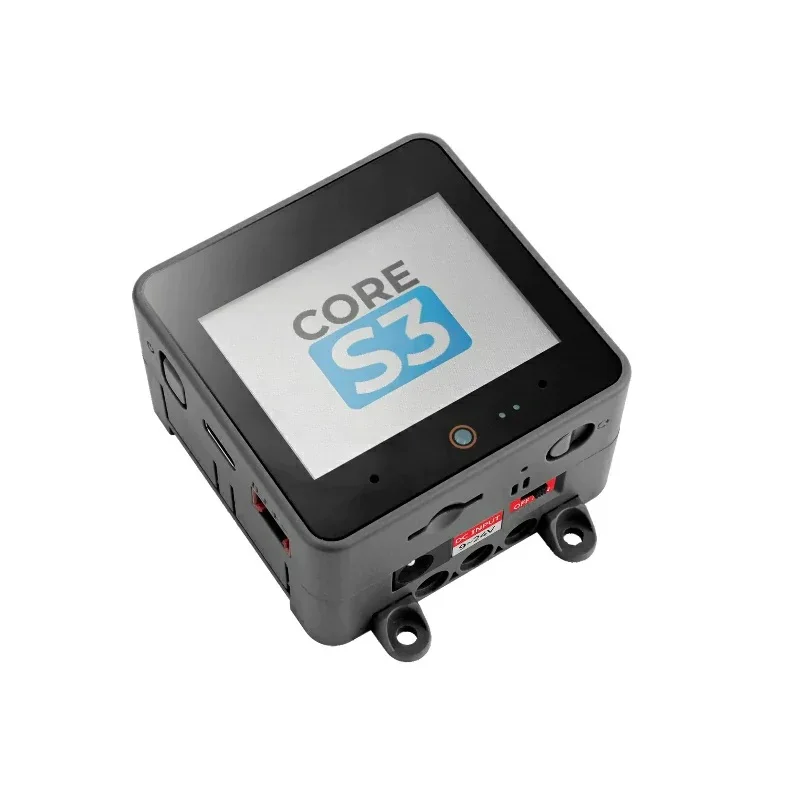

The M5Stack CoreS3 is a feature-rich ESP32-S3 IoT development kit featuring a 2.0-inch capacitive touch IPS screen, integrated GC0308 camera, and a comprehensive sensor suite, ideal for programming with Arduino IDE or UIFlow for smart home and industrial automation projects.

Features

  • ESP32-S3 Dual-Core Power: Features a 240MHz Xtensa LX7 processor with 16MB flash, 8MB PSRAM, and built-in Wi-Fi for robust IoT application development.

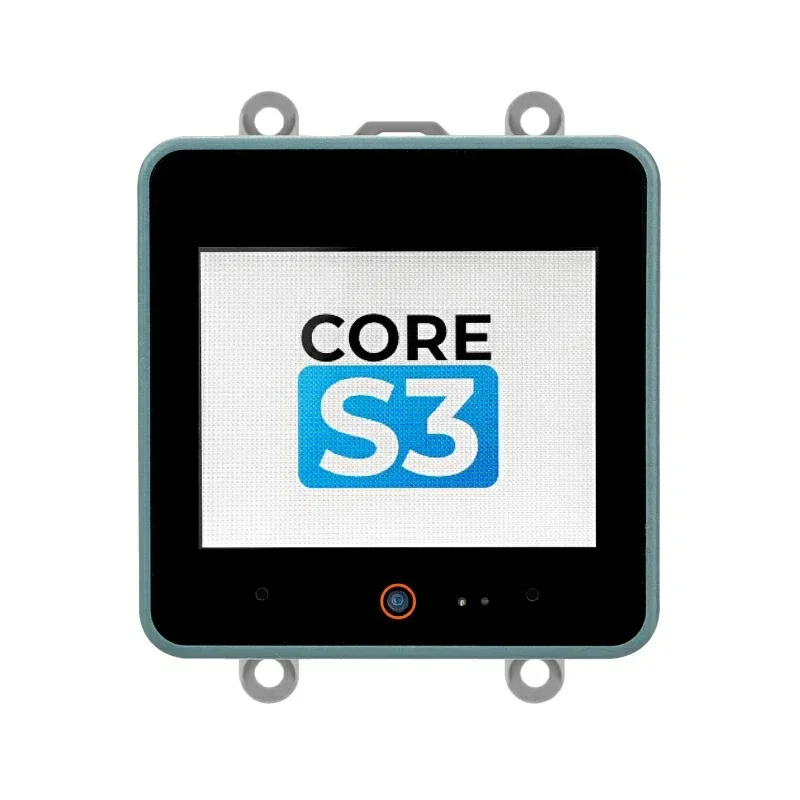

  • Integrated Camera & Touch Display: Equipped with a 2.0-inch capacitive touch IPS screen and a bottom-mounted 0.3MP GC0308 camera for computer vision and interactive UI projects.
  • Comprehensive Sensor Suite: Includes a 6-axis IMU (BMI270), magnetometer (BMM150), proximity/light sensor (LTR-553ALS-WA), and a BM8563 RTC for precise motion sensing and timing.
  • Advanced Audio & Power Management: Boasts a 16-bit I2S amplifier (AW88298), dual-microphone input (ES7210), and an AXP2101 PMIC for efficient low-power operation with battery or 9-24V DC input.
  • Versatile Mounting & Expansion: Comes with a DinBase for DIN-rail, wall, or screw mounting and includes a microSD slot, USB-C with OTG/CDC, and proto areas for hardware expansion.

Out of stock

Description

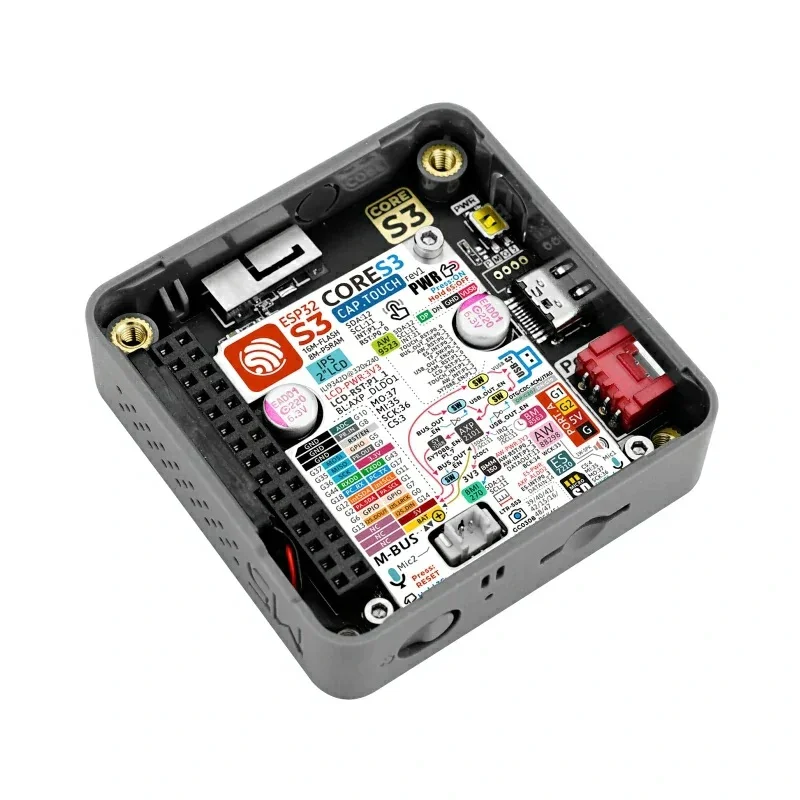

The M5Stack CoreS3 represents the third generation of the popular Core series, built around the Espressif ESP32-S3 system-on-chip. This all-in-one development kit is engineered for rapid prototyping of advanced IoT and edge computing applications, combining substantial processing power with a wide array of onboard peripherals. Its low-power design, managed by the AXP2101 power management IC, supports operation from an internal 500mAh LiPo battery or an external 9-24V DC supply via the included DinBase, making it suitable for both portable and fixed installations.

Beyond its core compute capabilities, the CoreS3 integrates essential human-machine interface and sensing components. The high-strength glass-protected capacitive touchscreen provides a responsive control surface, while the integrated camera, microphone array, and speaker enable audio-visual applications. The inclusion of industrial-friendly features like the DinBase mount, precise RTC with sleep-timer wake-up, and extensive GPIO breakout options positions the CoreS3 as a versatile platform for smart home control systems, industrial automation, interactive displays, and sophisticated DIY projects.

Key Features

  • ESP32-S3 Core: Dual-core Xtensa LX7 processor @ 240MHz with 16MB Flash and 8MB PSRAM for handling complex applications and data buffers.
  • Wireless Connectivity: Integrated 2.4GHz Wi-Fi (802.11 b/g/n) enables seamless connection to local networks and cloud IoT platforms.
  • Rich Onboard Peripherals: Combines a 2.0" 320x240 capacitive touch IPS display, 0.3MP GC0308 camera, 1W speaker, dual microphones, and multiple sensors in a compact 54x54x16mm unit.
  • Precision Sensing Hub: Features a 6-axis IMU (BMI270), magnetometer (BMM150), and ambient light/proximity sensor (LTR-553ALS-WA) for motion and environmental detection.
  • Professional Power & Timing: AXP2101 PMIC ensures efficient power distribution and low-power states, while the BM8563 RTC chip provides accurate timekeeping and wake-up alarms.
  • Expansion & Storage: Includes a microSD (TF) card slot for data logging, USB-C port with OTG/CDC support for easy programming and peripheral connection, and multiple proto areas on the DinBase.
  • Industrial-Grade Enclosure: Supplied with a versatile DinBase that supports DIN-rail, wall-mount, or screw fixation for robust deployment in control panels and enclosures.
  • Developer-Friendly Ecosystem: Fully supported by the Arduino IDE and M5Stack's graphical UIFlow platform for both code-based and block-based programming.

Applications

  • Smart Home Control Hubs: Central unit for controlling lights, appliances, and security systems via touchscreen and Wi-Fi.
  • Industrial HMI & Automation: DIN-rail mounted interface for monitoring sensors, controlling PLCs, and visualizing machine data.
  • Interactive Kiosks & Displays: Deploy for public information points, retail menus, or museum exhibits with touch and camera input.
  • Prototyping & DIY Electronics: Rapid development platform for IoT gadgets, wearable tech, and educational robotics projects.
  • Edge AI & Computer Vision: Local image processing and inference applications using the onboard camera and ESP32-S3's vector instructions.

Technical Specifications

Microcontroller / SoCESP32-S3 (Xtensa LX7 Dual-Core @ 240MHz)
Wireless Protocol2.4GHz Wi-Fi (802.11 b/g/n)
Memory16MB Flash, 8MB PSRAM
Display2.0-inch IPS Capacitive Touch (320x240, ILI9342C)
CameraGC0308 VGA (0.3 Megapixel)
Power Management ICAXP2101
Supply VoltageInternal LiPo (500mAh) or External DC 9V-24V (via DinBase)
Key SensorsBMI270 (6-axis IMU), BMM150 (Magnetometer), LTR-553ALS-WA (Light/Proximity), BM8563 (RTC)
AudioAW88298 (16-bit I2S 1W Amplifier), ES7210 Codec, Dual Microphones, Built-in Speaker

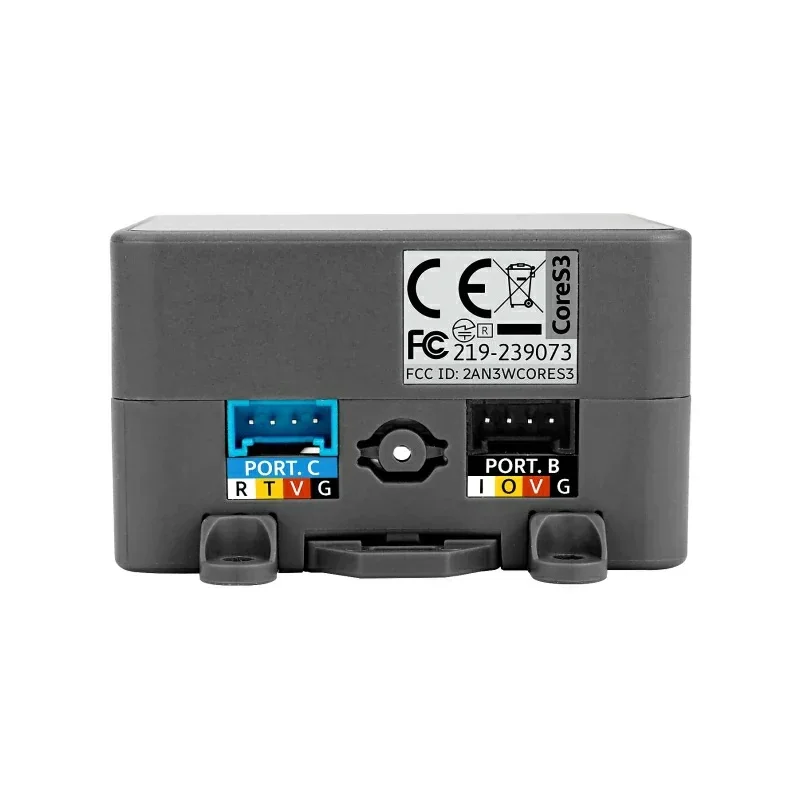

InterfacesUSB Type-C (OTG/CDC), microSD Card Slot, GPIO Breakout
ProgrammingArduino IDE, UIFlow
Dimensions (Board)54 x 54 x 16 mm
Weight73.3 g

Frequently Asked Questions

How do I program the M5Stack CoreS3 and what software is required?

You can program the CoreS3 using the Arduino IDE or M5Stack's UIFlow. For Arduino, install the ESP32 board support via the Boards Manager and select 'M5Stack-CoreS3' as your target. For UIFlow, use the M5Burner tool to flash the UIFlow firmware via USB-C. The USB-C port supports CDC, so it appears as a serial COM port for code uploading and serial debugging without needing external programmers.

What is the purpose of the DinBase included with the CoreS3 kit?

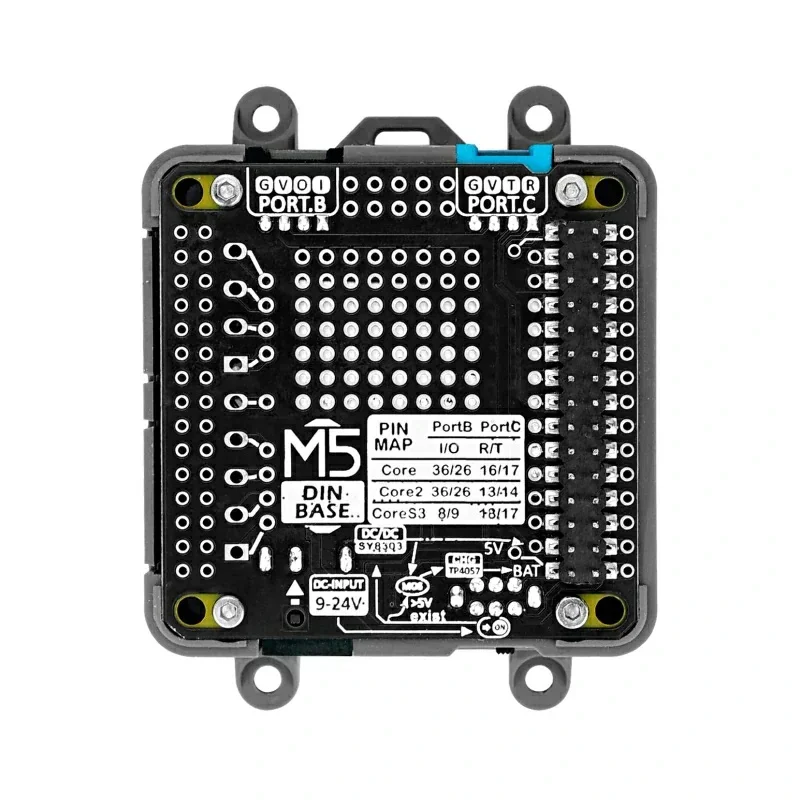

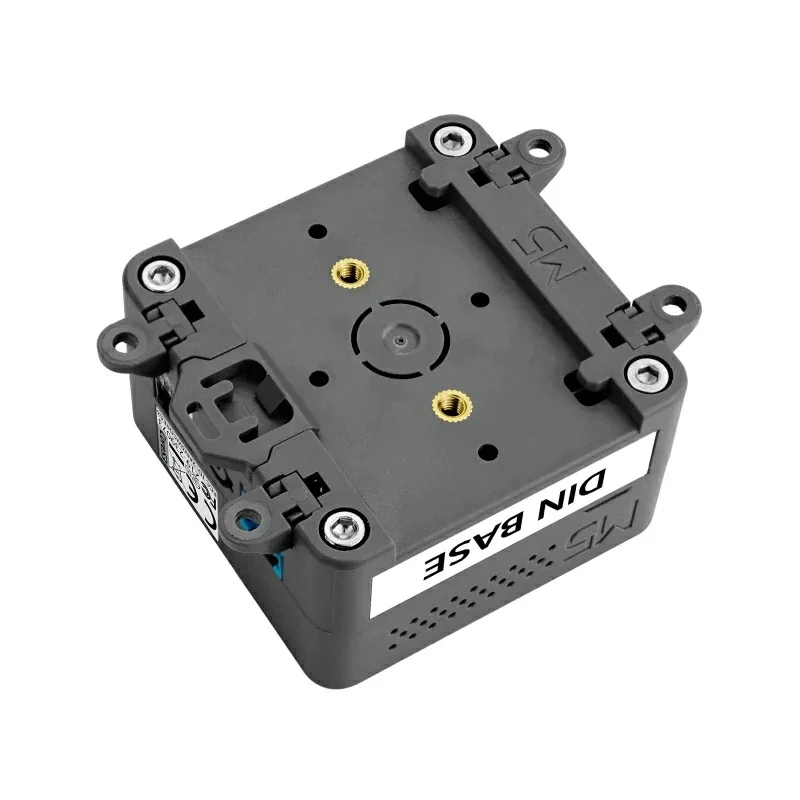

The DinBase provides a robust mechanical mounting solution for the CoreS3. It features a standard DIN-rail clip for industrial cabinet installation, screw holes for wall or panel mounting, and proto areas for adding custom circuitry. It also houses the power terminal for connecting an external 9-24V DC power supply, which charges the internal battery and powers the system, making the kit ready for permanent deployment in automation or control panel environments.

Can the onboard camera be used for face recognition or object detection?

Yes, the integrated GC0308 VGA camera can be used for computer vision tasks. Using the ESP32-S3's vector instructions and available PSRAM, you can run lightweight TensorFlow Lite Micro models on the device for tasks like face detection, object classification, or color tracking. Libraries such as ESP32-CAM or M5Stack's own API simplify capturing images and processing them directly on the board without needing to stream video to an external server.

How do I manage power and enable deep sleep on the CoreS3 for battery operation?

Power is managed by the AXP2101 PMIC. For deep sleep, you can use the ESP32-S3's low-power modes via Arduino or IDF APIs. The BM8563 RTC can be configured as a wake-up source using its alarm function. Ensure the power switch on the side is on. In deep sleep, current draw can drop to microamps, significantly extending battery life. The DinBase also allows continuous external power, bypassing the battery for always-on applications.

Package Includes

  • 1 x M5Stack CoreS3 ESP32-S3 Development Board
  • 1 x DinBase Mounting Base

Additional Information

Weight 0.0733 kg
Dimensions 5.4 × 5.4 × 1.6 cm
