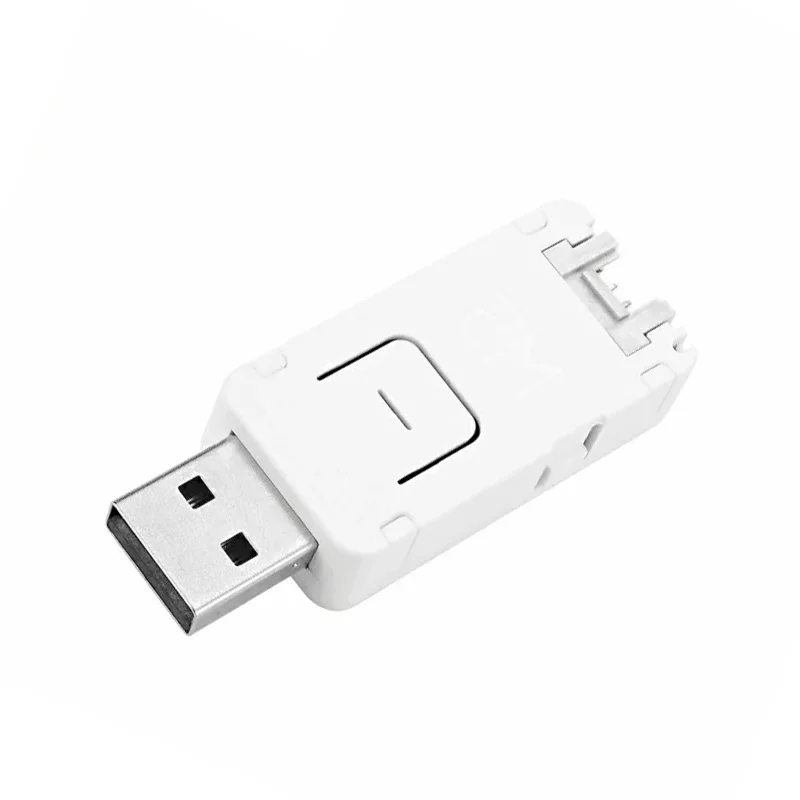

M5Stack AtomS3U ESP32-S3 Development Kit with USB-A

You can program the AtomS3U using the Arduino IDE with the ESP32-S3 board package installed, or via MicroPython using a tool like esptool.py to flash the MicroPython firmware. Connect the board via its USB-A port to your computer, select the correct COM port, and choose 'M5Stack AtomS3' as the board type in the Arduino IDE. The board supports standard Arduino sketches and ESP-IDF components for advanced features.

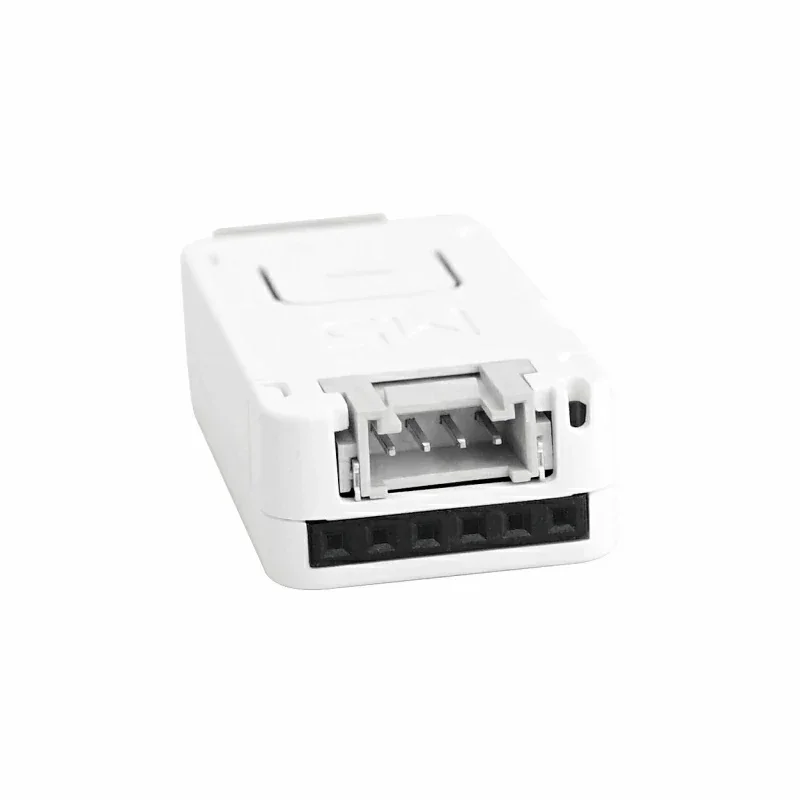

The Grove port (labeled PORTA) provides a standardized 4-pin connector for easily attaching a wide range of M5Stack and Seeed Studio Studio Grove ecosystem modules without soldering. It typically carries power, ground, and two signal lines configurable for I2C, analog input, or digital I/O, enabling rapid prototyping with sensors, displays, actuators, and communication modules for expanding your project's capabilities.

Yes, you can use the infrared transmitter and the PDM microphone simultaneously. The IR LED is connected to a GPIO pin and can be controlled via libraries like IRremoteESP8266. The SPM1423 PDM microphone has a dedicated interface; you'll need to use the ESP32-S3's I2S or PDM peripheral in your code to capture audio. Both peripherals operate on independent hardware resources, allowing for concurrent operation in applications like voice-activated IR blasters.

The AtomS3U is powered directly through its USB-A port, requiring a standard 5V DC supply from a computer, USB wall adapter, or power bank. The board includes voltage regulation for the core logic. When using the Grove port or GPIO to power external modules, ensure the total current draw does not exceed the USB port's rating, typically 500mA for standard USB ports, to avoid instability or damage.

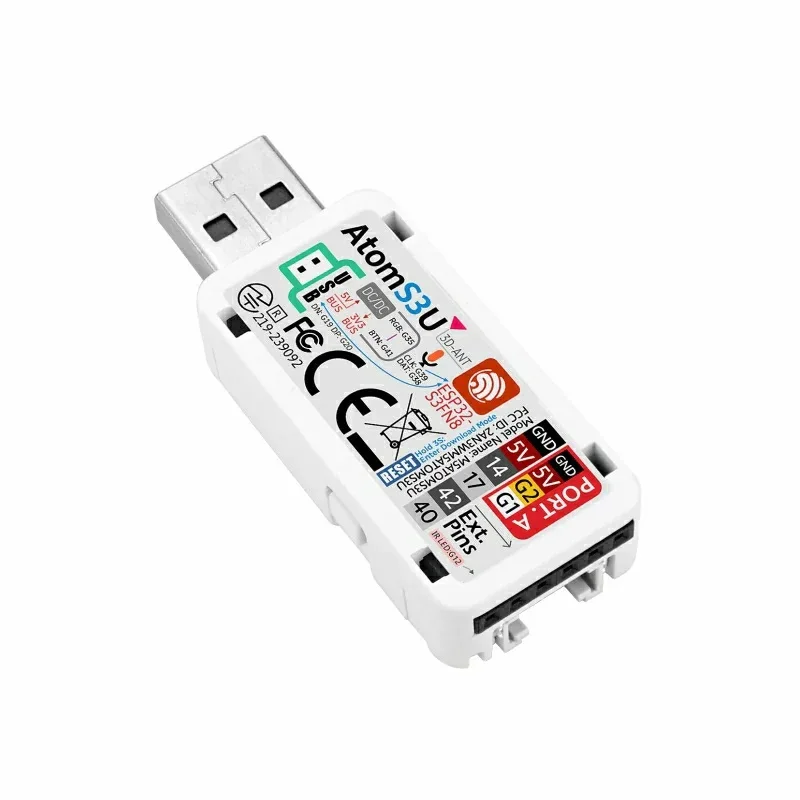

The AtomS3U exposes 4 user-accessible GPIO pins via the 6-pin 2.54mm header (pins 1-4), alongside 5V and GND. Additionally, some pins are used internally for the button, RGB LED, IR transmitter, and microphone. Consult the official pinout diagram to identify which of the internal pins can be reconfigured. The Grove port also provides access to two signal lines, which are multiplexed with some of the header GPIOs.
