M5Stack FIRE IoT Development Kit V2.7 w/ ESP32 & 8MB PSRAM

First, install the ESP32 board support via Arduino's Board Manager. Then, add the M5Stack library through the Library Manager. Select 'M5Stack-FIRE' as your board from the Tools menu. Connect the device via the provided USB Type-C cable. You can now upload example sketches or your own code to control the display, sensors, and wireless connectivity directly from the Arduino environment.

The 8MB PSRAM (Pseudo Static RAM) provides additional volatile memory for data-intensive tasks. It is essential for buffering high-resolution graphics for the display, storing audio samples, handling large sensor datasets, or running more complex machine learning models on the ESP32. This memory is separate from the 16MB Flash used for program storage and is accessed via the ESP32's external RAM interface.

Yes, the FIRE V2.7 can operate solely on its built-in 500mAh LiPo battery. The onboard power management chip handles battery charging via USB and provides stable voltage to the ESP32 and peripherals. For projects requiring extended battery life, utilize the ESP32's deep sleep modes and power down peripherals when not in use. The battery level can be monitored through the M5Stack library's API functions.

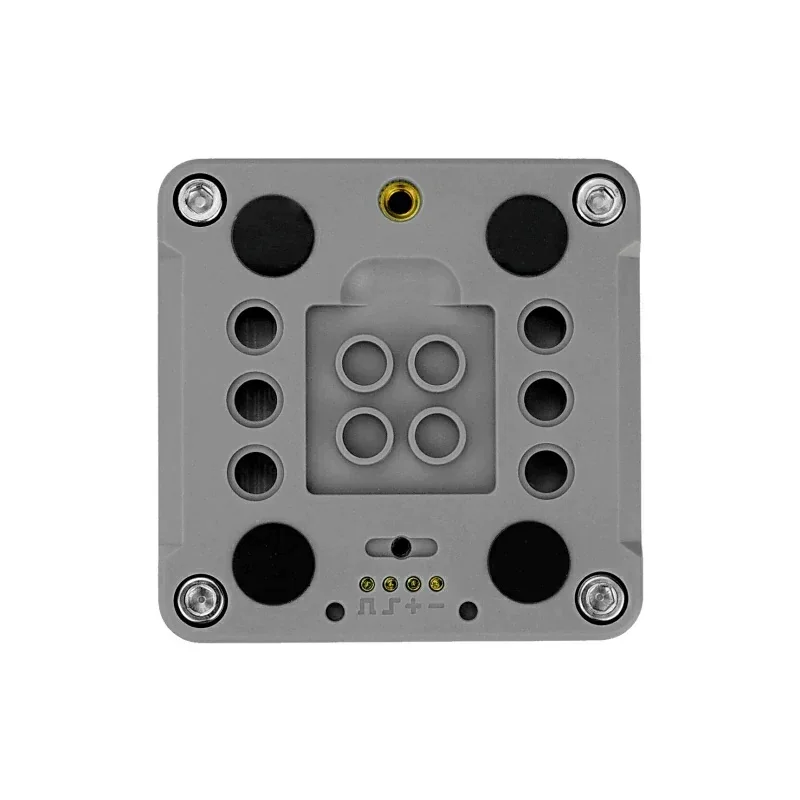

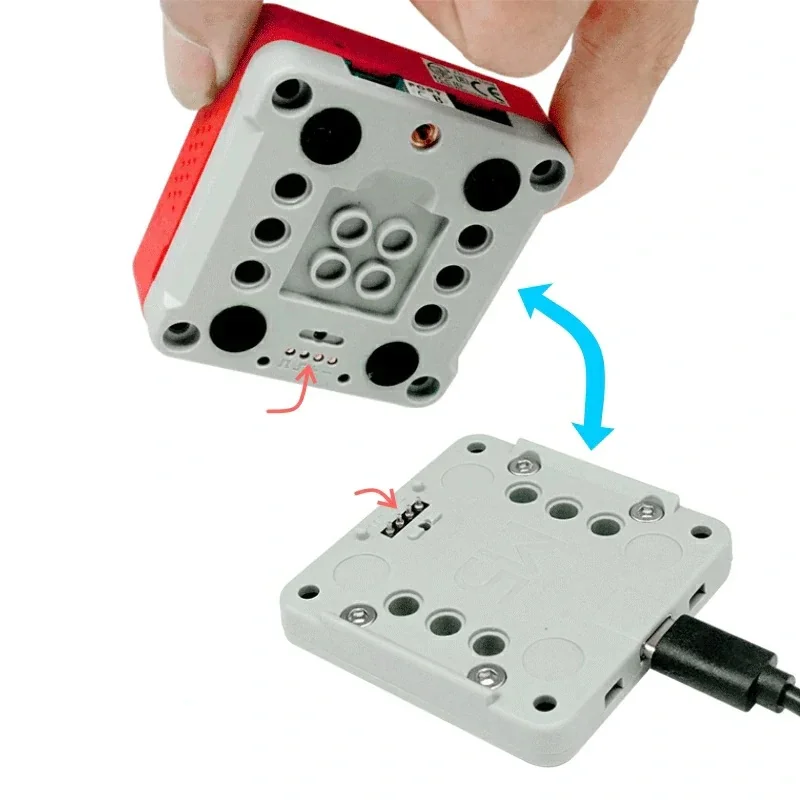

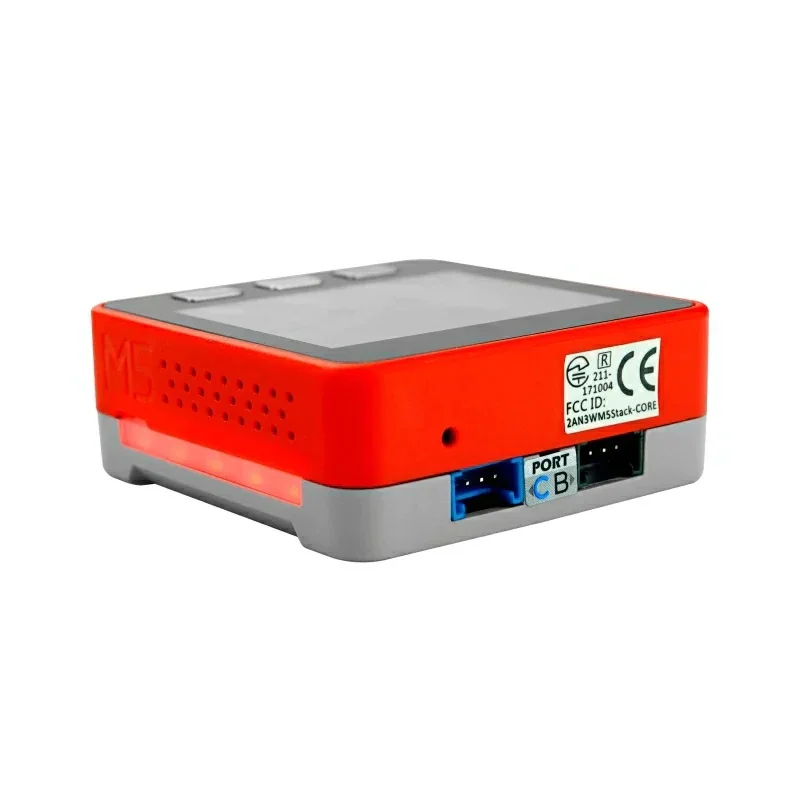

External components can be connected via the Grove-compatible I2C port on the side or the multi-pin BUS port at the bottom. For the I2C port, use standard Grove cables. For the BUS port, you can use POGO pin connectors or stack compatible M5Stack units like sensor modules directly. The pin mappings (for GPIO, I2C, UART) are defined in the M5Stack hardware documentation and library header files.
