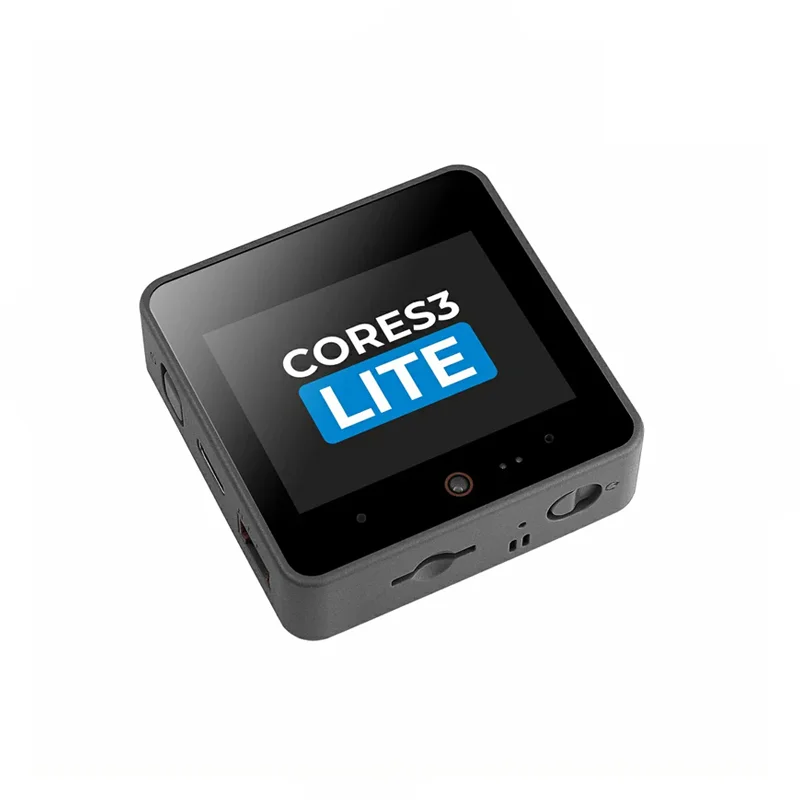

M5Stack CoreS3 Lite ESP32-S3 IoT Development Kit w/ 2.0-Inch Touch Display & Camera

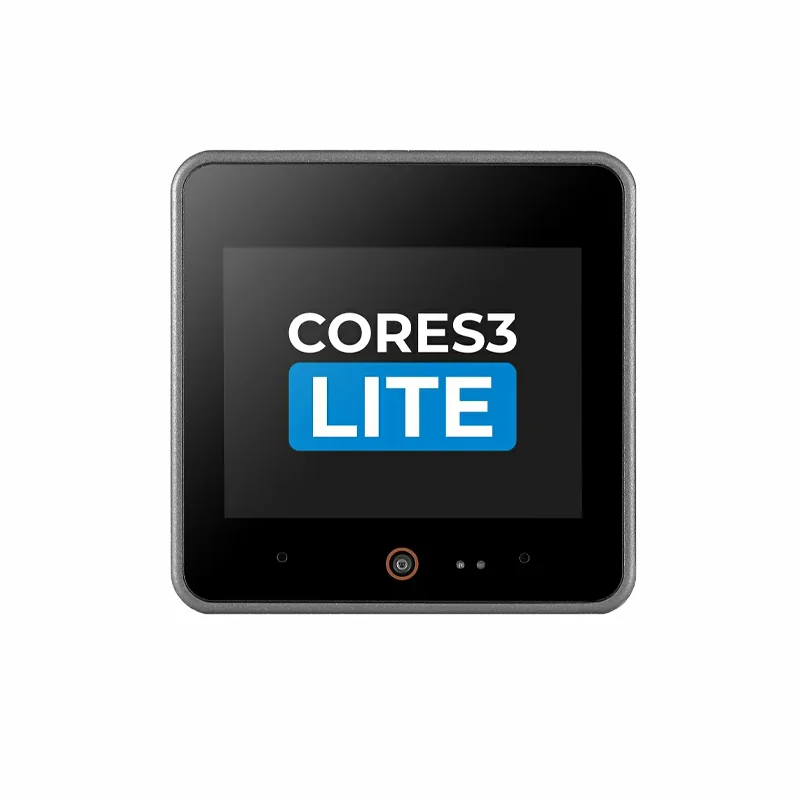

M5Stack CoreS3 Lite ESP32-S3 IoT Development Kit w/ 2.0-Inch Touch Display & Camera - Image 2

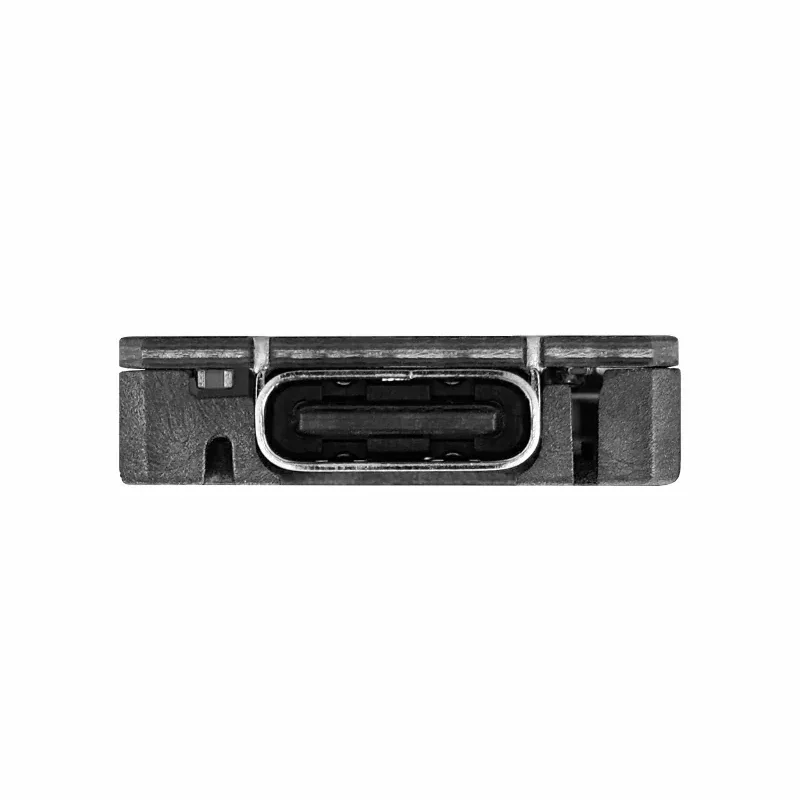

M5Stack CoreS3 Lite ESP32-S3 IoT Development Kit w/ 2.0-Inch Touch Display & Camera - Image 3
SKU: IOWC-0998
📋 GST Invoice Available

M5Stack CoreS3 Lite ESP32-S3 IoT Development Kit w/ 2.0-Inch Touch Display & Camera

₹5,379.00 (Inclusive of all taxes)
Out of Stock

The M5Stack CoreS3 Lite is an all-in-one ESP32-S3 development kit featuring a 2.0-inch capacitive touch IPS display, a 0.3 MP camera, and a comprehensive sensor suite, designed for rapid prototyping of interactive IoT applications with Arduino IDE and ESP-IDF.

Features

  • Dual-core ESP32-S3 processor with 2.4 GHz Wi-Fi, 16 MB Flash, and 8 MB PSRAM for demanding multimedia and AIoT tasks.
  • Integrated 2.0-inch capacitive touch IPS display (320×240) and GC0308 0.3 MP camera for interactive UI and computer vision projects.
  • Comprehensive sensor suite includes a six-axis IMU, three-axis magnetometer, ambient light, and proximity sensor.
  • Full-duplex audio system with a 1W I2S amplifier, speaker, and dual-microphone codec for voice control and audio processing.
  • Built-in 200 mAh LiPo battery, microSD slot, and magnetic backplate for portable, expandable, and easy-mounting applications.

Out of stock

Description

The M5Stack CoreS3 Lite IoT Development Kit integrates the powerful ESP32-S3 dual-core processor with a rich set of peripherals in a compact, portable form factor. It is engineered for developers and makers to create sophisticated, sensor-rich IoT applications without external wiring hassles. The board combines processing power, wireless connectivity, a vibrant touch display, and a camera to enable projects like face recognition, gesture-based control, and interactive smart home interfaces.

Advanced power management via the AXP2101 IC supports efficient operation from the integrated LiPo battery or USB-C, while the extensive I/O via the M-Bus connector allows for stackable expansion with M5Stack’s ecosystem of modules. The integrated real-time clock (BM8563), I2S audio amplifier, and dual microphones further equip the kit for real-time data logging, voice assistant development, and edge AI applications, making it a versatile platform for educational, industrial, and DIY prototyping.

Key Features

  • ESP32-S3 dual-core LX7 processor running at 240 MHz with integrated 2.4 GHz Wi-Fi for robust wireless connectivity.
  • High-resolution 2.0-inch capacitive touch IPS display driven by an ILI9342C controller for responsive graphical user interfaces.
  • Integrated GC0308 0.3-megapixel camera module for computer vision applications like object detection and face recognition.
  • Comprehensive motion and environmental sensing with a six-axis IMU (accelerometer/gyroscope), three-axis magnetometer, ambient light, and proximity sensor.
  • High-fidelity audio subsystem featuring a 16-bit I2S amplifier (AW88298), a 1W speaker, and a dual-microphone codec (ES7210) for full-duplex audio.
  • Expandable storage via a microSD card slot for data logging, media files, or application assets.
  • Portable design with a built-in 200 mAh LiPo battery, USB-C programming, and a magnetic backplate for easy mounting and modular expansion.
  • Professional power management with the AXP2101 IC and a precise real-time clock (BM8563) for time-sensitive and low-power IoT deployments.

Applications

  • Interactive smart home control panels and automation hubs.
  • Desktop voice assistants and audio processing devices.
  • Educational robots and interactive STEM learning kits.
  • Industrial equipment status monitors and HMI interfaces.
  • Prototyping for face recognition, gesture control, and edge AI vision projects.

Technical Specifications

Microcontroller/SoCESP32-S3 (Xtensa LX7 dual-core @ 240 MHz)
Wireless Protocols2.4 GHz Wi-Fi
Flash Memory16 MB
PSRAM8 MB
Display2.0-inch IPS, 320 x 240, Capacitive Touch (FT6336U)
CameraGC0308, 0.3 MP
Key Sensors6-Axis IMU, 3-Axis Magnetometer, Ambient Light, Proximity
Audio16-bit I2S Amplifier (AW88298), 1W Speaker, Dual-Mic Codec (ES7210)
StoragemicroSD Card Slot
Power ManagementAXP2101 IC
Real-Time ClockBM8563
BatteryIntegrated 200 mAh LiPo
Interface/ExpansionUSB Type-C, M-Bus Connector
Dimensions54 mm x 54 mm (L x W)
Weight58 g

Frequently Asked Questions

How do I program the M5Stack CoreS3 Lite development board?

You can program the CoreS3 Lite using the Arduino IDE with the ESP32 board package installed or via Espressif's official ESP-IDF framework. Connect the board via the provided USB Type-C cable, select 'M5Stack CoreS3' as the target board in your development environment, and upload your code. The board is also compatible with MicroPython and UIFlow for block-based programming. Ensure you have the necessary M5Stack library installed to access the display, sensors, and camera functions easily.

What is the power source for the CoreS3 Lite, and what is its battery life?

The CoreS3 Lite can be powered via its USB Type-C port (5V) or by its integrated 200 mAh LiPo battery. Battery life depends heavily on usage; with the display and Wi-Fi active, expect a few hours of operation. For extended battery life, utilize the ESP32-S3's deep sleep modes and turn off peripherals like the display and camera when not needed. The AXP2101 power management IC provides efficient power regulation and charging for the battery when USB is connected.

Can I use the integrated camera for face recognition or object detection?

Yes, the integrated GC0308 0.3-megapixel camera can be used for basic computer vision tasks like face recognition and object detection. You can leverage libraries such as ESP32-CAM or TensorFlow Lite Micro for edge AI inference on the ESP32-S3. The 8 MB of PSRAM is crucial for handling image buffers. For more complex models, you may need to downsample the image resolution or stream video to a more powerful server via Wi-Fi for processing.

Package Includes

  • 1 x M5Stack CoreS3 Lite ESP32S3 IoT Development Kit
  • 1 x Hex Key L-Shape 2.5 mm (For M3 Screw)

Additional Information

Weight 0.058 kg
Dimensions 5.4 × 5.4 cm

Related Products

Out of Stock

M5Stack AtomS3U ESP32-S3 Development Kit with USB-A

1,729.00
Learn More
Out of Stock

M5STACK Limit Switch Unit

489.00
Learn More
Out of Stock

M5Stack I2C Hub 1 to 6 Expansion Unit v2.1 with DIP Switch (PCA9548AP)

889.00
Learn More
Out of Stock

M5Stack K150 M5StickS3 ESP32-S3 Mini IoT Dev Kit

3,779.00
Learn More
Out of Stock

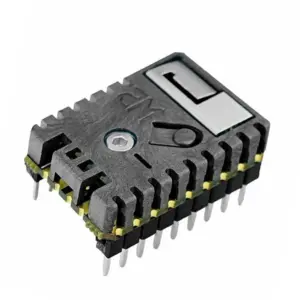

M5Stack Stamp Pico with Pin Headers

709.00
Learn More
Out of Stock

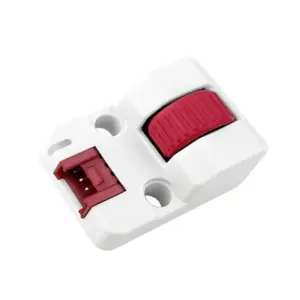

M5Stack Scroll Unit w/ Hollow Shaft Encoder & RGB LED (EC10E1220501)
