M5Stack M5Stamp ESP32S3 Module w/ 8MB Flash & 3D Antenna
The M5Stack M5Stamp ESP32S3 is a compact, surface-mount IoT controller module based on the ESP32-S3FN8 SoC, featuring dual-core 240MHz processing, 8MB flash, integrated 2.4GHz Wi-Fi with a 3D antenna, and 23 GPIOs accessible via 1.27mm/2.54mm pitch pads for SMT, DIP, or flying wire connections.
Features
- Powered by Espressif ESP32-S3FN8 dual-core LX7 processor (up to 240MHz) with 2.4GHz Wi-Fi and 8MB SPI flash for robust IoT edge computing.
- Integrated 2.4G 3D antenna and onboard 5V-to-3.3V LDO ensures stable wireless connectivity and power regulation from a single 5V input.
- Features 23 accessible GPIOs with dual 1.27mm and 2.54mm pad spacing, supporting SMT, DIP header, or direct wire attachment for flexible PCB integration.
- Includes a programmable RGB status LED and user button for system feedback and control, compatible with UIFlow, Arduino IDE, and ESP-IDF.
- Ultra-compact form factor with low power consumption modes, ideal for embedding into space-constrained smart home, wearable, or medical devices.
Out of stock

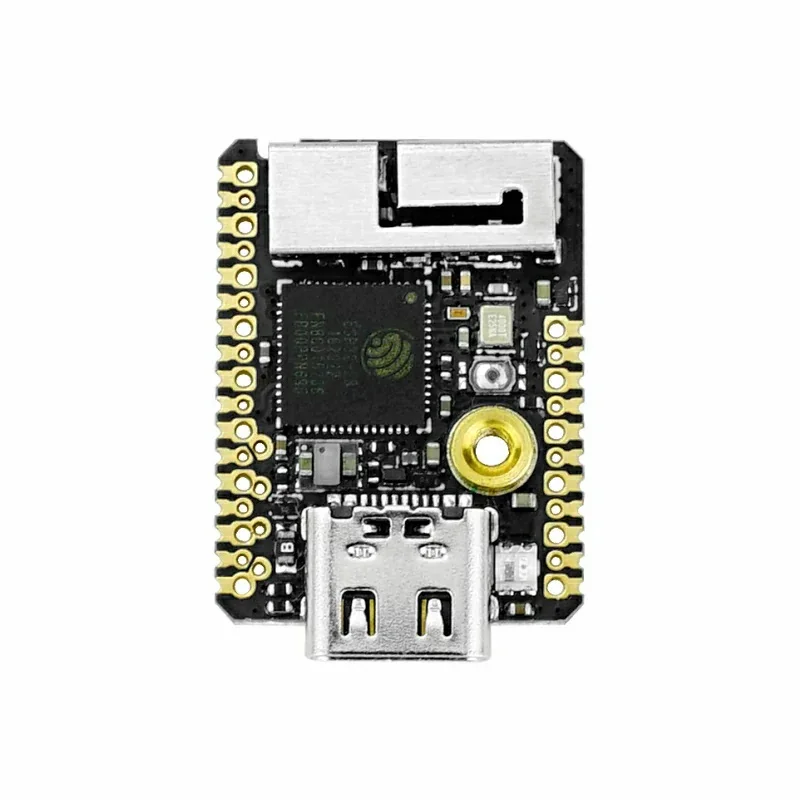

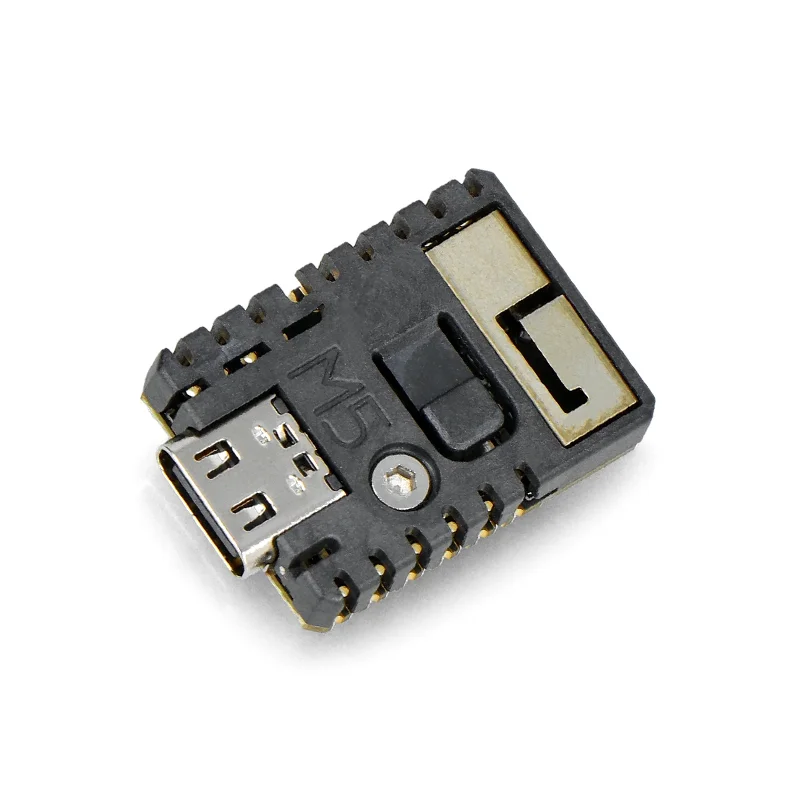

The M5Stack M5Stamp ESP32S3 is a highly integrated, stamp-sized embedded controller designed for direct PCB integration in IoT products. It leverages the Espressif ESP32-S3FN8 chip, providing a dual-core Xtensa LX7 CPU capable of 240MHz operation alongside 2.4GHz Wi-Fi connectivity. The module includes an onboard 3D antenna and a power management circuit that accepts a 5V supply, simplifying system design.

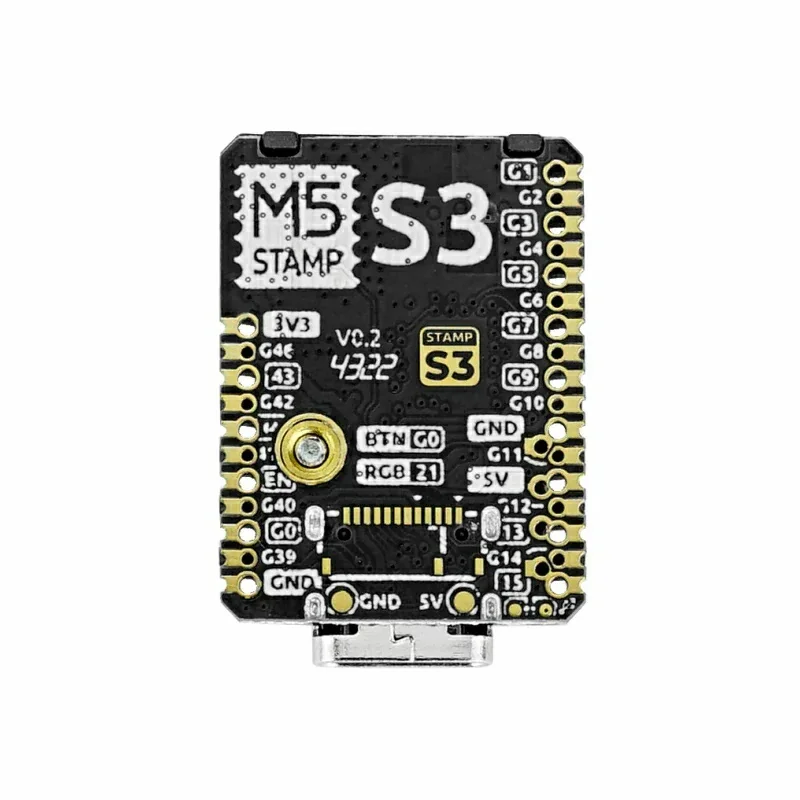

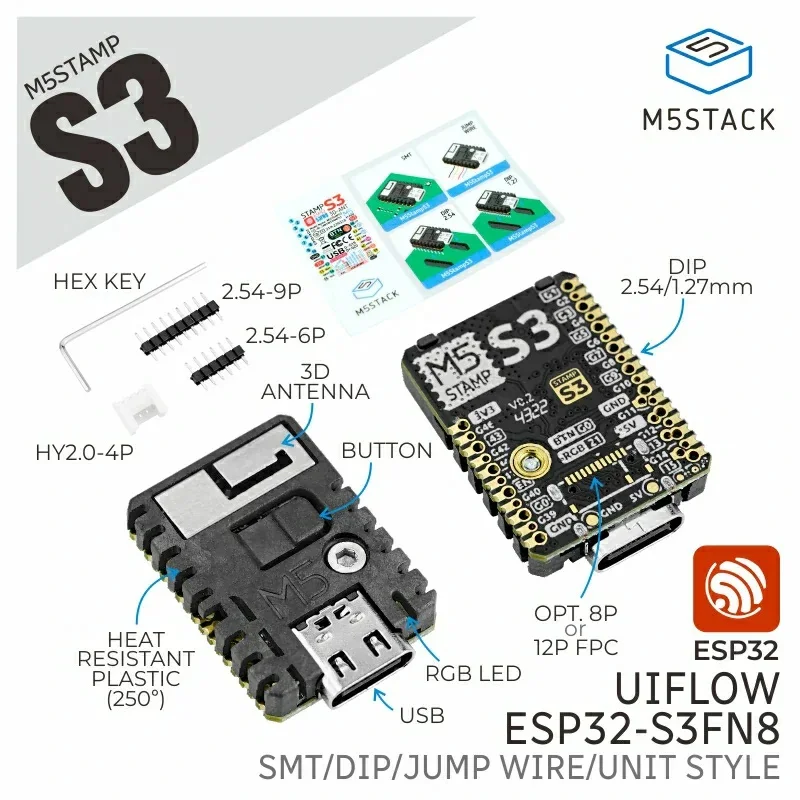

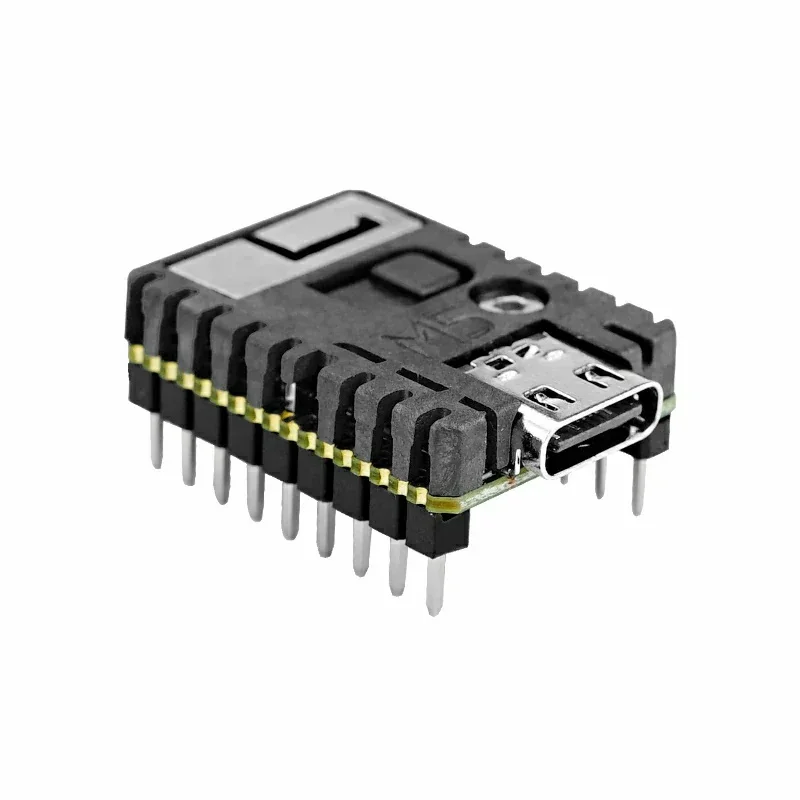

Engineered for flexible deployment, the module exposes 23 GPIOs from the ESP32-S3 via solder pads with both 1.27mm and 2.54mm spacing. This allows developers to choose surface-mount (SMT) soldering, through-hole DIP headers, or direct flying wire connections based on production volume and prototyping needs. The integrated RGB LED and programmable button provide immediate user interface capabilities without external components.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 10 × 7 × 2 cm |
