M5Stack Stamp Pico with Pin Headers

₹709.00 (Inclusive of all taxes)
Out of Stock

The M5Stack Stamp Pico with Pin Headers is an ultra-compact, ESP32-PICO-D4 based development board featuring integrated Wi-Fi and Bluetooth. Ideal for space-constrained IoT and battery-powered applications, it offers 4MB Flash and multiple programming options.

Features

  • Ultra-compact ESP32-PICO-D4 module with integrated 2.4GHz Wi-Fi and Bluetooth 4.2.
  • Features two low-power Xtensa 32-bit LX6 CPUs running at 240MHz with 4MB Flash.
  • Supports UIFlow, Arduino, MicroPython, and ESP-IDF for versatile low-code development.
  • Offers 12x GPIOs, programmable RGB LED, and a user button in a miniature footprint.

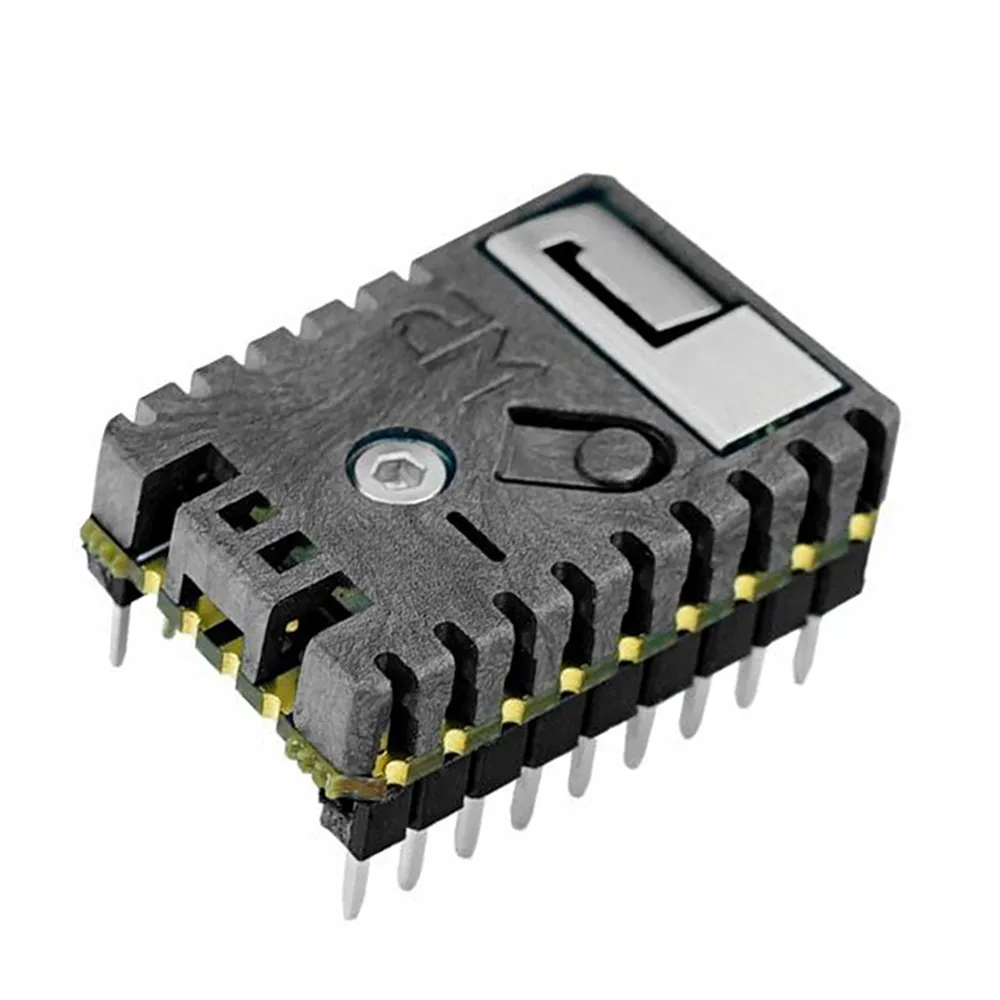

  • Includes pre-soldered pin headers for immediate prototyping and flexible installation options.

Out of stock

Description

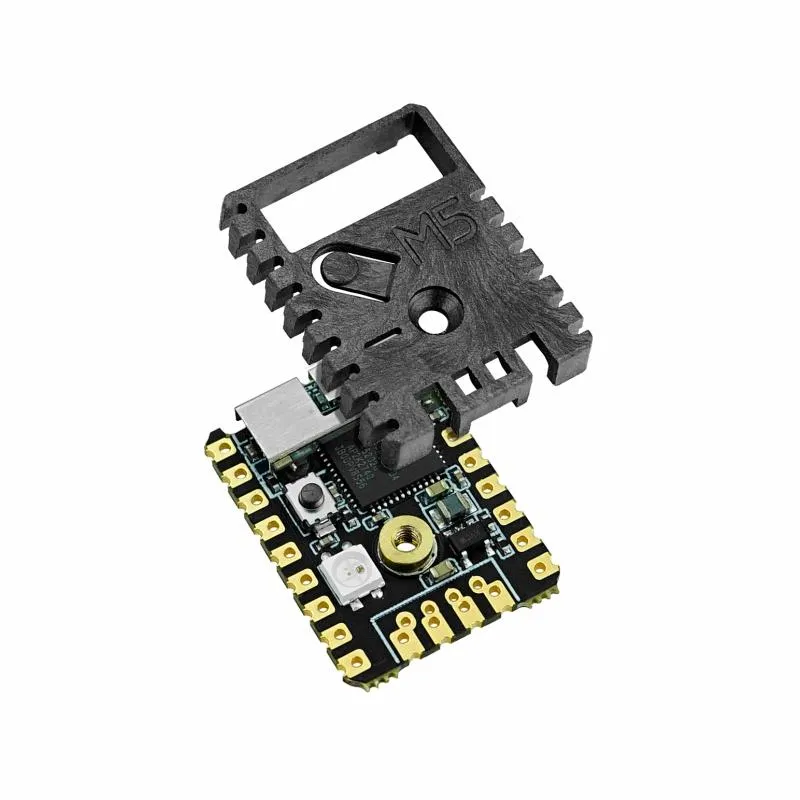

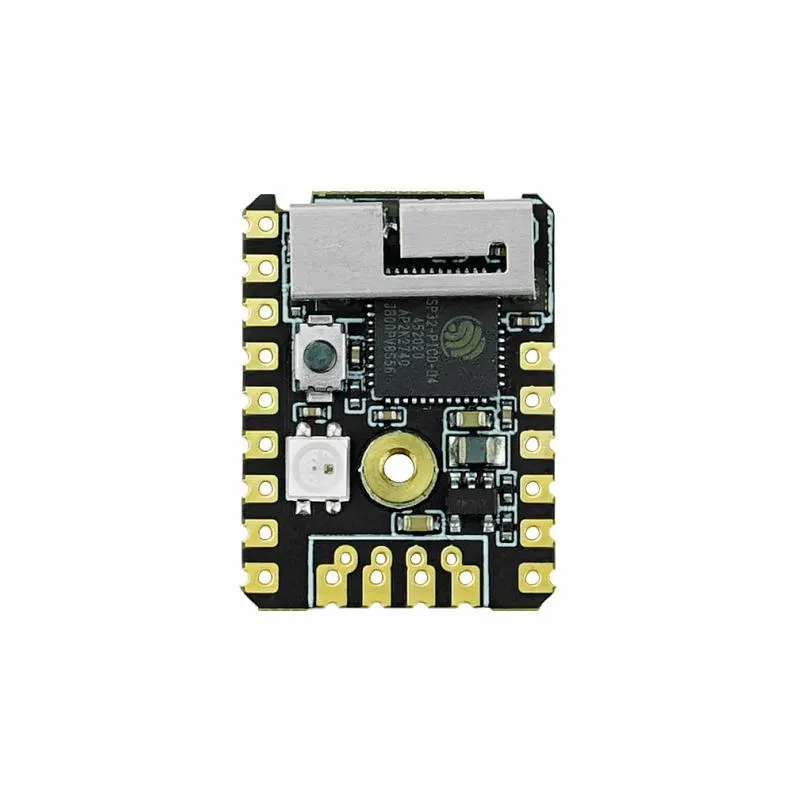

The M5Stack Stamp Pico is a highly integrated, ultra-compact development board built around the powerful ESP32-PICO-D4 system-on-chip. Measuring just 24x18mm, this module packs two low-power Xtensa 32-bit LX6 microprocessors, clocked at 240MHz, along with 4MB of flash memory. Its miniature size and optimized power consumption make it an excellent choice for applications where space and battery life are critical, such as wearables, medical devices, embedded sensors, and various other IoT deployments.

Designed for development flexibility, the Stamp Pico supports multiple installation methods including SMT, DIP, and fly-by-wire, in addition to a Grove interface for rapid prototyping. It boasts a finely tuned 3D antenna and an integrated RF circuit, ensuring stable and reliable 2.4GHz Wi-Fi and Bluetooth 4.2 connectivity. The board also includes essential peripherals like 12 GPIOs, a programmable RGB LED, and a user-assignable button, all powered via a 5V input with an onboard 5V-to-3.3V DC/DC converter.

Development is streamlined with broad platform compatibility, offering support for M5Stack’s UIFlow graphical programming, Arduino IDE, MicroPython, and the Espressif ESP-IDF. This versatility allows developers to quickly transition from concept to functional application using their preferred toolchain. The Stamp Pico also benefits from M5Stack’s extensive hardware and software ecosystem, providing numerous options for sensors, actuators, and expansion modules to enhance project capabilities.

Key Features

  • Integrated ESP32-PICO-D4 with dual-core Xtensa 32-bit LX6 processors at 240MHz.
  • Built-in 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth V4.2 BR/EDR & BLE.
  • Equipped with 4MB SPI Flash memory for code and data storage.
  • Offers 12 programmable GPIO pins, accessible via 2.54mm pitch headers.
  • Includes an onboard programmable RGB LED (SK6812) and a user-assignable button.
  • Supports multiple development environments: UIFlow, Arduino IDE, MicroPython, and ESP-IDF.

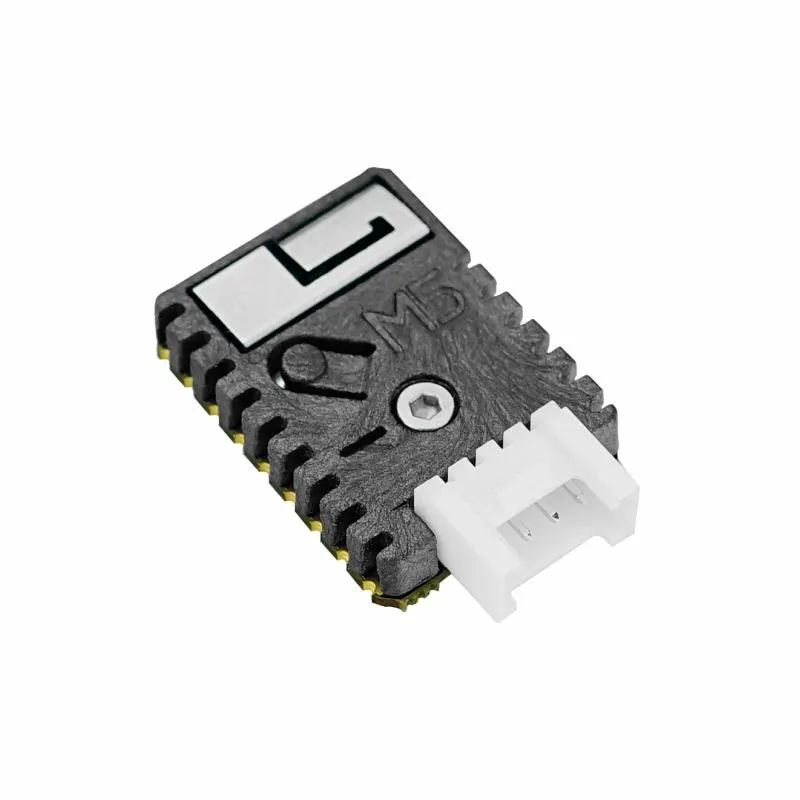

  • Flexible installation options: SMT, DIP, fly-wire, and Grove interface compatibility.
  • Ultra-compact design (24x18mm) with a 3D antenna for robust wireless communication.

Applications

  • Wearable electronics
  • Embedded sensor networks
  • Low-power IoT devices
  • Medical device prototyping
  • Space-constrained automation projects

Technical Specifications

SoCESP32-PICO-D4
Flash Memory4MB
Input Voltage5V @ 500mA
Standby Current5V @ 29mA (Normal) / 5V @ 0.35mA (Deep-sleep)
Wi-Fi Protocols802.11 b/g/n (2.4 GHz)
Bluetooth VersionBluetooth V4.2 BR/EDR and BLE
Antenna Type2.4G 3D Antenna

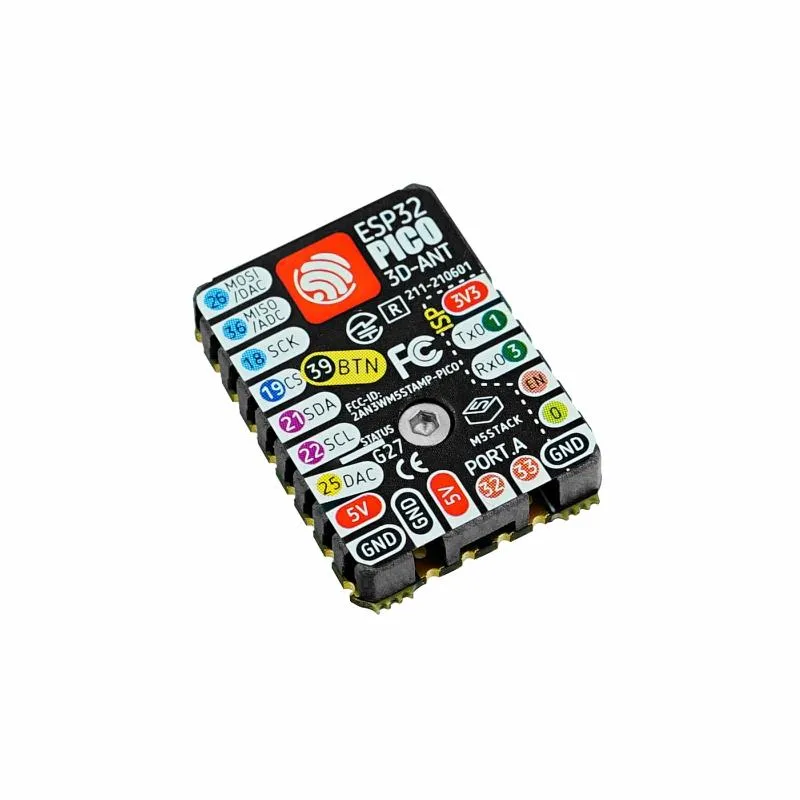

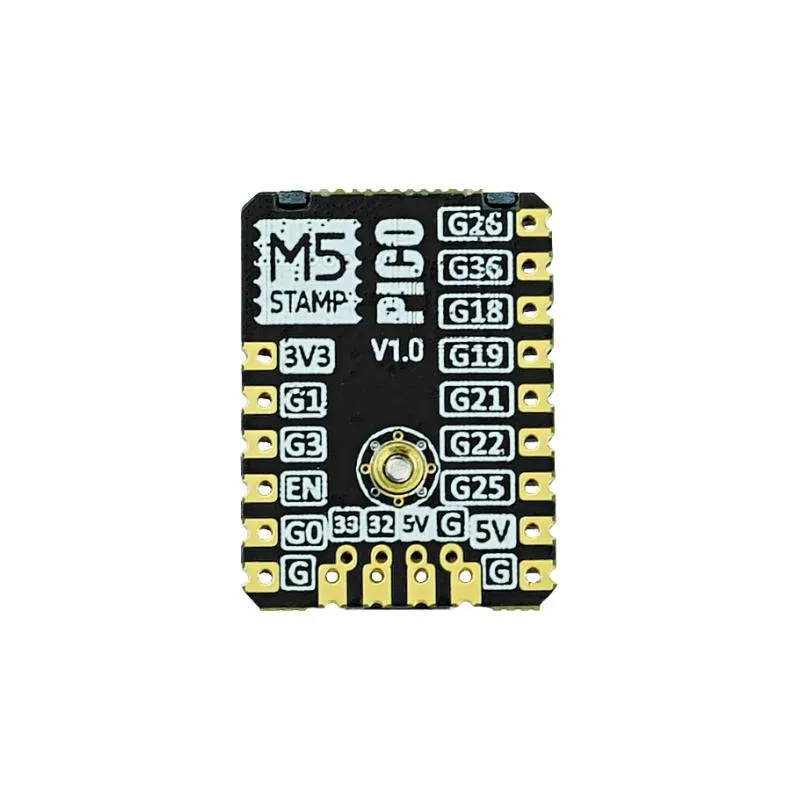

GPIO Pins12 (G0, G1, G3, G26, G36, G18, G19, G21, G22, G25, G32, G33)
User Interface1x Programmable Button, 1x Programmable RGB LED (SK6812)
PeripheralsADC, DAC, Touch, SD/SDIO/MMC, SPI, EMAC, PWM, UART, I2C, I2S, IR
IO Spacing2.54mm
Operating Temperature0°C to 60°C
Dimensions24mm x 18mm
Weight2.6g

Frequently Asked Questions

What development environments are supported by the M5Stack Stamp Pico?

The M5Stack Stamp Pico offers broad compatibility, supporting M5Stack's UIFlow graphical programming platform, Arduino IDE, MicroPython, and the Espressif ESP-IDF. This flexibility allows developers to utilize their preferred tools for rapid application development, whether they are beginners or experienced embedded engineers.

What are the wireless capabilities of the M5Stack Stamp Pico?

The Stamp Pico integrates a robust ESP32-PICO-D4, providing 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth V4.2 BR/EDR and BLE. It features a 3D antenna and a finely tuned RF circuit, ensuring stable and reliable wireless communication for IoT applications over various distances, reaching up to 110m in BLE mode.

Can the M5Stack Stamp Pico be used in battery-powered projects?

Yes, the M5Stack Stamp Pico is designed for low-power operation, making it highly suitable for battery-powered devices. It features various power modes, including a deep-sleep mode consuming only 0.35mA at 5V. Its compact size further aids integration into energy-efficient, space-constrained applications like wearables and portable sensors.

How many GPIOs does the M5Stack Stamp Pico offer and what are its main peripherals?

The M5Stack Stamp Pico provides 12 accessible GPIO pins, along with a programmable RGB LED (SK6812) and a user-assignable button. Its ESP32-PICO-D4 SoC exposes various peripherals including ADC, DAC, touch sensors, SPI, I2C, I2S, UART, PWM, and more, offering extensive connectivity for diverse embedded projects.

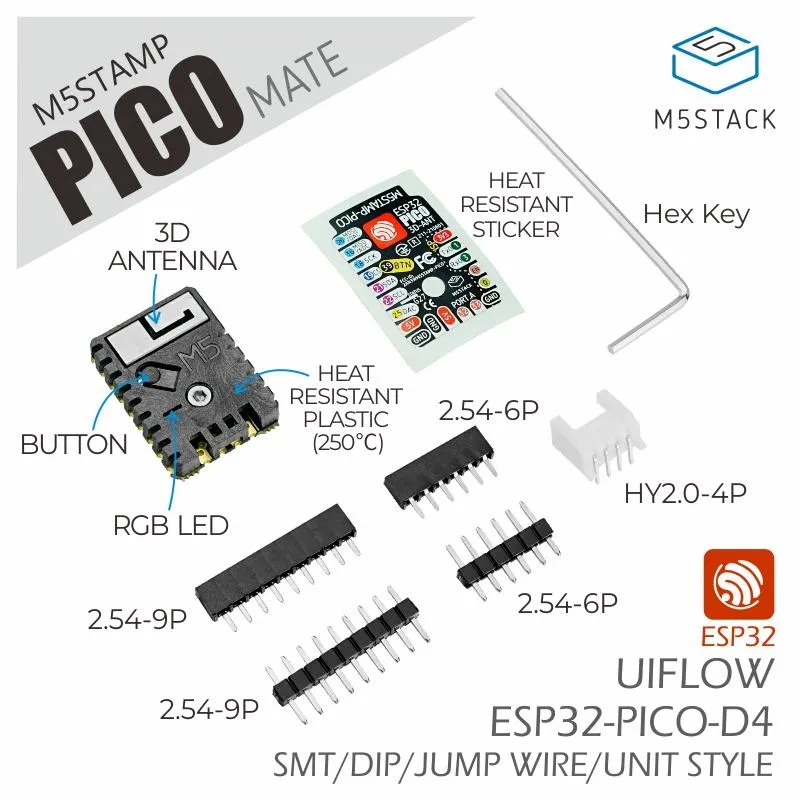

Package Includes

  • 1 x M5Stamp Pico
  • 1 x Sticker
  • 4 x Pin Headers
  • 1 x 90° Grove Connector
  • 1 x Hex Key

Additional Information

Weight 0.0026 kg
Dimensions 1.8 × 2.4 cm
