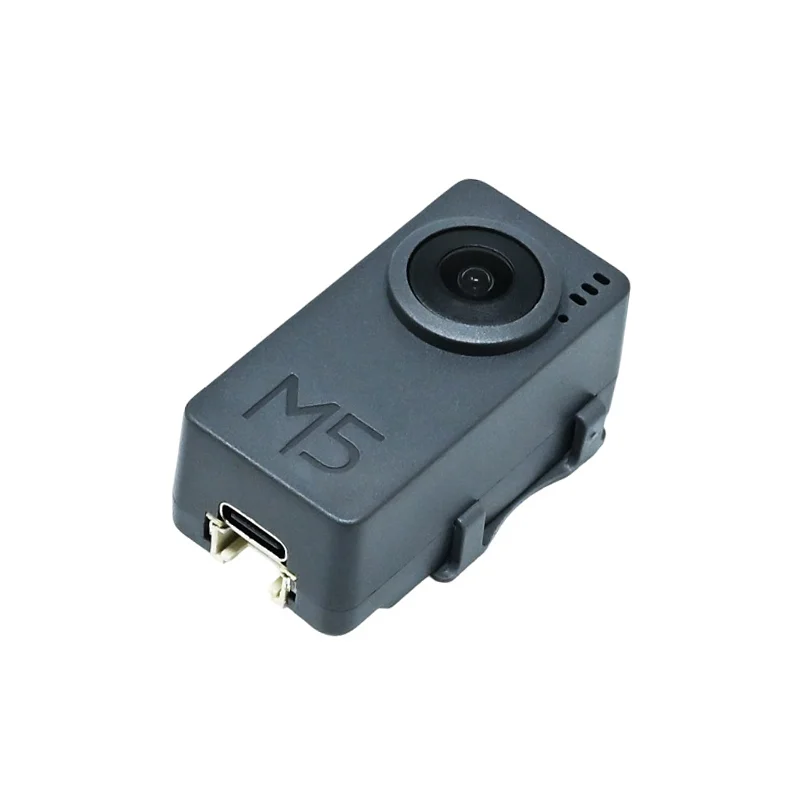

M5Stack ESP32 PSRAM Timer Camera Fisheye (OV3660)
The M5Stack Timer Camera F is an ultra-low-power ESP32-based fisheye camera module with 8MB PSRAM, a 3MP OV3660 sensor, and a 120° DFOV, designed for Wi-Fi image transmission and timed capture applications on ESP-IDF, Arduino, or UIFlow.
Features
- ESP32-D0WDQ6-V3 SoC with 8MB PSRAM & 4MB Flash for high-resolution image buffering and processing.
- 3MP OV3660 Fisheye Sensor with 120° DFOV captures wide-angle images up to 2048×1536 resolution.
- Ultra-Low Power Design with integrated RTC (BM8563) enables timer wake-up from sleep currents as low as 2μA.
- Built-in 270mAh LiPo Battery supports over one month of operation with hourly timed picture capture.
- Multi-Platform Development compatible with ESP-IDF, Arduino IDE, and M5Stack’s graphical UIFlow.
Out of stock
The M5Stack Timer Camera F integrates an ESP32 microcontroller with a dedicated 8MB PSRAM for handling high-resolution image data from its onboard OV3660 3-megapixel fisheye sensor. The 120-degree diagonal field of view is ideal for capturing expansive scenes in a single frame. Power management is central to its design, featuring an integrated BM8563 real-time clock that provides precise timer interrupts to wake the system from deep sleep, minimizing average current draw.
This module is engineered for remote, battery-powered vision applications. The combination of the efficient ESP32, the low-power sensor, and the built-in 270mAh lithium polymer battery enables extended deployment cycles, such as environmental monitoring or time-lapse photography, without frequent maintenance. Connectivity is provided via integrated 2.4GHz Wi-Fi for direct image transmission to a local server or cloud platform.
Additional Information
| Weight | 0.046 kg |
|---|---|
| Dimensions | 4 × 7 × 3 cm |
