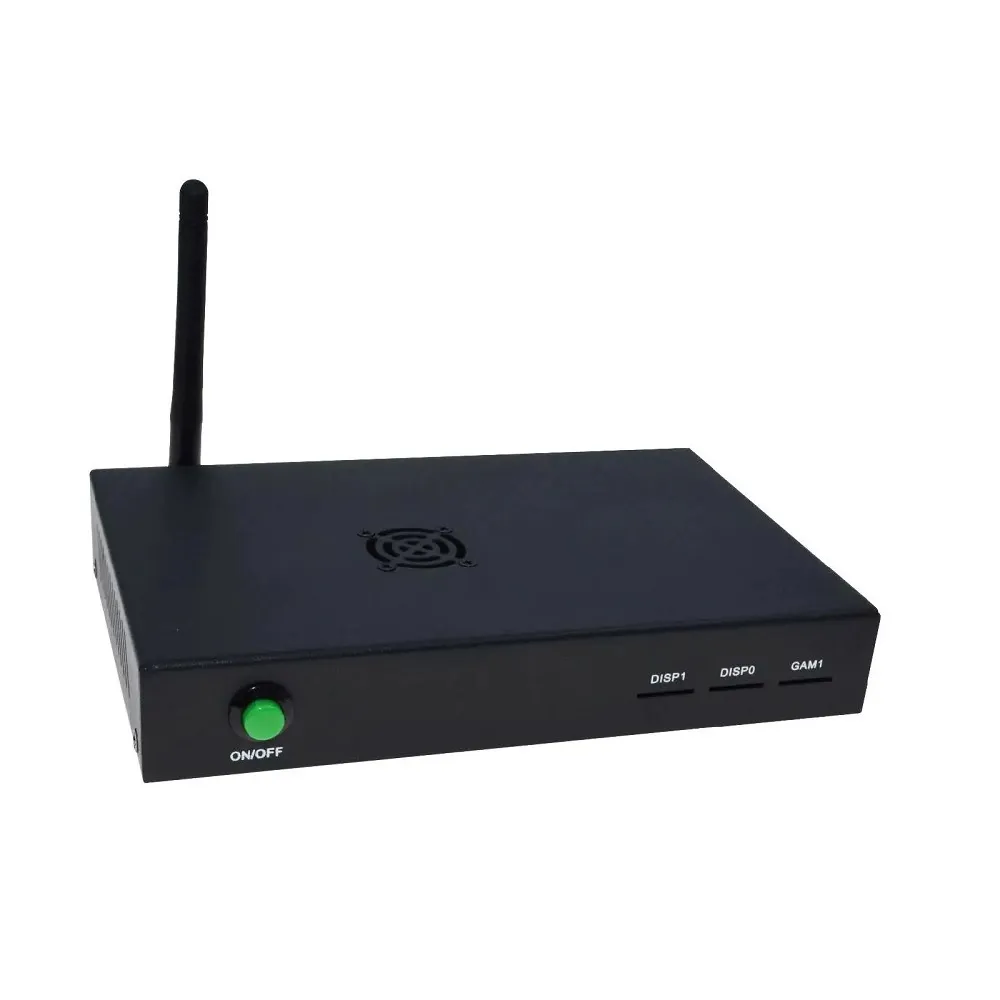

EDATEC CM4 IO Computer ED-CM4IO-1108-C w/ WiFi, 1GB/8GB

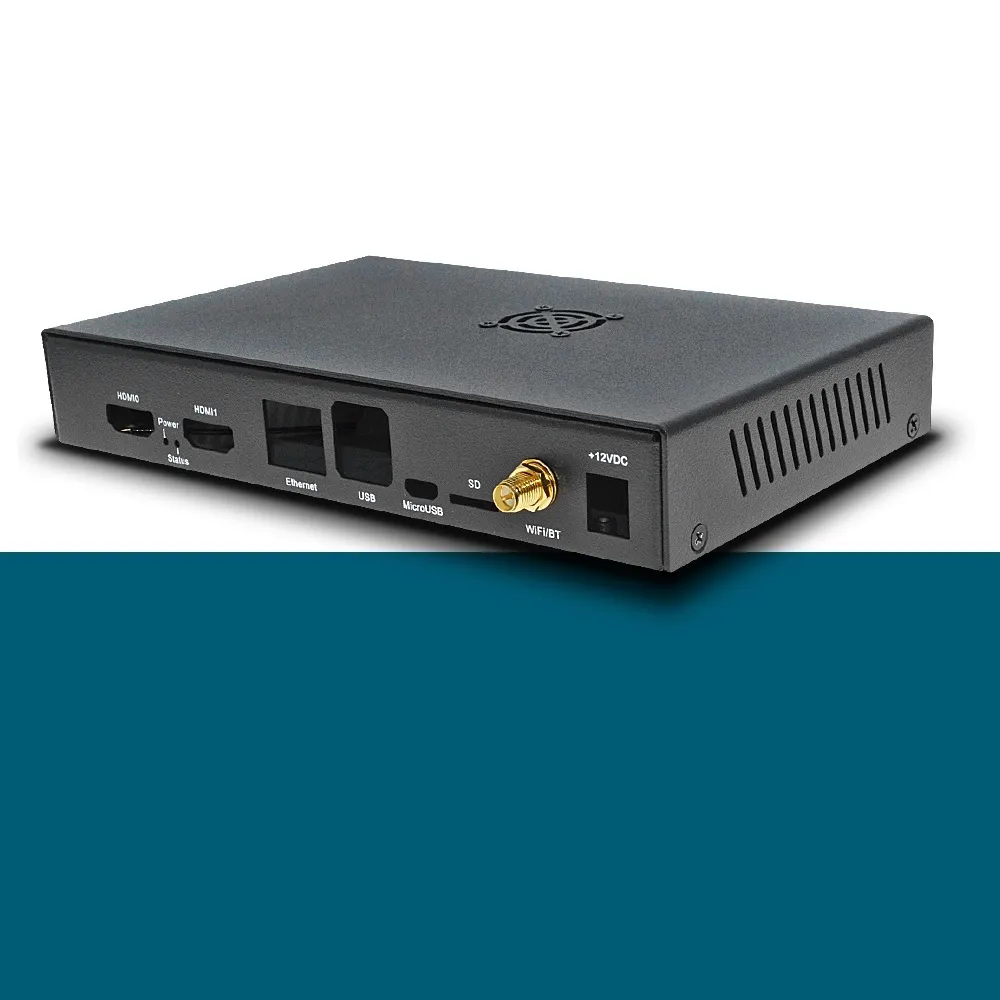

EDATEC CM4 IO Computer ED-CM4IO-1108-C w/ WiFi, 1GB/8GB - Image 2

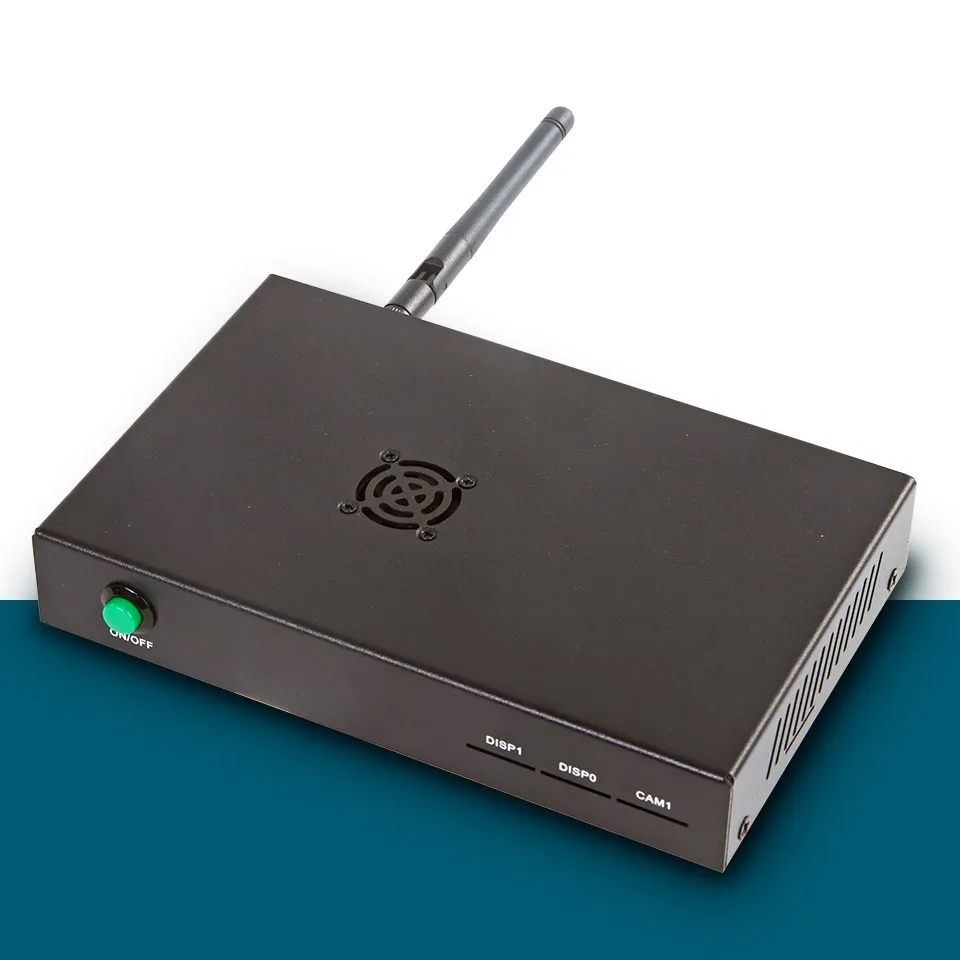

EDATEC CM4 IO Computer ED-CM4IO-1108-C w/ WiFi, 1GB/8GB - Image 3

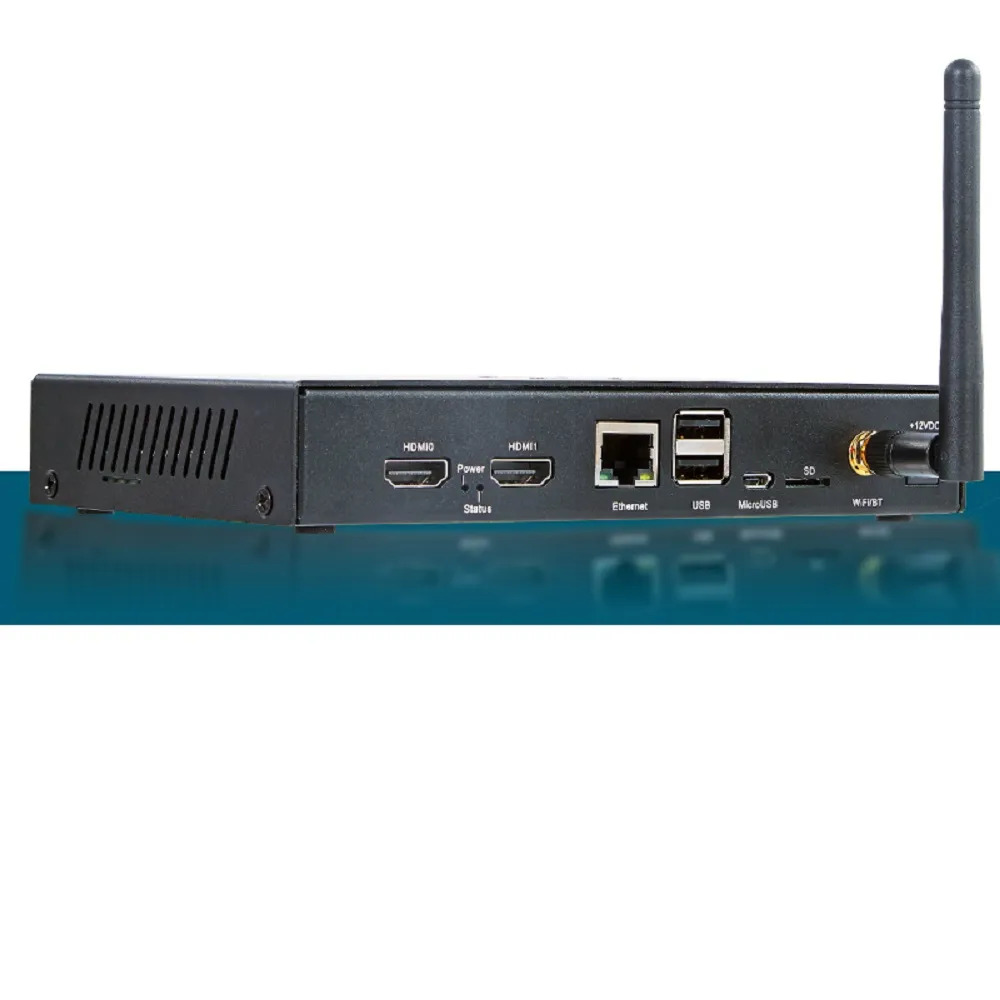

EDATEC CM4 IO Computer ED-CM4IO-1108-C w/ WiFi, 1GB/8GB - Image 4

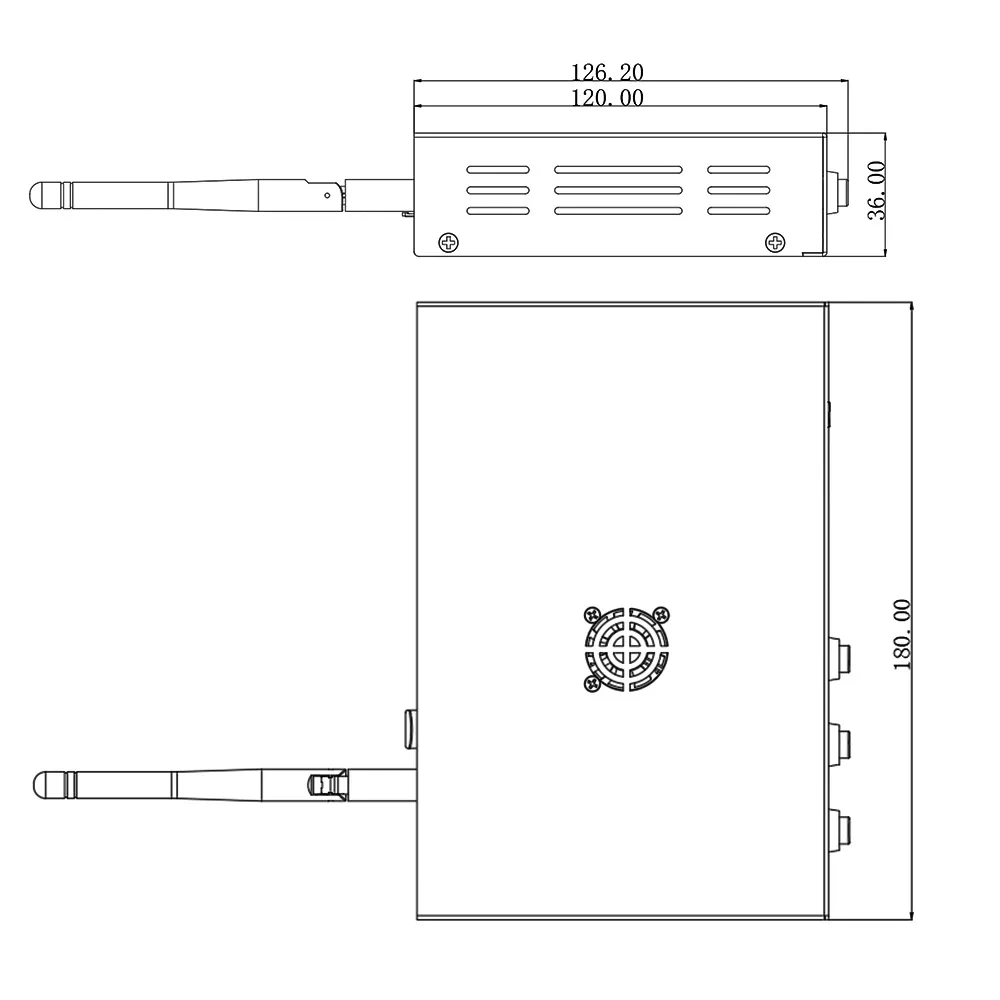

EDATEC CM4 IO Computer ED-CM4IO-1108-C w/ WiFi, 1GB/8GB - Image 5
SKU: SBCD-0088
📋 GST Invoice Available

EDATEC CM4 IO Computer ED-CM4IO-1108-C w/ WiFi, 1GB/8GB

₹14,479.00 (Inclusive of all taxes)
Out of Stock

The EDATEC CM4 IO Computer ED-CM4IO-1108-C is an industrial-grade system built around the Raspberry Pi Compute Module 4, featuring 1GB RAM and 8GB eMMC. Housed in a durable metal case with integrated WiFi antenna, it provides extensive I/O including dual HDMI, Gigabit Ethernet with PoE, two USB 2.0 ports, and a PCIe Gen 2 x1 socket for robust embedded applications.

Features

  • Integrated Raspberry Pi Compute Module 4 with 1GB RAM and 8GB eMMC storage.
  • Industrial-grade metal enclosure with passive cooling and active PWM-controlled fan.
  • Extensive I/O: Dual HDMI 2.0, Gigabit Ethernet with PoE support, 2x USB 2.0, PCIe Gen 2 x1.
  • Dual-band 2.4G/5.8G WiFi and Bluetooth 5.0 with included external antenna.
  • Features an onboard Real-Time Clock (RTC) with battery backup and a safe one-click power control switch.

Out of stock

Description

The EDATEC CM4 IO Computer series offers a robust, industrial-grade computing solution built upon the powerful Raspberry Pi Compute Module 4 (CM4) and an optimized IO board. This specific model, the ED-CM4IO-1108-C, is configured with 1GB of LPDDR4 RAM and 8GB of eMMC flash storage, providing a solid foundation for embedded Linux applications. It is also designed to support SD Card booting for CM4 Lite variants, offering flexible storage options.

Equipped with comprehensive connectivity, the CM4 IO Computer includes two full-size HDMI 2.0 connectors for dual display setups, two USB 2.0 ports for peripherals, and a Gigabit Ethernet RJ45 port with Power over Ethernet (PoE) support, enabling simplified deployments with single-cable power and data. Wireless capabilities include 2.4G/5.8G dual-band WiFi (802.11 b/g/n/ac) and Bluetooth 5.0, facilitated by a Raspberry Pi-certified external antenna for reliable communication. Expansion is further enhanced by a PCIe Gen 2 x1 socket and a standard 40-pin header, allowing for integration with a wide array of specialized hardware.

Designed for durability and ease of use, the system features a user-accessible ‘one-click switch’ for safe system power on/off, preventing file system corruption. Its precisely engineered metal case provides excellent mechanical protection and electromagnetic shielding for the CM4 and IO board, while a PWM-controlled fan actively manages CPU temperature, ensuring stable operation within a 0-50°C range. An onboard, battery-backed Real-Time Clock (RTC) allows for scheduled wake-ups, crucial for autonomous embedded systems.

Key Features

  • One-Click Switch: Controls system power on/off via GPIO3 for safe shutdown, preventing file system damage unlike traditional power cuts.
  • Hardware Protection: Robust metal case perfectly fits the CM4 IO Board, providing shielding and protection for all interfaces.
  • Secure CM4 Mounting: Four bottom nuts and nylon washers reliably fix the Compute Module 4 to the IO board and case, preventing connection issues in vibrating environments and PCB deformation.
  • Efficient Cooling: Features a 12V/60mA PWM-controlled silent fan, isolated by silicone washers to reduce noise, capable of lowering CPU temperature by up to 20°C.
  • External Wireless Antenna: Includes an official Raspberry Pi-certified 2.4G/5.8GHz WiFi/Bluetooth antenna for enhanced wireless performance.
  • RTC Battery Included: Comes with a Philips CR2032 Eco-friendly battery to enable the Real-Time Clock (RTC) function for timekeeping and wake-up events.

Applications

  • Industrial Automation & Control Systems
  • Edge AI Inference & Machine Vision
  • IoT Gateways & Data Acquisition
  • Digital Signage & Kiosks
  • Embedded Computing Solutions
  • Smart Home & Building Management

Technical Specifications

SoCRaspberry Pi Compute Module 4 (CM4)
RAM1GB LPDDR4
eMMC Storage8GB
Model NameED-CM4IO-1108-C
Ethernet1x Gigabit Ethernet (RJ45) with PoE support
USB2x USB 2.0, 1x Micro USB Slave (for programming)
WirelessDual-band 2.4G/5.8G WiFi (802.11 b/g/n/ac), Bluetooth 5.0 BLE
Display Output2x Full-size HDMI 2.0
Display Interface2x DSI (for official Pi displays)
Camera Interface2x CSI (for official Pi cameras)
Expansion1x PCIe Gen 2 x1, 1x Raspberry Pi Standard 40-pin Header, 1x 4-pin DIP Header (PoE)
Storage1x MicroSD Card Slot (for CM4 Lite variants)
RTCYes, with CR2032 battery backup
Cooling12V/50mA PWM Controlled Fan
Input Voltage12V DC @ 2A
Operating Temperature0°C to 50°C
Dimensions (L x W x H)171.5mm x 109.5mm x 28.5mm

Frequently Asked Questions

What Raspberry Pi Compute Module is integrated?

This EDATEC CM4 IO Computer model, ED-CM4IO-1108-C, comes with a Raspberry Pi Compute Module 4 featuring 1GB LPDDR4 RAM and 8GB eMMC flash storage. This configuration is suitable for a wide range of embedded Linux applications requiring reliable system operation and local storage.

Does it support Power over Ethernet (PoE)?

Yes, the EDATEC CM4 IO Computer's Gigabit Ethernet port supports PoE power supply when used with an official Raspberry Pi PoE HAT (sold separately). This allows for single-cable power and data connectivity, simplifying deployment in industrial or remote environments where power outlets are scarce.

What expansion options are available?

The system includes a PCIe Gen 2 x1 socket for high-speed peripheral integration, such as NVMe SSDs or specialized accelerators. Additionally, it features a standard Raspberry Pi 40-pin header, enabling compatibility with a vast ecosystem of HATs and custom daughter boards for expanded functionality.

How does the 'One-Click Switch' function work?

Unlike traditional power buttons, the 'One-Click Switch' uses GPIO3 on the 40-pin connector to signal the Compute Module 4's software for a controlled shutdown or power-on sequence. This intelligent design prevents file system corruption and ensures system stability, crucial for robust embedded deployments.

What are the primary power requirements?

The EDATEC CM4 IO Computer requires a stable 12V DC input at 2 Amps for reliable operation across all integrated components. This power input ensures sufficient current for the Compute Module 4, its peripherals, the integrated cooling fan, and any connected USB devices under various load conditions.

Package Includes

  • 1 x EDATEC CM4 IO Computer ED-CM4IO-1108-C with WIFI Antenna Metal case 1GB RAM and 8GB EMMc

Additional Information

Weight 0.45 kg
Dimensions 17.15 × 10.95 × 2.85 cm

Related Products

Out of Stock

Arduino Uno WiFi Rev2 Development Board

5,649.00
Learn More
Out of Stock

Adafruit ESP32 Feather V2 - 8MB Flash + 2MB PSRAM STEMMA QT

3,519.00
Learn More
Out of Stock

goofoo Cube Mini FDM 3D Printer

10,970.00
Learn More
Out of Stock

Arduino Nano RP2040 Connect with Headers

2,279.00
Learn More
Out of Stock

ESP32-WROVER-IB WiFi Bluetooth Module 16MB Flash 8MB PSRAM

481.00
Learn More
Out of Stock

Raspberry Pi CM4 (CM4102032) - 2GB RAM, 32GB eMMC, WiFi/BT

11,839.00
Learn More
Out of Stock

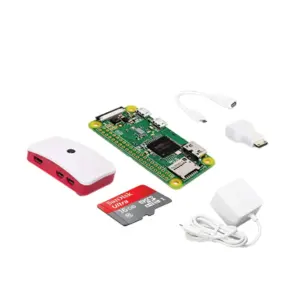

Raspberry Pi Zero W Starter Kit

2,519.00
Learn More
Out of Stock

Raspberry Pi Zero W WH with Pre-Soldered Header

2,129.00
Learn More
Out of Stock

ESP32-C3 SuperMini Development Board w/ WiFi & Bluetooth 5.0

269.00
Learn More
Out of Stock

Espressif ESP32-DevKitC-32E Development Board

1,129.00
Learn More
Out of Stock

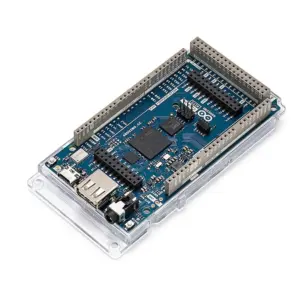

Arduino GIGA R1 WiFi Development Board

6,739.00
Learn More
Out of Stock

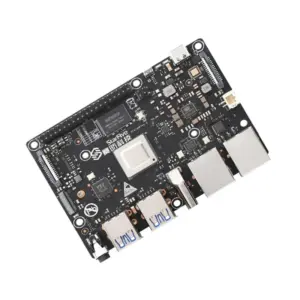

VisionFive2 RISC-V SBC 8GB WiFi
