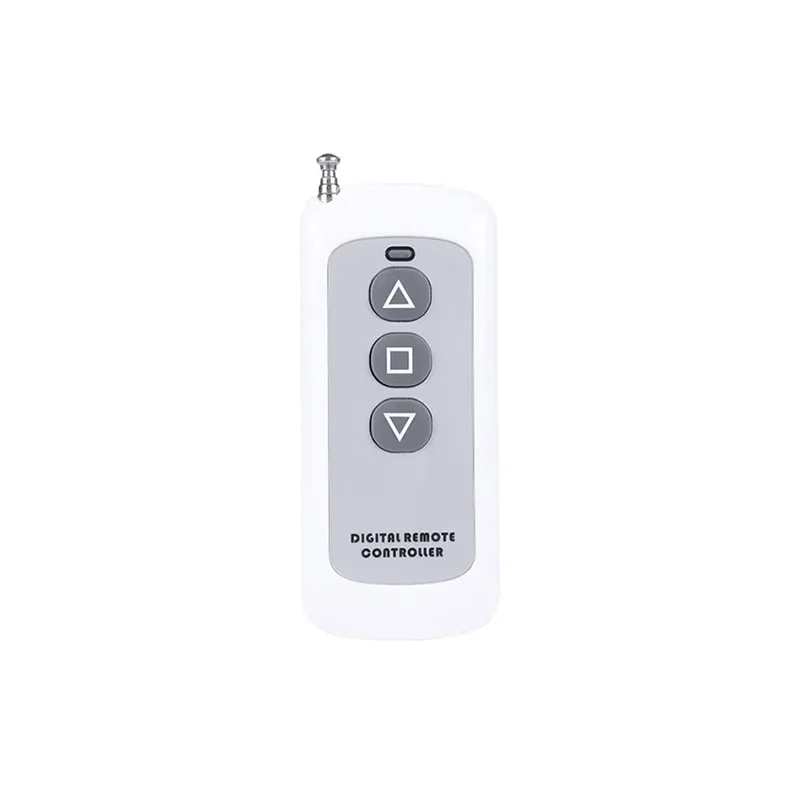

KL600-3 433MHz 3-Button RF Remote Control

The KL600-3 remote requires a single 23A 12V alkaline battery, commonly used in key fobs. The battery compartment is typically located on the back of the unit. Open the battery cover, insert the battery with the correct polarity as indicated by the markings inside the compartment, and then securely close the cover to ensure proper contact and operation.

Compatibility depends on your receiver's encoding and modulation. The KL600-3 supports both fixed code and learning code (rollling code) encoding types with ASK/OOK modulation. To pair it with a learning code receiver, follow your receiver's specific 'learn' procedure, usually involving pressing a button on the receiver and then a button on the remote. For fixed code systems, ensure the remote's dip switch or internal code setting matches your receiver's address.

The effective range of the KL600-3 remote is typically 20 to 100 meters in open, line-of-sight conditions. Actual range can be significantly reduced by obstacles like walls, metal structures, or interference from other 433MHz devices. For optimal performance, ensure a clear transmission path and consider that the receiver's sensitivity and antenna also play a major role in determining the final operational distance.

Yes, the product description indicates support for individuation of the logo and button symbols. The physical buttons are likely under a standard rubber keypad. For custom labeling, you can create and apply overlay stickers or, for larger production runs, order units with custom molded buttons or printed symbols directly on the ABS case from the manufacturer or supplier.
