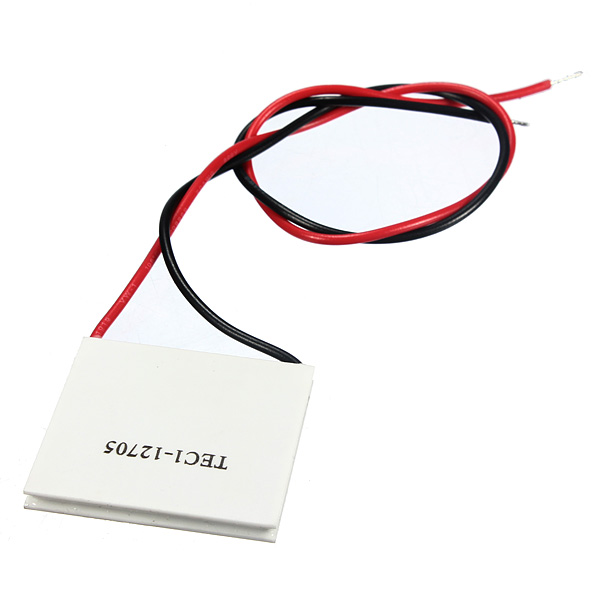

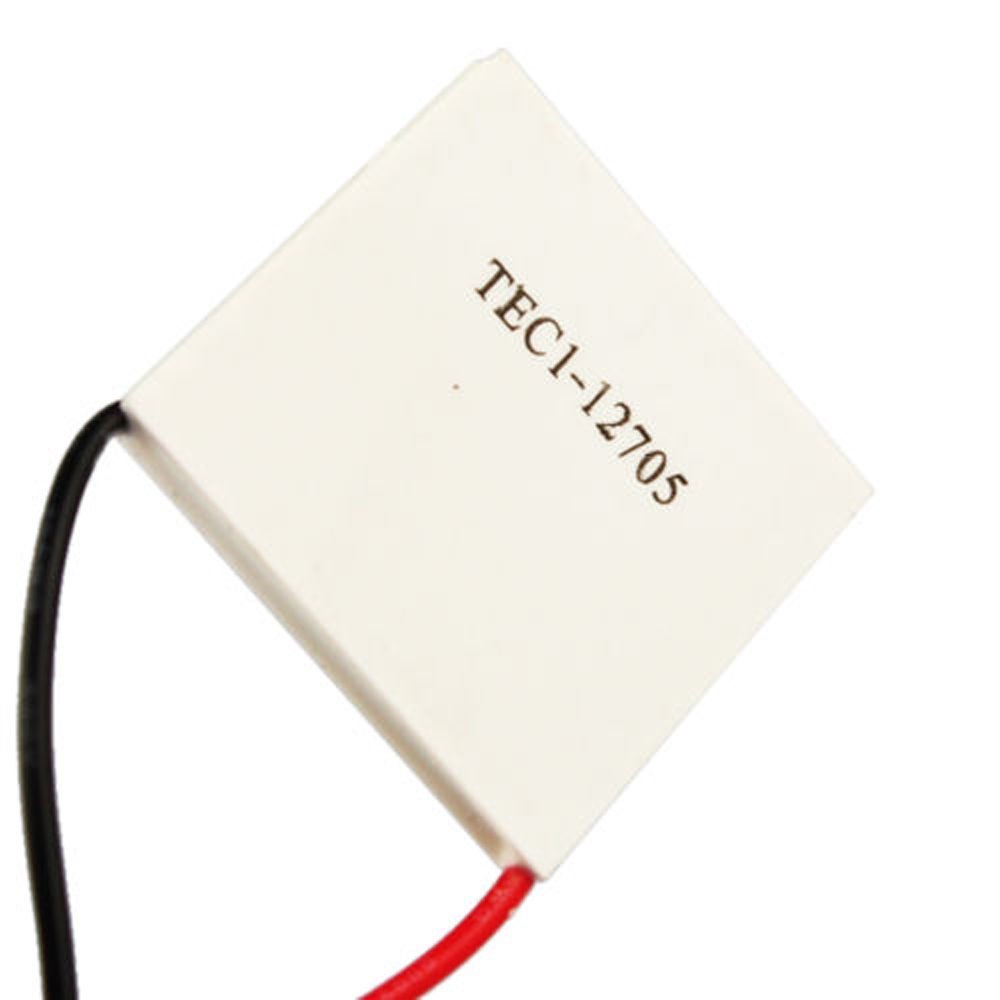

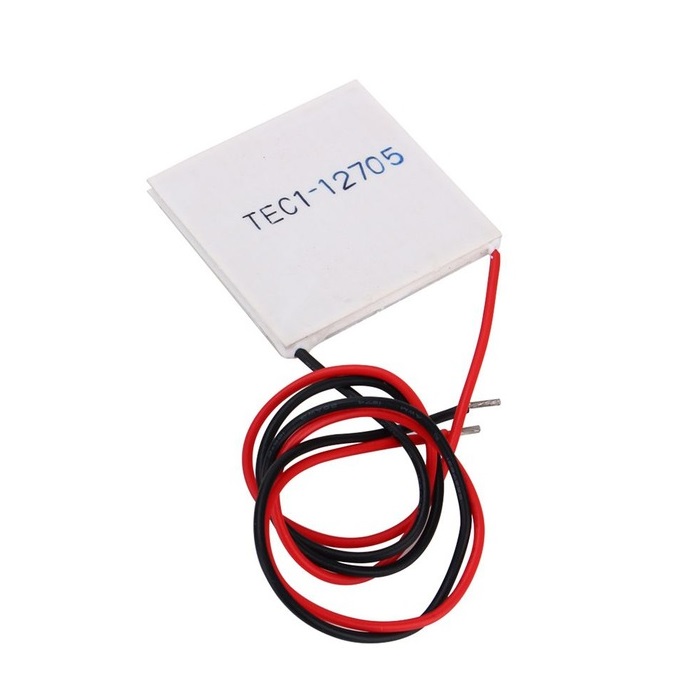

Generic TEC1-12705 40×40mm 5A Thermoelectric Cooler Peltier Module
The TEC1-12705 is a 40×40mm thermoelectric cooler (Peltier) module designed for 12V DC operation, delivering up to 54W of heat pumping capacity. It is a solid-state device ideal for integration into custom cooling systems, temperature control projects, and energy harvesting applications.
Features
- 40×40mm form factor with 127 thermoelectric couples for efficient heat transfer.
- Rated for 12V DC operation with a maximum current of 5.2A and power of 54W.
- Reversible polarity allows switching between heating and cooling modes.
- Solid-state construction ensures vibration-free, silent, and reliable operation.
- Includes 25cm pre-attached power leads for easy electrical connection.
Out of stock
The TEC1-12705 operates on the Peltier effect, where applying a DC voltage causes heat to be pumped from one ceramic face to the other, creating distinct hot and cold sides. Its 127 semiconductor couples within the 40mm x 40mm area provide a substantial temperature differential, capable of achieving gradients over 80°C when properly heat-sinked.
Effective operation is contingent on managing the heat rejected from the hot side; failure to use an adequate heatsink will cause the module to reach thermal equilibrium and cease pumping heat. This solid-state design offers a reliable, maintenance-free alternative to compressor-based cooling for applications requiring precise temperature control or compact form factors.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 4 × 4 cm |
