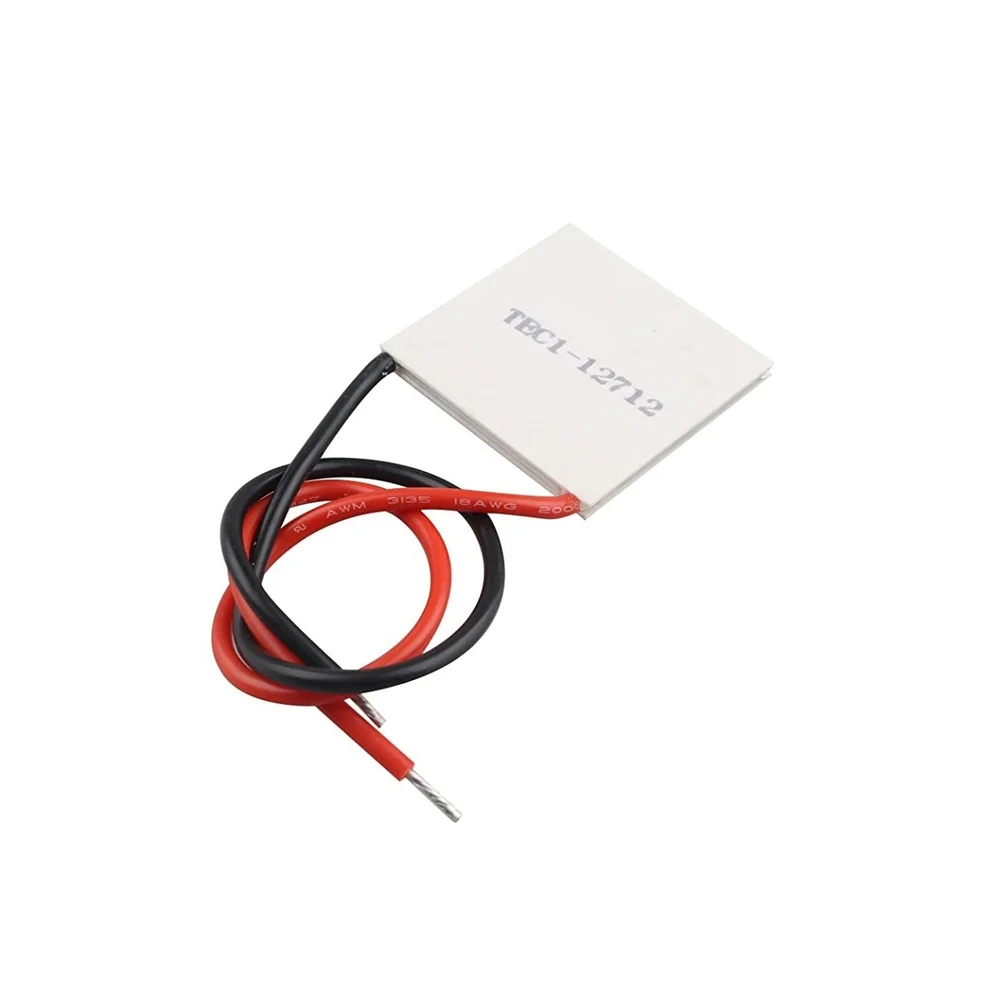

TEC1-12712 12V 10A Thermoelectric Cooler Peltier Module 40×40mm
The TEC1-12712 is a 40×40mm thermoelectric cooler (Peltier) module designed for 12V DC operation, drawing up to 10A for active heat pumping. It is ideal for temperature control projects, DIY cooling systems, and thermal management applications requiring solid-state heating or cooling.
Features
- 127 semiconductor couples for efficient heat transfer.
- Maximum operating voltage of 15V DC and current of 10A.
- Compact 40mm x 40mm ceramic plate construction.
- Reversible polarity for switching between heating and cooling modes.
- Requires an external heatsink for proper thermal management.
Out of stock
The TEC1-12712 operates on the Peltier effect, utilizing 127 semiconductor couples sandwiched between two ceramic plates to create a temperature differential when DC power is applied. This solid-state heat pump transfers thermal energy from one side to the other, enabling precise cooling or heating control without moving parts.
For optimal performance and to prevent thermal runaway, the hot side must be actively managed with a heatsink or other cooling solution. The module is a core component in applications ranging from electronic device cooling to specialized laboratory equipment, offering a vibration-free and reliable method for temperature regulation.
Additional Information
| Weight | 0.028 kg |
|---|---|
| Dimensions | 4 × 4 cm |
