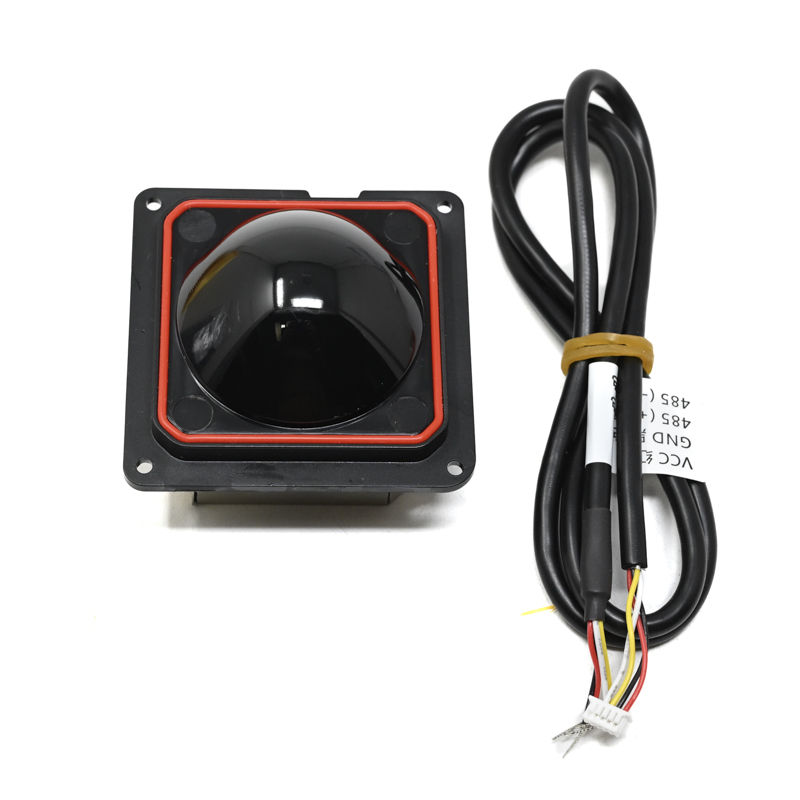

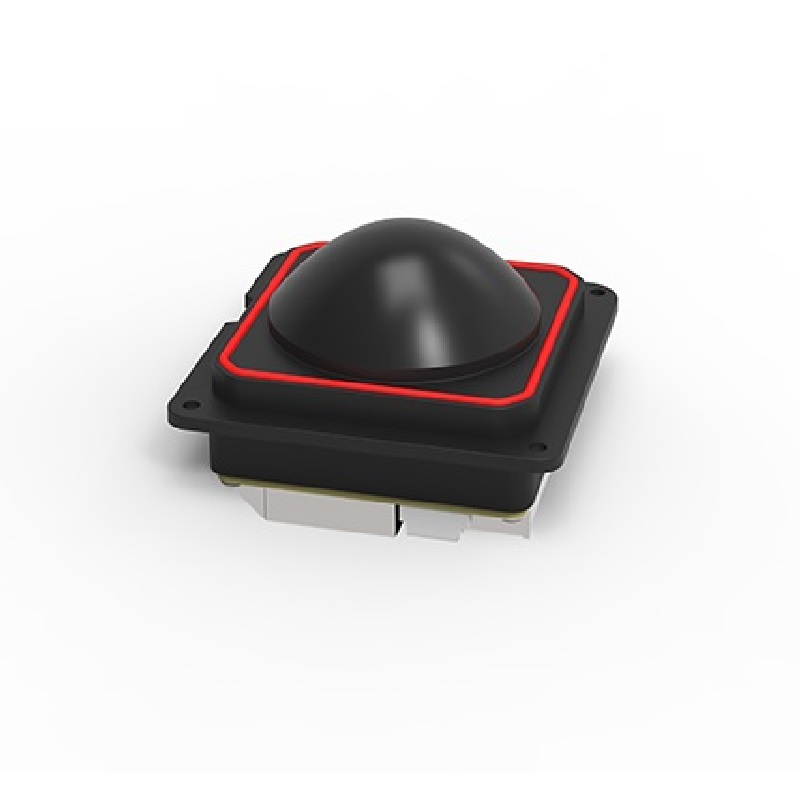

NanoRadar WTR10 60GHz FMCW Water Level Radar - 0.1-30m Range, 3mm Accuracy
NanoRadar WTR10 60GHz FMCW Water Level Radar - 0.1-30m Range, 3mm Accuracy - Image 2
SKU: SENS-2482
📋 GST Invoice Available

NanoRadar WTR10 60GHz FMCW Water Level Radar - 0.1-30m Range, 3mm Accuracy

₹26,169.00 (Inclusive of all taxes)
Out of Stock

The NanoRadar WTR10 is a 60GHz FMCW (Frequency Modulated Continuous Wave) radar sensor designed for high-precision, non-contact water level measurement from 0.1 to 30 meters with 3mm accuracy. It features a low-power design compatible with solar power and is engineered for reliable operation in harsh environmental conditions.

Features

  • 60GHz FMCW radar technology for precise, non-contact distance measurement.
  • Wide measurement range from 0.1 meters up to 30 meters with ±3mm accuracy.
  • Integrated 6°x6° lens antenna design effectively filters environmental noise for stable readings.
  • Low power consumption supports solar-powered installations for remote monitoring.
  • Robust performance unaffected by temperature, humidity, water conditions, or surface contaminants.

Out of stock

Description

The NanoRadar WTR10 utilizes advanced 60GHz millimeter-wave (MMW) FMCW radar technology to deliver highly accurate water level data. This non-contact method ensures the sensor remains unaffected by challenging environmental factors such as temperature fluctuations, humidity, pressure, sediment, floating debris, or corrosive water conditions, providing superior reliability compared to mechanical or pressure-based sensors.

Its compact, low-power design and precise lens antenna with a narrow 6°x6° beam angle minimize interference from surrounding structures and noise, making it ideal for integration into solar-powered remote monitoring systems. The sensor outputs distance data suitable for connection to data loggers, SCADA systems, or industrial PLCs via its standard electrical interface.

Key Features

  • 60GHz FMCW Radar Core: Provides high-resolution, continuous wave measurement for superior accuracy and stability in liquid level sensing.
  • Narrow-Beam Lens Antenna (6°x6°): Focuses radar energy to reduce multipath reflections and environmental noise, ensuring clean signal acquisition.
  • Extended Measurement Range: Capable of monitoring levels from 0.1m to 30m, suitable for a wide variety of water body sizes.
  • High Precision: Delivers measurement accuracy within ±3mm, enabling detailed hydrological analysis and flood warning.
  • Ultra-Low Power Design: Enables operation from battery banks or solar panels, perfect for off-grid and remote installation sites.
  • Environmental Immunity: Performance is not degraded by temperature, humidity, atmospheric pressure, or water surface conditions (foam, oil, ice).
  • Compact and Lightweight Housing: Facilitates easy mounting on bridges, banks, or poles with minimal structural load.
  • Industrial-Grade Reliability: Built for long-term, maintenance-free operation in demanding outdoor and industrial settings.

Applications

  • River, lake, and reservoir water level monitoring for hydrological studies and flood forecasting.
  • Tidal and coastal water level measurement in marine and port environments.
  • Irrigation channel and open canal flow measurement and management in agriculture.
  • Water level monitoring in urban drainage networks and stormwater systems for flood control.
  • Liquid level measurement in industrial settling ponds, wastewater treatment plants, and tailings dams.

Technical Specifications

Manufacturer Part NumberWTR10
Technology60GHz FMCW Radar
Measurement Range0.1 m to 30 m
Accuracy±3 mm
Antenna Beam Angle6° x 6°
Supply Voltage12 V DC
Power ConsumptionLow (Solar-Compatible)
Measurement PrincipleNon-Contact
Key ImmunityTemperature, Humidity, Pressure, Sediment, Pollutants
Shipping Weight0.101 kg
Shipping Dimensions15 x 14 x 4 cm

Frequently Asked Questions

What is the operating voltage for the NanoRadar WTR10 sensor?

The WTR10 operates from a 12V DC power supply. Its low-power design is optimized for compatibility with solar panel and battery bank systems, making it suitable for remote, off-grid installation sites without access to mains power.

How does the 60GHz FMCW radar technology benefit water level measurement?

The 60GHz Frequency Modulated Continuous Wave (FMCW) radar provides high-frequency, precise distance measurement. It is immune to environmental factors like temperature, humidity, and water surface conditions (foam, oil), ensuring stable and accurate readings where other sensor types may fail.

What is the significance of the 6°x6° lens antenna?

The integrated lens creates a narrow, focused 6°x6° radar beam. This design minimizes interference from surrounding structures, banks, or debris, effectively filtering out noise and multipath reflections to deliver cleaner, more reliable measurement data.

Can the WTR10 measure levels in fast-moving or turbulent water?

Yes. As a non-contact radar sensor, the WTR10 measures the distance to the water surface from above. It is not affected by water velocity, turbulence, or the presence of sediment and floating objects, making it ideal for rivers, channels, and other dynamic water bodies.

What output signal does the WTR10 provide, and how do I interface with it?

The WTR10 provides a processed distance output signal. For specific interface details (e.g., RS485, 4-20mA, or digital protocol), please consult the official NanoRadar datasheet. The sensor is designed for direct connection to data loggers, PLCs, or SCADA systems for continuous monitoring.

Package Includes

  • 1 x NanoRadar WTR10 60GHz Water Level Radar Sensor

Additional Information

Weight 0.101 kg
Dimensions 15 × 14 × 4 cm

Related Products

Out of Stock

Bosch GIC 12V-5-27 C Professional Endoscope Inspection Camera

30,039.00
Learn More
Out of Stock

Direct Extruder Kit 1.75mm for 3D Printers

579.00
Learn More
Out of Stock

LC1BD04 DC5V 4 Digital Water Liquid Level Indicator Module with Soldering

329.00
Learn More
Out of Stock

XKB TS-1185 SPST SMD Tactile Switch, 12V 50mA Round

2.95
Learn More
Out of Stock

PWM DC Motor Speed Regulator 12V 24V 10A

180.00
Learn More
Out of Stock

HUB-E Power Cube Cables - UAV Battery Power Set of 4

2,891.00
Learn More
Out of Stock

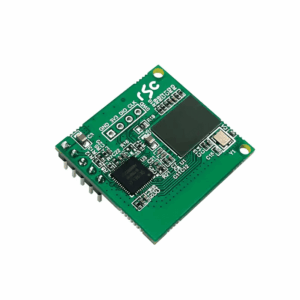

Hi-Link HLK-LD6001B 60GHz Trajectory Detection Radar Sensor

5,049.00
Learn More
Out of Stock

SIYI 4-18S BEC Module for HM30 Air Unit

3,509.00
Learn More
Out of Stock

KL600-3 433MHz 6-Button RF Remote Control (w/o Battery)

242.00
Learn More
Out of Stock

Benewake CE30-C 3D LiDAR Wide FOV Point Cloud Version - Solid-State ToF Sensor

74,900.00
Learn More
Out of Stock

SWYAM Smart WiFi Pump Controller for Home Assistant

1,799.00
Learn More
Out of Stock

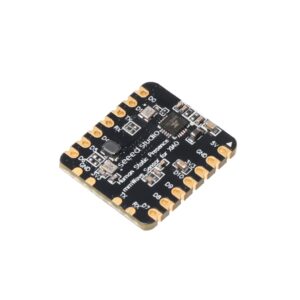

Seeed Studio Studio 24GHz mmWave Sensor for XIAO - Human Static Presence Detection Module
