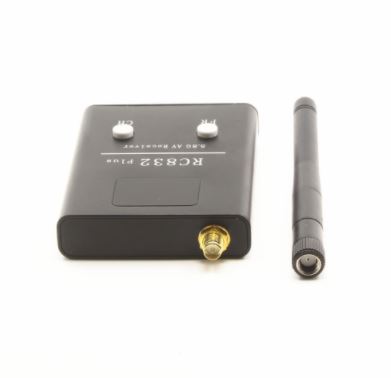

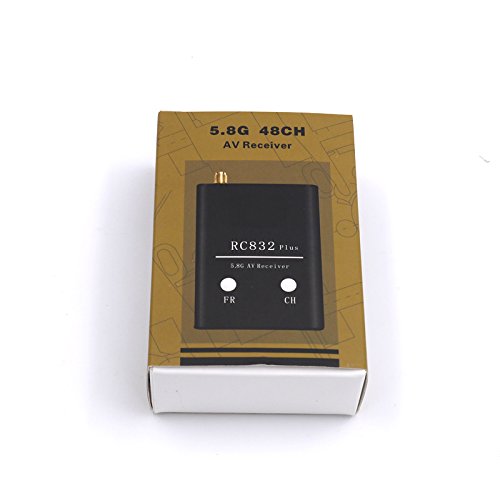

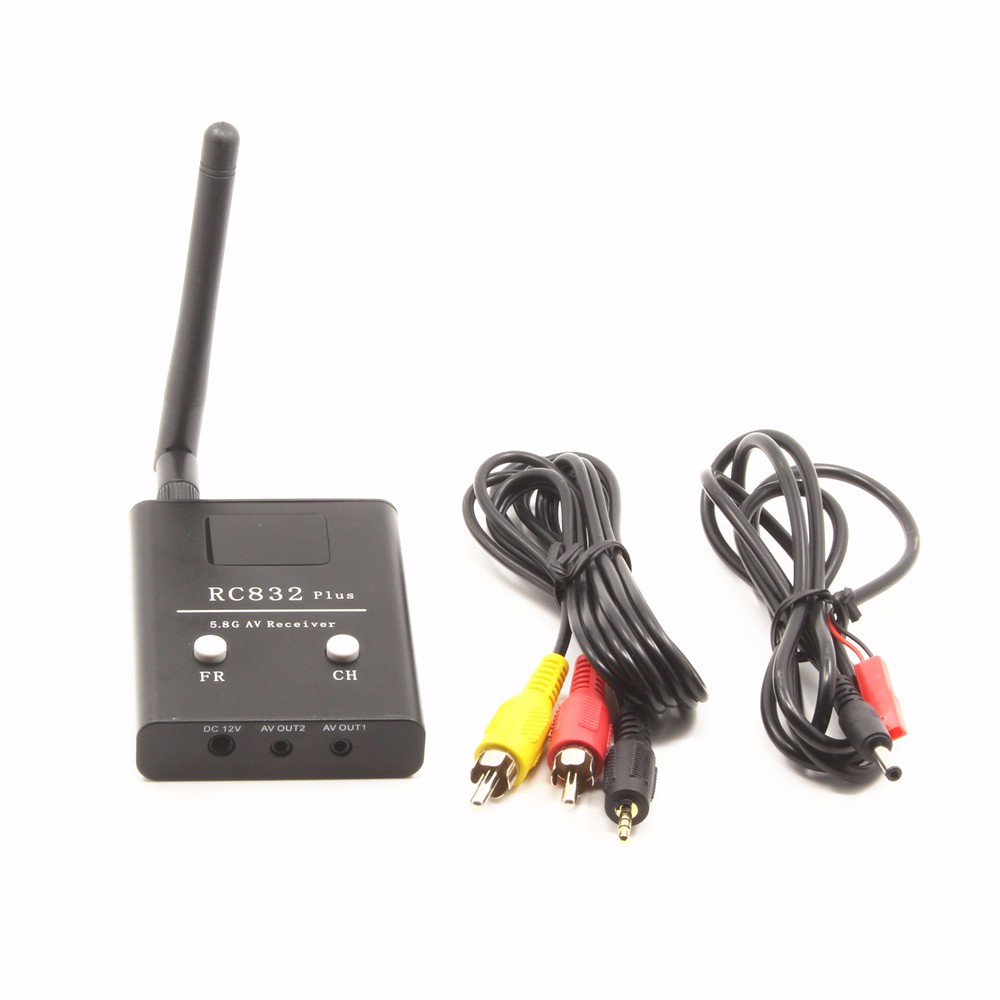

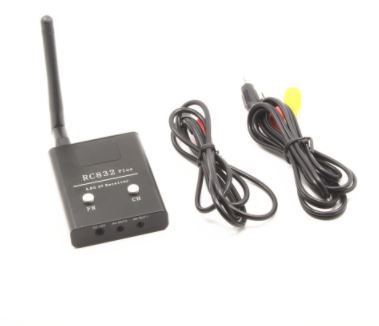

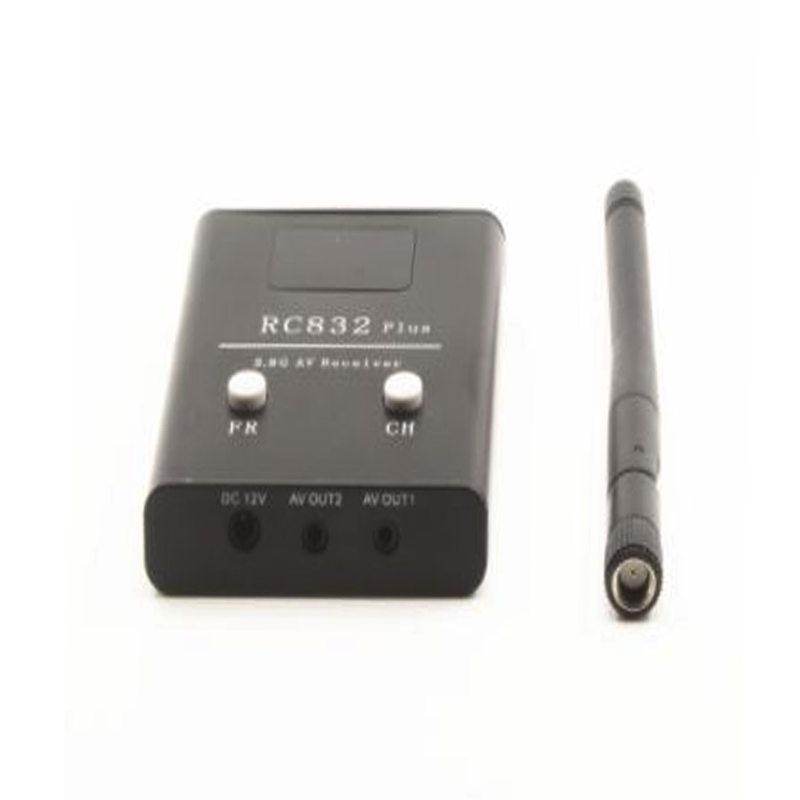

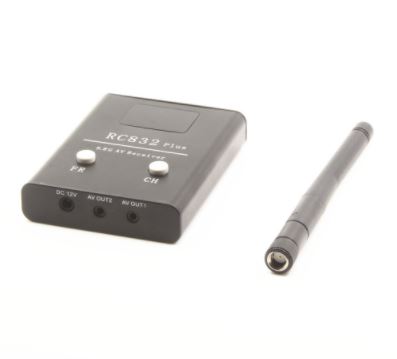

RC832 Plus 5.8G 48CH Wireless AV Receiver - Black
The RC832 Plus is a compact 5.8GHz 48-channel analog FPV video receiver designed for ground station integration, featuring dual independent AV outputs, a simple two-button interface, and a 12VDC power input compatible with 3S LiPo batteries.
Features
- 48-channel 5.8GHz receiver covering A, B, E, F, H, and L bands for comprehensive analog VTX compatibility.
- Compact form factor (80x65x15mm) with low 200mA max current consumption for easy portable ground station builds.
- Dual independent video and audio outputs for simultaneous connection to goggles, monitors, or DVRs.
- Simple two-button interface with digital display and power-off memory for last-used channel and band.
- Operates on 12VDC via included power cable, making it directly compatible with 3S LiPo batteries in the field.
Out of stock
The RC832 Plus 5.8G 48CH AV Receiver is engineered for reliable analog FPV video reception in a compact, user-friendly package. Its 48-channel spectrum covers all standard 5.8GHz bands (A, B, E, F, H, L), providing extensive compatibility with common analog video transmitters and minimizing interference through channel selection.
Designed for integration into portable ground stations, the receiver features a straightforward two-button control scheme paired with a two-digit display, allowing pilots to quickly swap channels and bands. The unit retains its last-used settings upon power cycling. Dual RCA-style AV outputs enable simultaneous feed splitting to goggles and recording devices without signal degradation.
Additional Information
| Weight | 0.085 kg |
|---|---|
| Dimensions | 8 × 6.5 × 1.5 cm |
