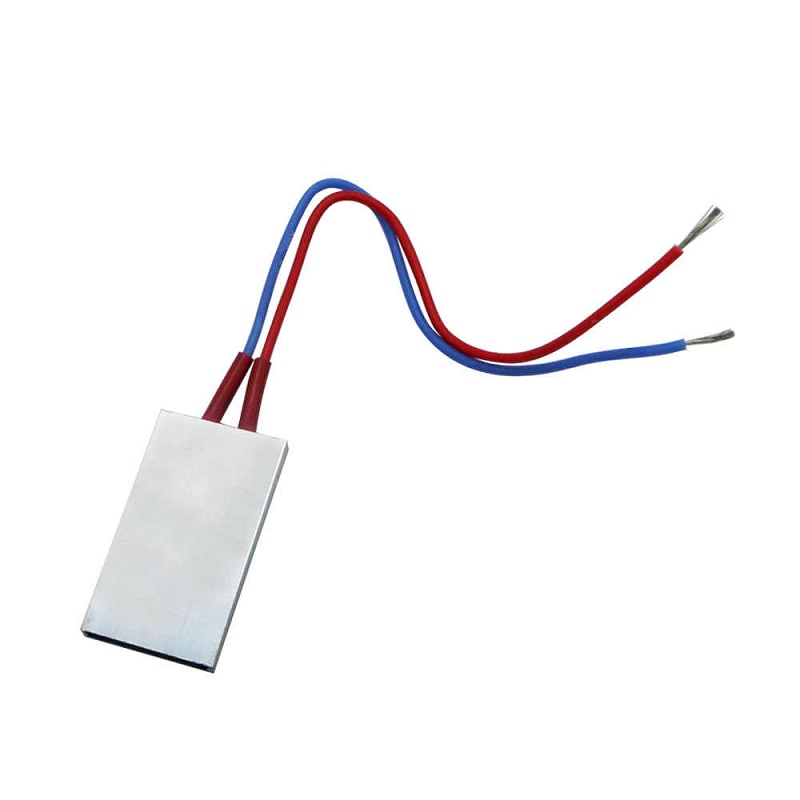

Generic PTC Heating Element - 12V 30W, 120°C Surface Temp, Aluminum Shell

This heater is designed for a nominal 12V DC supply. Operating it significantly outside this voltage (e.g., at 24V) will cause it to overheat and potentially fail, as the PTC's self-regulating characteristic is calibrated for 12V. Always use a power supply rated for at least 30W when connecting this element.

No, this element is specified for dry heating applications only. Its construction is not sealed for immersion or liquid contact. Using it in liquid could cause electrical short circuits, damage the component, and create a safety hazard. It is intended for heating air or surfaces in a dry environment.

Connect the two silicone-insulated lead wires to your 12V DC power source, observing polarity is not required for resistive heating. For mounting, the aluminum shell can be mechanically fastened using brackets or thermal adhesive to the target heating surface or appliance housing to ensure efficient heat transfer and secure placement.

Typically, no. The PTC (Positive Temperature Coefficient) thermistor is self-regulating; its resistance increases as it heats, naturally limiting the current and stabilizing its temperature around 120°C under proper airflow and load conditions. An external controller is only needed if precise temperature modulation outside its inherent setpoint is required.
