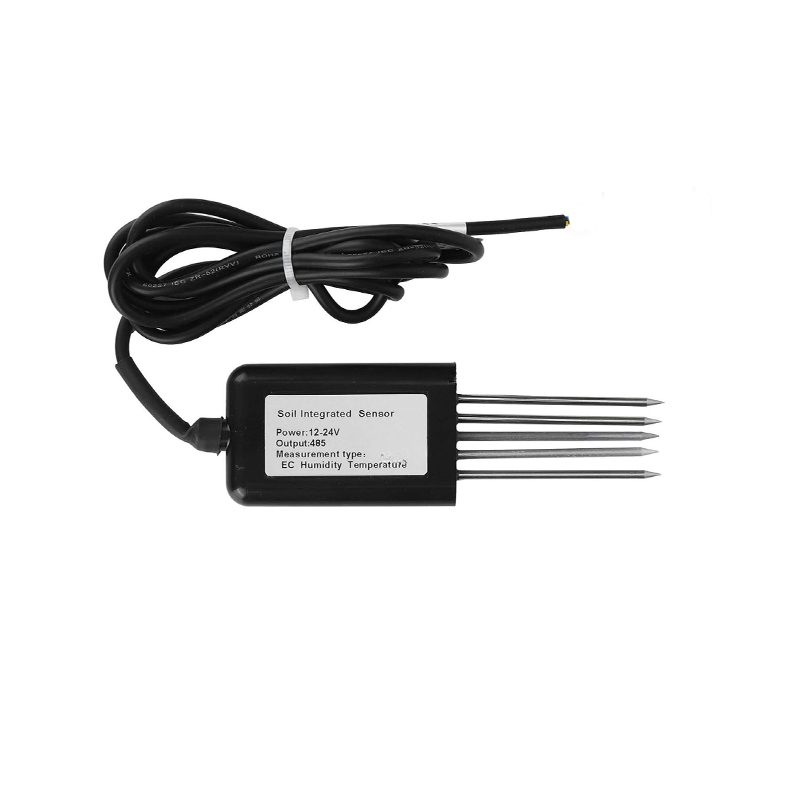

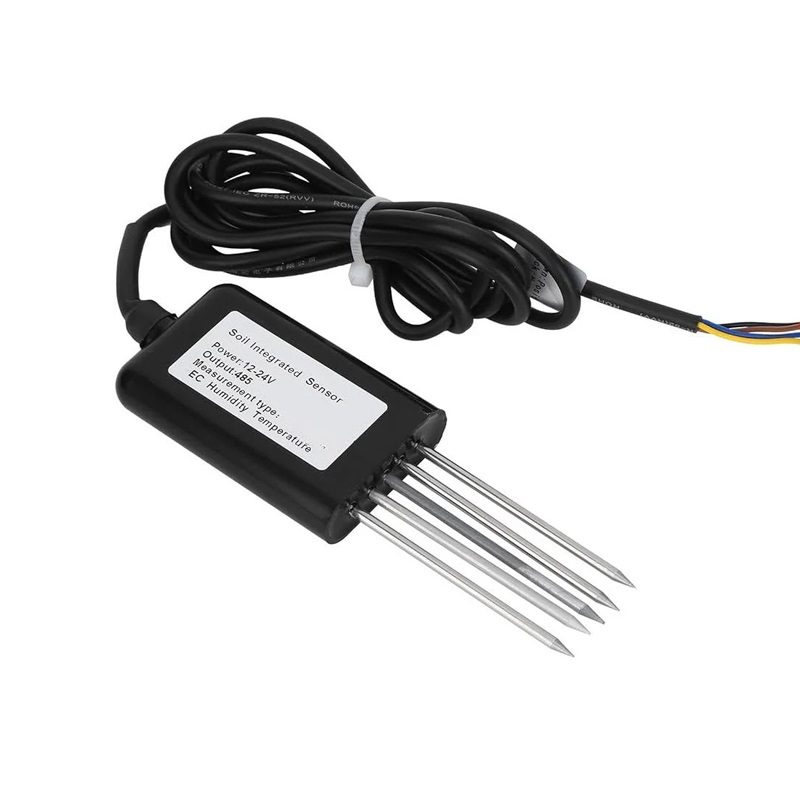

JXBS-3001-TR RS485 4-in-1 Soil Sensor - pH, EC, Temperature & Moisture
The JXBS-3001-TR is a multi-parameter RS485 soil sensor designed for precision agriculture and environmental monitoring, providing simultaneous measurement of soil moisture, temperature, electrical conductivity (EC), and pH levels for integration with PLCs, data loggers, and IoT systems.
Features
- Simultaneous 4-in-1 measurement of soil moisture, temperature, EC, and pH.
- RS485 Modbus output for robust, long-distance communication in industrial and field applications.
- Vacuum potted, fully waterproof construction for long-term burial and durability.
- Fast response time of <1 second per parameter for real-time monitoring.
- Low sensitivity to soil salinity, ensuring stable readings across diverse soil types.
Out of stock
The JXBS-3001-TR soil sensor integrates multiple sensing elements into a single, rugged probe for comprehensive soil analysis. It utilizes advanced electrode and dielectric measurement principles to deliver accurate readings of volumetric water content, temperature, electrical conductivity (a proxy for total dissolved salts/nutrients), and pH level. The sensor’s signal is conditioned and transmitted via a standard RS485 interface using the Modbus RTU protocol, making it compatible with a wide range of industrial PLCs, SCADA systems, and data acquisition units.
Engineered for harsh environmental conditions, the sensor body is vacuum potted to achieve IP68-equivalent waterproofing, providing exceptional resistance to long-term electrolysis, corrosion, and physical degradation when buried. Its low power consumption and wide 12-24V DC operating voltage range allow for flexible deployment in both solar-powered remote stations and wired monitoring networks, delivering reliable data for precision irrigation, fertigation control, and soil health assessment.
Additional Information
| Weight | 0.151 kg |
|---|---|
| Dimensions | 12.5 × 4.5 cm |
