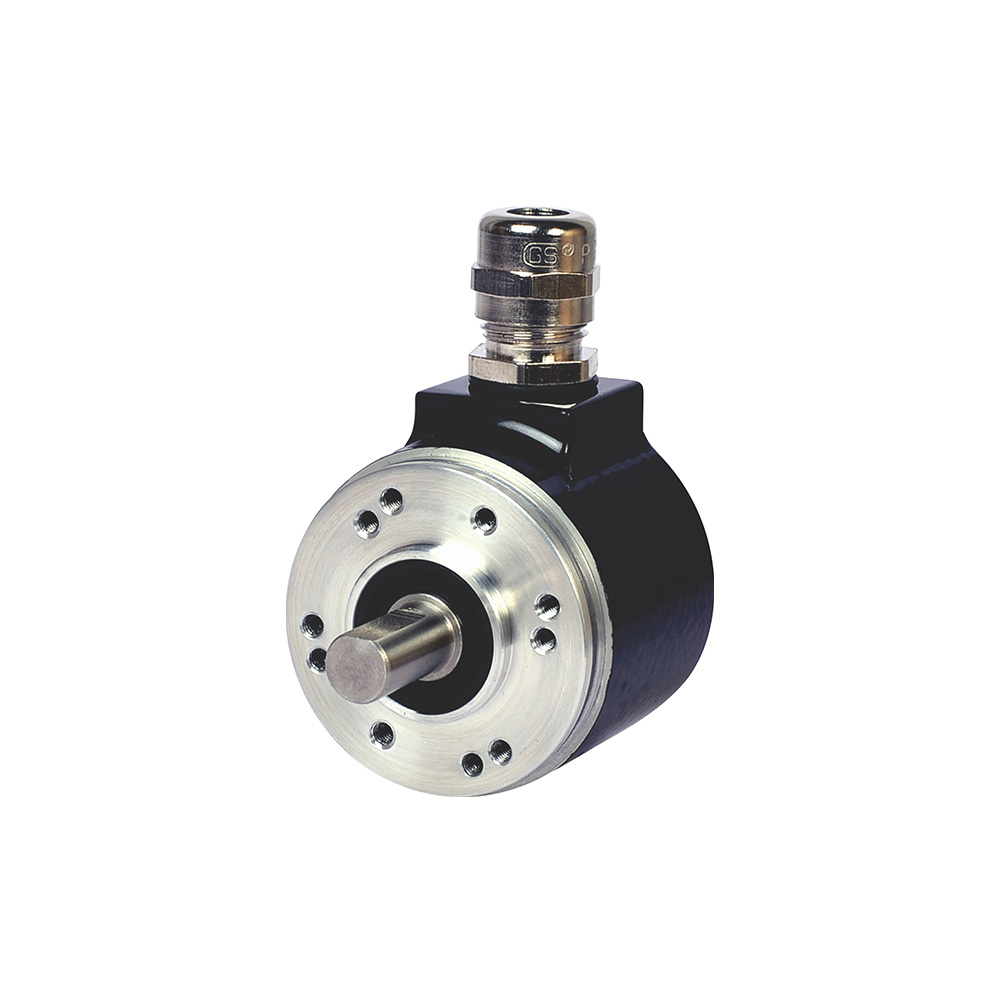

Jencoder J-40S (SG) Shaft Encoder - 40mm Size, 4500 RPM, IP54, Stainless Steel Shaft

The Jencoder J-40S encoder is designed to accommodate shaft sizes up to 8mm in diameter. It is crucial to ensure proper shaft alignment and use appropriate couplings to prevent excessive radial or axial load on the encoder bearings, which are rated for 4kg radial and 2kg axial loads.

The IP50 rating indicates protection against limited dust ingress with no protection against water. The IP54 rating provides a higher level of defense against dust and protection against water splashes from any direction. The IP54 variant has a slightly lower maximum operating temperature (+70°C vs. +100°C for IP50). Select based on your environmental conditions.

The provided MPN (J-40S-R-HV-2000-V3-8-M2-1-S-SG-N-2M) indicates a specific configuration. Typically, Jencoder encoders offer standard incremental quadrature outputs (A, B, Z) with line driver (differential) or open-collector interfaces. The exact output type (HV suggests high voltage line driver), resolution (implied by '2000'), and connector type (M2-1-S) are defined by this part number. Consult the full datasheet for wiring details.

Mount the encoder using its threaded gland or flange to a stable surface. The shaft must be coupled using a flexible coupling to compensate for minor misalignments. Avoid imposing any bending moment on the shaft. Ensure the maximum radial and axial load limits (4kg and 2kg respectively) are not exceeded during operation to prevent premature bearing failure.
